Flexible base frame SM 4330

$2,995.00

The electric spindle driven lifting column SM 1300 is an economical lifting column solution to support base frames and workstation lift columns, that require heavy lifting capacities.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

Buy 1 - 2 pieces
$2,995.00
Total:
$2,995.00
Buy 3 pieces and save 5%
$2,995.00
$2,855.00
Total:
Buy 4 pieces and save 5%
$2,995.00
$2,855.00
Total:
x
SKU: 902.51208 Category:

Additional information

Weight 46 lbs
Dimensions 26 × 14 × 6.5 in
Application

Ergo catering, Intralogistics, Manufacturing, Medical device

Business area

Ergo assembly, Ergo care, Ergo catering, Ergo industry

Retracted height

22.3” (566 mm)

Extended height

34.1” (866 mm)

Lifiting speed

0.35” / sec (9 mm / sec)

Max load

2,200 lbs (1,000 kg)

Max stroke

11.81” (300 mm)

Number of Lifts

4

Weight

Heavy weight

Description

Its compact, yet strong base column, is consisting of a 5.9” x 2.76” (150×70 mm) anodized aluminum extrusion with three faces of our standard Ergoswiss T-Slot geometry (8 mm width) for easy integration.

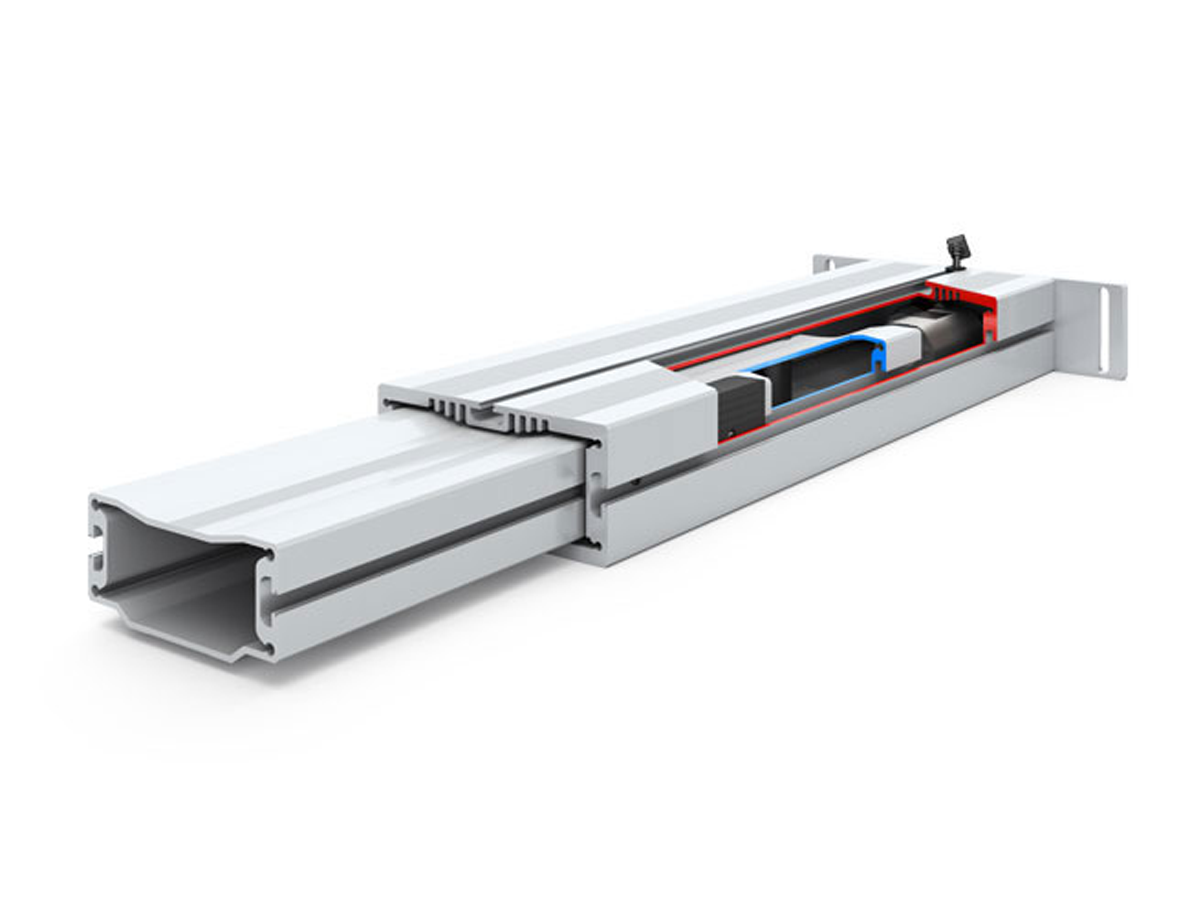

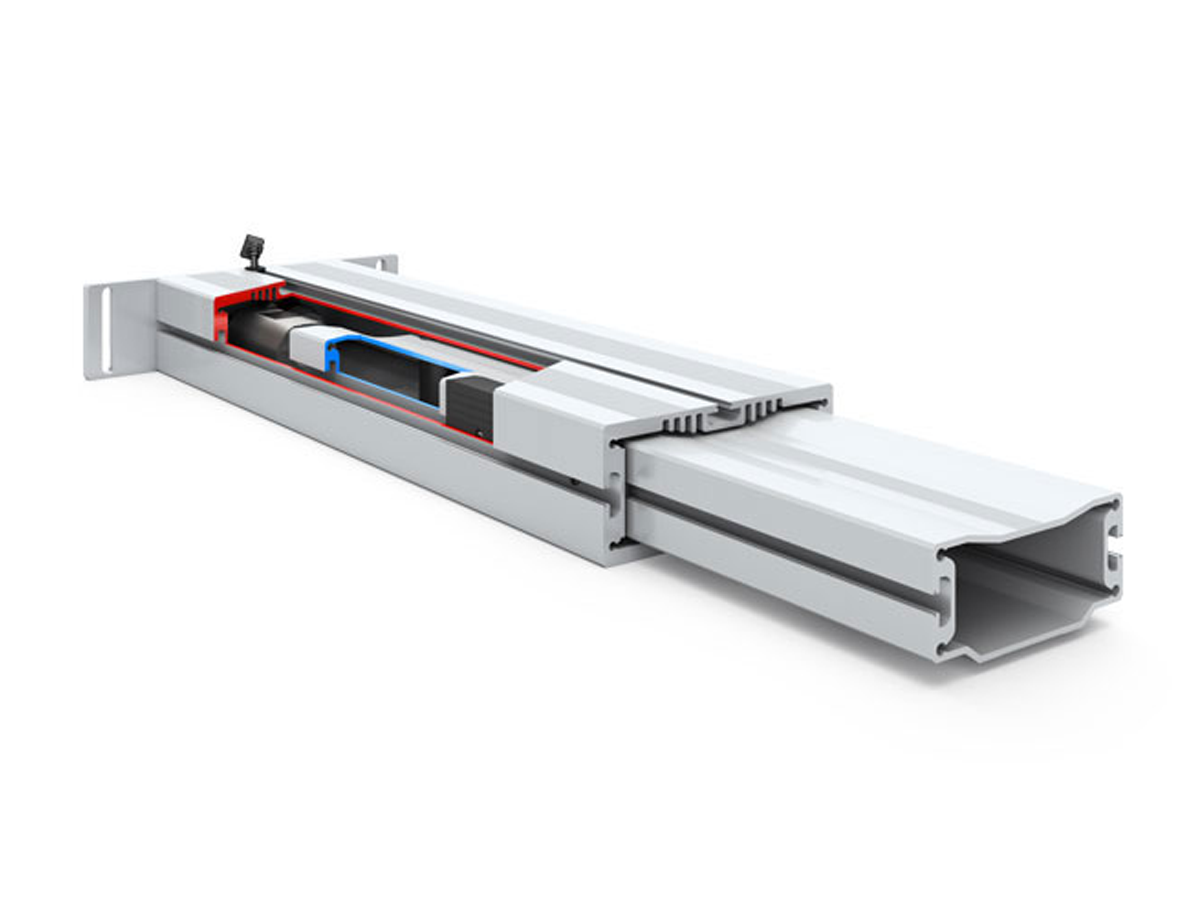

Each lifting column includes an internal motor and spindle drive that is synchronized by a control box. Each column includes a 70” motor cable to connect to the control box.

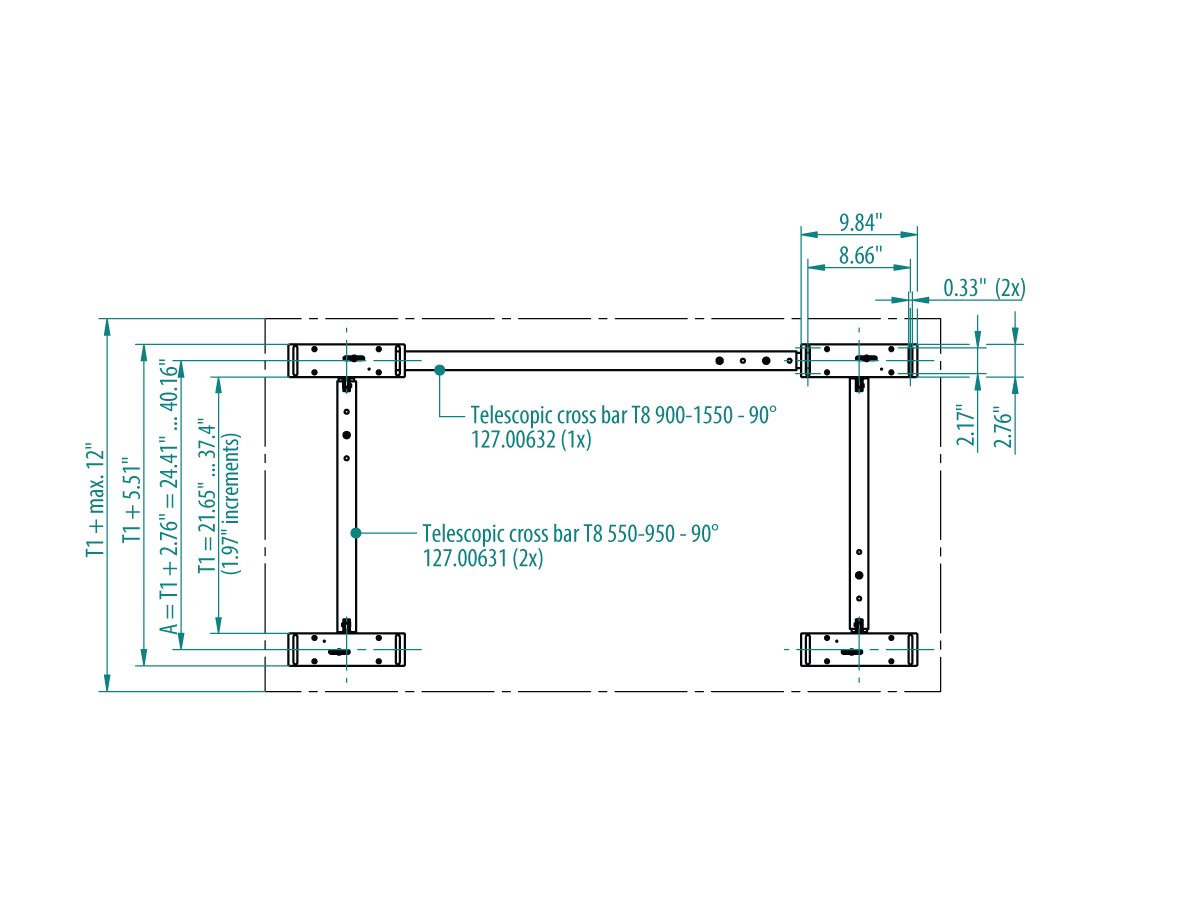

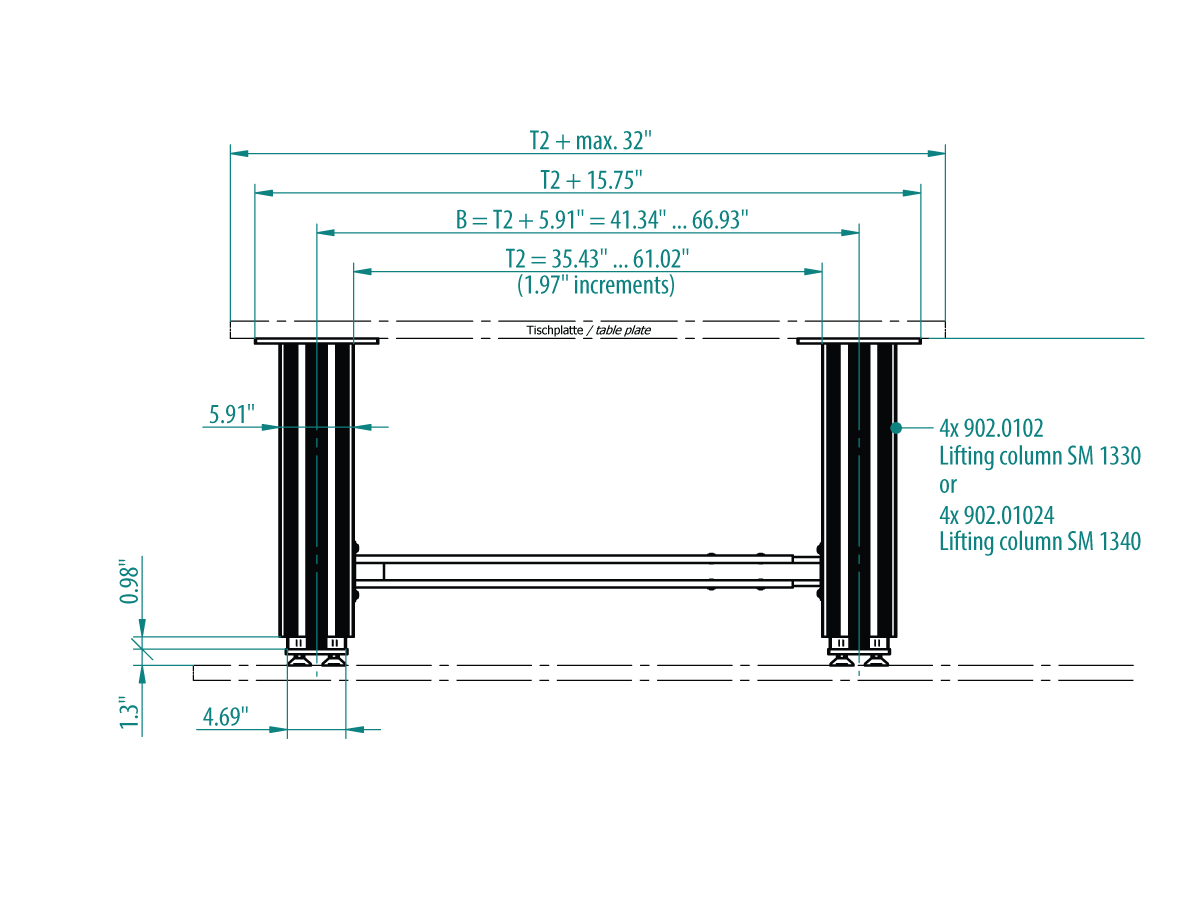

The frame crossbars are adjustable every 2” to accommodate different workstation setup widths. The two telescopic side cross bars can be adjusted from 21.65” (550 mm) to 37.40” (950 mm). The telescopic main cross bar can be adjusted from 35.43” (900 mm) to 61.02” (1550 mm).

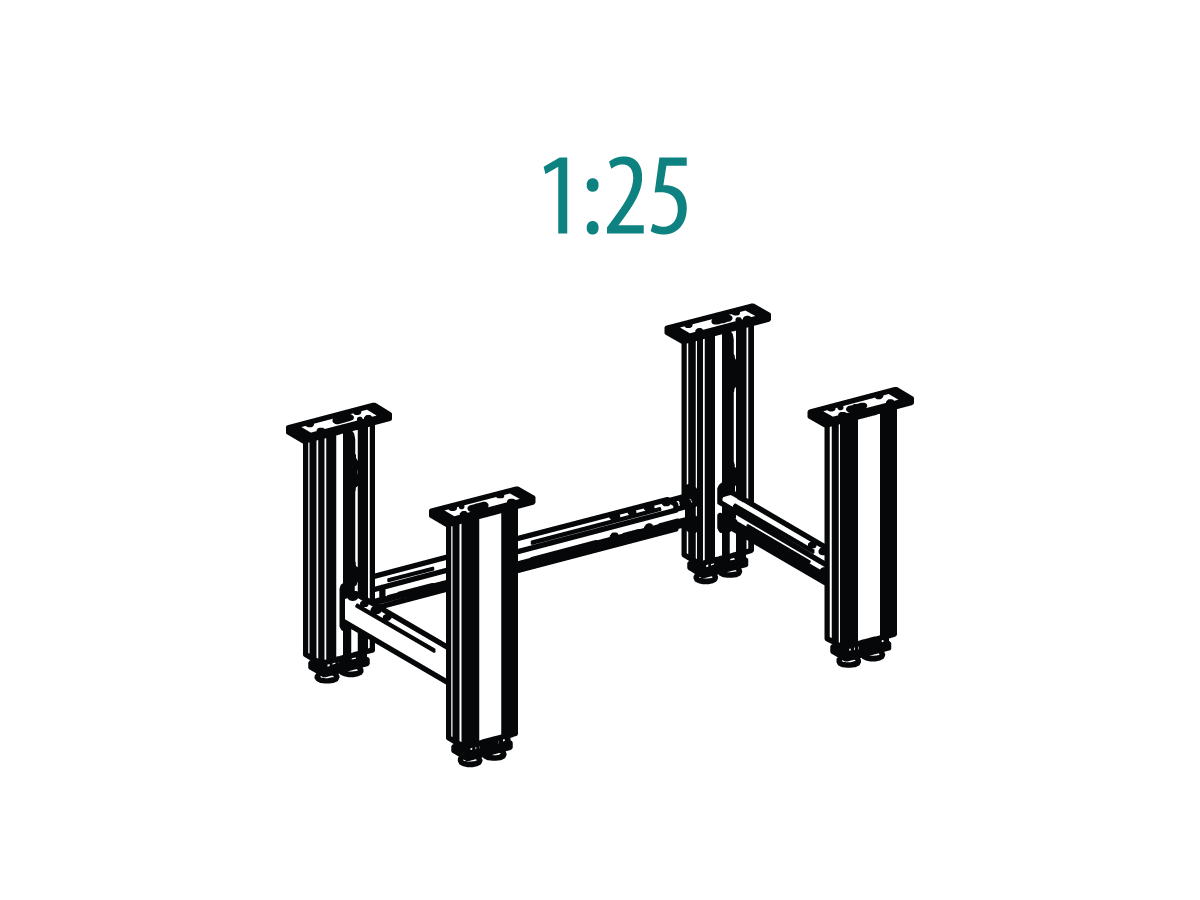

An SM 4330 US 02 flexible base frame set consists of:

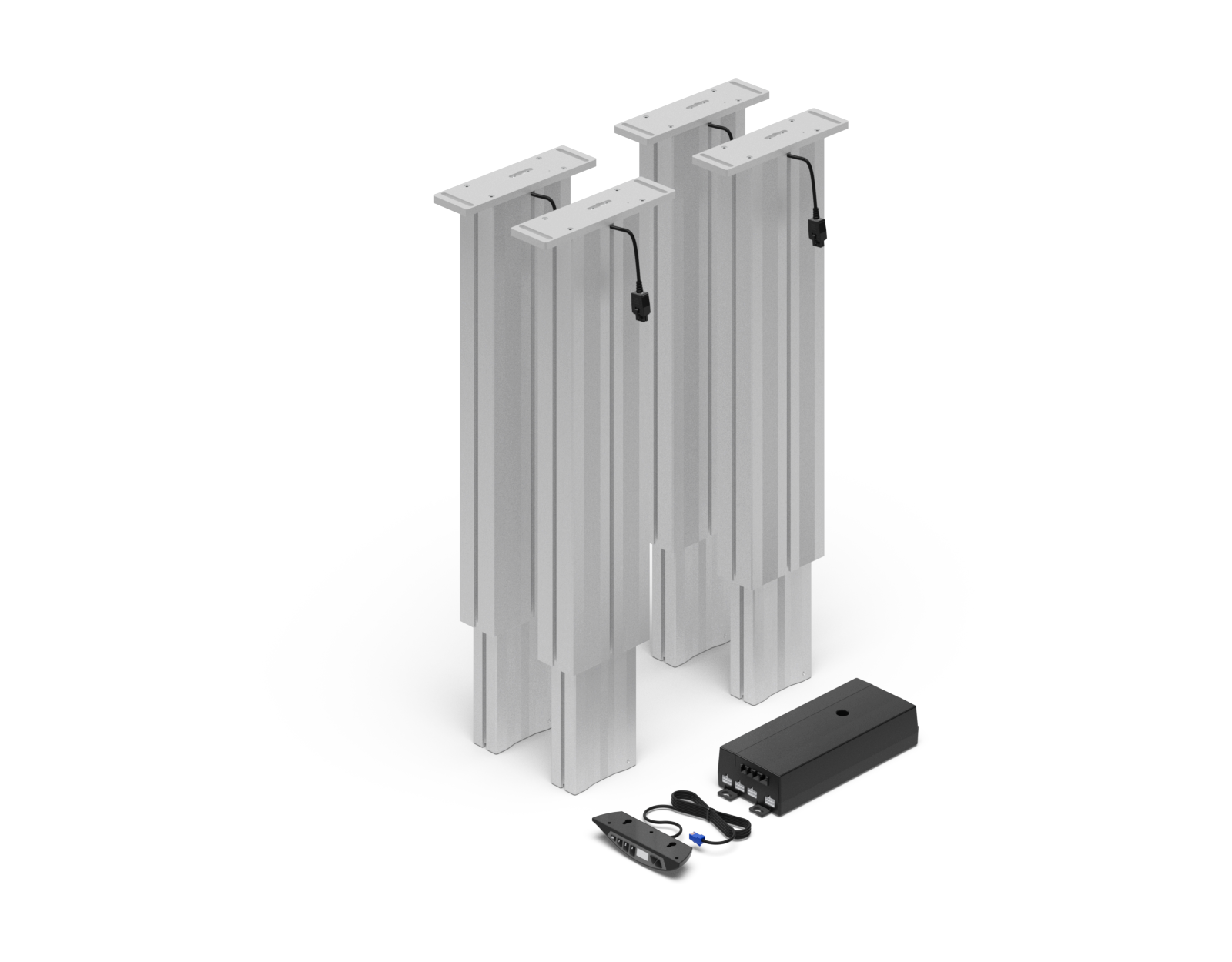

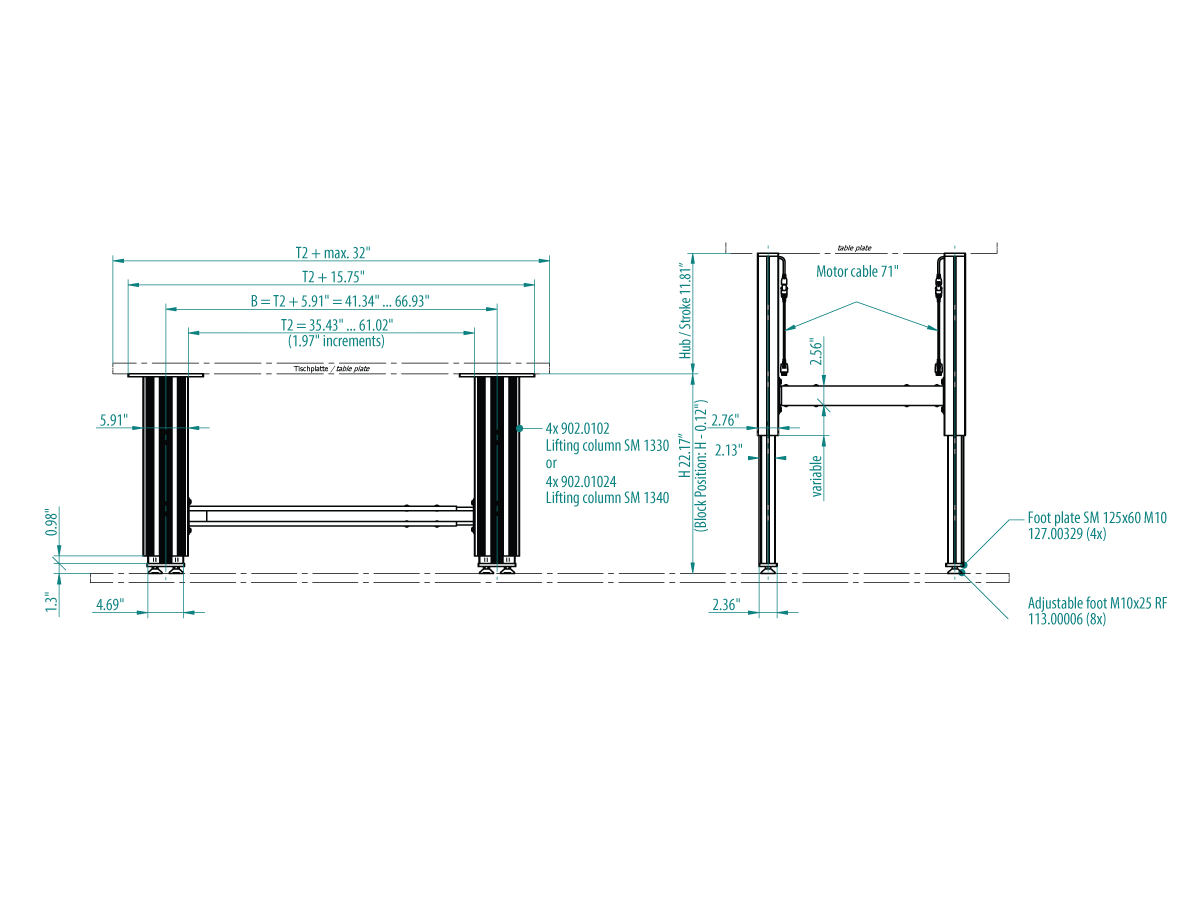

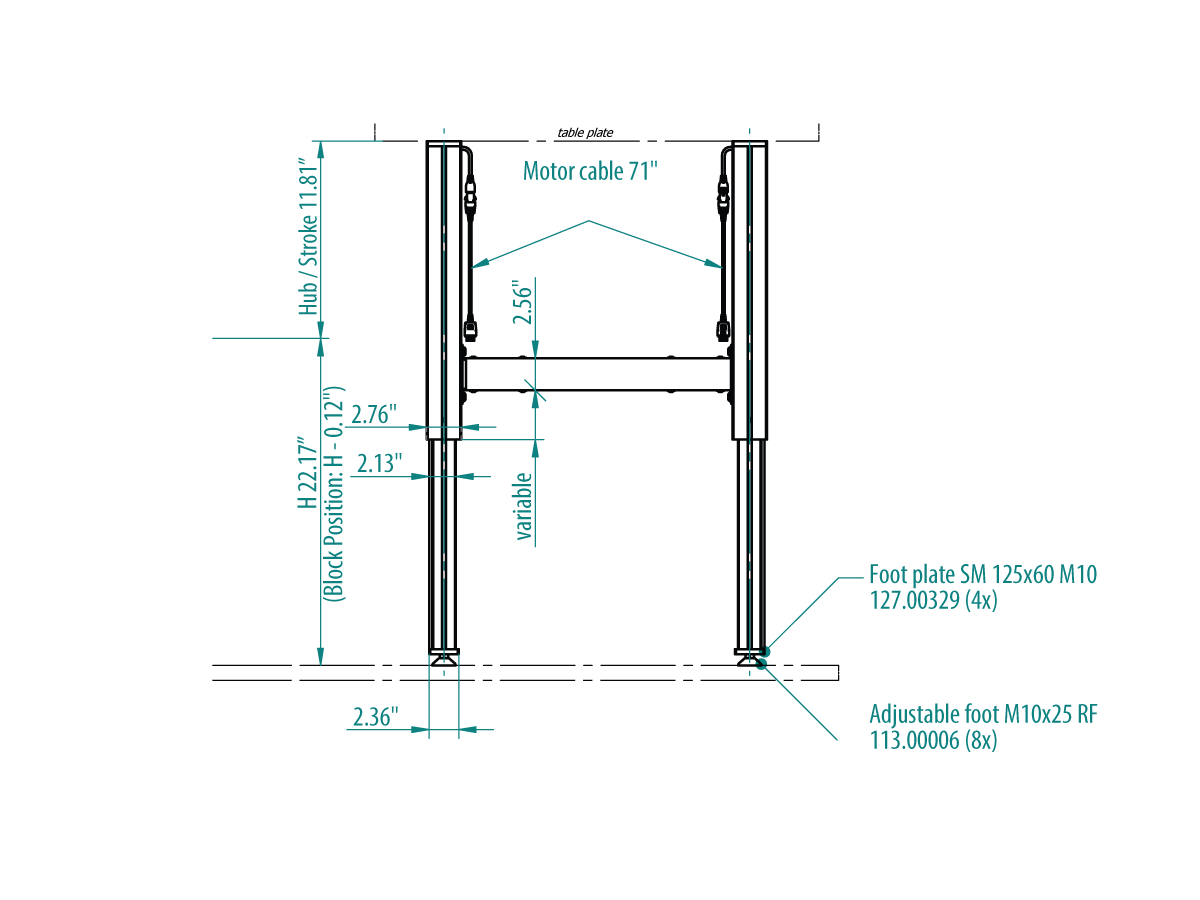

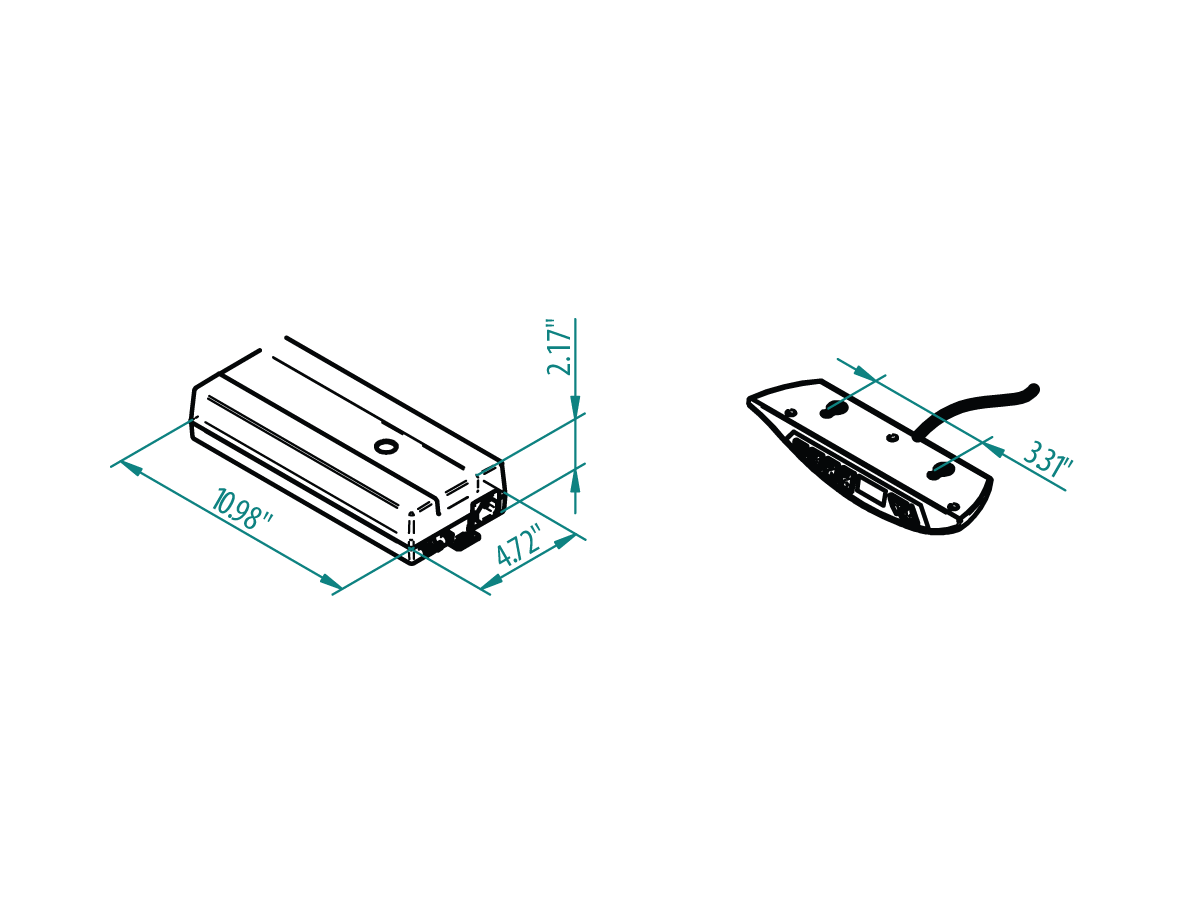

1 x 902.41236 (4x Lifting column SM 1330 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory), 2 x 127.00631 telescopic cross bars 21.65”-37.40”, 1 x 127.00632 telescopic cross bar 35.43”-61.02”, connection hardware, 4 x foot plate #127.00329, 8 x Level foot M10x25 #113.00006

Technical data

Performance data lifting column SM4330
Number of lifting columns: 4
Max load: 2,200 lbs (1,000 kg) – includes weight of frame for a 4-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed: 0.35” / sec (9 mm / sec)
Stroke: 11.81″ (300 mm)
Base / retracted height: 22.3” (566 mm)
Extended height: 34.1” (866 mm)
Duty cycle E/D (On/Off): 2 / 40 min
