Lifting system EA 2665 US 42

$514.00

The new LiteLine EA two-leg lifting system from Ergoswiss is a robust, industrial-grade, electric spindle-driven column solution engineered for light-duty applications. Each steel triple extension column delivers a 25.59″ (650 mm) stroke and features a low built-in height, making the system easy to integrate. The quick-ship kit includes two EA columns, a memory remote, and a controller, all ready for installation.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$514.00
Total:
$514.00
Buy 3+ pieces and save 13%
$514.00
$447.00
Total:
x
SKU: 801.20048-PP01 Category:

Additional information

Weight 39.6 lbs
Dimensions 30.7 × 11 × 5.91 in
application

Intralogistics, Manufacturing, Medical device
business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

23.03” (585 mm)
Extended height

48.62” (1232 mm)
Lifiting speed

0.78” / sec (20 mm / sec)
Max load

440 lbs (200 kg)
Max stroke

25.59” (650 mm)
Number of Lifts

2
Size-diameter

2.95” x 2.95” (75 x 75 mm)
Stability

4.5 stars (Outstanding)
Weight

Light weight
STEP file

PDF files

Coming soon.

Description

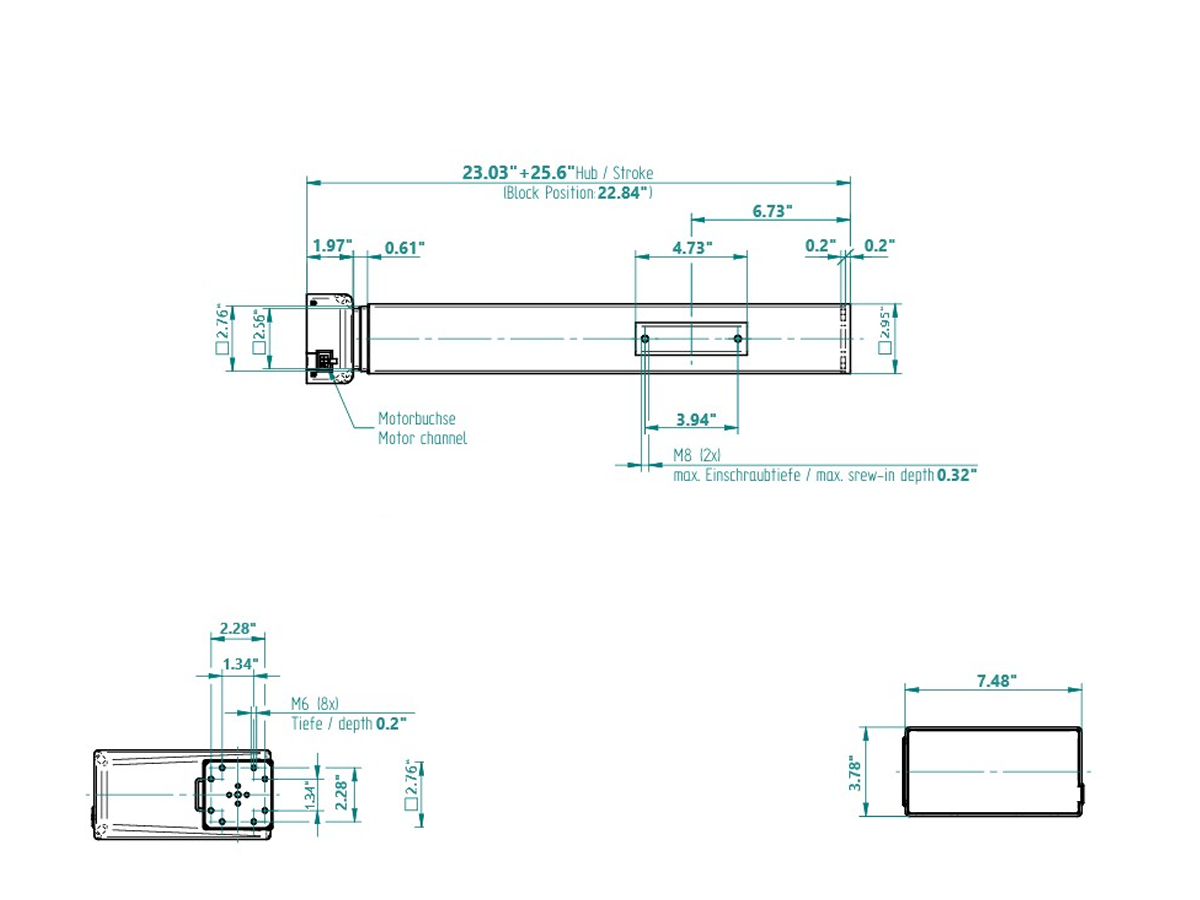

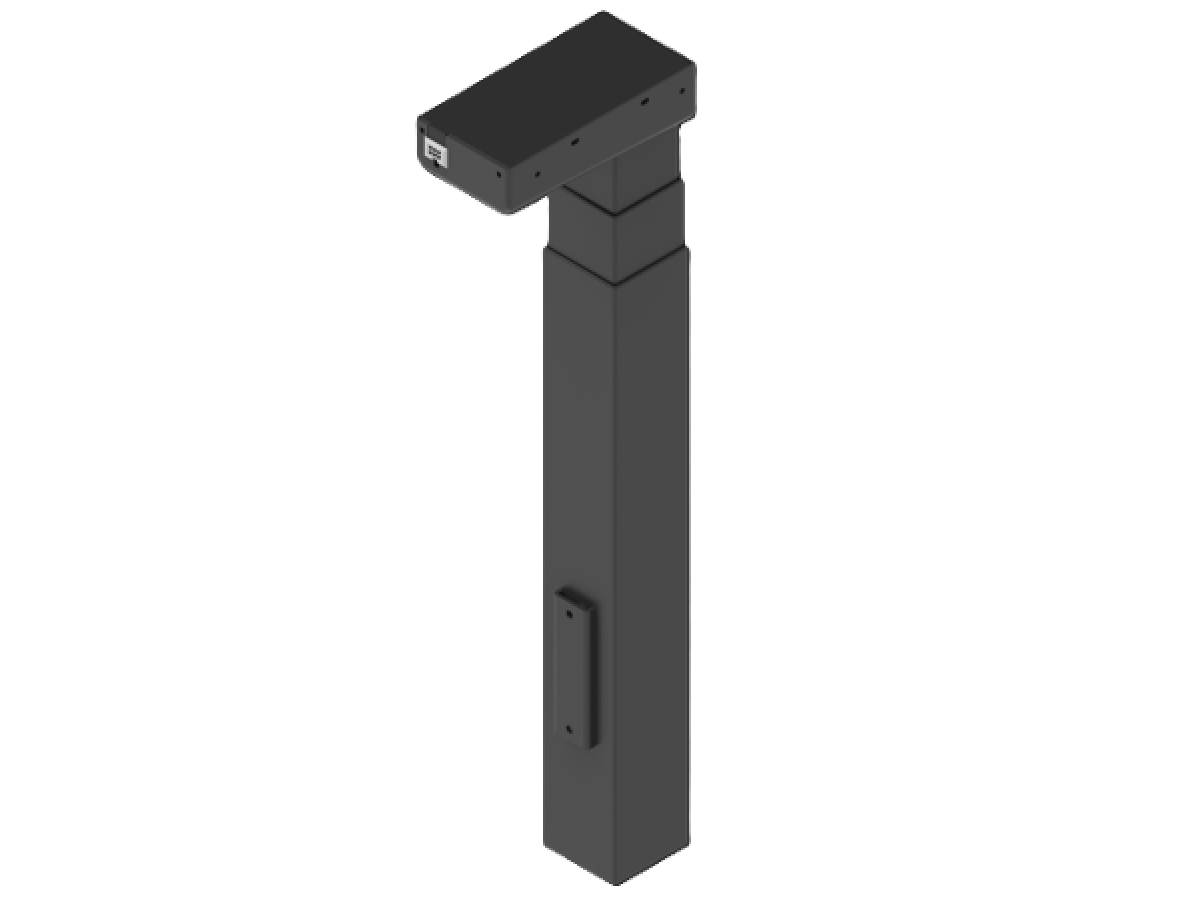

The EA 2665 US 42, part of the Ergoswiss LiteLine, is a two-leg industrial-grade, electric spindle-driven column solution engineered for light-duty applications. Each charcoal steel (RAL 7021) triple extension column delivers a 25.59″ (650 mm) stroke and features a low built-in height, making the system easy to integrate into a wide range of ergonomic workstations and automated setups. Engineered for stability (2.95” x 2.95”), the columns withstand moderate bending, torsion, and shear forces when extended. The system ships as a complete, ready-to-install solution.

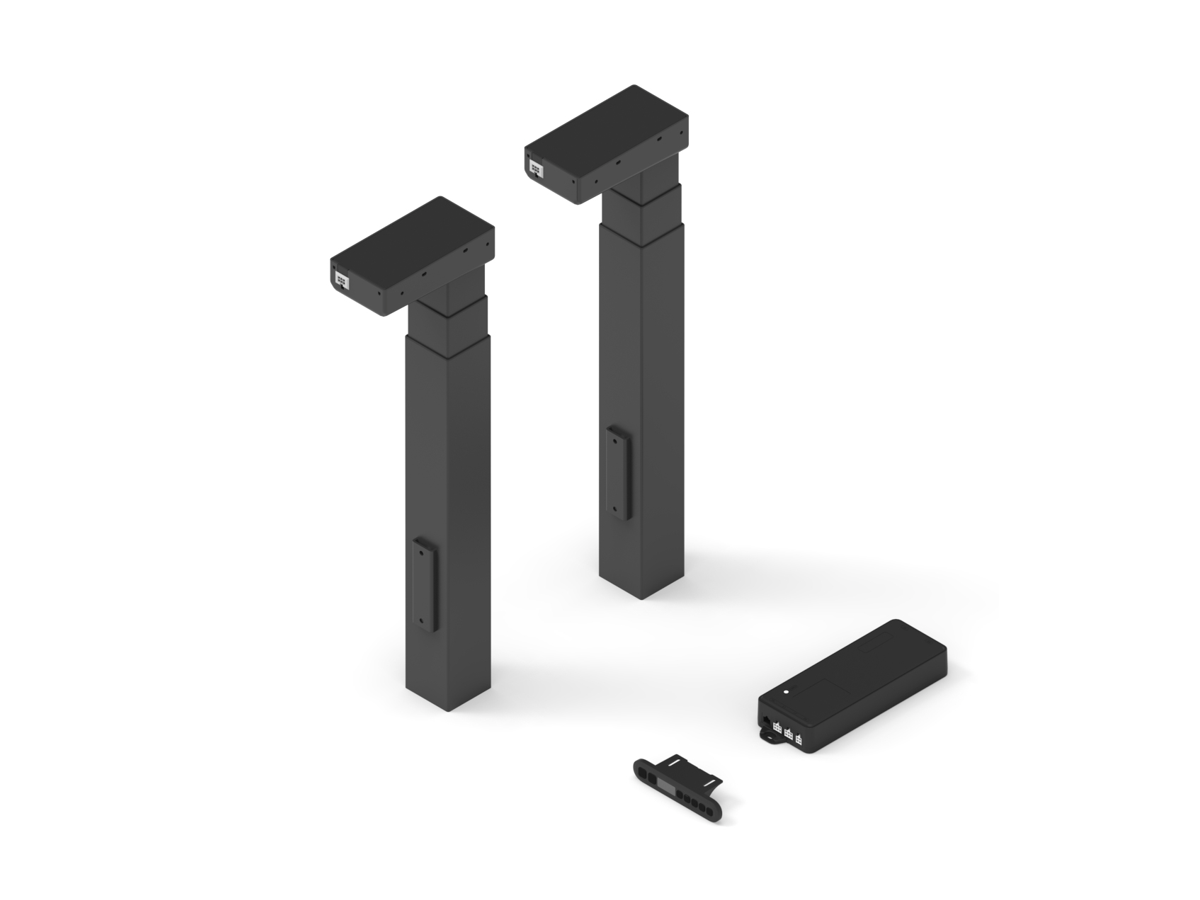

An EA 2665 US 42 Quick ship set consists of:

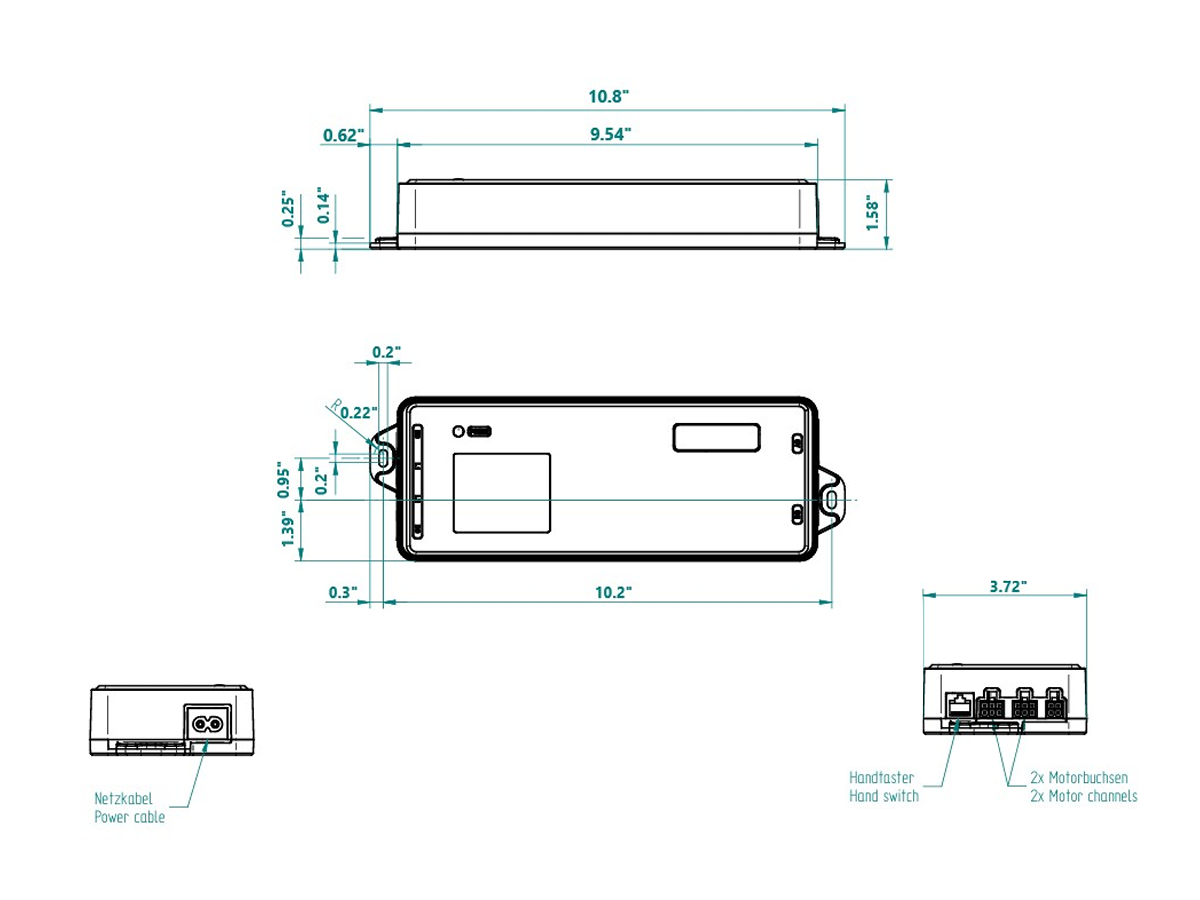

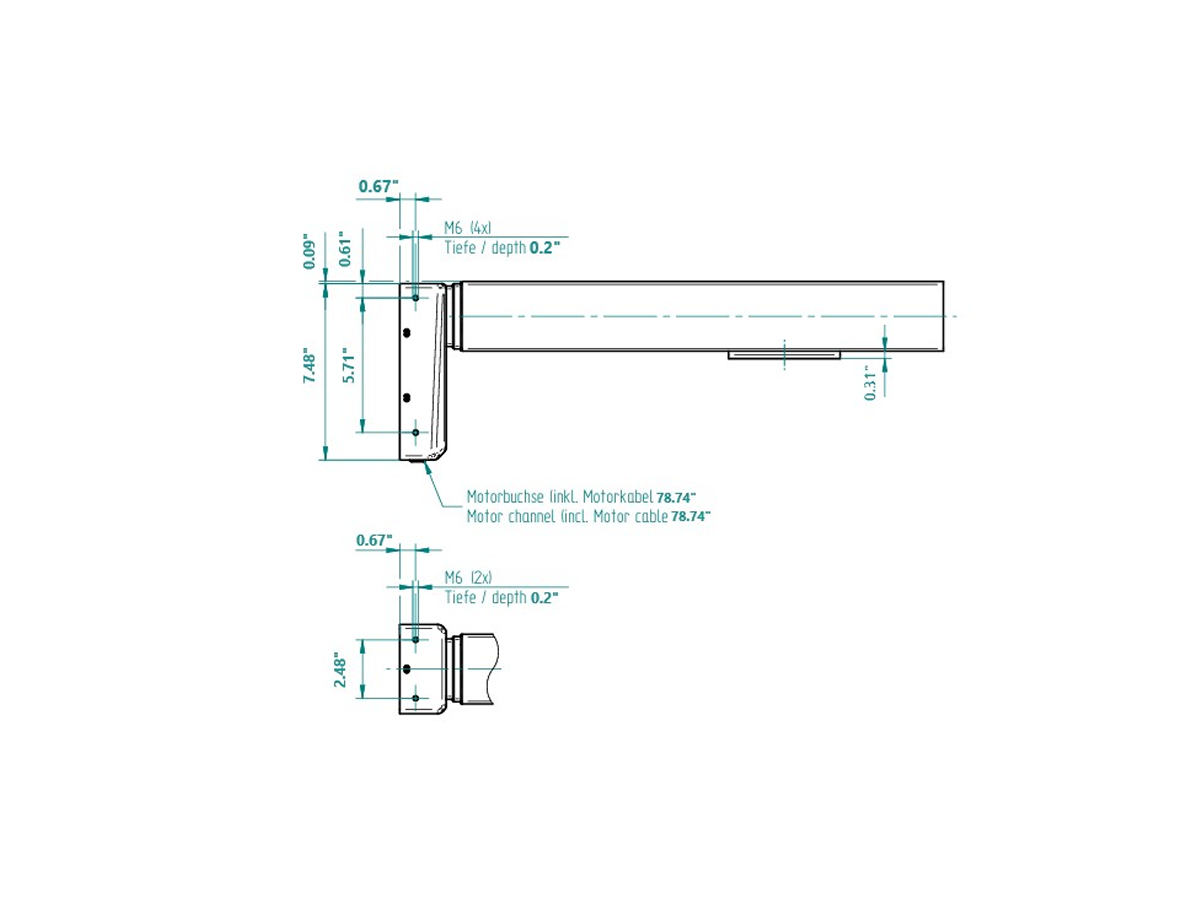

2x Lifting column EA with 79” connection cable / 1x Control box with a Power cable US / 1x Cable remote control Memory (79” cable)

Technical data:
Performance data lifting column EA 1665
Number of lifting columns 2
Max load: 440 lbs (200 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 220 lbs / 100 kg per column
Max. pulling force: Fstatic 112 lbf (500 N) / Fdyn 22 lbs / 50 N
Lifting speed: 0.79” / sec (20 mm / sec)
Stroke: 25.59″ (650 mm)

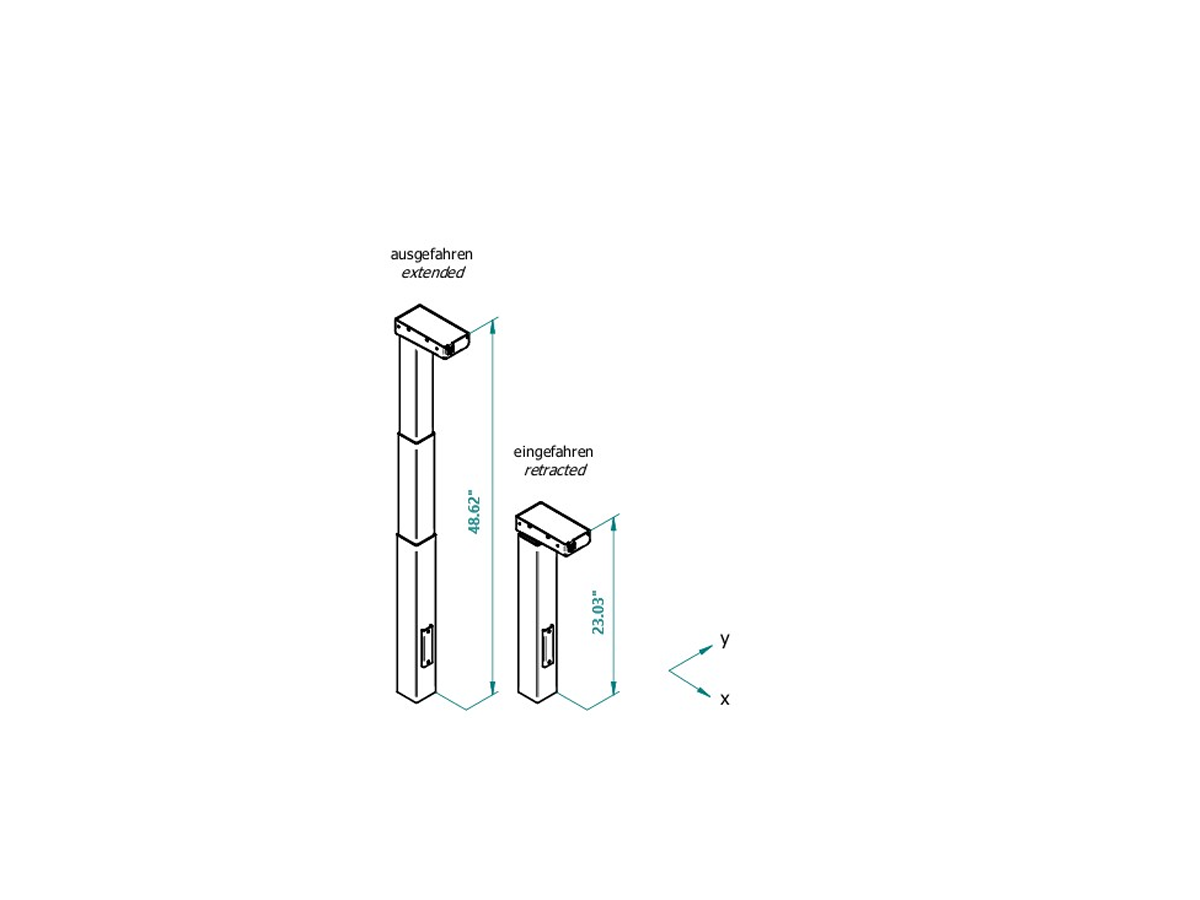

Base / retracted height: 23.03” (585 mm)
Extended height: 48.62” (1232 mm)
Duty cycle: E/D (On/Off) 2 / 18 min
