Lifting system EA 4665 US 42

$1,036.00

Four EA columns, each with 25.59″ (650 mm) of travel from a low installed height. The four-point layout is what you need when the bench is wide, when load is distributed rather than central, or when a worktop would flex on two supports alone. Charcoal steel (RAL 7021) triple-extension columns at 2.95″ x 2.95″, from the light-duty Ergoswiss LiteLine range.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$1,036.00
Total:
$1,036.00
Buy 3+ pieces and save 13%
$1,036.00
$901.00
Total:
x
SKU: 801.20108-PP01 Category:

Additional information

Weight 39.6 lbs
Dimensions 30.7 × 11.41 × 5.91 in
application

Intralogistics, Manufacturing, Medical device
business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry

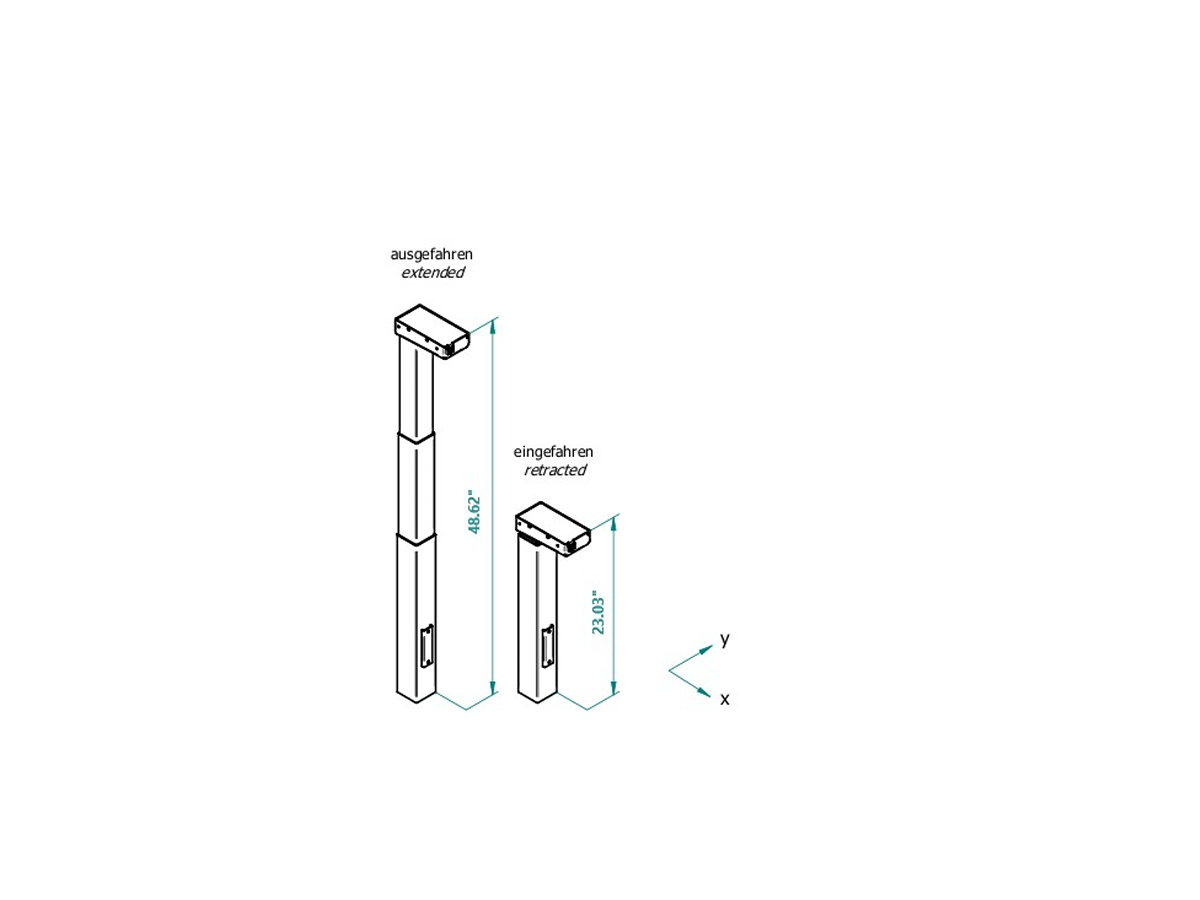

Retracted height

23.03” (585 mm)
Extended height

48.62” (1232 mm)
Lifiting speed

0.78” / sec (20 mm / sec)
Max load

880 lbs (400 kg)
Max stroke

25.59” (650 mm)
Number of Lifts

4
Size-diameter

2.95” x 2.95” (75 x 75 mm)
Stability

4.5 stars (Outstanding)
Weight

Light weight
STEP file

PDF files

Coming soon.

Description

Four EA columns, each with 25.59″ (650 mm) of travel from a low installed height. The four-point layout is what you need when the bench is wide, when load is distributed rather than central, or when a worktop would flex on two supports alone. Charcoal steel (RAL 7021) triple-extension columns at 2.95″ x 2.95″, from the light-duty Ergoswiss LiteLine range.

If the load is central and the span modest, the two-column EA 2665 US 42 is the simpler option. Complete frames with crossbars and feet are available as EA base frames.

An EA 4665 US 42 Quick ship set consists of:

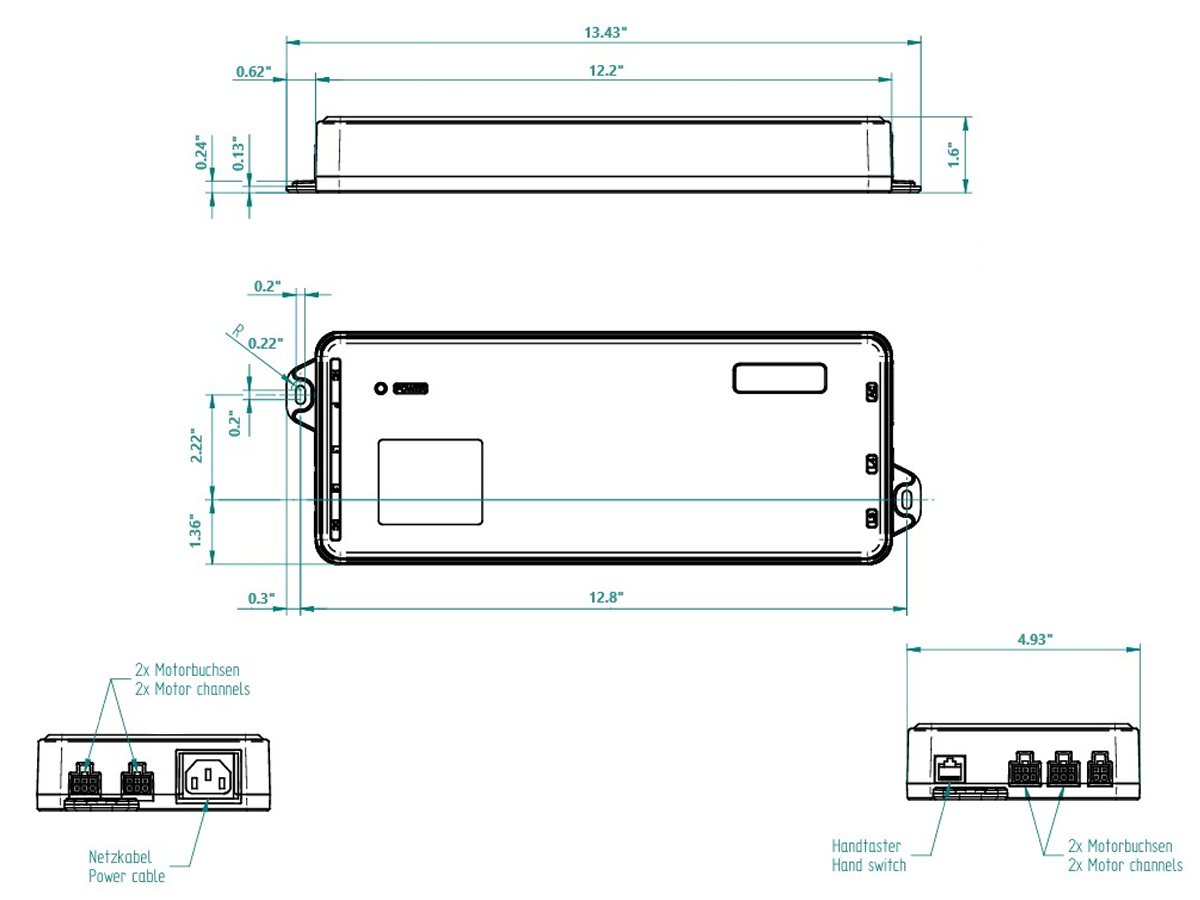

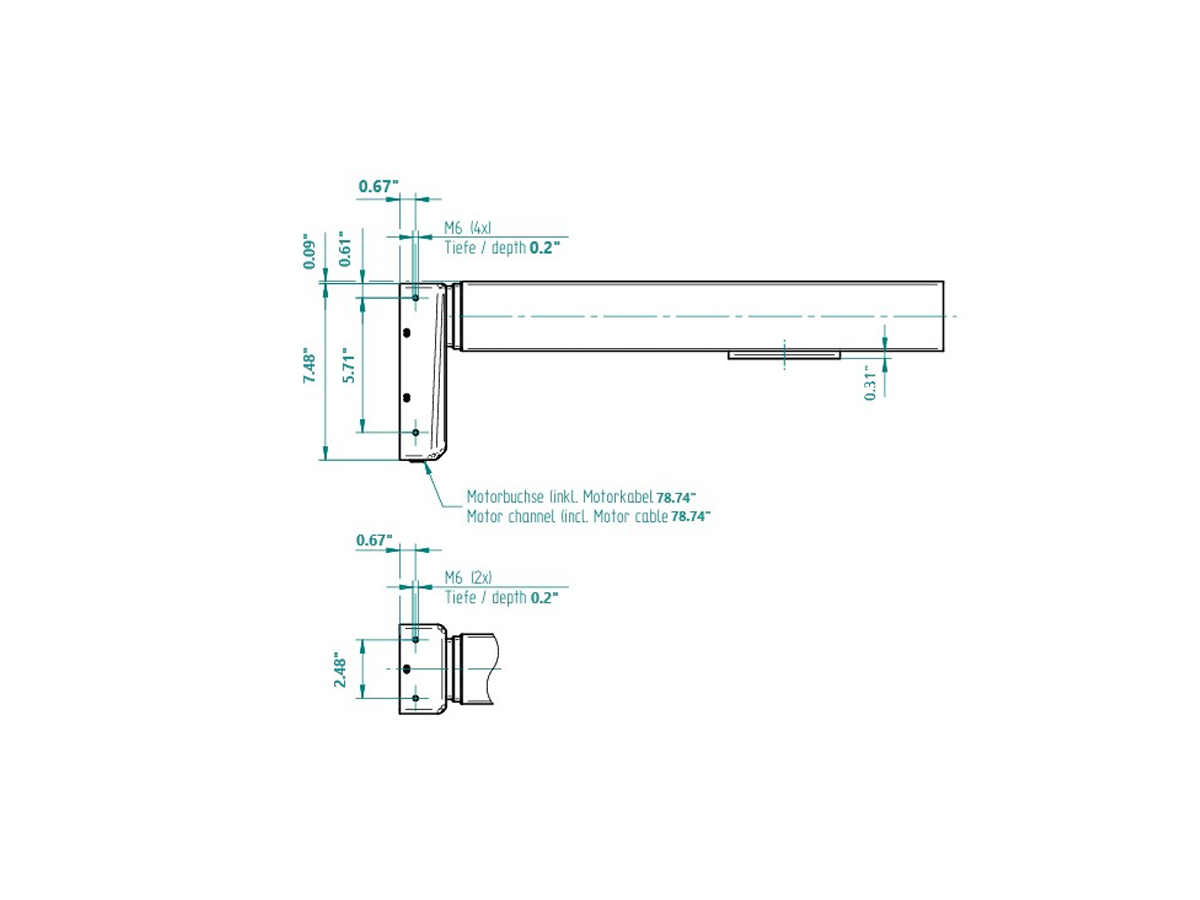

4x Lifting column EA with 79” connection cable / 1x Control box with a Power cable US / 1x Cable remote control Memory (79” cable)

Technical data:

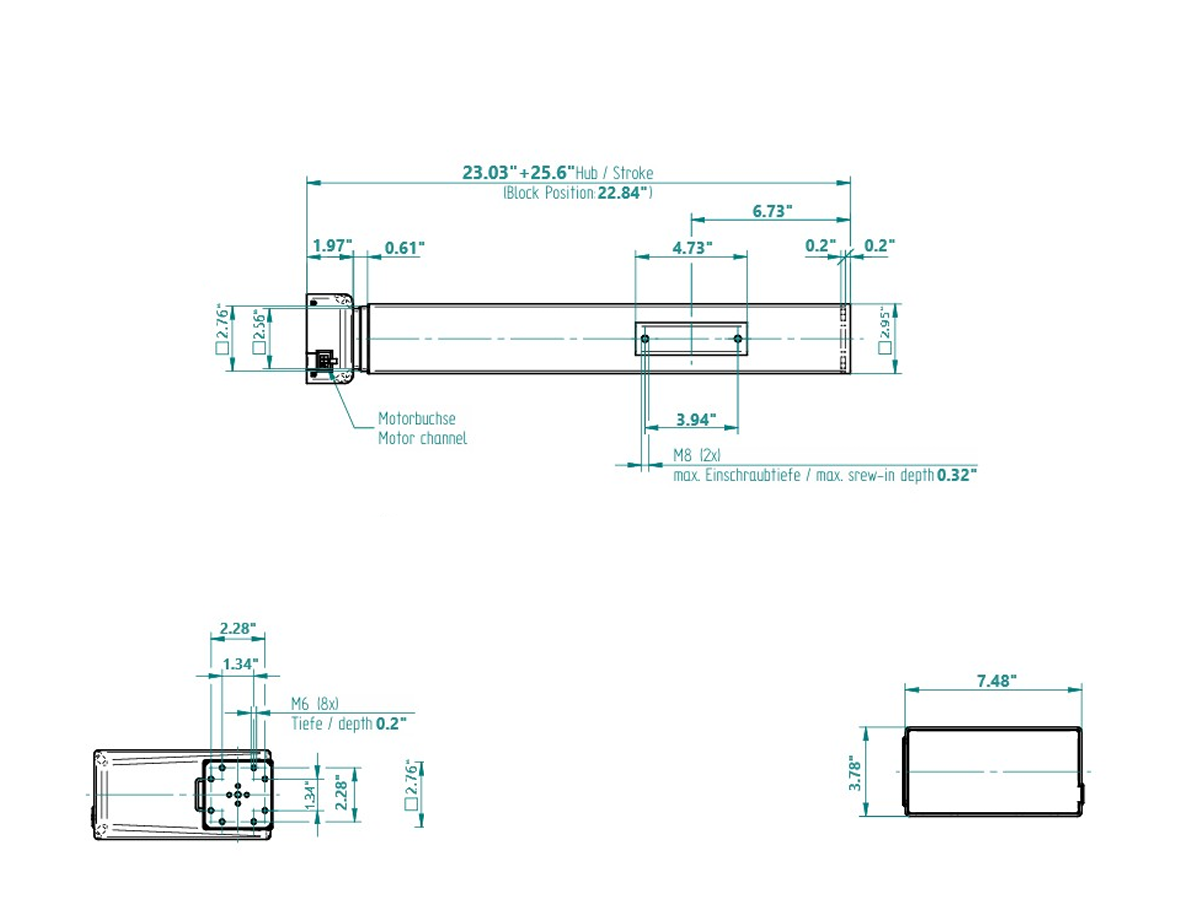

Performance data lifting column EA 1665
Number of lifting columns 4
Max load: 880 lbs (400 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 220 lbs / 100 kg per column
Max. pulling force: Fstatic 112 lbf (500 N) / Fdyn 22 lbs / 50 N
Lifting speed: 0.79” / sec (20 mm/sec)
Stroke: 25.59″ (650 mm)
Base / retracted height: 23.03” (585 mm)
Extended height: 48.62” (1232 mm)
Duty cycle: E/D (On/Off) 2 / 18 min
