$748.00

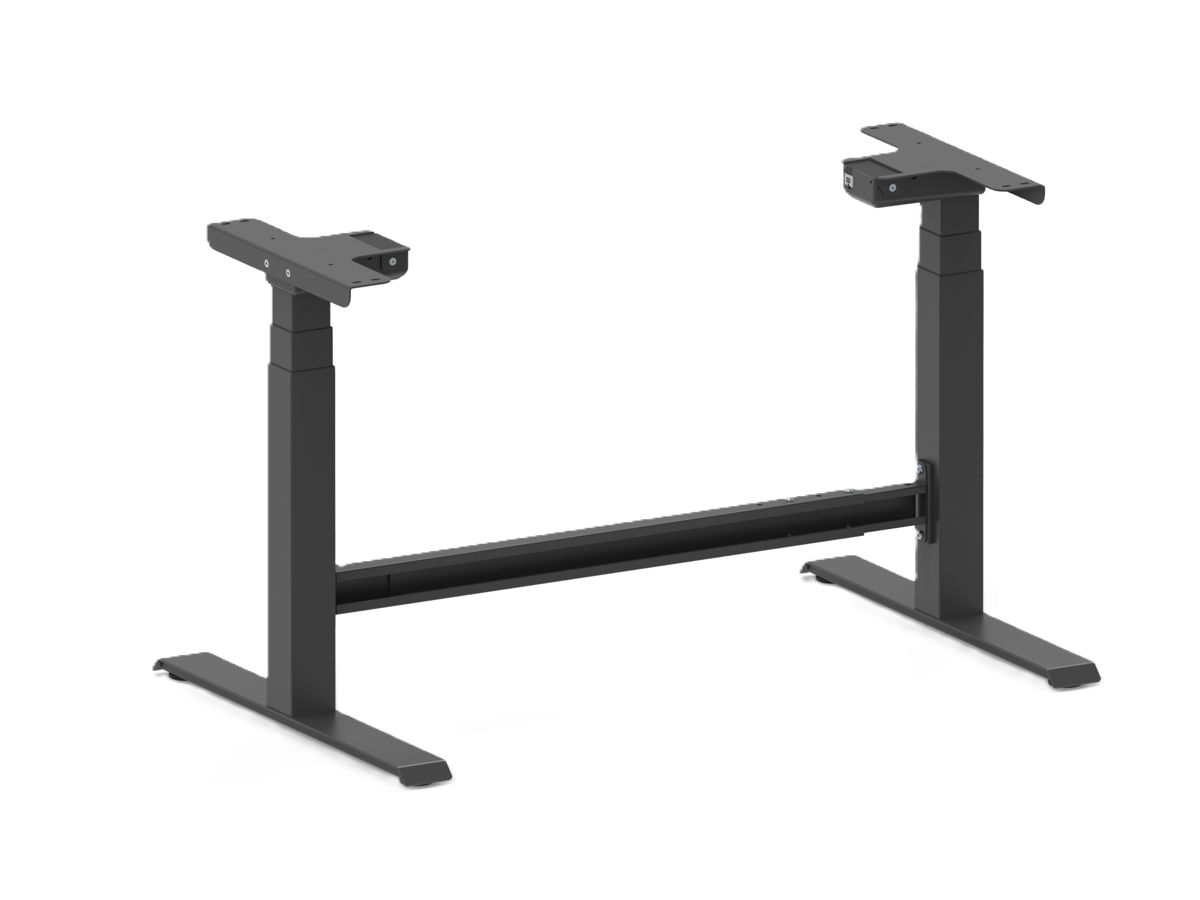

A complete two-column EA frame with 25.59″ (650 mm) of travel – the widest range of worktop depths in the EA frame range, from 17″ to 36″. That makes it the one to specify for narrow benches, console desks and workstations tucked against a wall, as well as standard-depth tables. The crossbar adjusts in 2″ increments across frame widths from 35.43″ to 61.02″. Charcoal steel triple-extension columns at 2.95″ x 2.95″.
See the Description section below for more information.
In stock
| Weight | 39.6 lbs |
|---|---|
| Dimensions | 30.7 × 11.41 × 5.91 in |
| application | Intralogistics, Manufacturing, Medical device |
| Retracted height | 24.39” (620 mm) |
| Extended height | 49.98” (1270 mm) |
| Lifiting speed | 0.78” / sec (20 mm / sec) |
| Max load | 440 lbs (200 kg) |
| Max stroke | 25.59” (650 mm) |
| Number of Lifts | 2 |
| Size-diameter | 2.95” x 2.95” (75 x 75 mm) |
| Stability | 4.5 stars (Outstanding) |
| Weight | Light weight |
Coming soon.

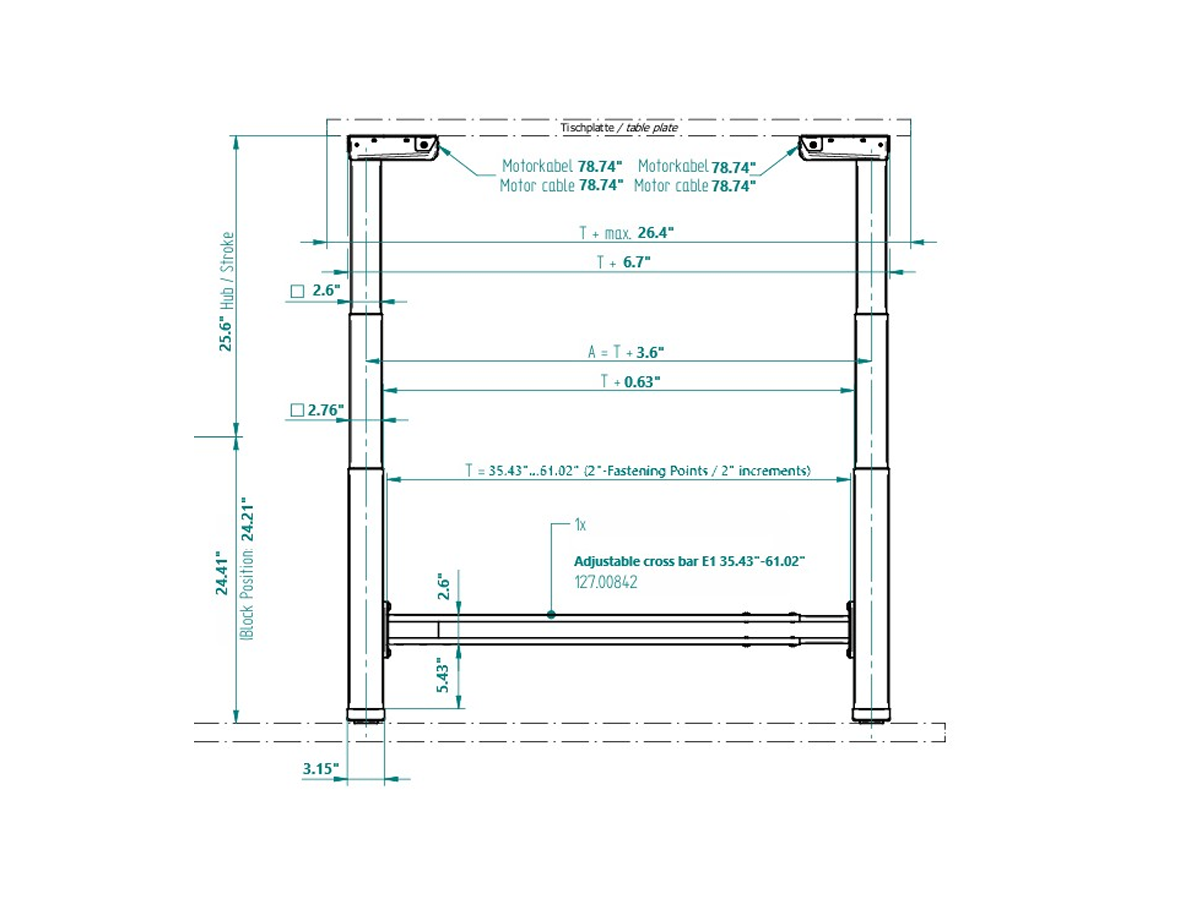

A complete two-column EA frame with 25.59″ (650 mm) of travel – the widest range of worktop depths in the EA frame range, from 17″ to 36″. That makes it the one to specify for narrow benches, console desks and workstations tucked against a wall, as well as standard-depth tables. The crossbar adjusts in 2″ increments across frame widths from 35.43″ to 61.02″. Charcoal steel triple-extension columns at 2.95″ x 2.95″.
For wider or more heavily loaded benches, see the four-column EA 4665 US 42 base frame – note it starts at 29.5″ depth. For columns without the frame, see EA 2665 US 42.
An QS – EA 2665 US 42 Base Frame consists of:

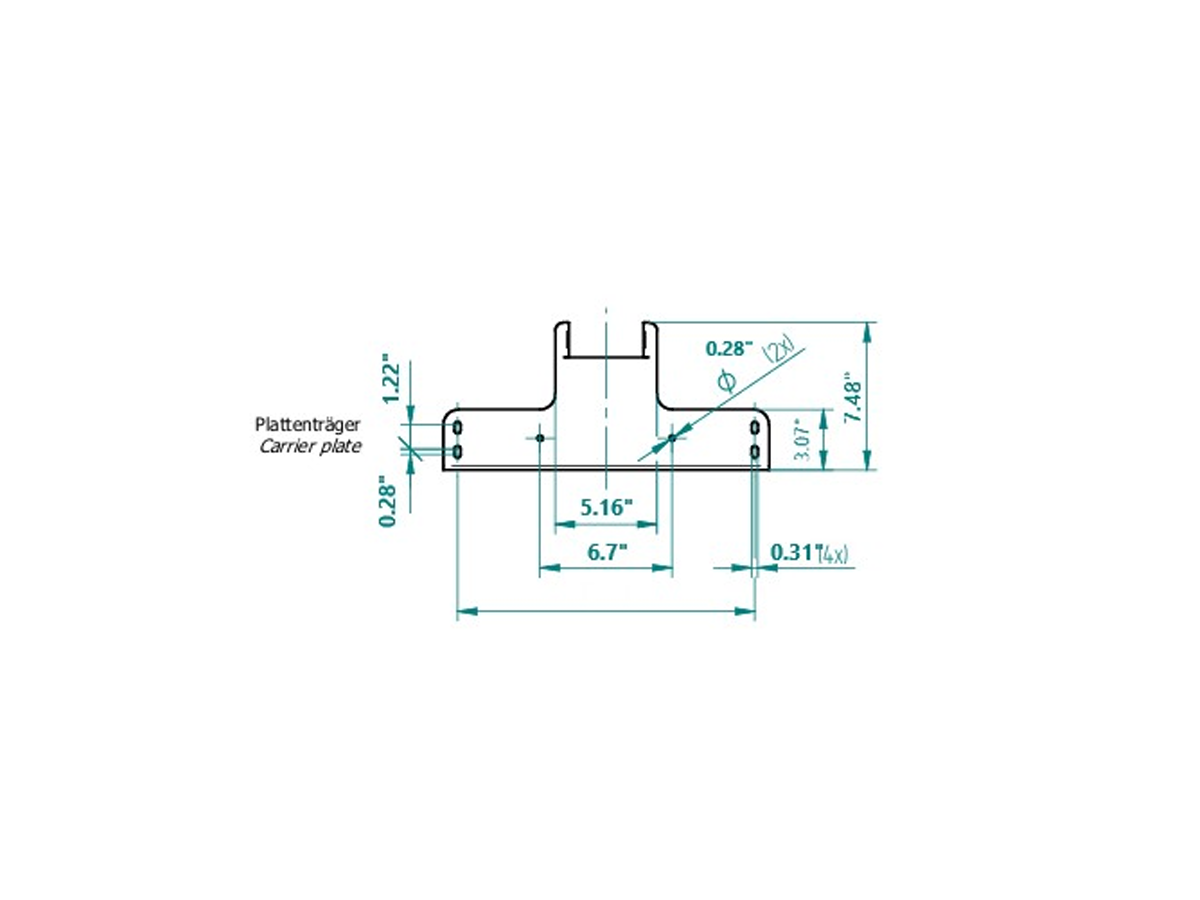

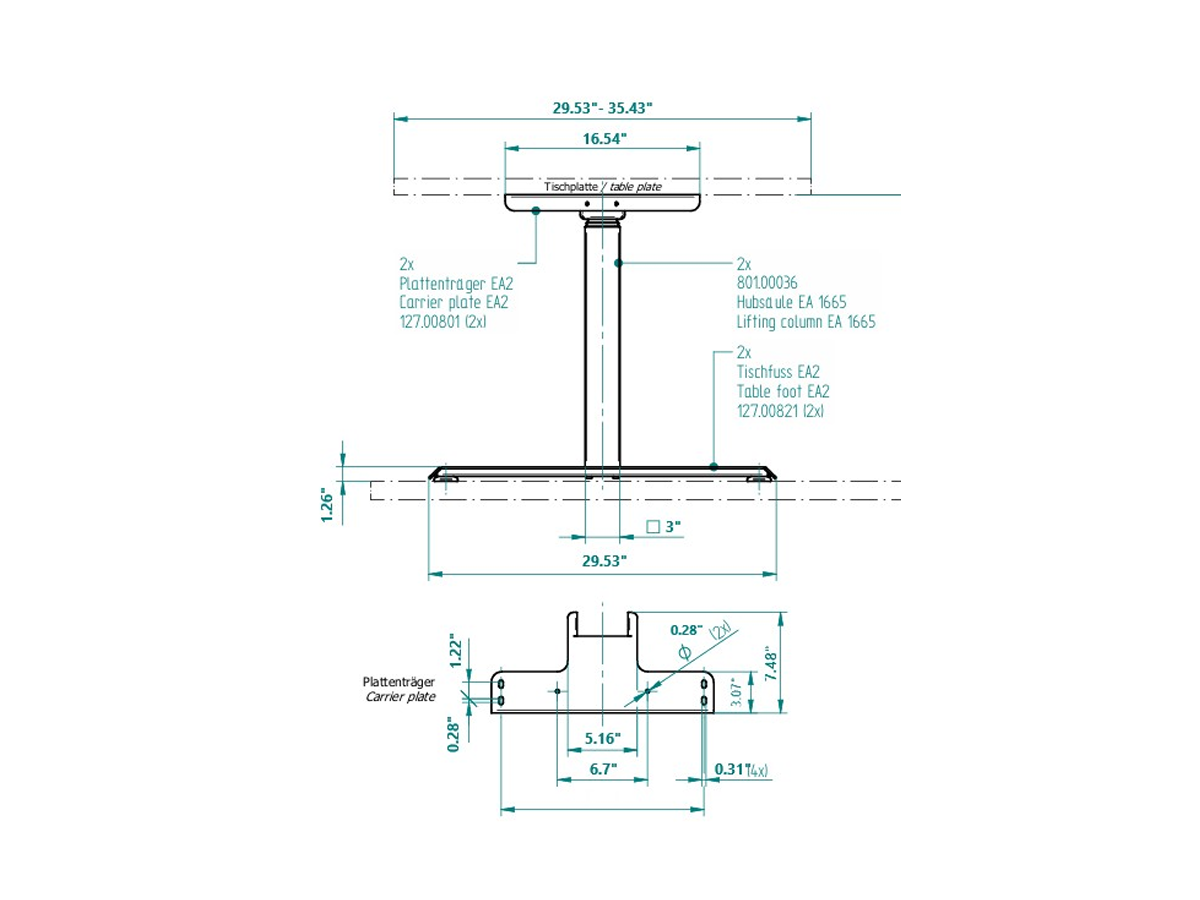

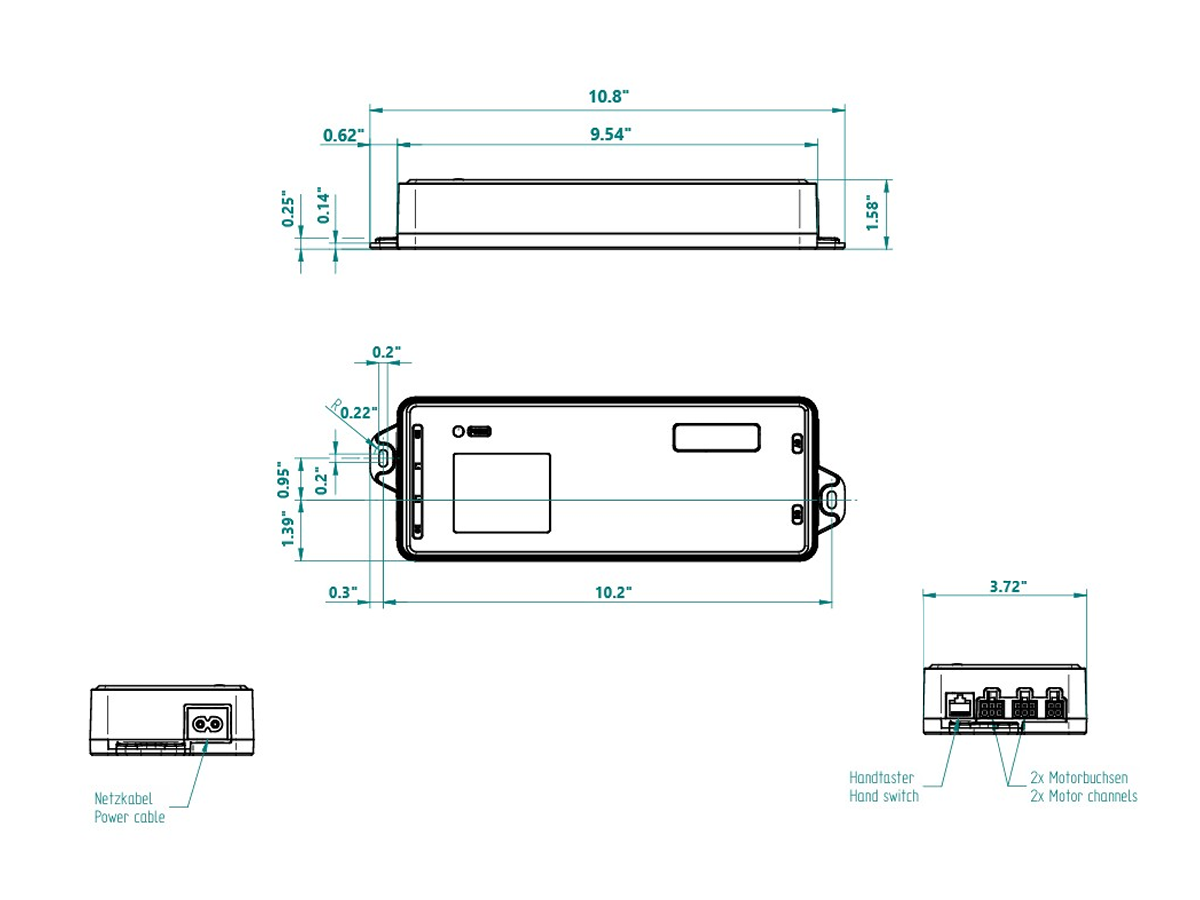

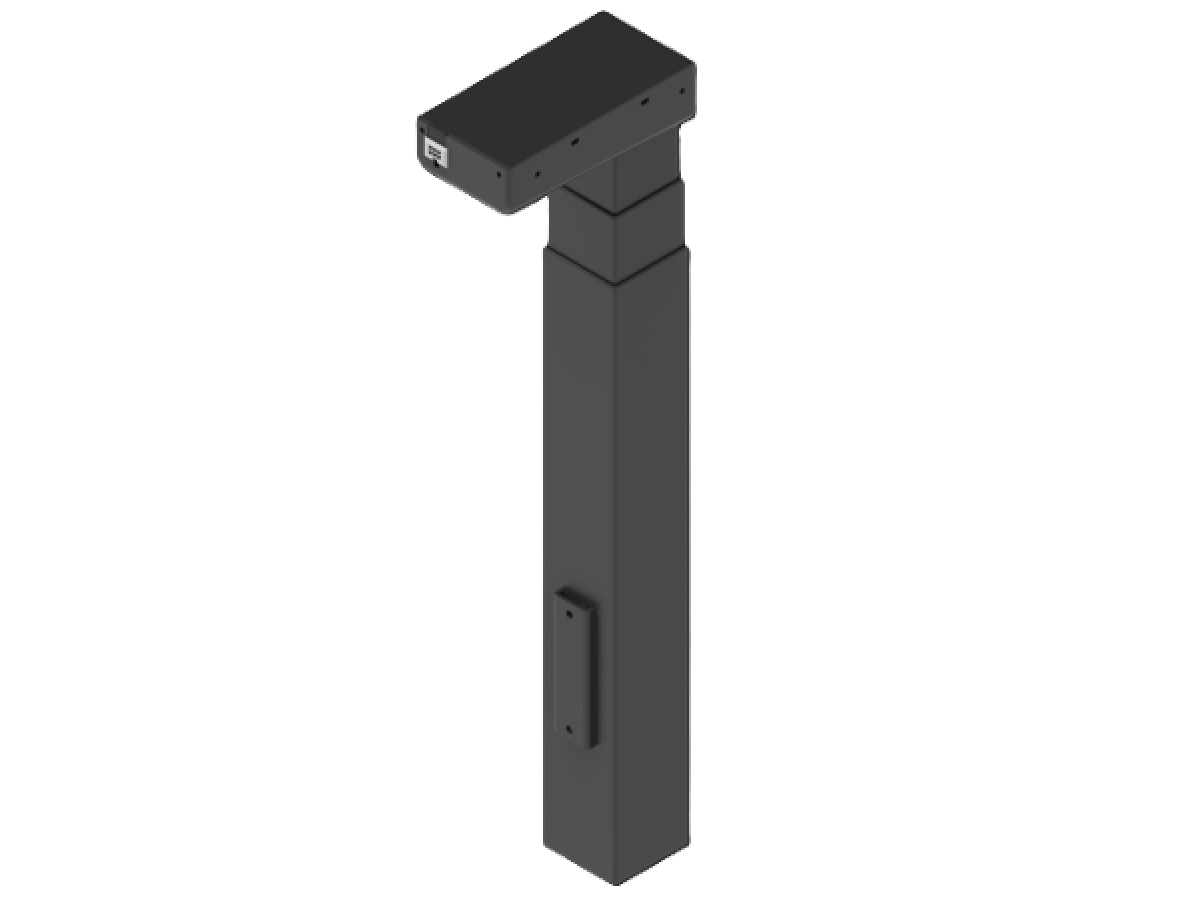

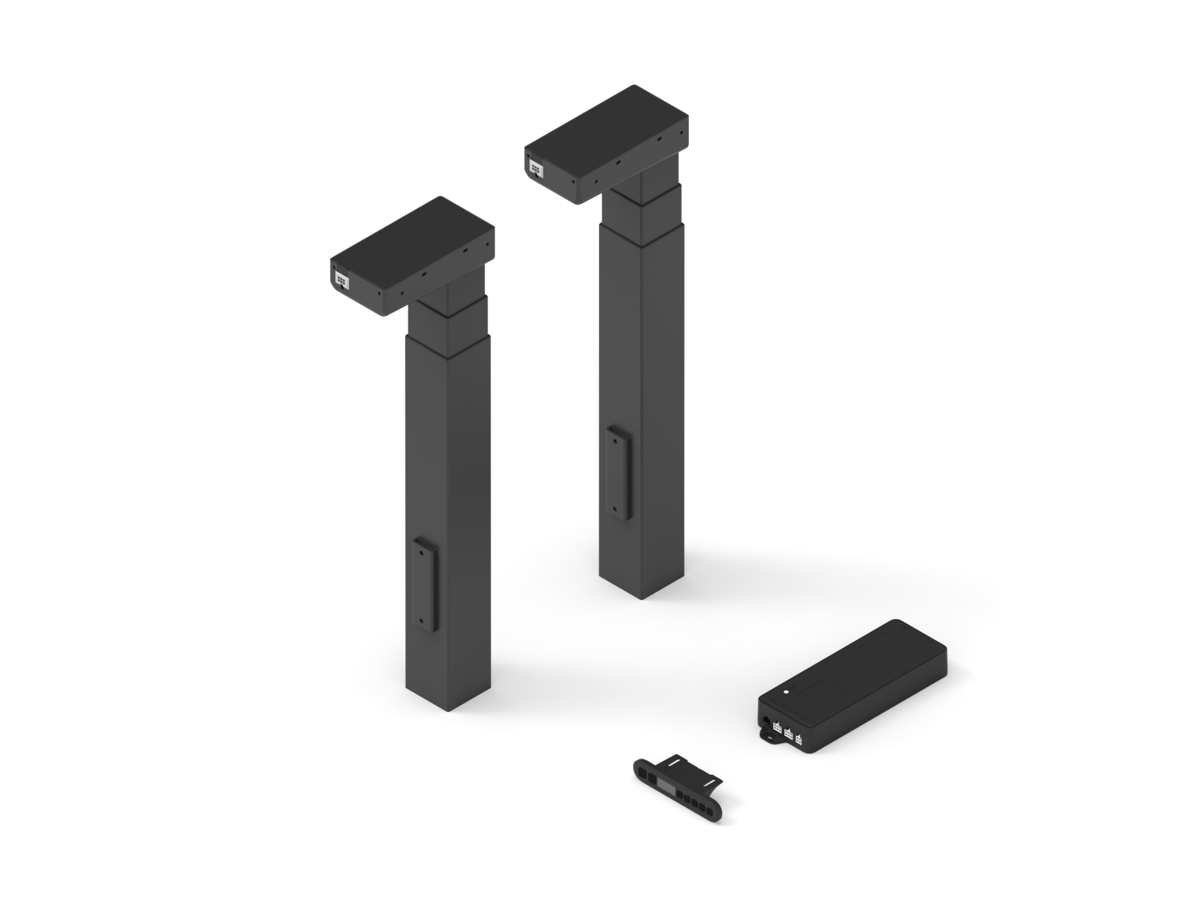

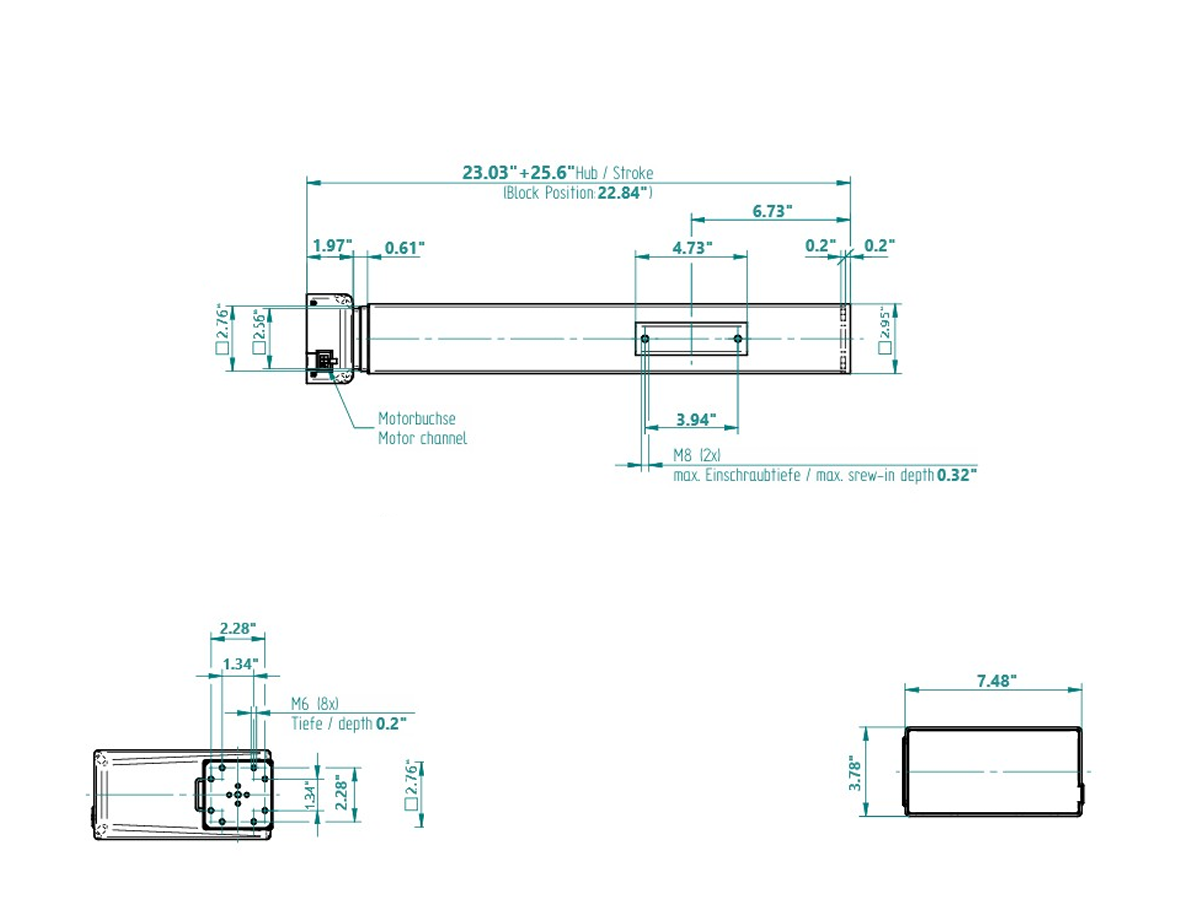

2x Lifting column EA with 79” connection cable / 1x Control box with a Power cable US / 1x Cable remote control Memory (79” cable) / 2 x Table foot with 2 x leveling feet M10 / 2 x Tabletop carrier plate EA2
Technical data:
Performance data EA 2665 US 42 Base Frame
Number of lifting columns 2
Max load: 440 lbs (200 kg) – includes weight of frame.
Max pushing force: 220 lbs / 100 kg per column
Max. pulling force: Fstatic 112 lbf (500 N) / Fdyn 22 lbs / 50 N
Lifting speed: 0.79” / sec (20 mm / sec)
Stroke: 25.59″ (650 mm)

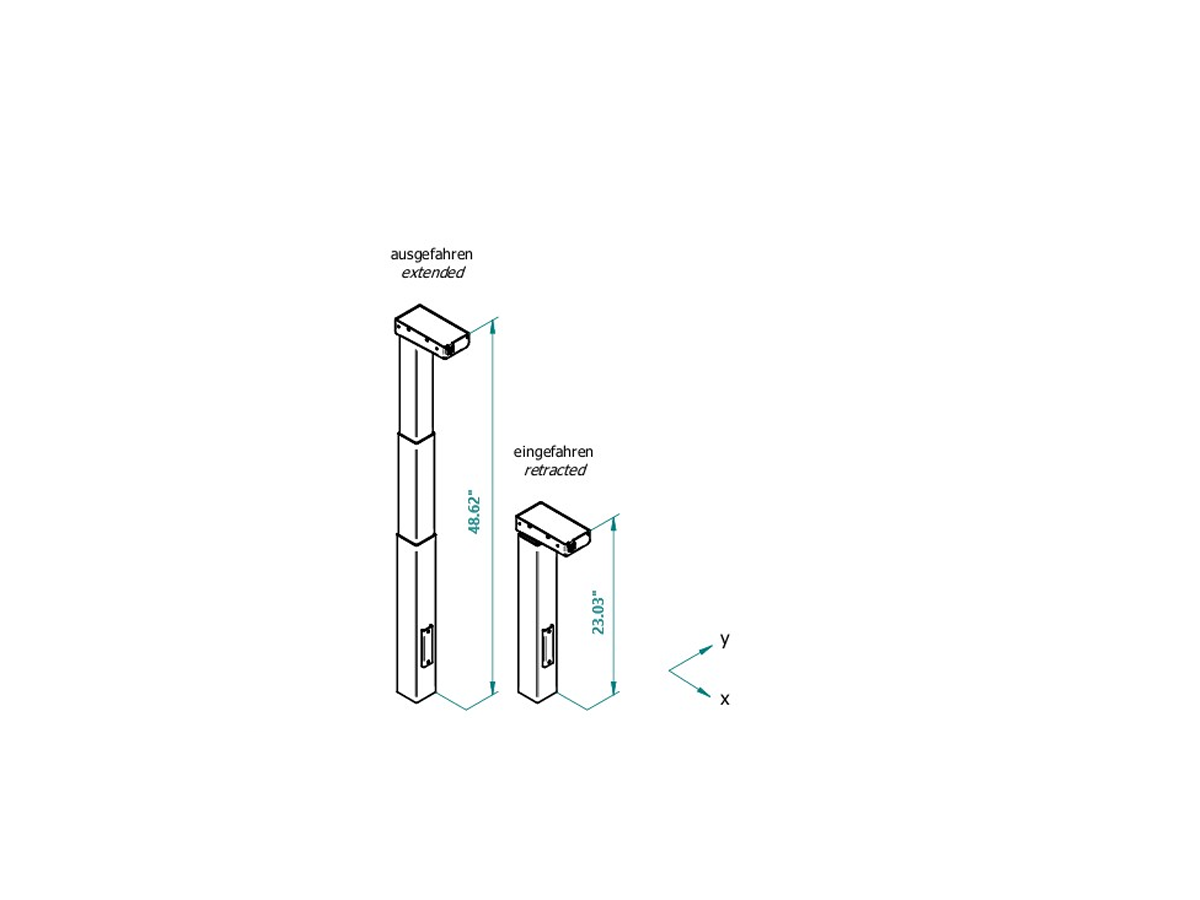

Base / retracted height: 24.39” (620 mm)
Extended height: 49.98” (1270 mm)
Duty cycle: E/D (On/Off) 2 / 18 min
