$1,480.00

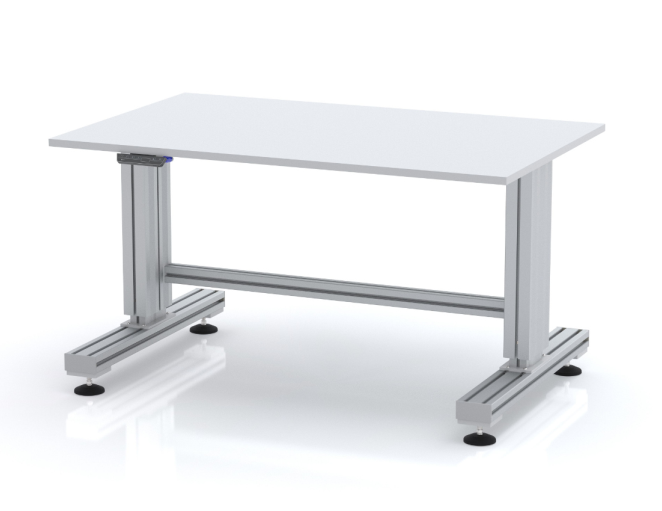

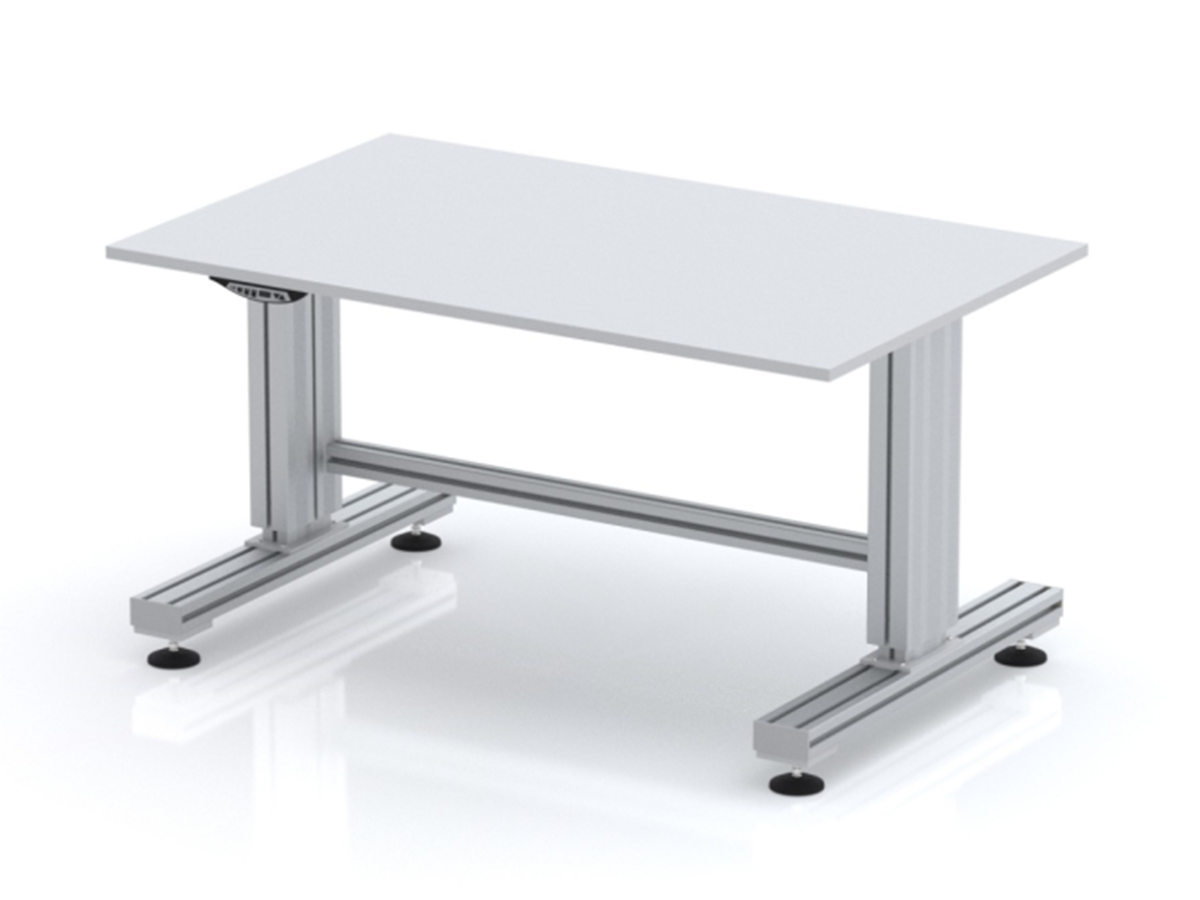

The electric spindle driven lifting column SM is an economical lifting column solution to support base frames and workstation lift columns, that require medium lifting capacities.
| Weight | 46 lbs |
|---|---|
| Dimensions | 26 × 14.5 × 6.5 in |
| Application | Ergo catering, Intralogistics, Manufacturing, Medical device |
| Business area | Ergo assembly, Ergo care, Ergo catering, Ergo industry |
| Retracted height | 20.9” (530 mm) |
| Extended height | 32.7” (830 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 1,320 lbs (600 kg) |
| Max stroke | 11.81” (300 mm) |
| Number of Lifts | 2 |
| Weight | Medium weight |

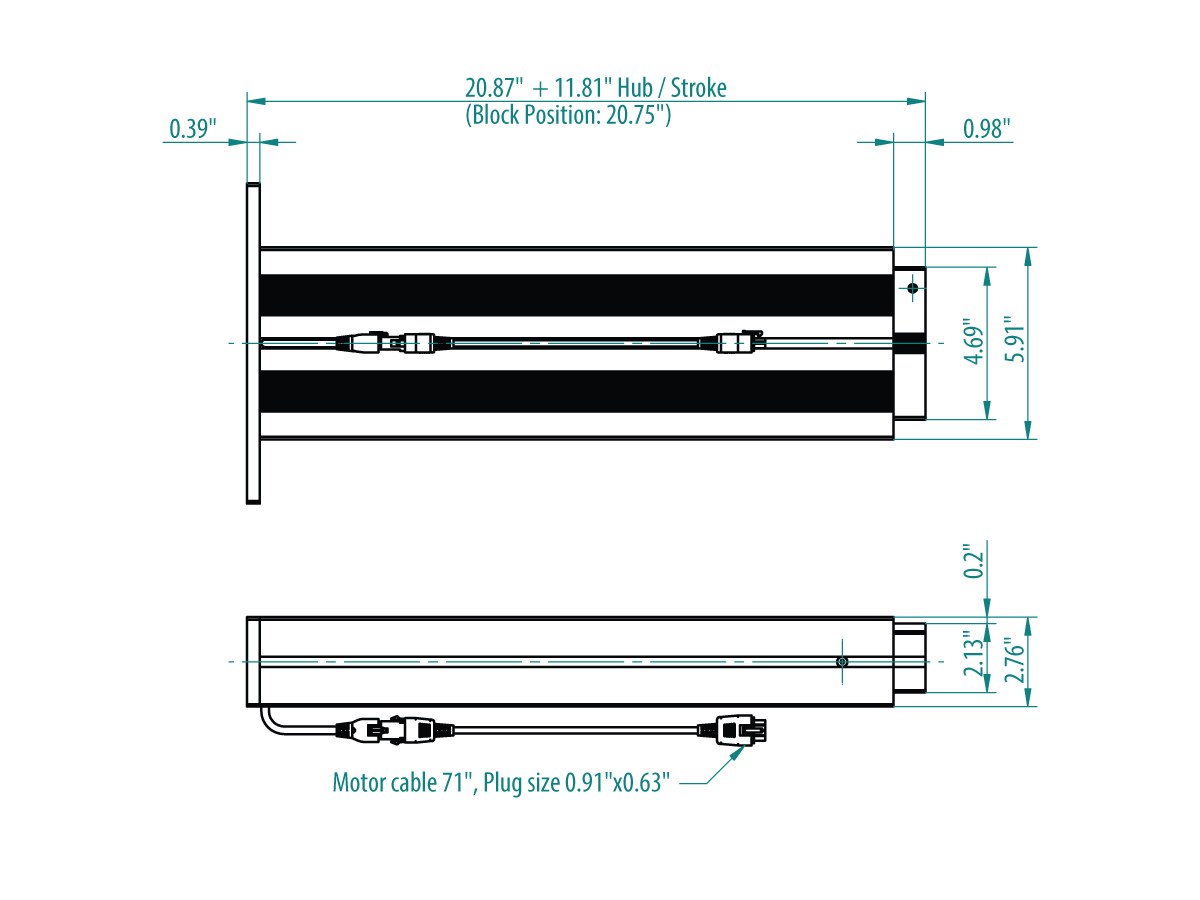

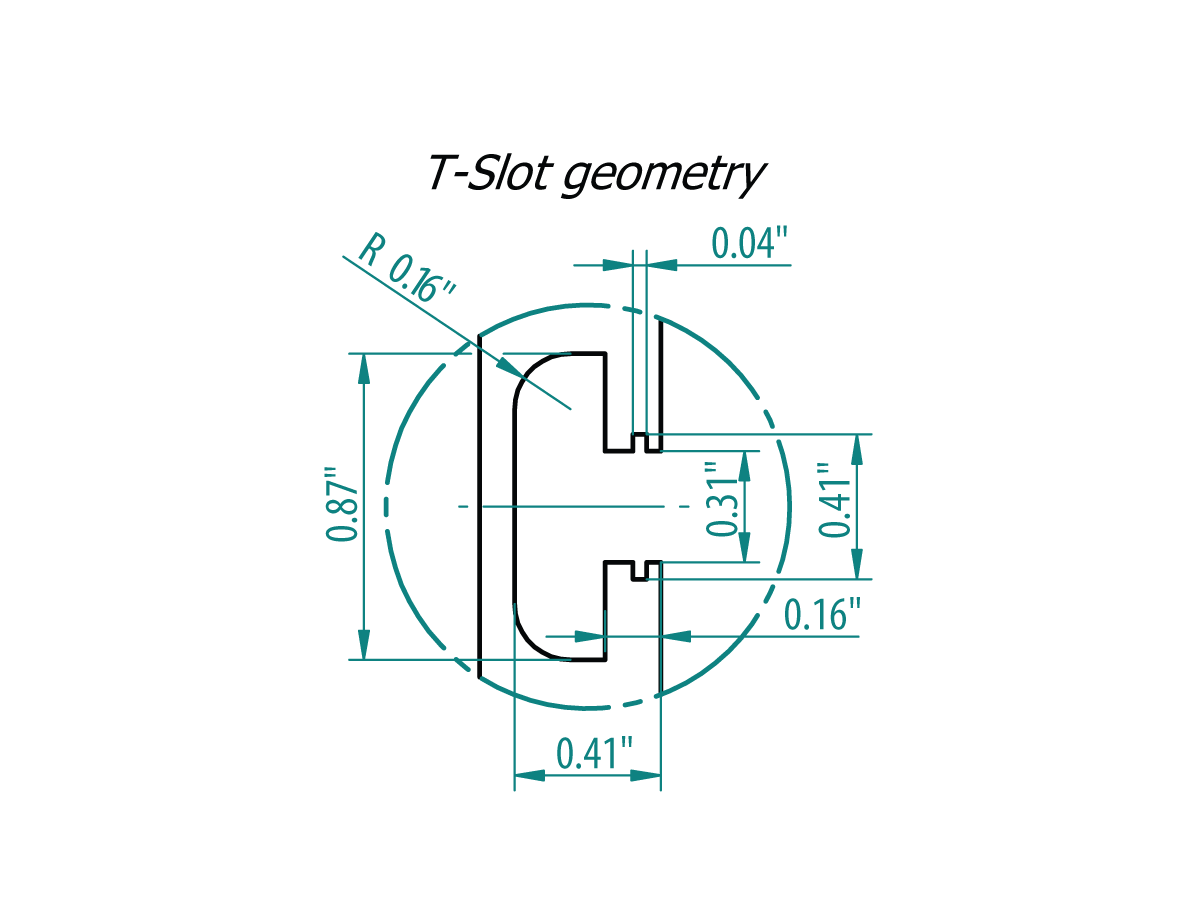

Its compact, yet strong base column, is consisting of a 5.9” x 2.76” (150×70 mm) anodized aluminum extrusion with three faces of our standard Ergoswiss T-Slot geometry (8 mm width) for easy integration.

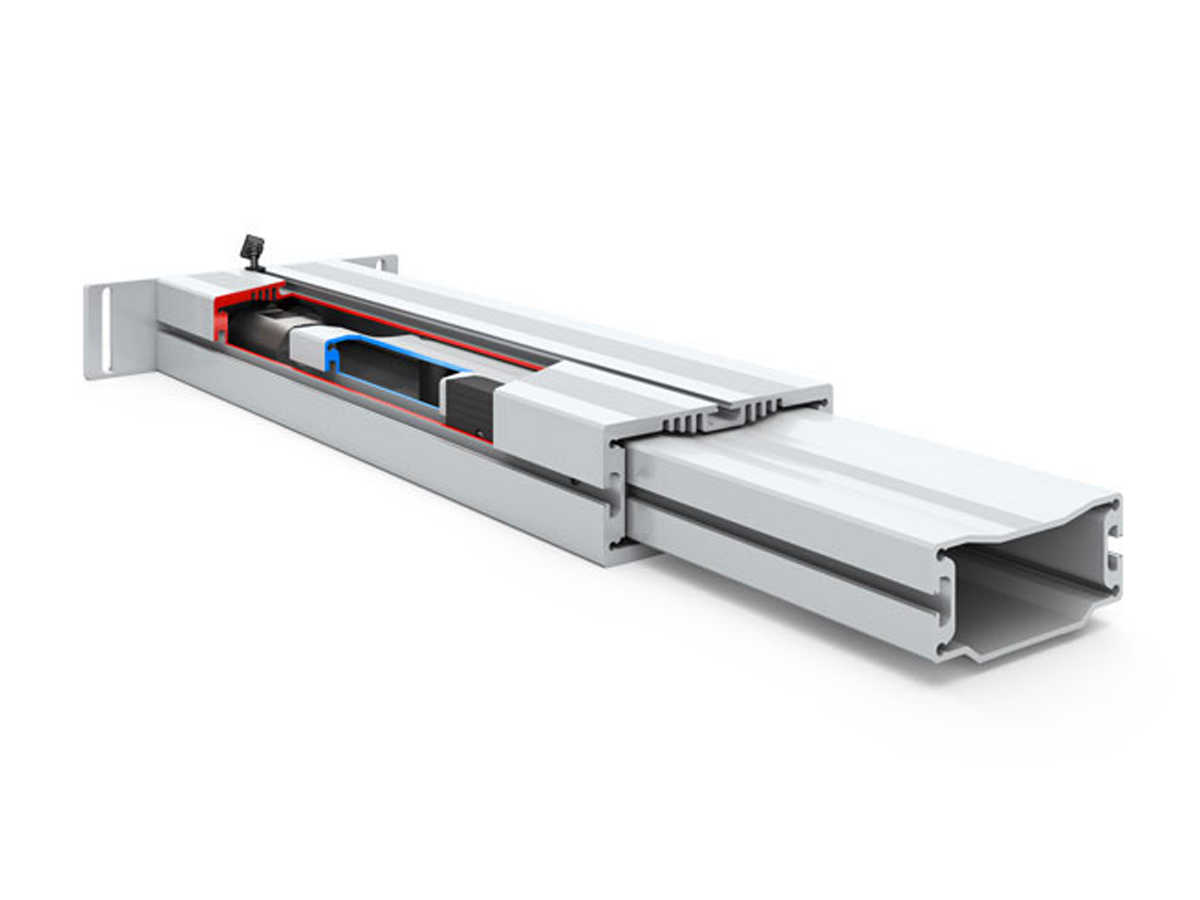

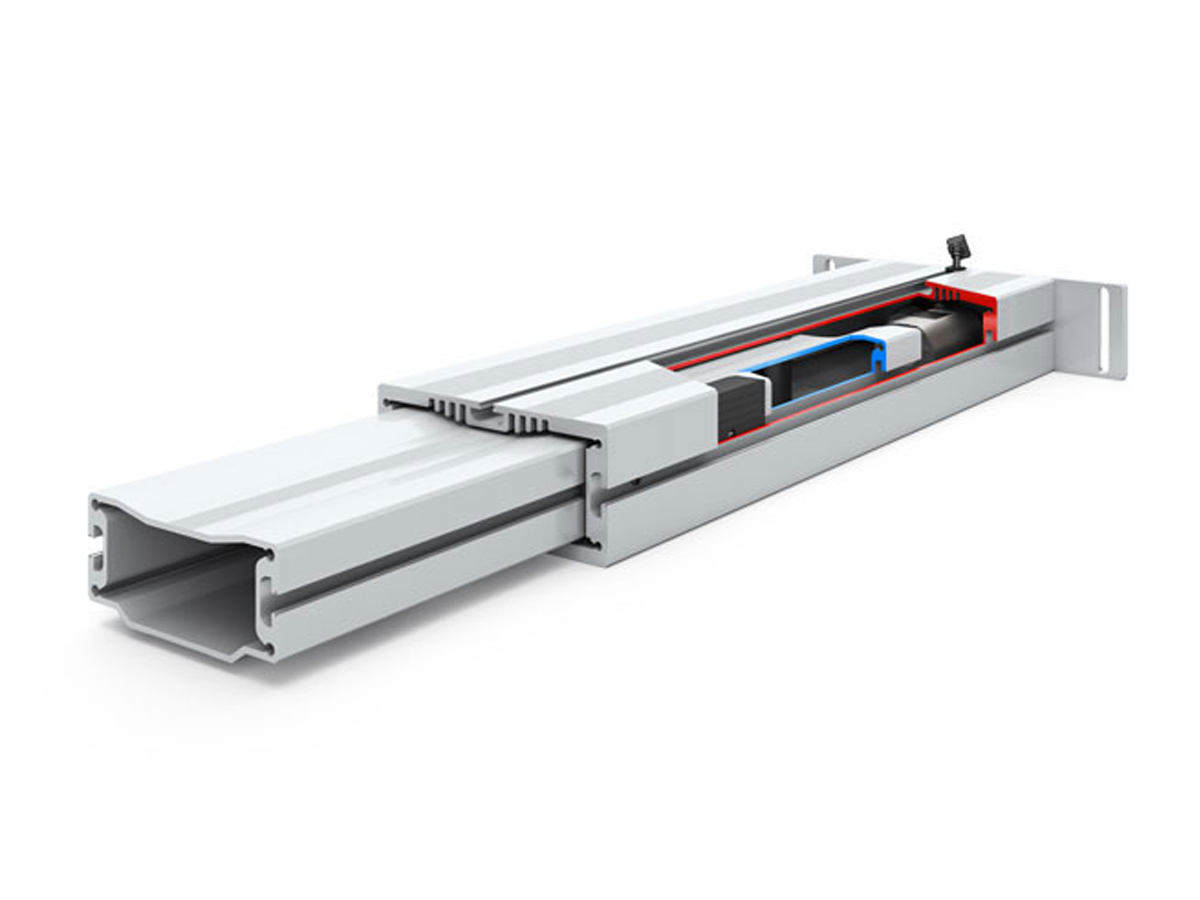

Each lifting column includes an internal motor and spindle drive that is synchronized by a control box. Each column includes a 70” motor cable to connect to the control box.
An SM 2330 US 02 Quick-ship set consists of:
2x Lifting column SM 1330 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory
Performance data lifting column SM 1330
Number of lifting columns: 2
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed: 0.35” / sec (9 mm / sec)
Stroke: 11.81″ (300 mm)

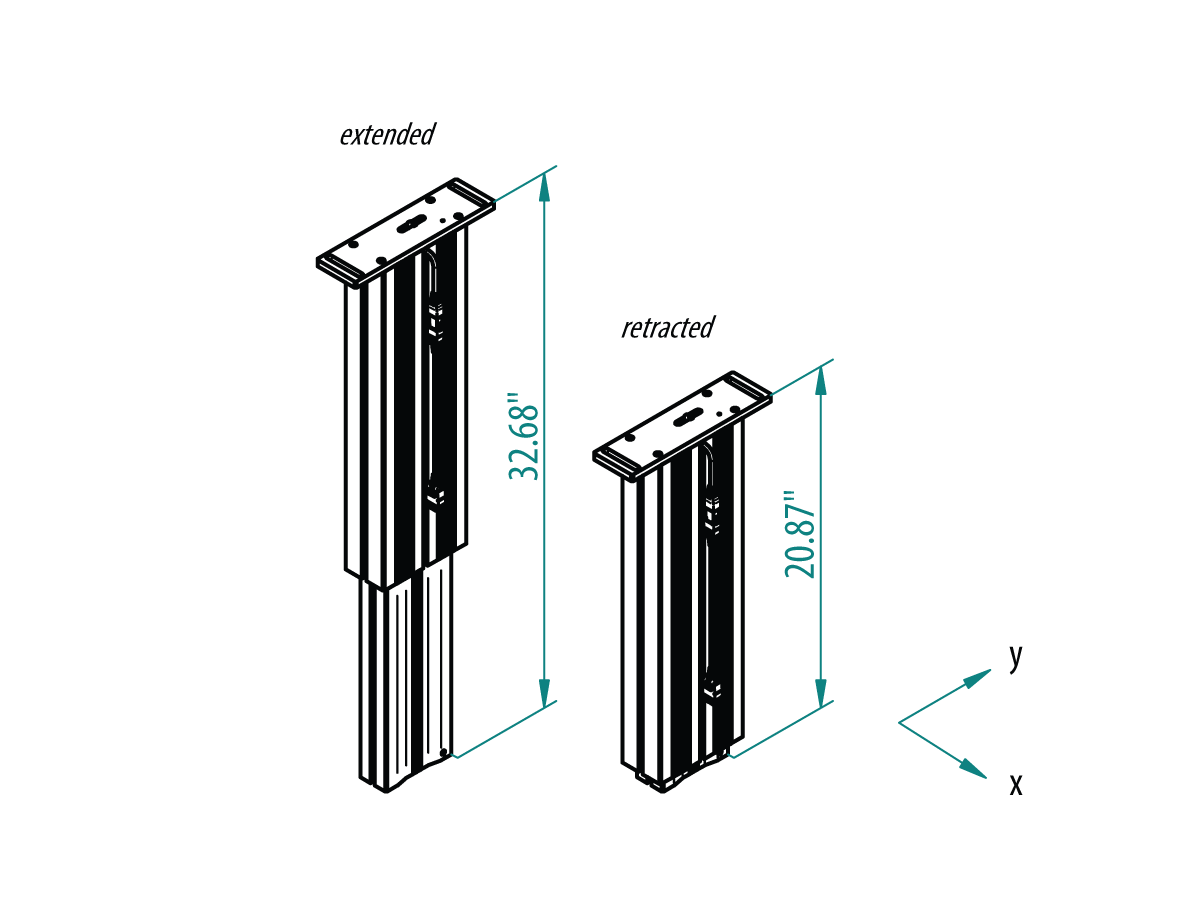

Base / retracted height: 20.9” (530 mm)
Extended height: 32.7” (830 mm)
Duty cycle E/D (On/Off) : 2 / 40 min
