QS – Lifting system SM 2340 US 02

$1,480.00

The SM two-leg electric spindle system offers 15.75″ (400 mm) of height adjustment for medium-duty workstations. Anodized aluminum columns with T-slots on three sides allow easy integration. Includes two columns, memory remote, and controller, ready for installation.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 pieces
$1,480.00
Total:
$1,480.00
Buy 2 pieces and save 0%
$1,480.00
$1,480.00
Total:
Buy 3 pieces and save 13%
$1,480.00
$1,290.00
Total:
Buy 4 pieces and save 13%
$1,480.00
$1,290.00
Total:
x
SKU: 902.41217-PP Category:

Additional information

Weight 49 lbs
Dimensions 26 × 14.5 × 6.5 in
application

Ergo catering, Intralogistics, Manufacturing, Medical device

business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry

Retracted height

23.6” (630 mm)

Extended height

40.6” (1,030 mm)

Lifiting speed

0.35” / sec (9 mm / sec)

Max load

1,320 lbs (600 kg)

Max stroke

15.75” (400 mm)

Number of Lifts

2

Size-diameter

5.9” x 2.76” (150×70 mm)

Stability

4 stars (Excellent)

Weight

Medium weight

Description

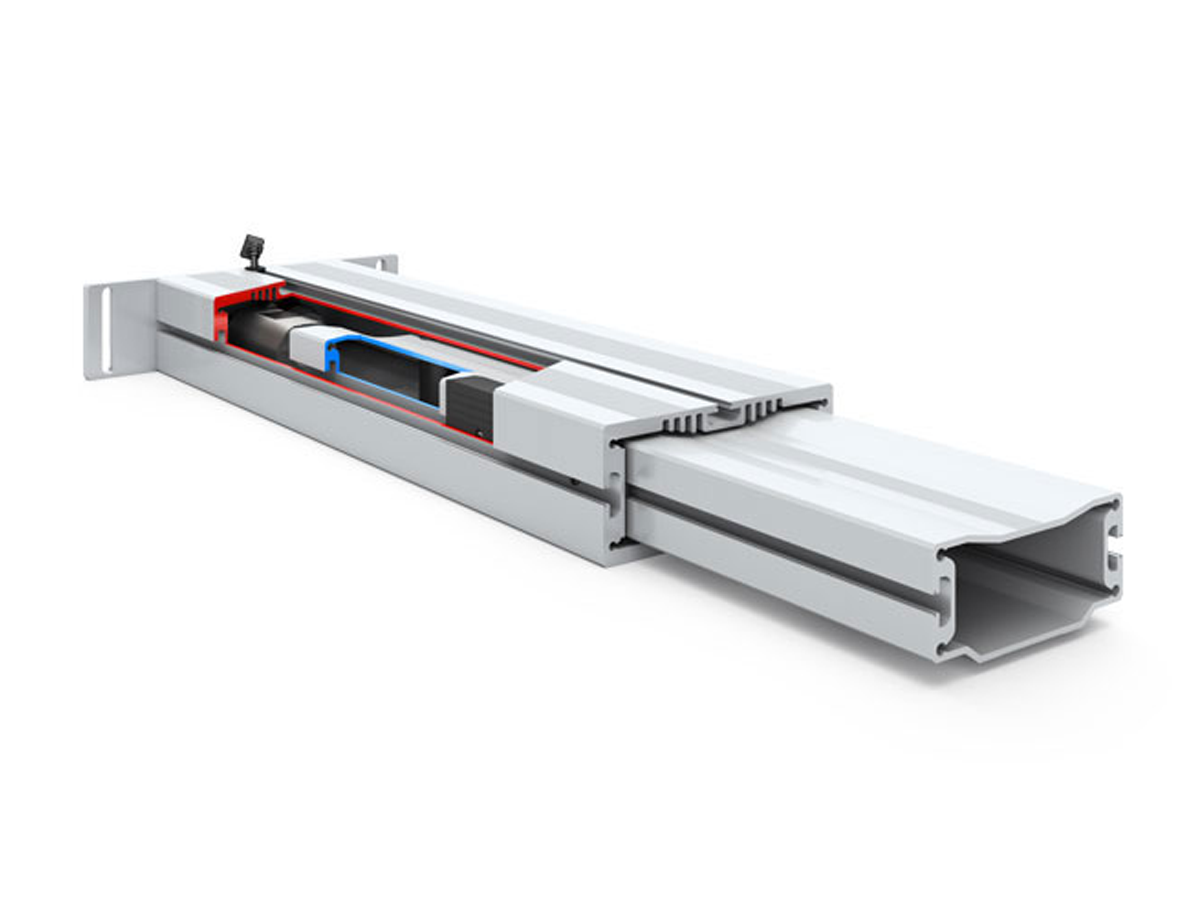

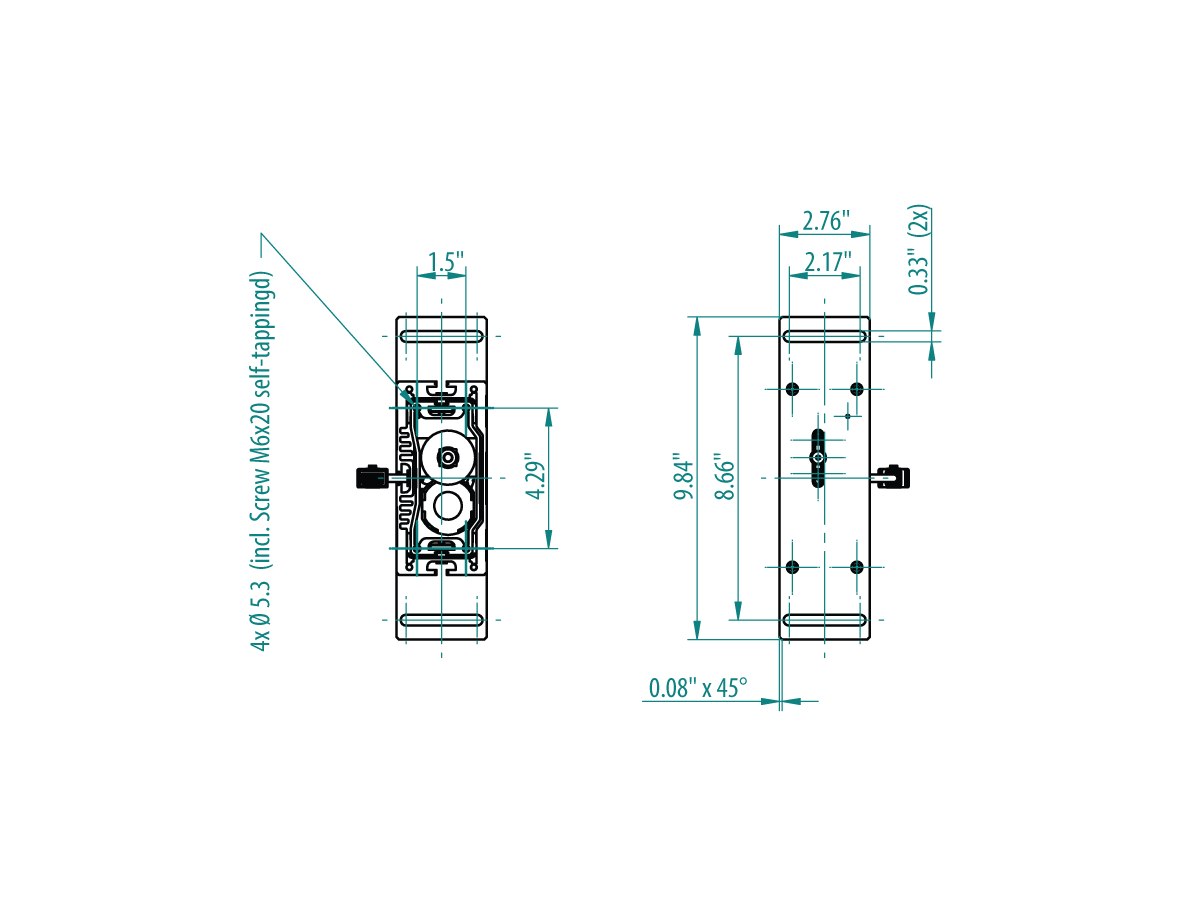

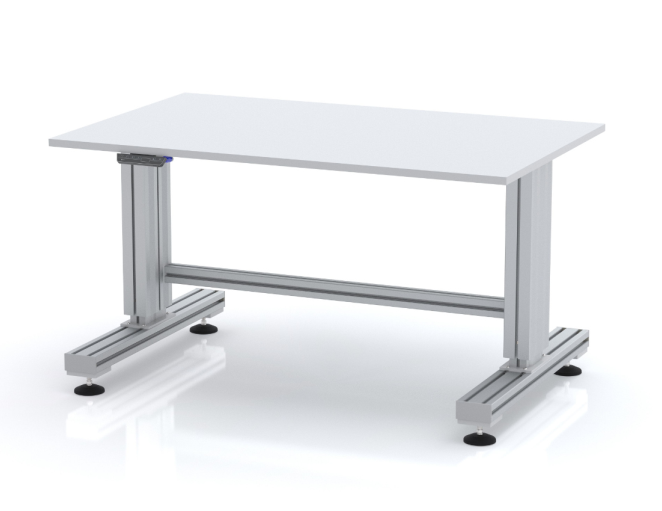

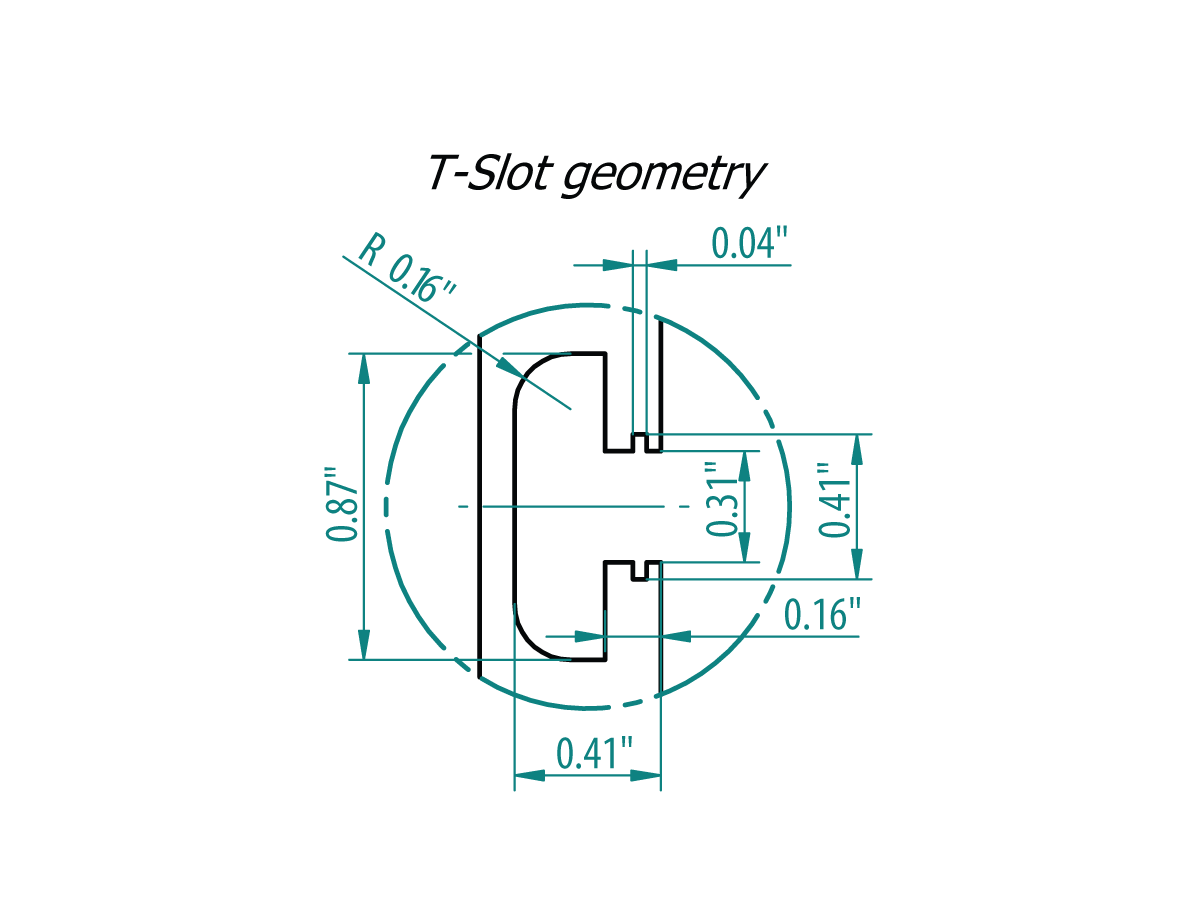

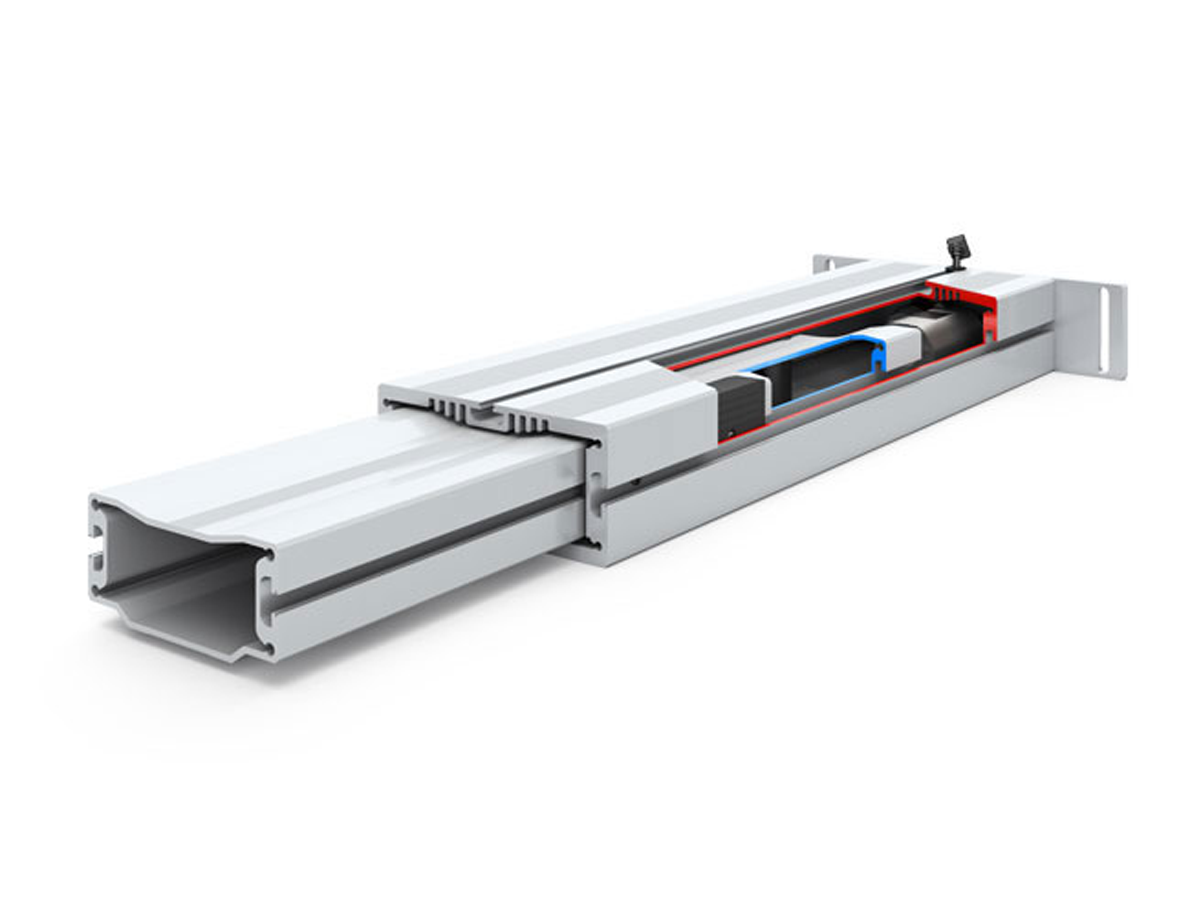

The SM two-leg electric spindle-driven lifting column system provides a reliable and cost-effective solution for constructing new two-legged steel or aluminum base frames and workstation systems requiring medium-duty 15.75” (400 mm) height adjustment. Each of the two compact yet robust columns are made from anodized aluminum, measuring 5.9” × 2.76” (150 × 70 mm), and features standard Ergoswiss T-slots (8 mm wide) on three sides for easy integration. The system ships as a complete, ready-to-install solution.

An SM 2340 US 02 Quick-ship set consists of:

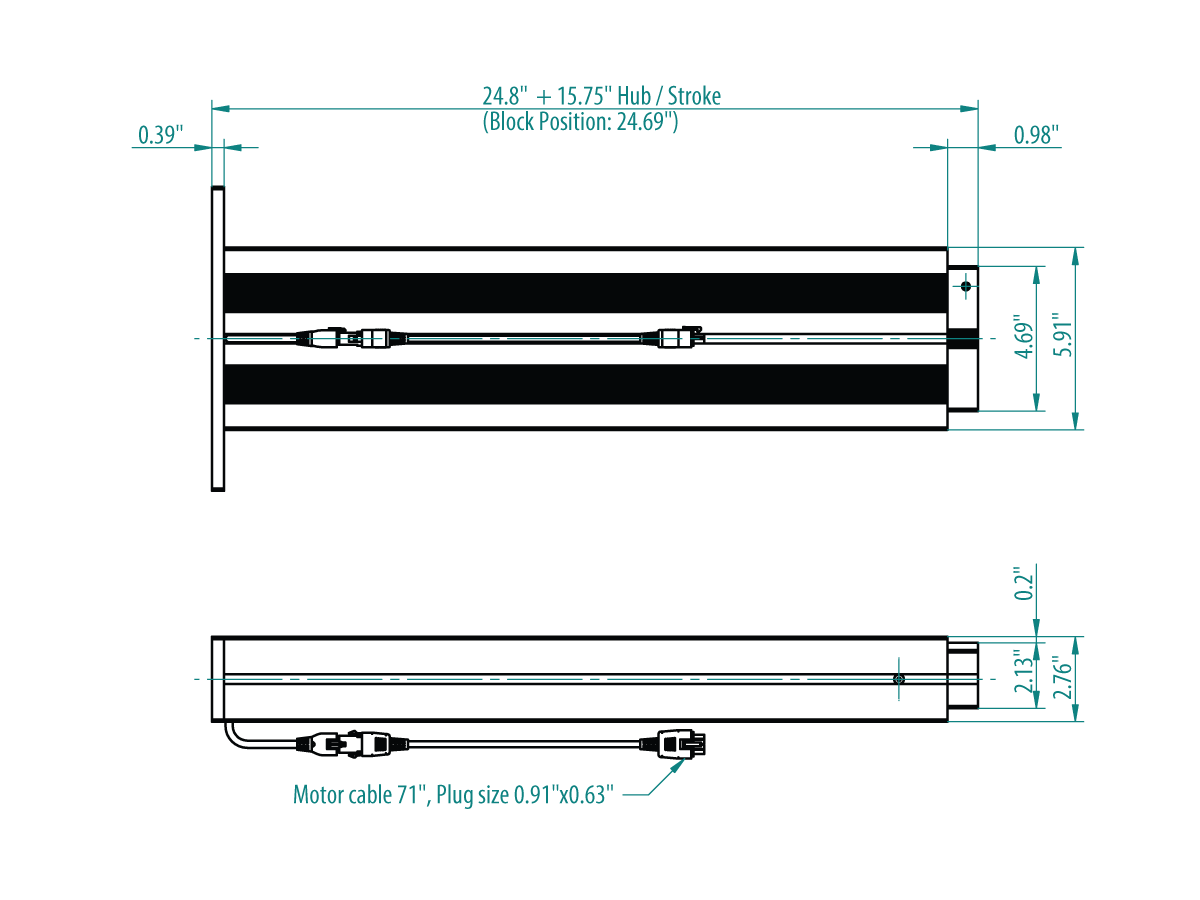

2x Lifting column SM 1340 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory

Technical data

Performance data lifting column SM 1340
Number of lifting columns: 2
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed: 0.35” / sec (9 mm / sec)
Stroke: 15.75″ (400 mm)
Base / retracted height: 23.6” (630 mm)
Extended height: 40.6” (1,030 mm)
Duty cycle E/D (On/Off): 2 / 40 min
