Description

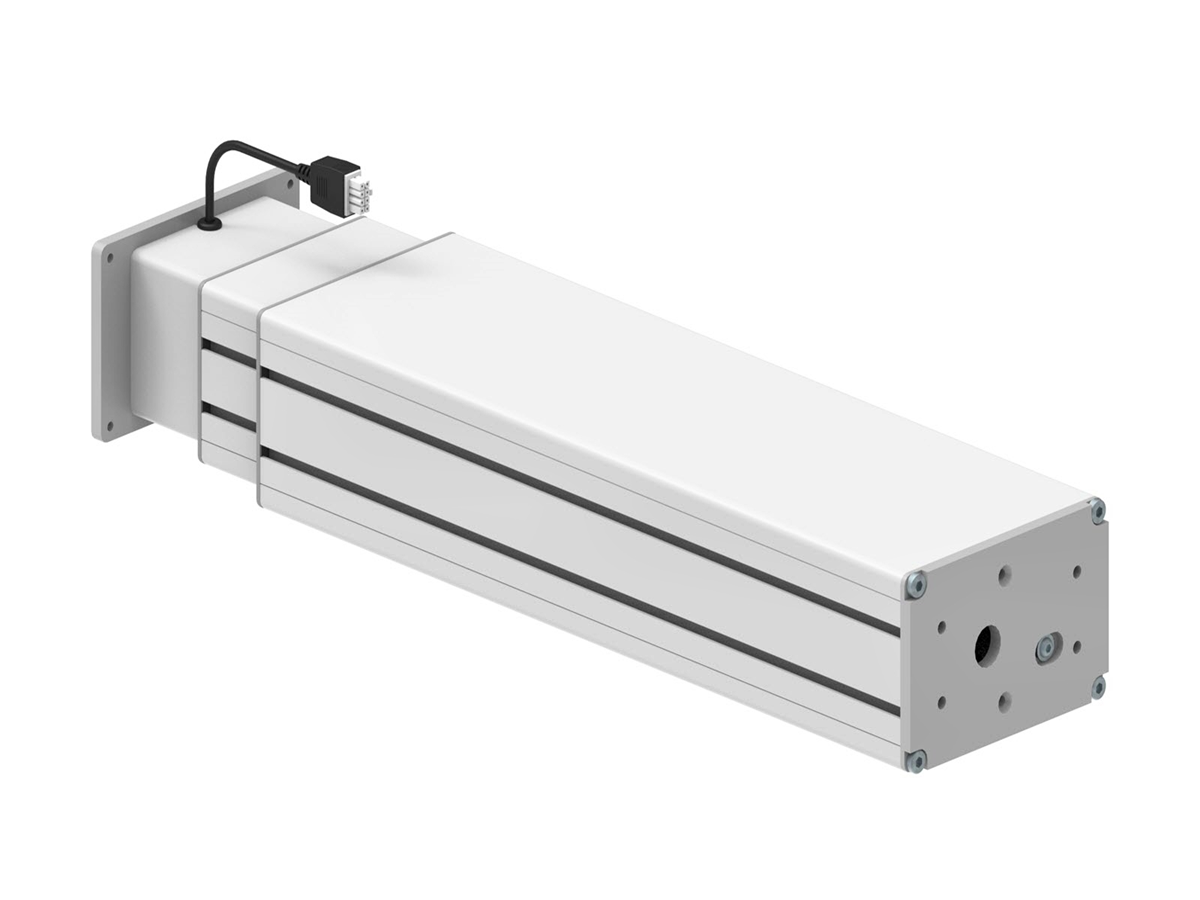

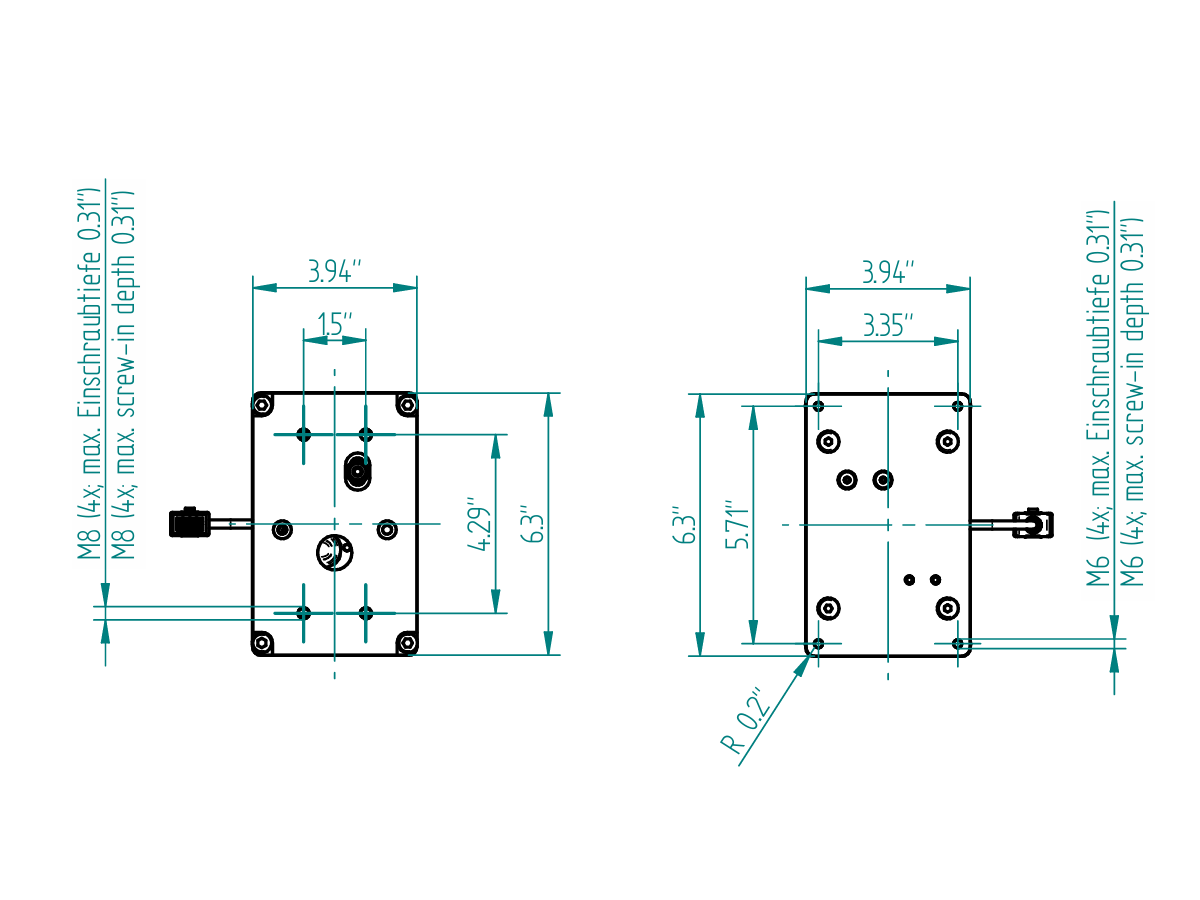

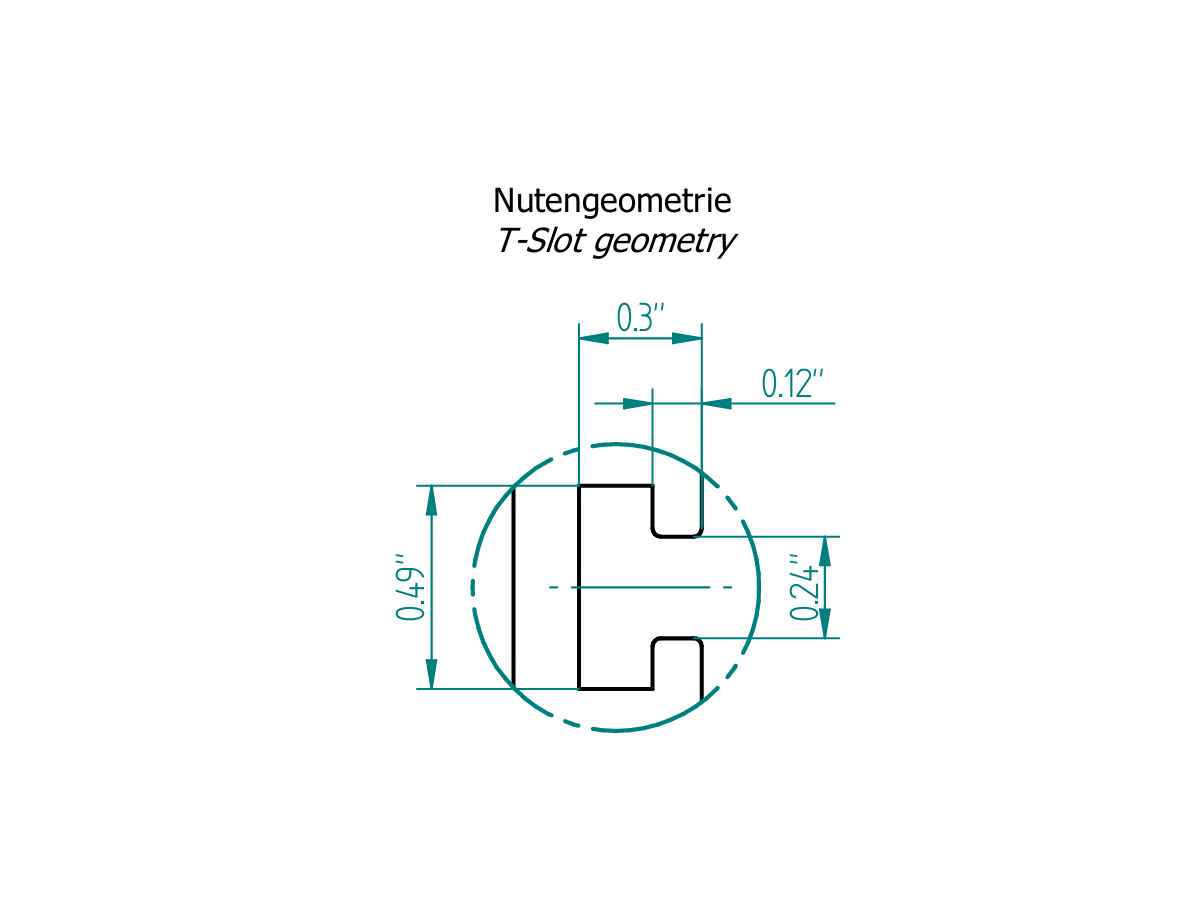

Two SNT columns driven together from one controller, giving 15.75″ (400 mm) of synchronized travel across a bench. The low 14.96″ (380 mm) retracted height is the reason to choose SNT over a conventional two-stage column here – it fits where other systems will not. Columns measure 6.3″ x 3.94″ (160 x 100 mm) in aluminum, with integrated 0.24″ (6 mm) T-slots for mounting.
For a single lift point, see SNT 1740 US 12. For 27.56″ (700 mm) of travel across two columns, see SNT 2770 US 12.

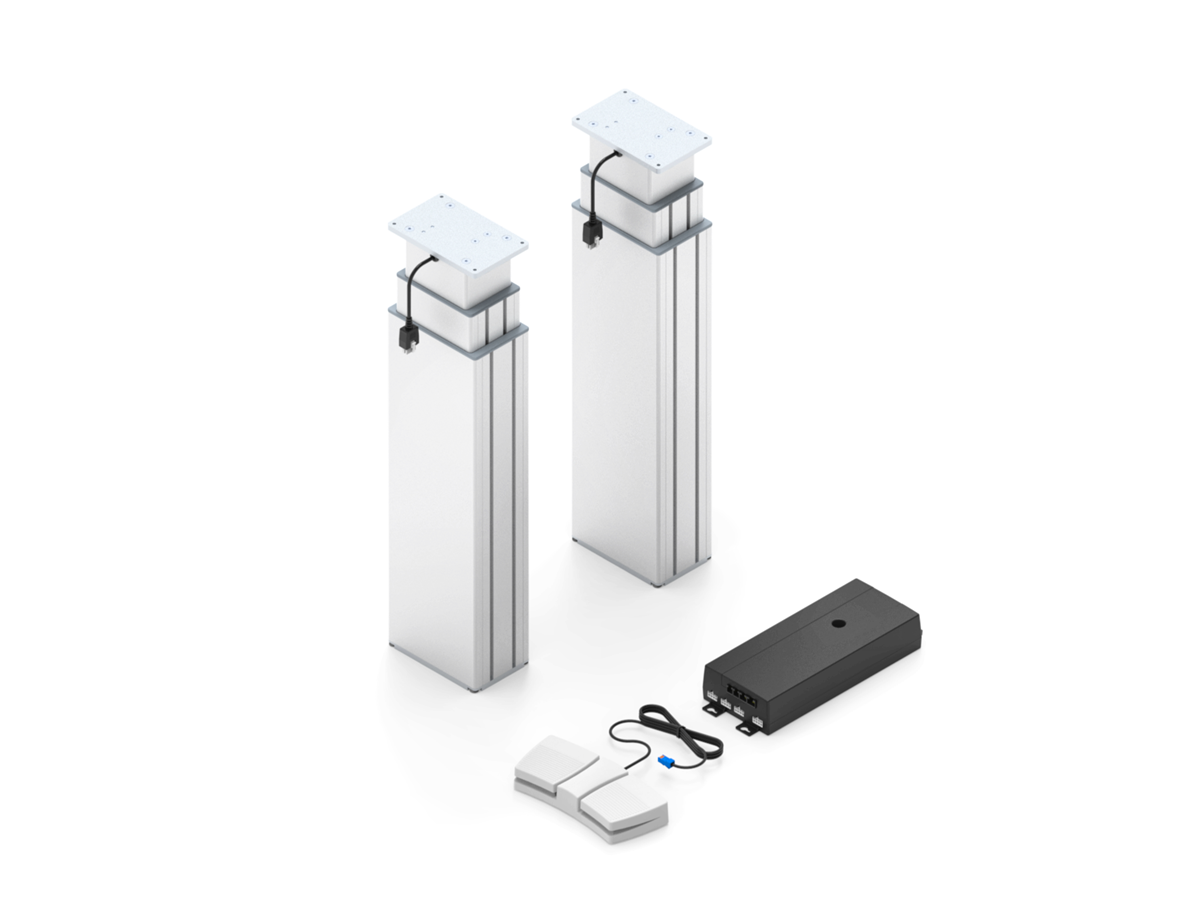

A SNT 2740 US 12 Quick ship set consists of:

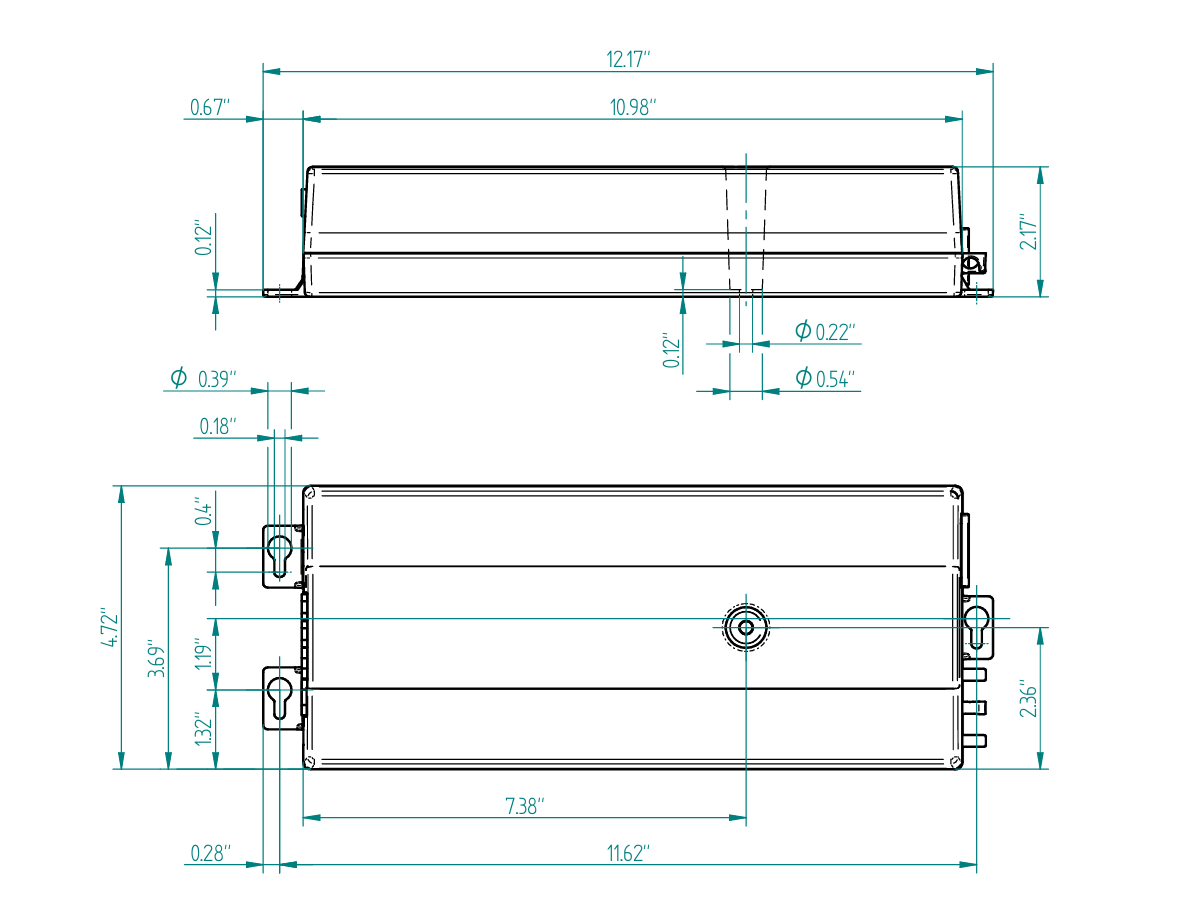

2x Lifting column SNT 1740, 1x Control box SCT4 iSMPS 110V, 1x Power cable US 118.11’’ / 3m, 1x Hand switch SCT Memory C.
Technical data:
Performance data lifting column SNT 2740 US 12
Number of lifting columns: 2
Max load: 660 lbs (300 kg)
Max pushing force: 337 lbs / 150 kg per column
Max. pulling force Static: 11 lbs / 50 N, dynamic – 11 lbs / 50 N
Lifting speed: 0.98” / sec (25 mm / sec)

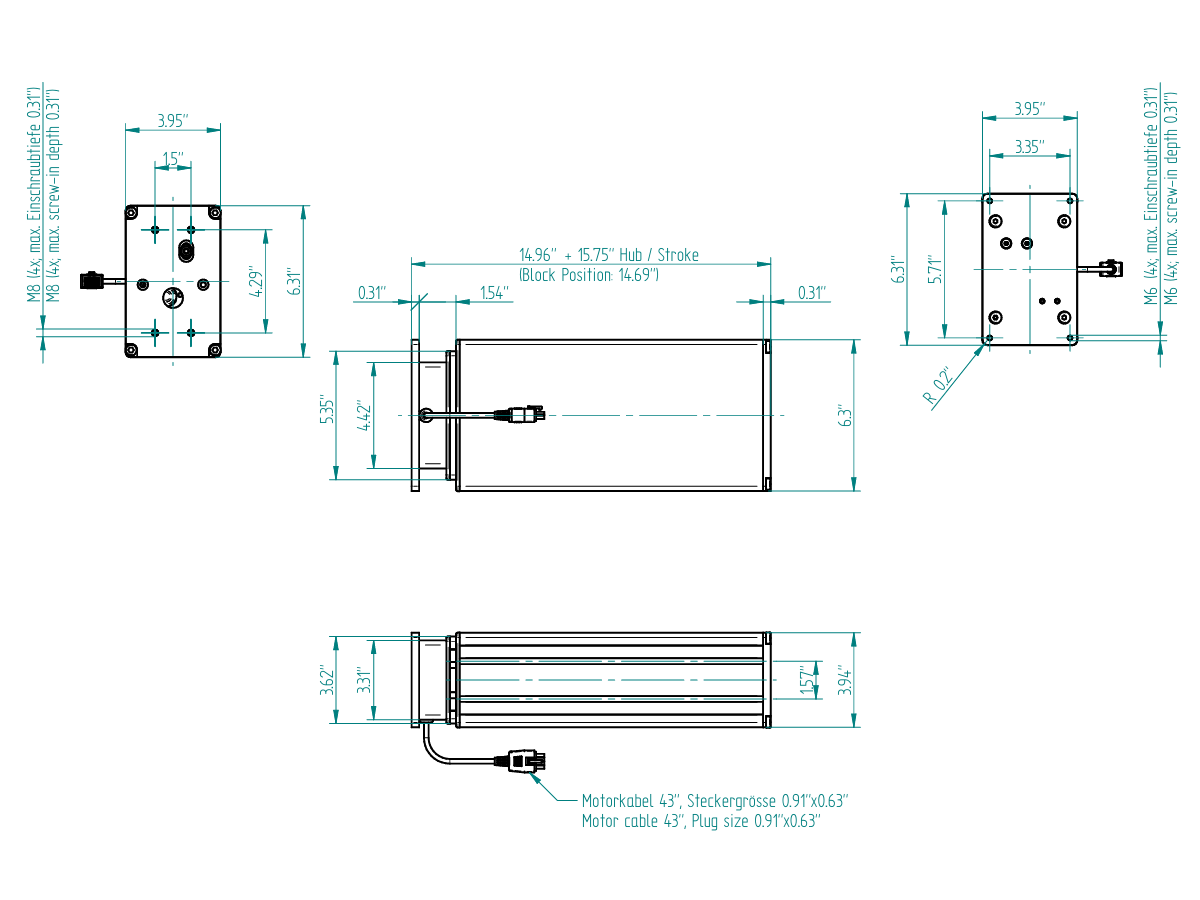

Stroke: 15.75” (400 mm)
Base / retracted height: 14.96” (380 mm)
Extended height: 30.71” (780 mm)
Duty cycle E/D (On/Off) 2 / 40 min
