$1,980.00
The electric spindle driven lifting column SQ is an economical lifting column solution to support base frames and workstation lift columns, that require medium to heavy lifting capacities.
| Weight | 37 lbs |
|---|---|
| Dimensions | 30 × 10 × 7 in |
| Application | Ergo catering, Intralogistics, Manufacturing, Medical device |
| Business area | Ergo assembly, Ergo care, Ergo catering, Ergo industry |

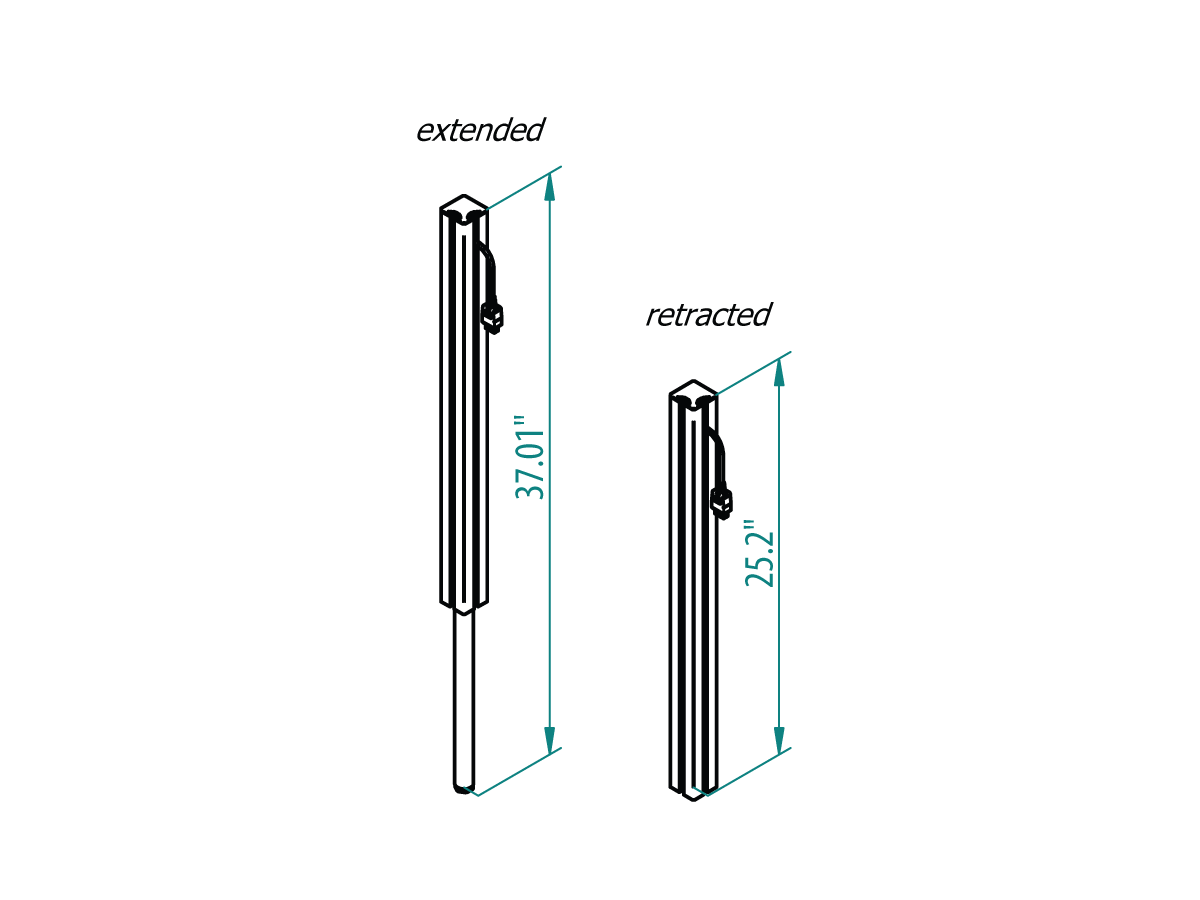

| Retracted height | 25.0” (640 mm) |
| Extended height | 37.0” (940 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 1,320 lbs (600 kg) |
| Max stroke | 11.81” (300 mm) |
| Number of Lifts | 4 |
| Weight | Medium weight |

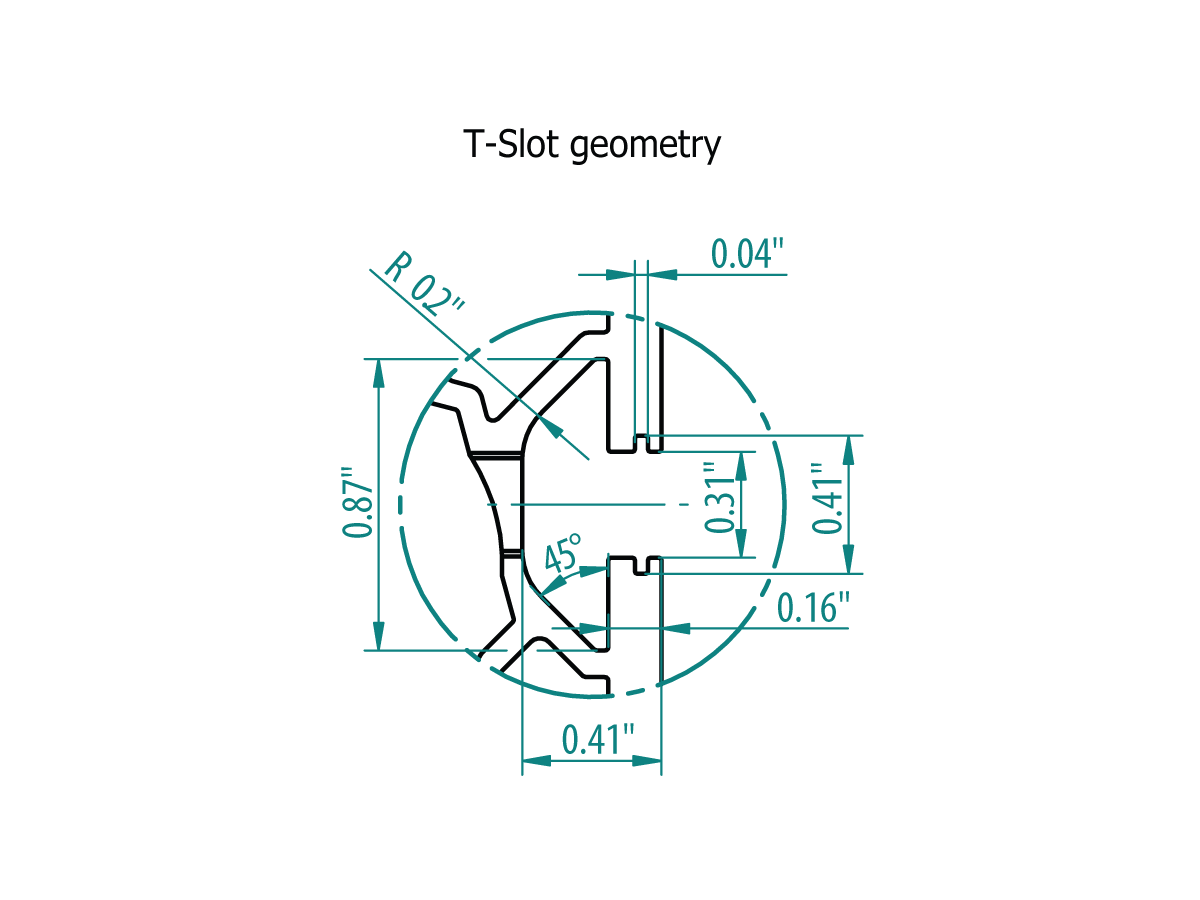

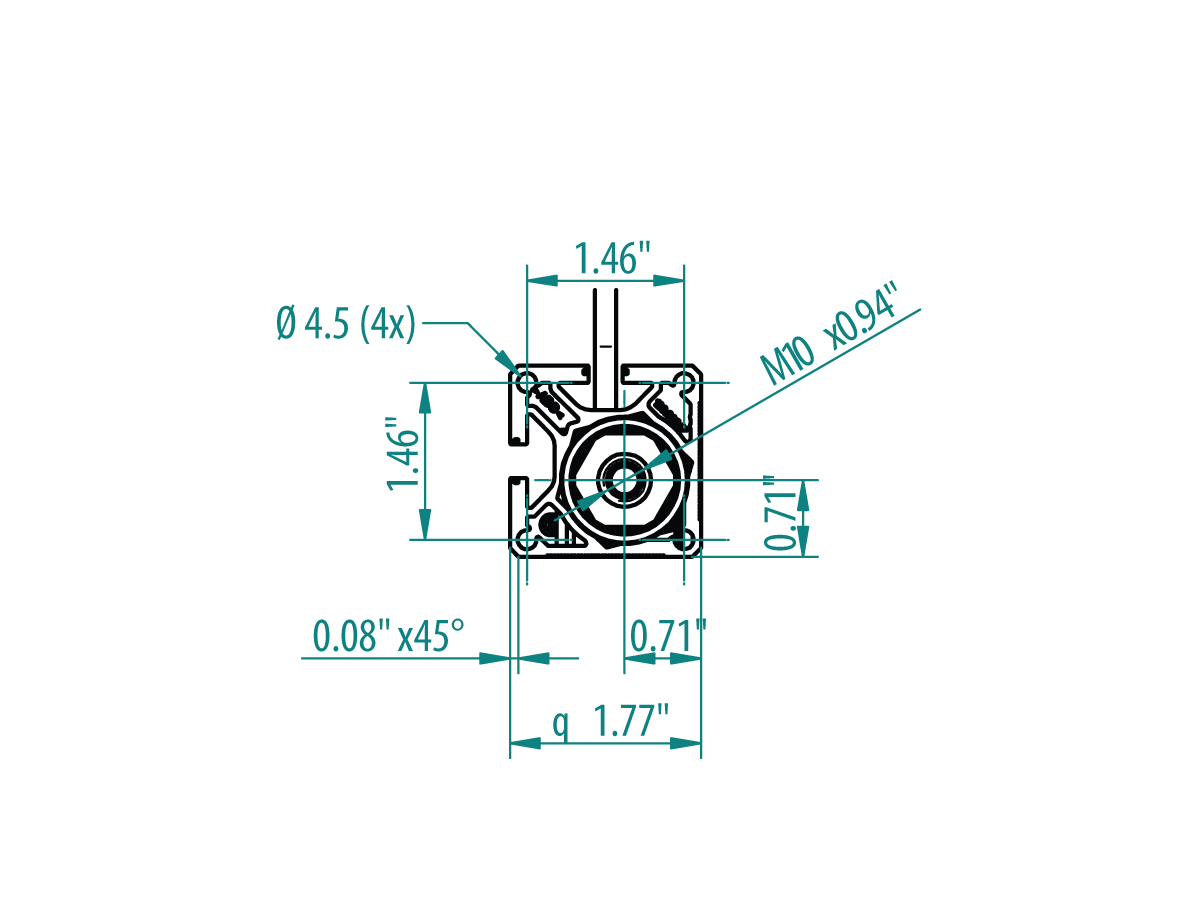

Its compact, yet strong base column, is consisting of a 1.78” x 1.78” (45×45 mm) anodized aluminum extrusion with two adjacent standard Ergoswiss T-Slots (8 mm width) for easy integration.

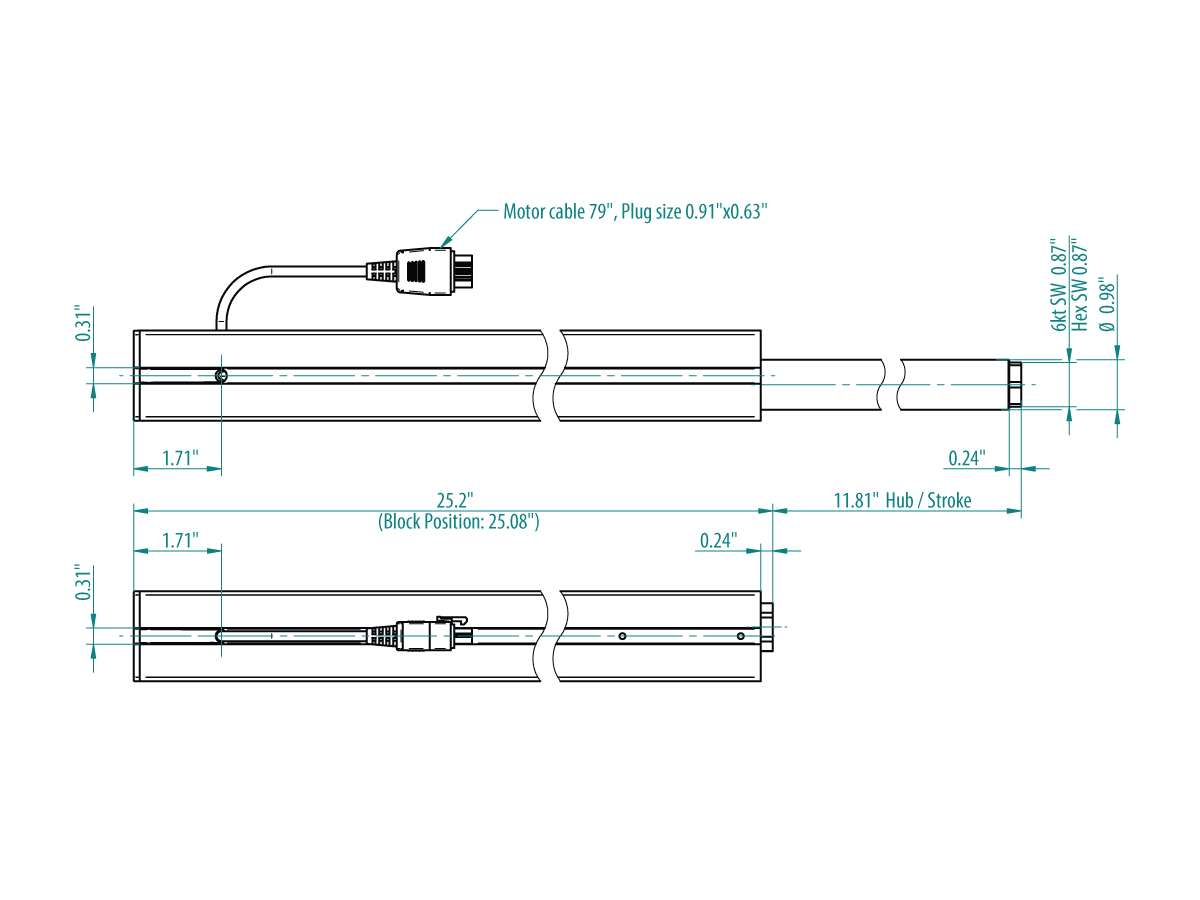

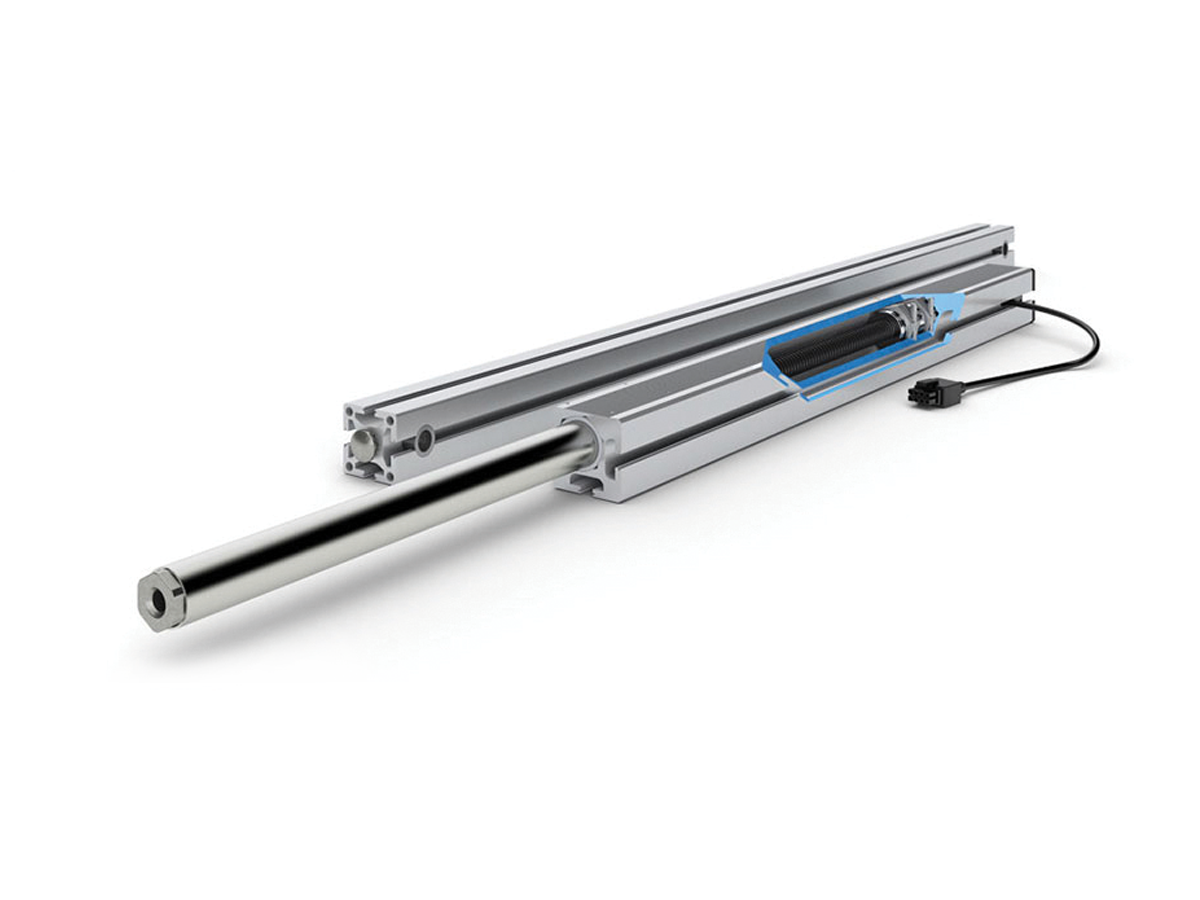

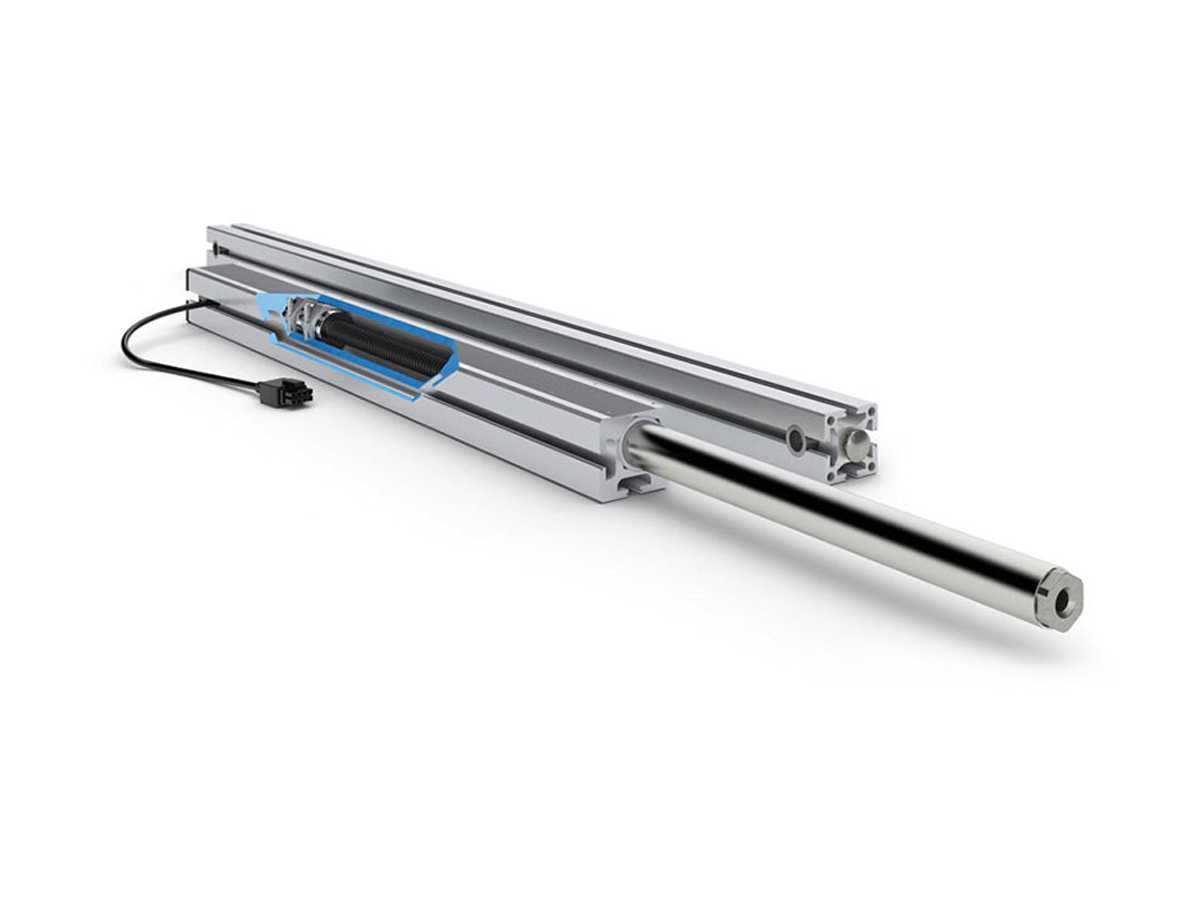

Each lifting column includes an internal motor and spindle drive that is synchronized by a control box. Each column includes a 78.75” motor cable to connect to the control box.

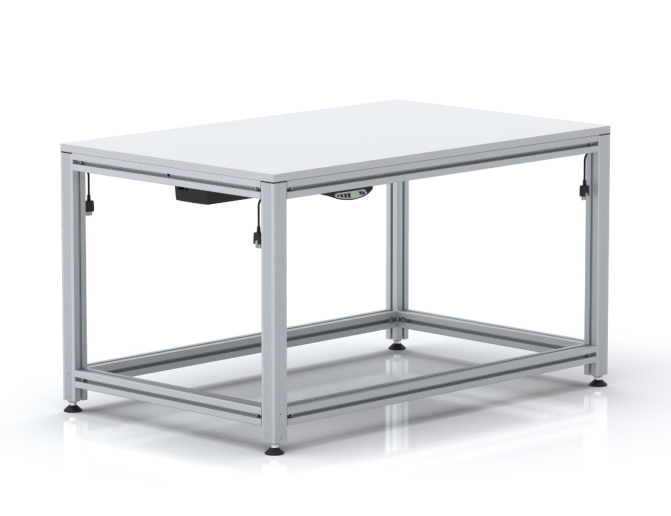

The electrically driven lifting column SQ is suitable for height adjustable tables and structures, laboratory workstations and generally in furniture and mechanical industry. Up to 4 lifting columns can be connected to one control box and are operated synchronously. In synchronous operation with 2 control boxes, up to 8 lifting columns can be operated.

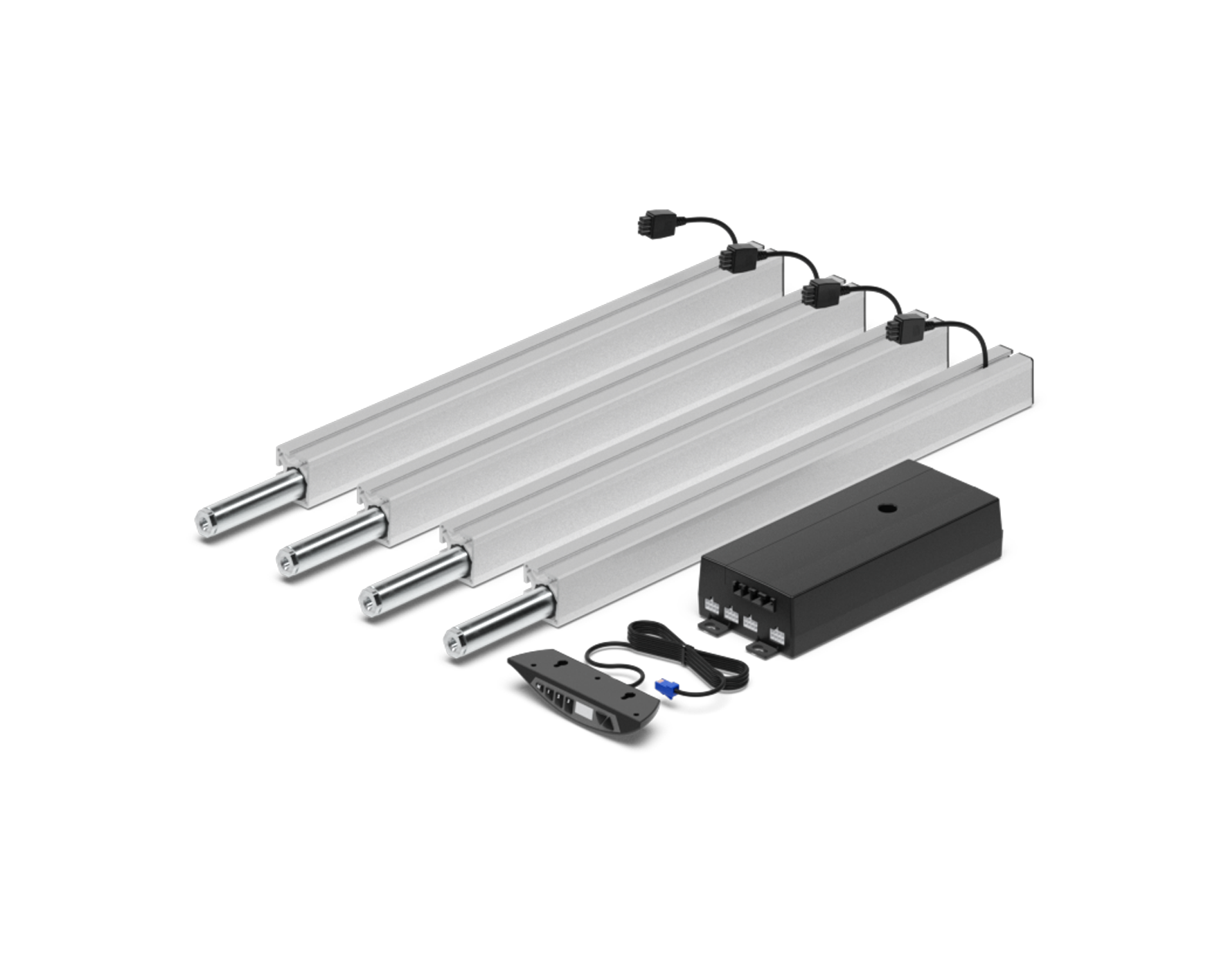

An SQ 4330 US 12 Quick-ship set consists of:
4x Lifting column SQ.3 1330 / 1x Control box iSMPS with Power cable US / 1x Cable remote control Memory, 4x level feet
Performance data lifting column SQ 4330 US 12
Number of lifting columns: 4
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 330 lbs / 150 kg per column
Max. pulling force Static: 330 lbs / 150 kg per column
Lifting speed: 0.35” / sec (9 mm / sec)
Stroke: 11.81″ (300 mm)
Base / retracted height: 25.0” (640 mm)
Extended height: 37.0” (940 mm)
Duty cycle E/D (On/Off): 2 / 40 min
