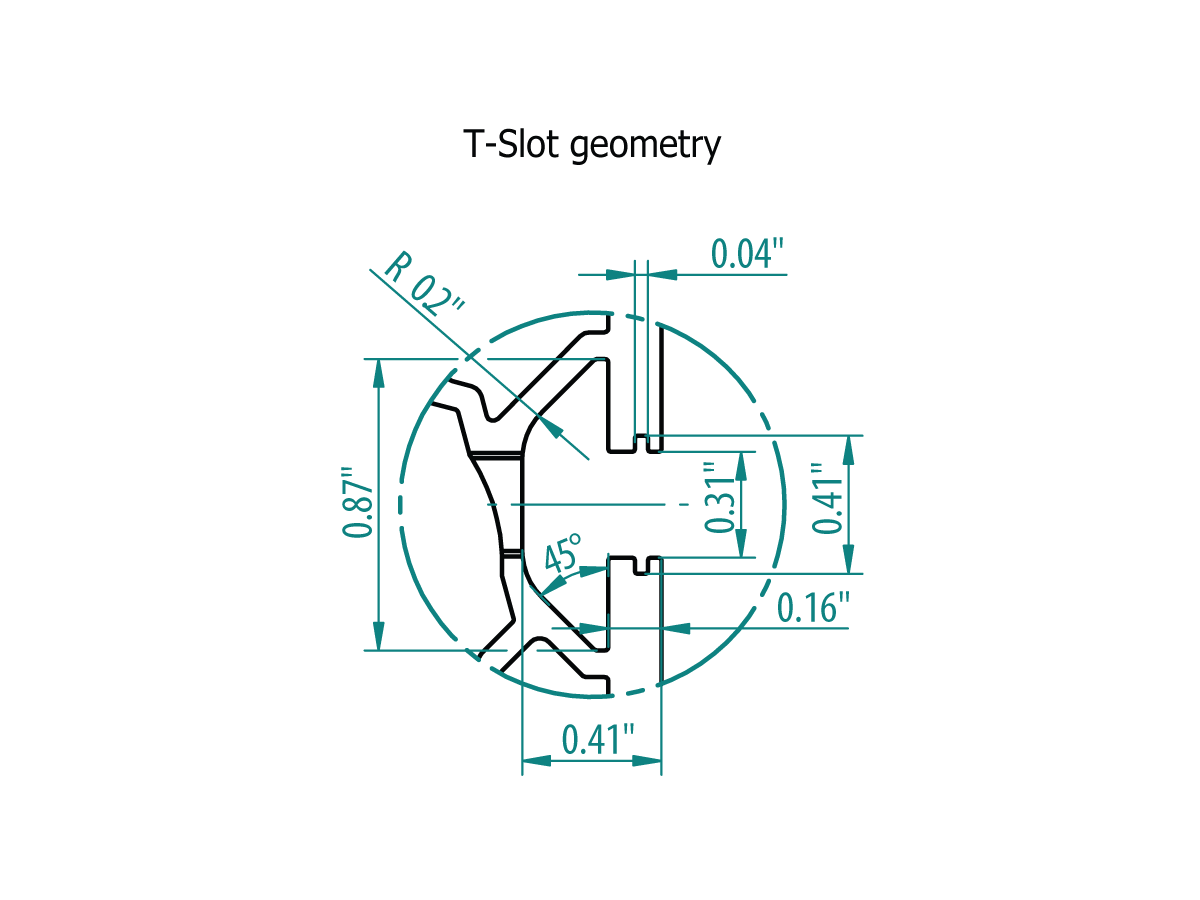

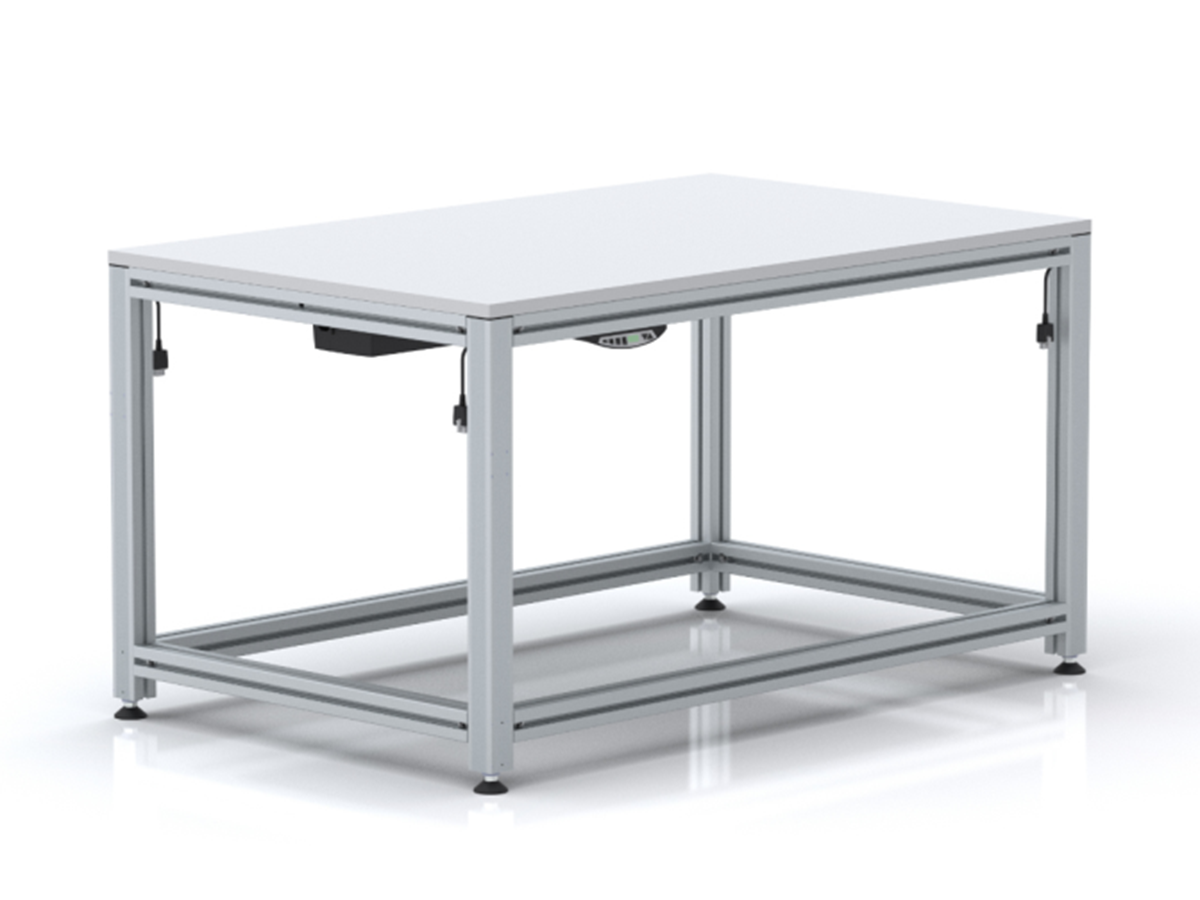

The long-travel SQ configuration: four columns, 15.75″ (400 mm) of adjustment, in the same slim 1.78″ x 1.78″ (45 x 45 mm) anodized aluminum profile. Specify it for benches shared between operators of very different heights, and for inspection work that needs the surface brought close to eye level. The extra stroke comes with a higher retracted height, so confirm clearance beneath the worktop before ordering. Two adjacent 8 mm T-slots per column.
See the Description section below for more information.
In stock
| Weight | 39 lbs |
|---|---|
| Dimensions | 36 × 12 × 9.25 in |
| Retracted height | 29.0” (740 mm) |
| Extended height | 45.0” (1140 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 1,320 lbs (600 kg) |
| Max stroke | 15.75” (400 mm) |
| Number of Lifts | 4 |
| Weight | Medium weight |

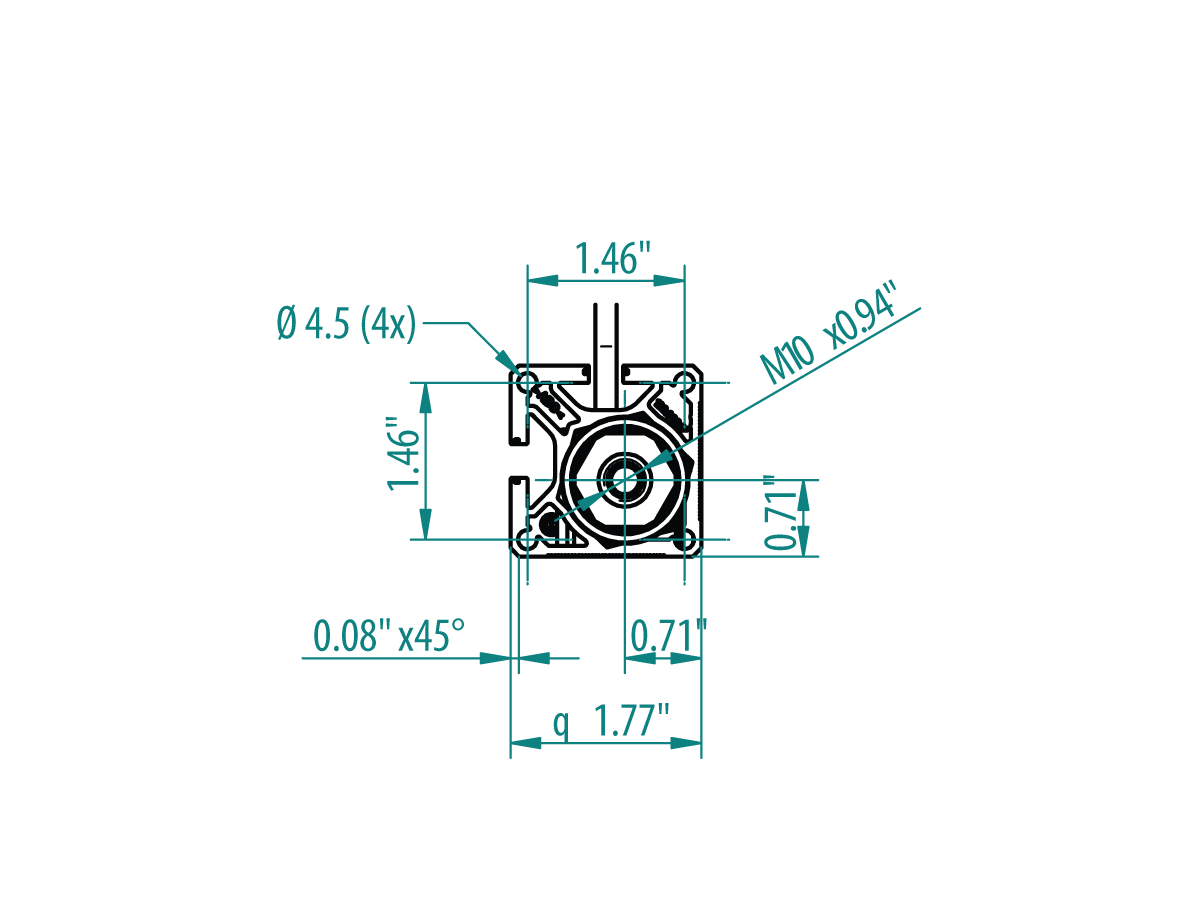

| Size-diameter | 1.78” x 1.78” (45×45 mm) |
| Stability | 3.5 stars (Very Good) |
The long-travel SQ configuration: four columns, 15.75″ (400 mm) of adjustment, in the same slim 1.78″ x 1.78″ (45 x 45 mm) anodized aluminum profile. Specify it for benches shared between operators of very different heights, and for inspection work that needs the surface brought close to eye level. The extra stroke comes with a higher retracted height, so confirm clearance beneath the worktop before ordering. Two adjacent 8 mm T-slots per column.
If overhead or understructure clearance is tight, SQ 4330 US 12 sits lower when retracted. For heavier or off-centre loads, the SM four-column range uses a larger profile.

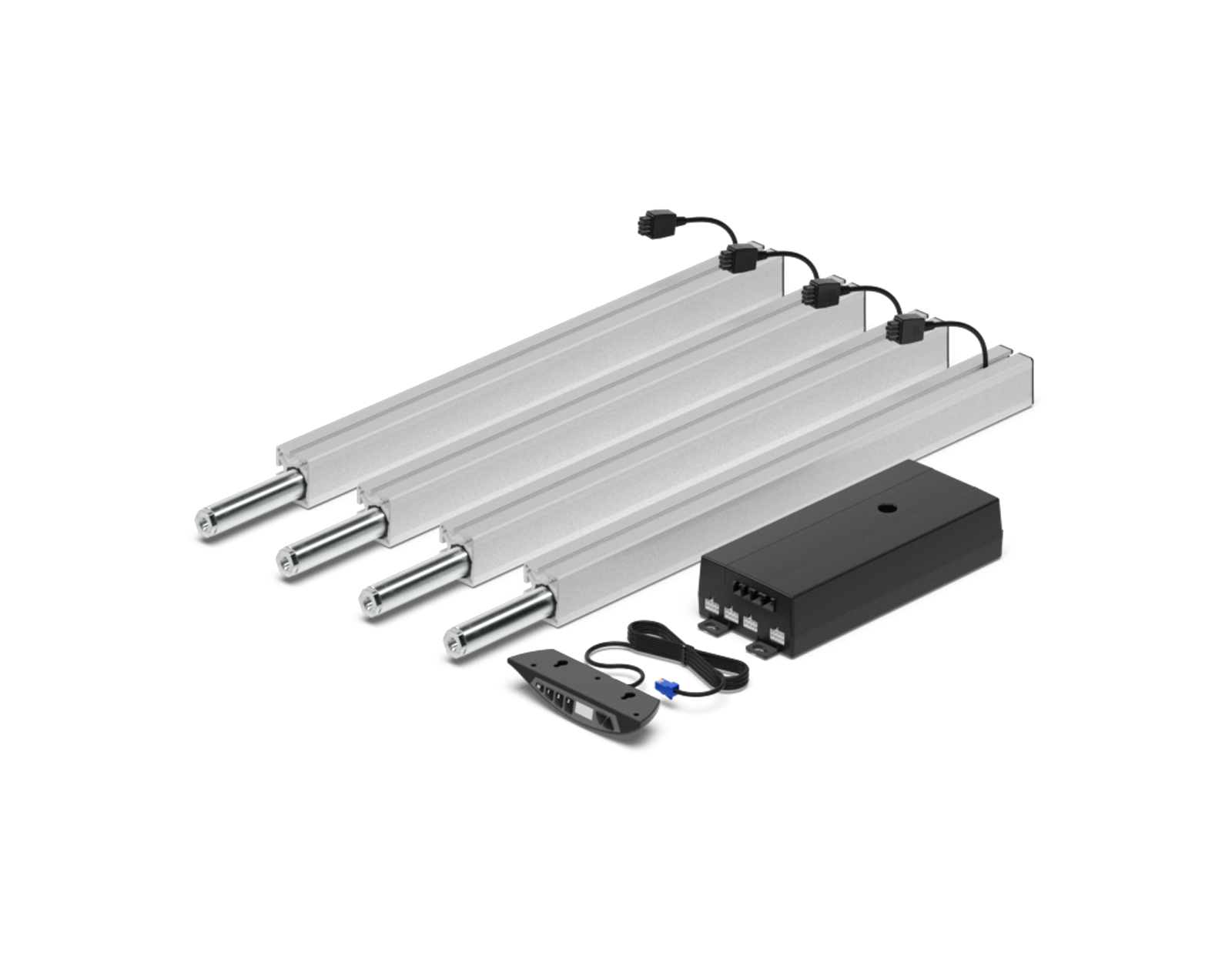

An SQ 4340 US 12 Quick-ship set consists of:
4x Lifting column SQ.3 1340 / 1x Control box iSMPS with Power cable US / 1x Cable remote control Memory / 4x level feet
Performance data lifting column SQ 4340 US 12
Number of lifting columns: 4
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 330 lbs / 150 kg per column
Max. pulling force Static: 330 lbs / 150 kg per column
Lifting speed: 0.35” / sec (9 mm / sec)

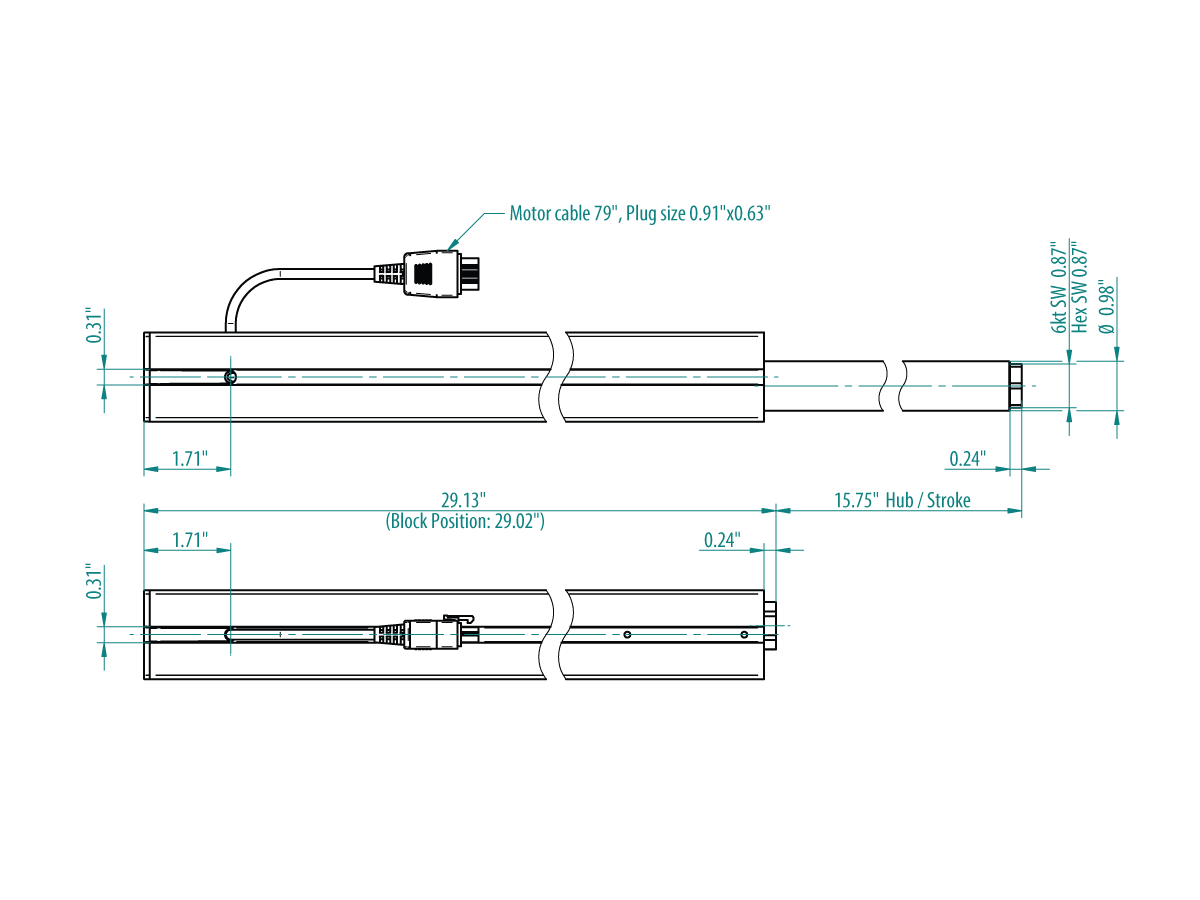

Stroke: 15.75″ (400 mm)

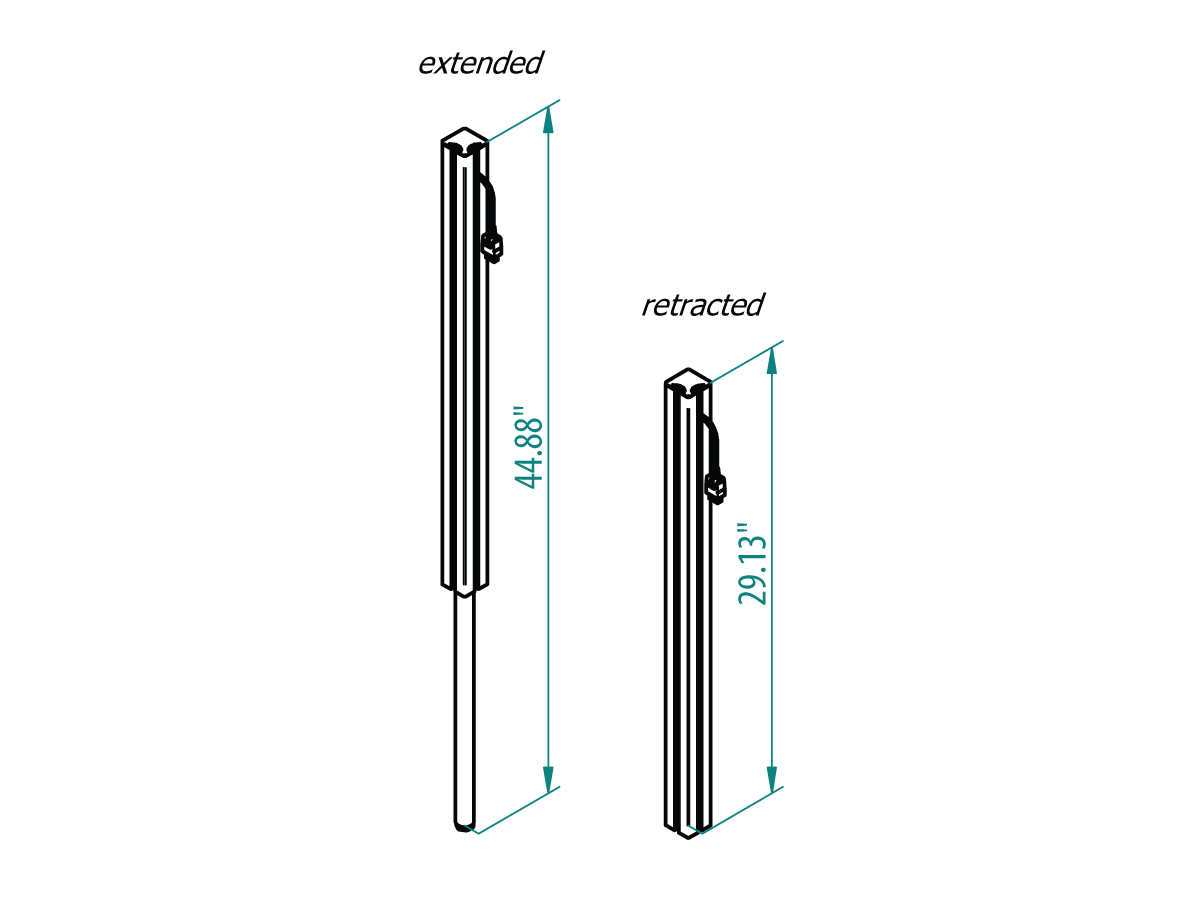

Base / retracted height: 29.0” (740 mm)
Extended height: 45.0” (1140 mm)
Duty cycle E/D (On/Off): 2 / 40 min
