QS – SF-2 1230 US 02 Base Frame

$1,330.00

The electric spindle- driven lifting column base frame SF is an economical solution for application, that require only a lighter lifting capacity.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

Buy 1 - 2 pieces
$1,330.00
Total:
$1,330.00
Buy 3 pieces and save 20%
$1,330.00
$1,065.00
Total:
Buy 4 pieces and save 20%
$1,330.00
$1,065.00
Total:
x
SKU: 909.71203 Category:

Additional information

Weight 49 lbs
Dimensions 26 × 14.5 × 6.5 in
Application

Ergo catering, Intralogistics, Manufacturing, Medical device

Business area

Ergo assembly, Ergo care, Ergo catering, Ergo industry

Retracted height

24.41” (620 mm)

Extended height

36.22” (920 mm)

Lifiting speed

0.78” / sec (20 mm / sec)

Max load

440 lbs (200 kg)

Max stroke

11.81” (300 mm)

Number of Lifts

2

Weight

Light weight

Description

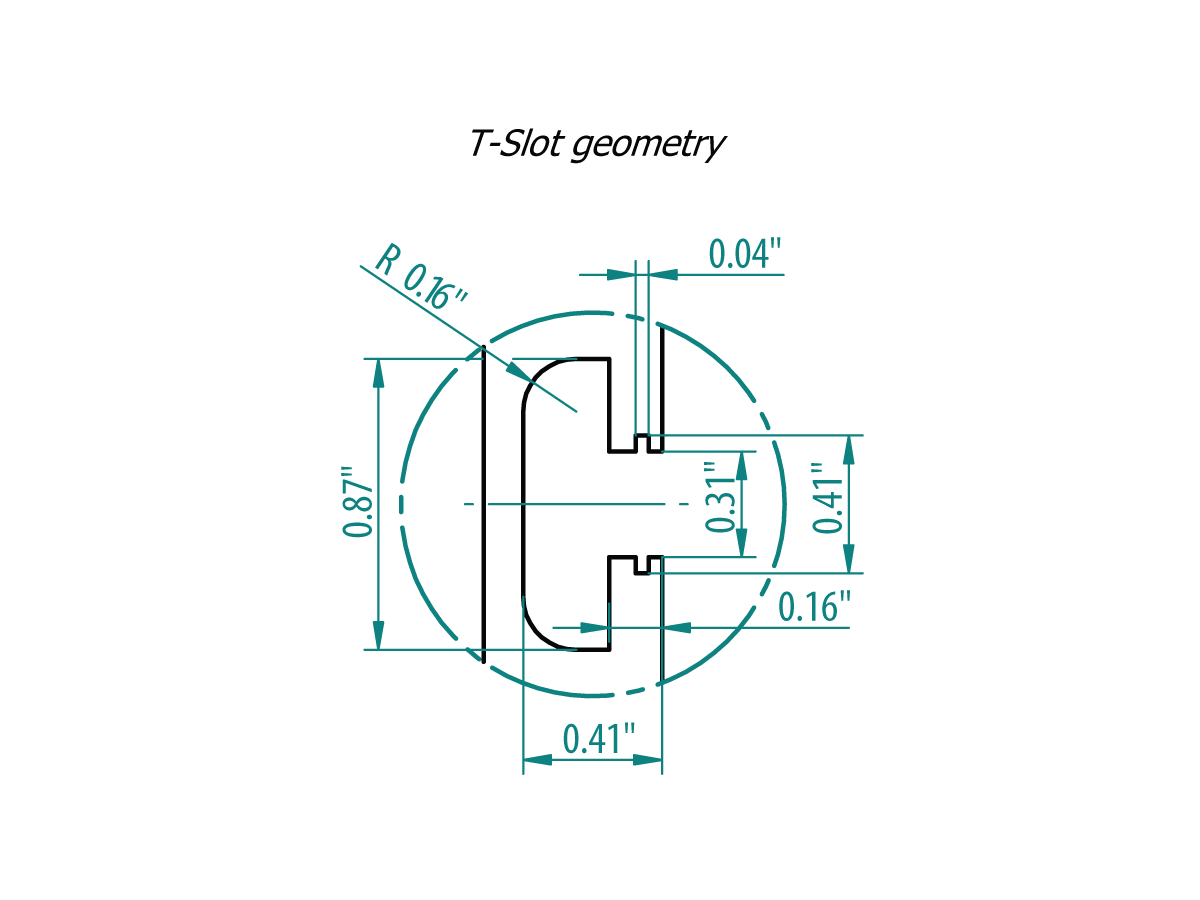

The base column is consisting of a 5.9” x 2.4” (150X60 mm) anodized aluminum extrusion with two faces of our standard Ergoswiss T-Slot geometry (8 mm width) for easy integration.

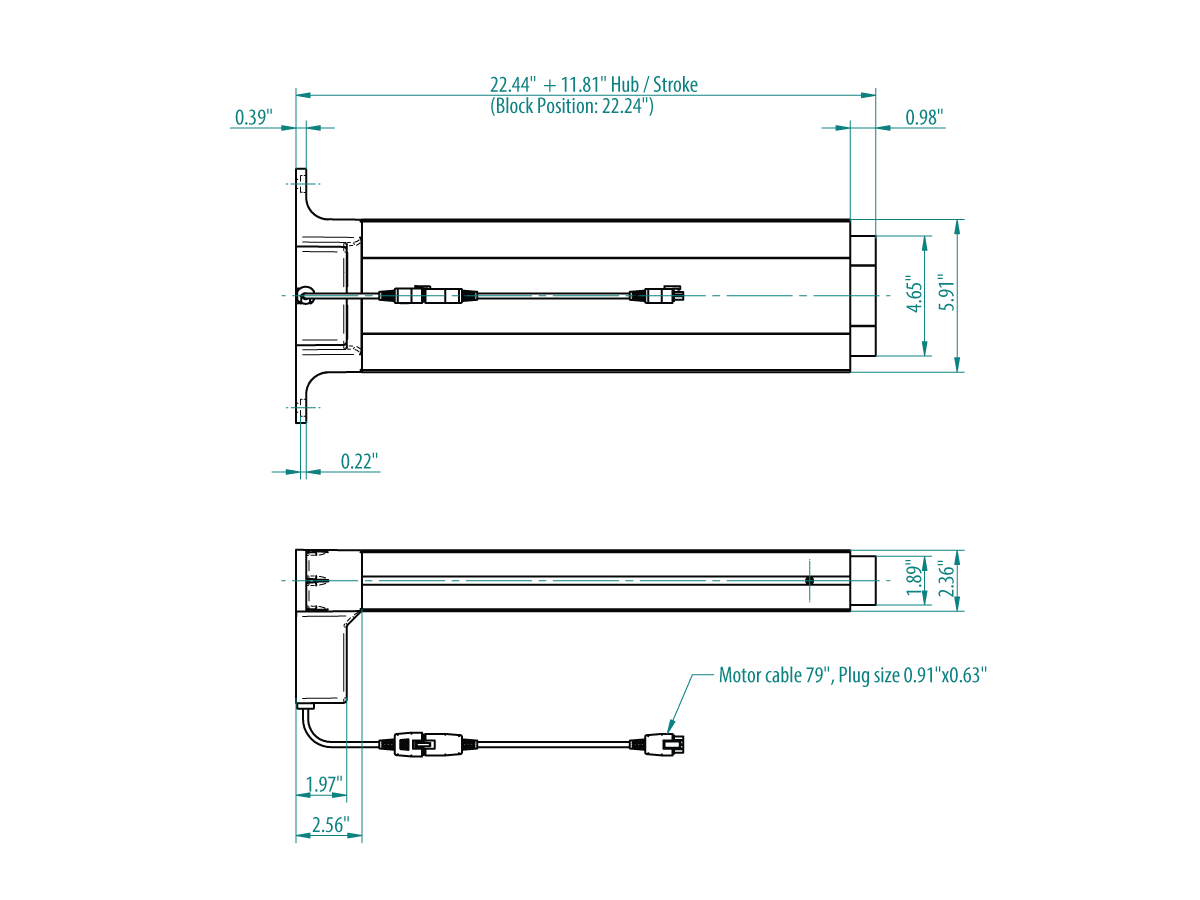

Each lifting column includes an internal motor and spindle drive that is synchronized by the control box. Each column includes a 78” motor cable to connect to the control box. The crossbar is adjustable every 2” to accommodate adjustments from 35.43” to 61.02” (960 – 1610 mm).

An SF-2 1230 US 02 Base Frame quick-ship set consists of:
Part# 909.61203-PP (2x Lifting column SF 1230 with 78” connection cable / 1x Control box Compact with a 10 ft Power cable US / 1x Cable remote control Memory) plus the Telescopic cross bar (Adjustable every 2” from 35.43” 61.02”), 2 x Table foot SF with 2 leveling feet each

Technical data

Performance data lifting column SF-2 1230 US 02 Base Frame
Number of lifting columns : 2
Max load: 440 lbs (200 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 220 lbs / 100 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed : 0.78” / sec (20 mm / sec)
Stroke : 11.81″ (300 mm)
Base / retracted heigh: 24.41” (620 mm)
Extended height: 36.22” (920 mm)
Duty cycle E/D (On/Off): 2 / 40 min
