QS-SLG.3 4330 US 12

$2,070.00

The SLG Electric Spindle-Driven System (1.77” x 1.77”) is a widely utilized retrofit solution known for its compact design and versatility. Requiring minimal installation space and perfectly fitting inside 2”x2” square tubing, the modular and expandable plug-and-play system is one of the most popular add-on systems. Unlike hydraulic alternatives, this system eliminates the need for weight resetting and can be configured for both push and pull applications. Additional lift columns can be easily integrated at any time for future system expansion. The system has a memory remote, allowing operators to conveniently store three preset positions and upper and lower travel limits if desired. Linear column extension cables are available to accommodate structures with extended setup ranges. The integrated three-level gravity sensors within the control box also offer enhanced safety and security features. The system is available with quick-ship configurations for a standard four-leg assembly.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

Buy 1 - 2 pieces
$2,070.00
Total:
$2,070.00
Buy 3 pieces and save 6%
$2,070.00
$1,940.00
Total:
Buy 4 pieces and save 6%
$2,070.00
$1,940.00
Total:
x
SKU: 904.42236-PP Category:

Additional information

Weight 38 lbs
Dimensions 30 × 11 × 8 in
Application

Aerospace, Electronic manufacturing, Ergo catering, Food industry, Intralogistics, Manufacturing, Medical device
Business area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

23.6” (630 mm)
Extended height

35.4" (899 mm)
Lifiting speed

0.35” / sec (9 mm / sec)
Max load

1,320 lbs (600 kg)
Max stroke

11.81” (300 mm)
Number of Lifts

4

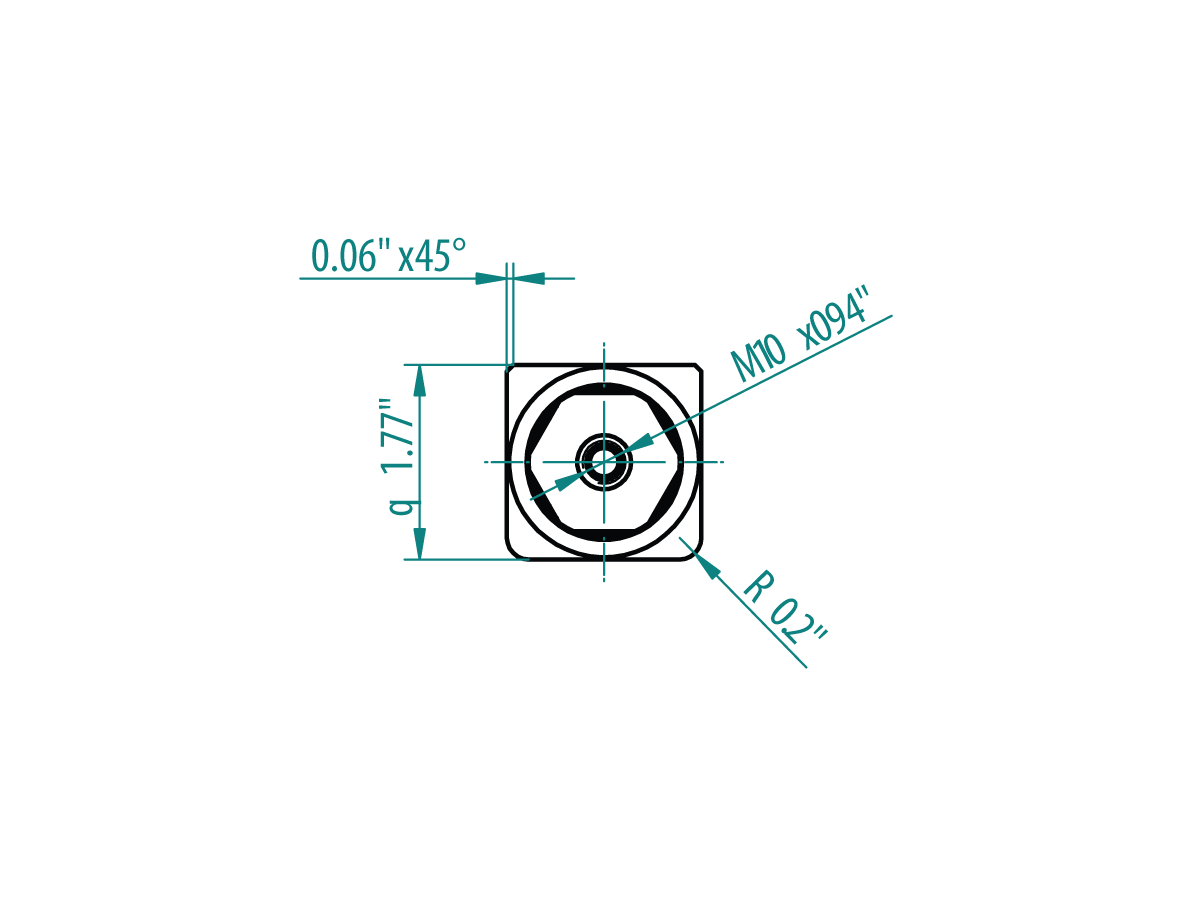

Size/diameter

1.78” x 1.78” (45×45 mm)
Stability

3.5 stars (Very Good)
Weight

Heavy weight, Medium weight
STEP file

PDF files

Description

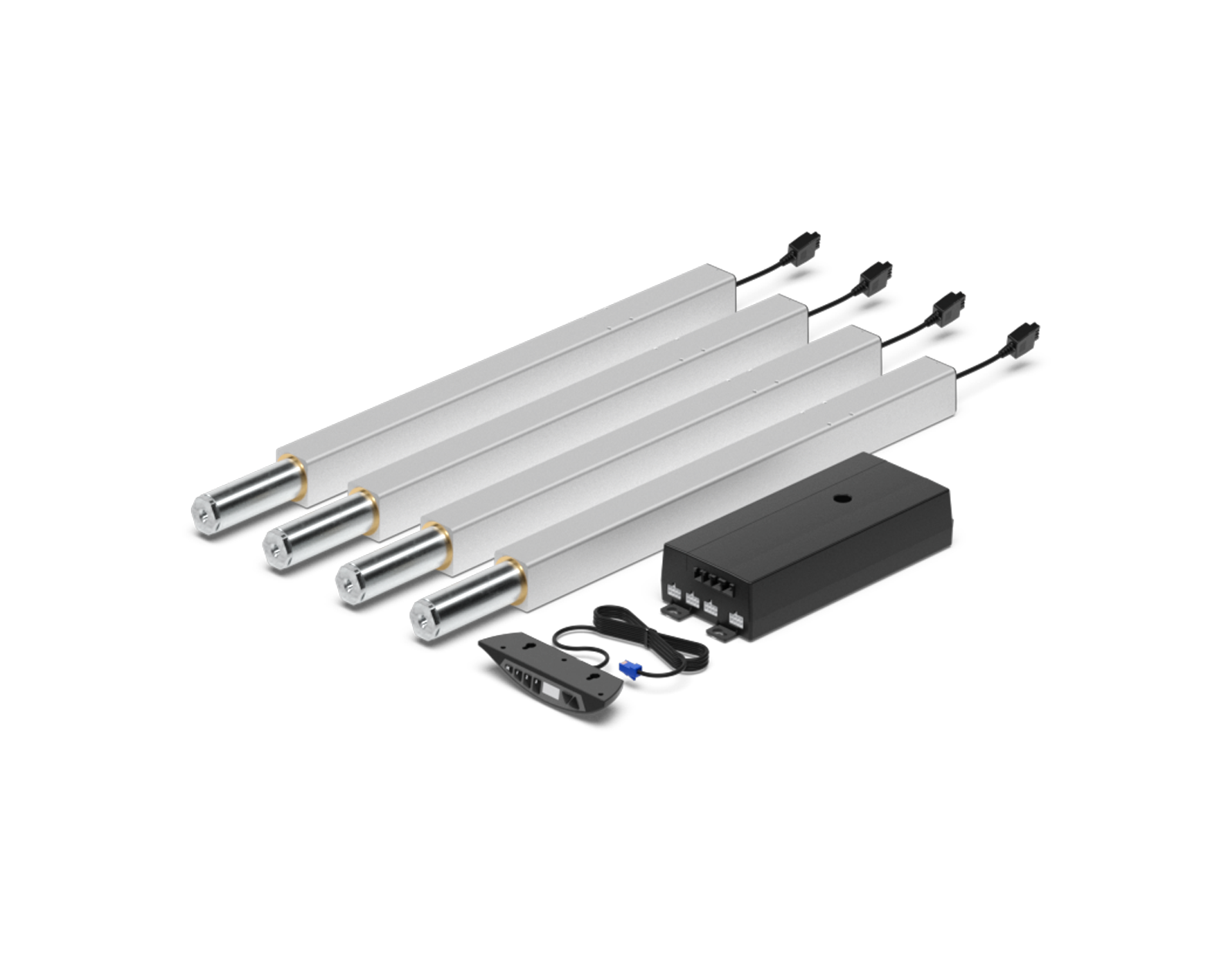

An SLG Quick ship system consists of:

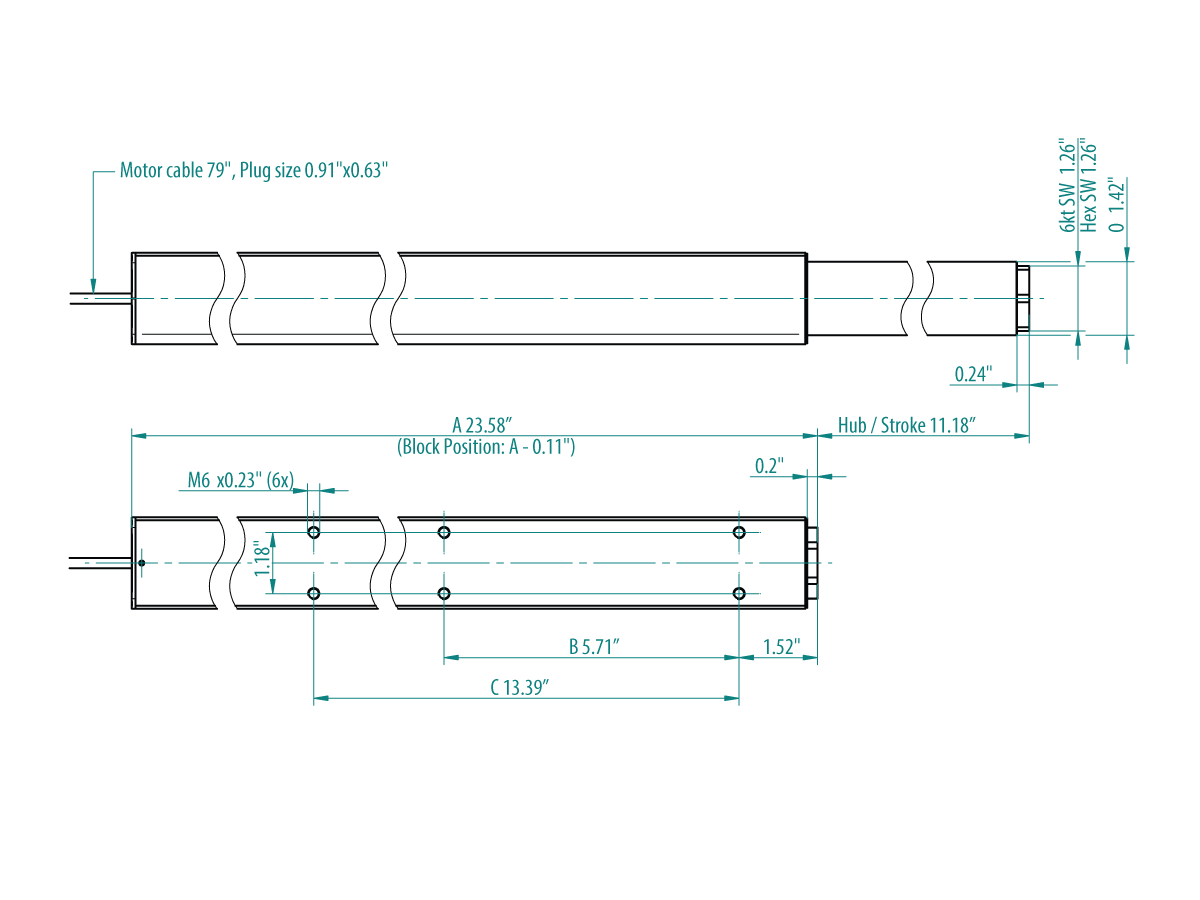

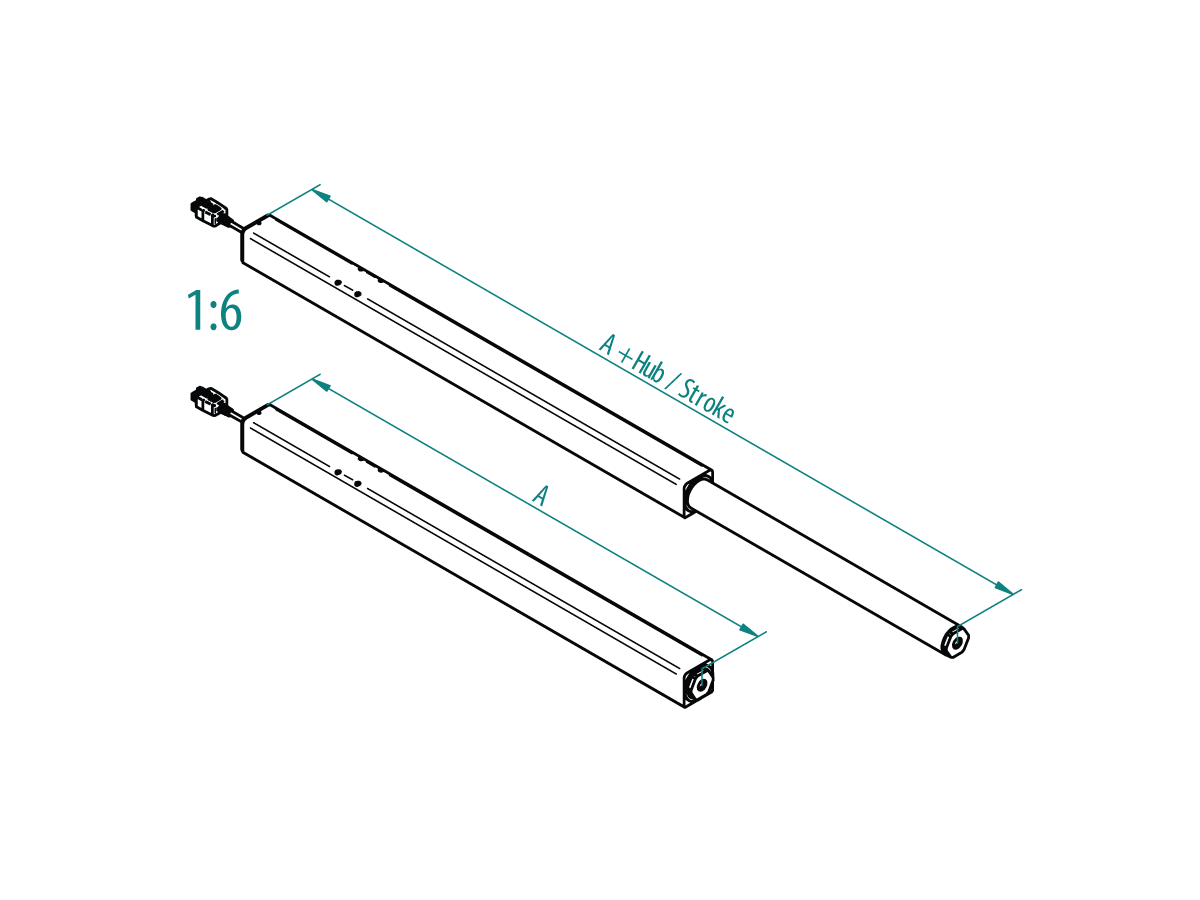

– 4x 904.02003 Linear unit SLG.3 1330
– 1x 124.43801 Control box SCT4 iSMPS 580 110V (V3801)
– 1x 124.00281 Hand switch SCT Memory T6
– 1x 124.00145 Power cable US 3m (10 ft)
– 4x 113.00006 Articulated foot M10x20

Technical data:

Max load: 1320 lbs (600 kg) – (includes weight of frame).
Max stroke: 11.8” (300 mm)
Lifting speed: 0.35” (9 mm) per second.
