QS-Hand crank system 12 – 1000 -MAN
QS-Hand crank system 12 – 1000 -MAN - Image 2
QS-Hand crank system 12 – 1000 -MAN - Image 3
QS-Hand crank system 12 – 1000 -MAN - Image 4
QS-Hand crank system 12 – 1000 -MAN - Image 5
QS-Hand crank system 12 – 1000 -MAN - Image 6
QS-Hand crank system 12 – 1000 -MAN - Image 7
QS-Hand crank system 12 – 1000 -MAN - Image 8

QS-Hand crank system 12 – 1000 -MAN

$605.00

An economical, space-saving height-adjustable solution offering up to 12″ (300 mm) of lift via a fold-away hand crank. Ideal for steel frame applications, the quick-ship fully assembled system includes leveling feet and a drilling template for fast, seamless installation.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$605.00
Total:
$605.00
Buy 3 pieces and save 3%
$605.00
$585.00
Total:
Buy 4 pieces and save 3%
$605.00
$585.00
Total:
x
SKU: 111.30043 Category:

Additional information

Weight 29 lbs
Dimensions 35 × 12 × 9 in
application

Ergo catering, Intralogistics, Manufacturing, Medical device
business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

17.4” (442 mm)
Extended height

29.2” (742 mm)
Lifiting speed

0.2” (5 mm) per crank revolution
Max load

992 lbs (450 kg)
Max stroke

11.81” (300 mm)
Number of Lifts

4
Size-diameter

1.38”x1.38” (35 x 35 mm)
Stability

2 stars (Average)
Weight

Light weight
STEP file

PDF files
2345 1113.00039 PP v2113.00054 PP v2113.00004 PP v2113.00003 PP v2

Description

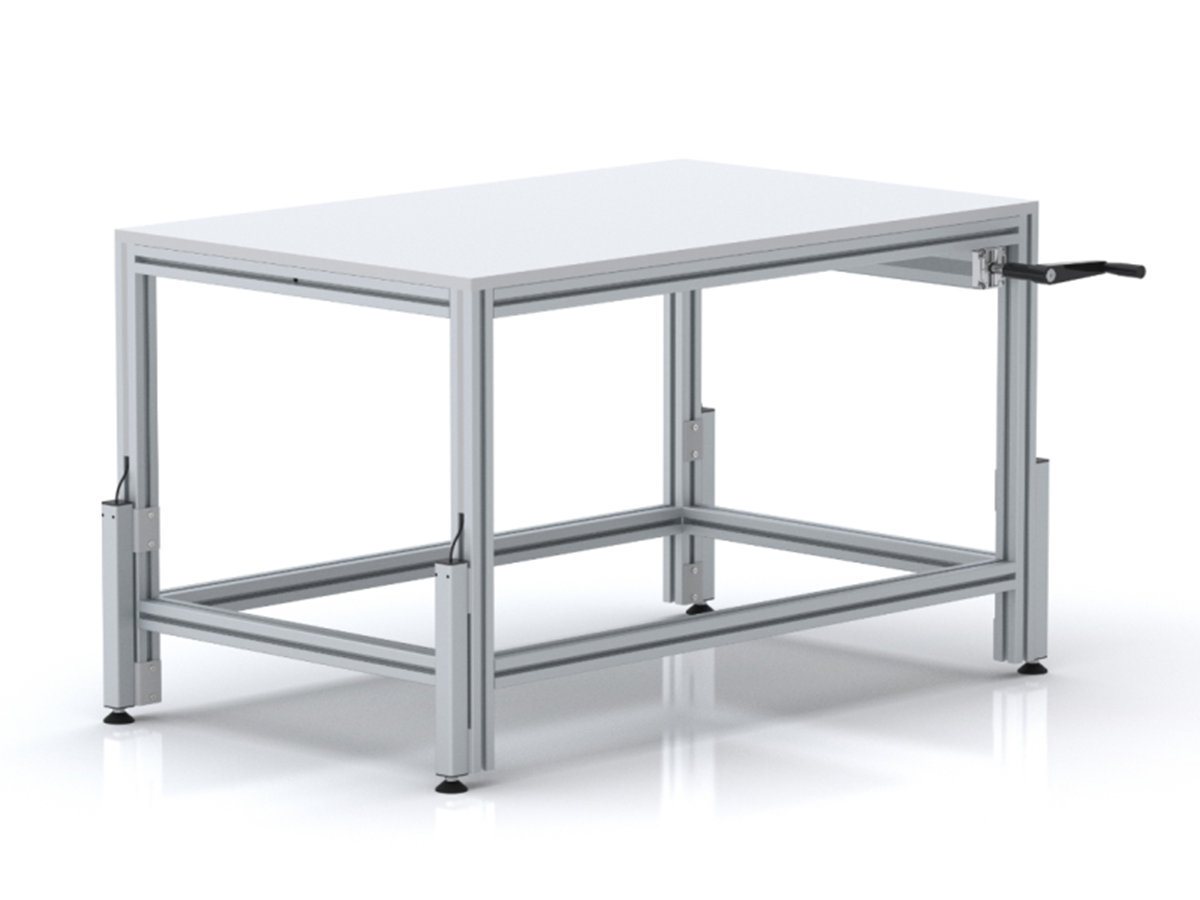

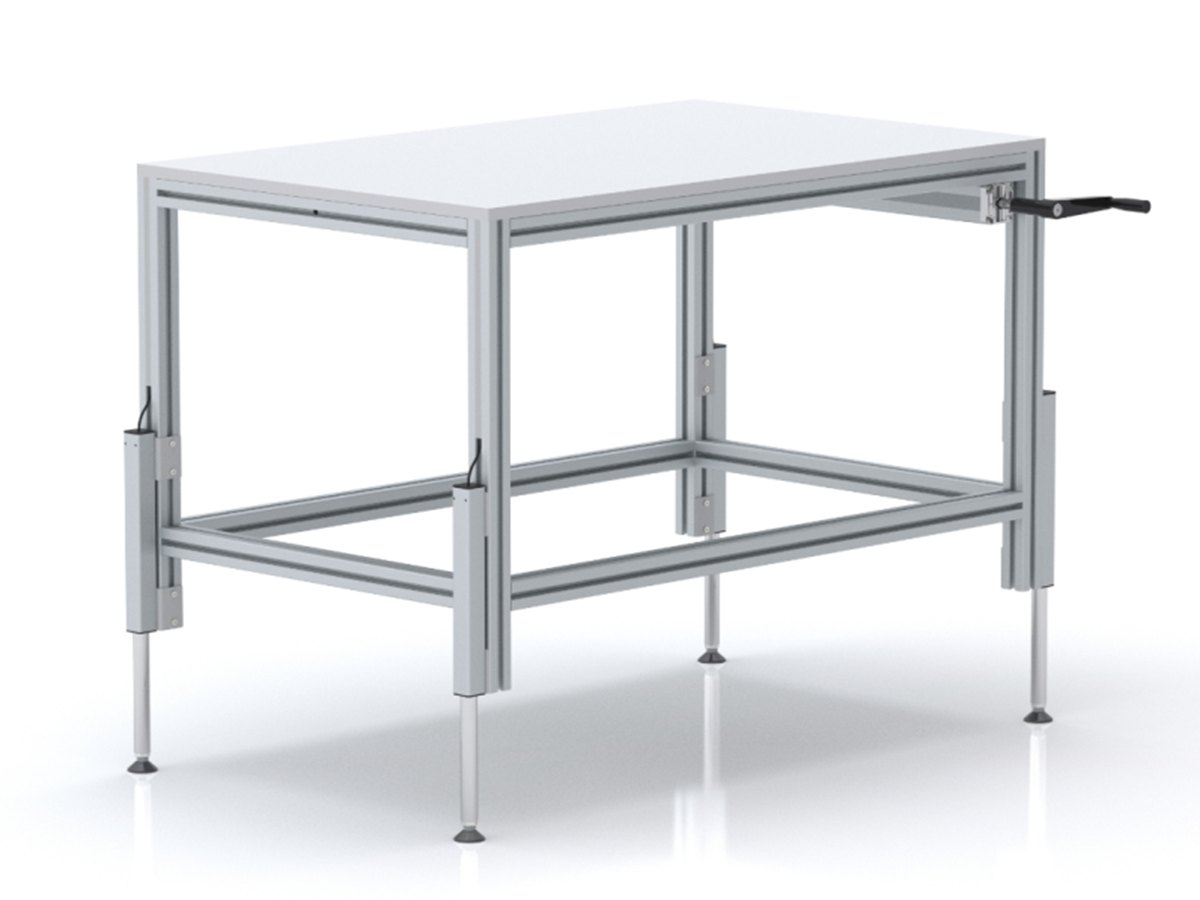

The manual hand crank system is the most economical option for raising and lowering structures by up to 12”. The crank can be easily folded away once the desired height is reached to prevent obstruction. As with hydraulic systems, weight is required on each column for retraction. Quick-ship systems arrive fully assembled and pre-packed.

A manual hand crank system consisting of:

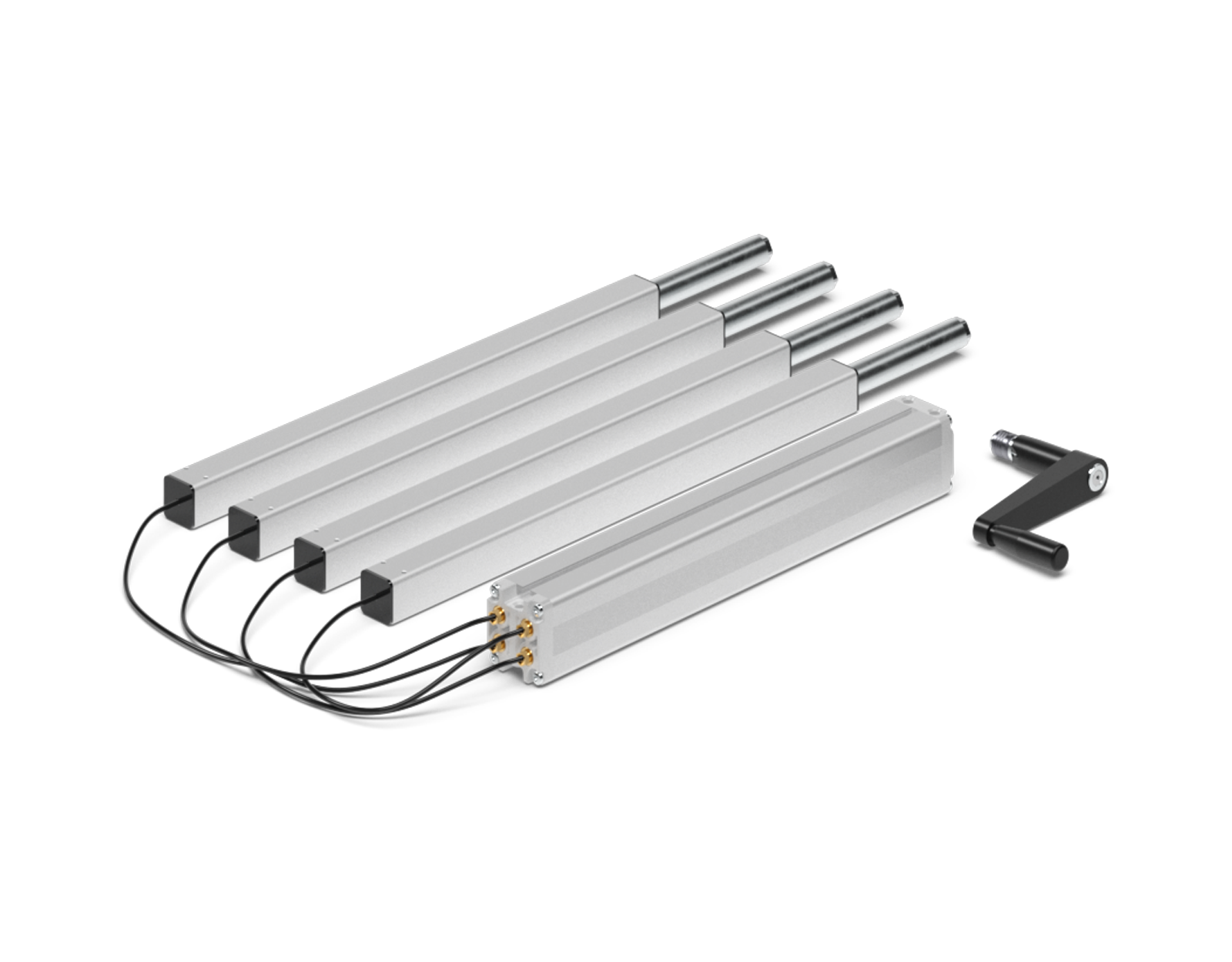

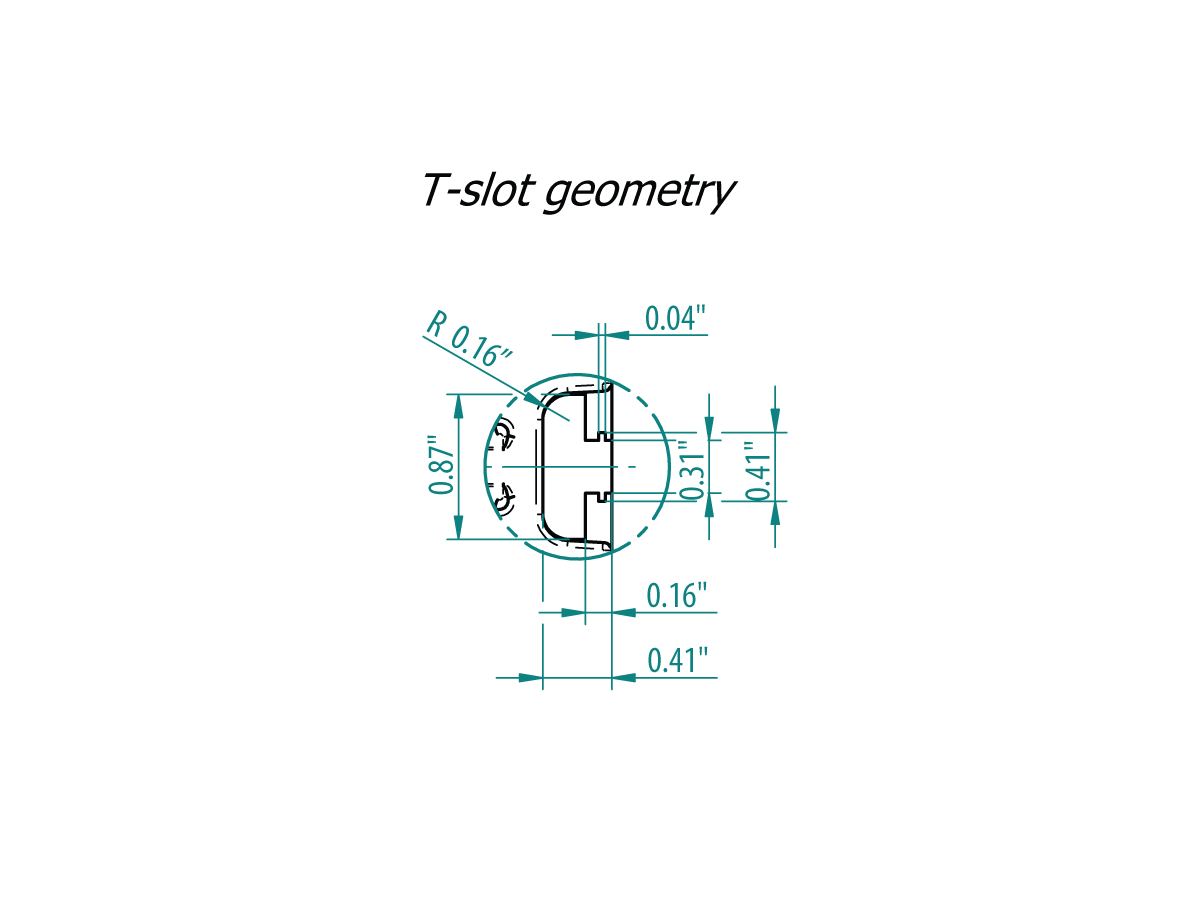

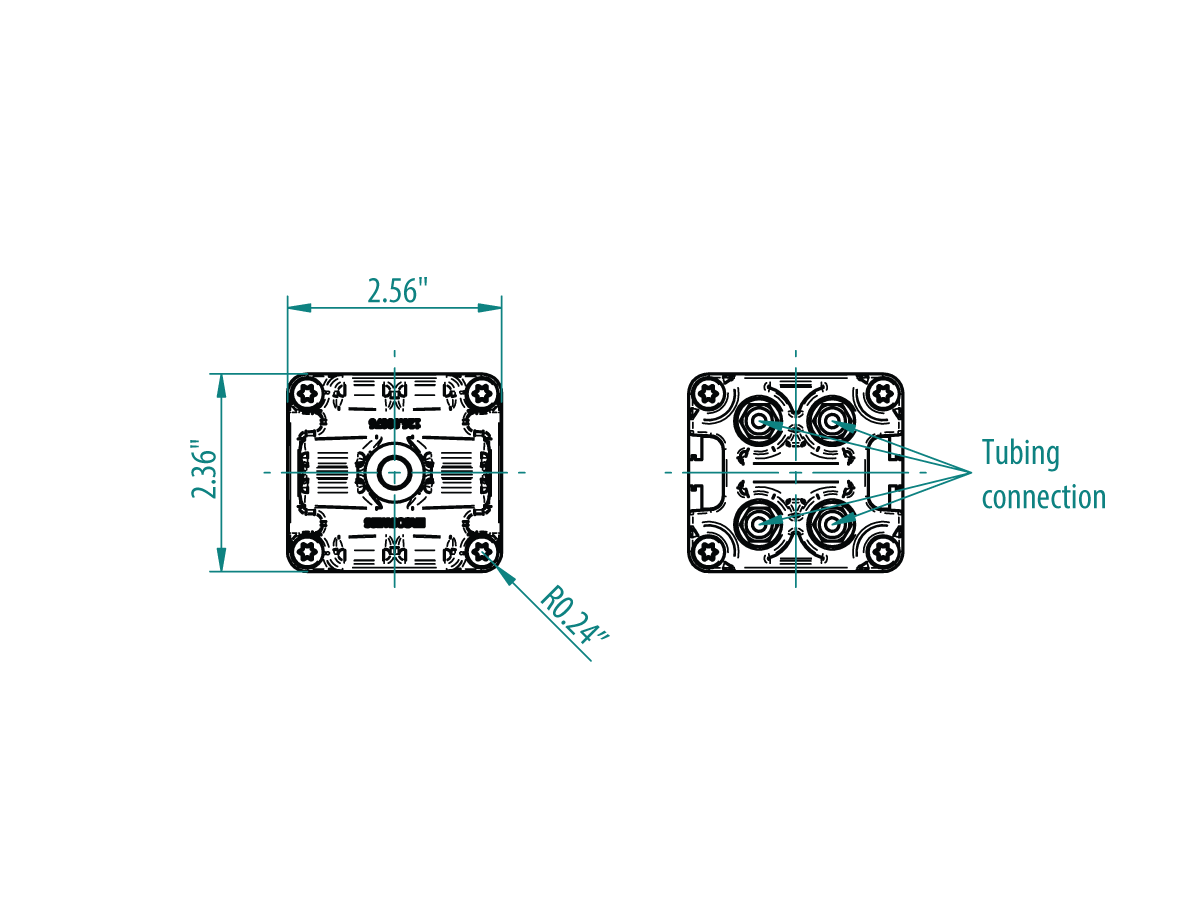

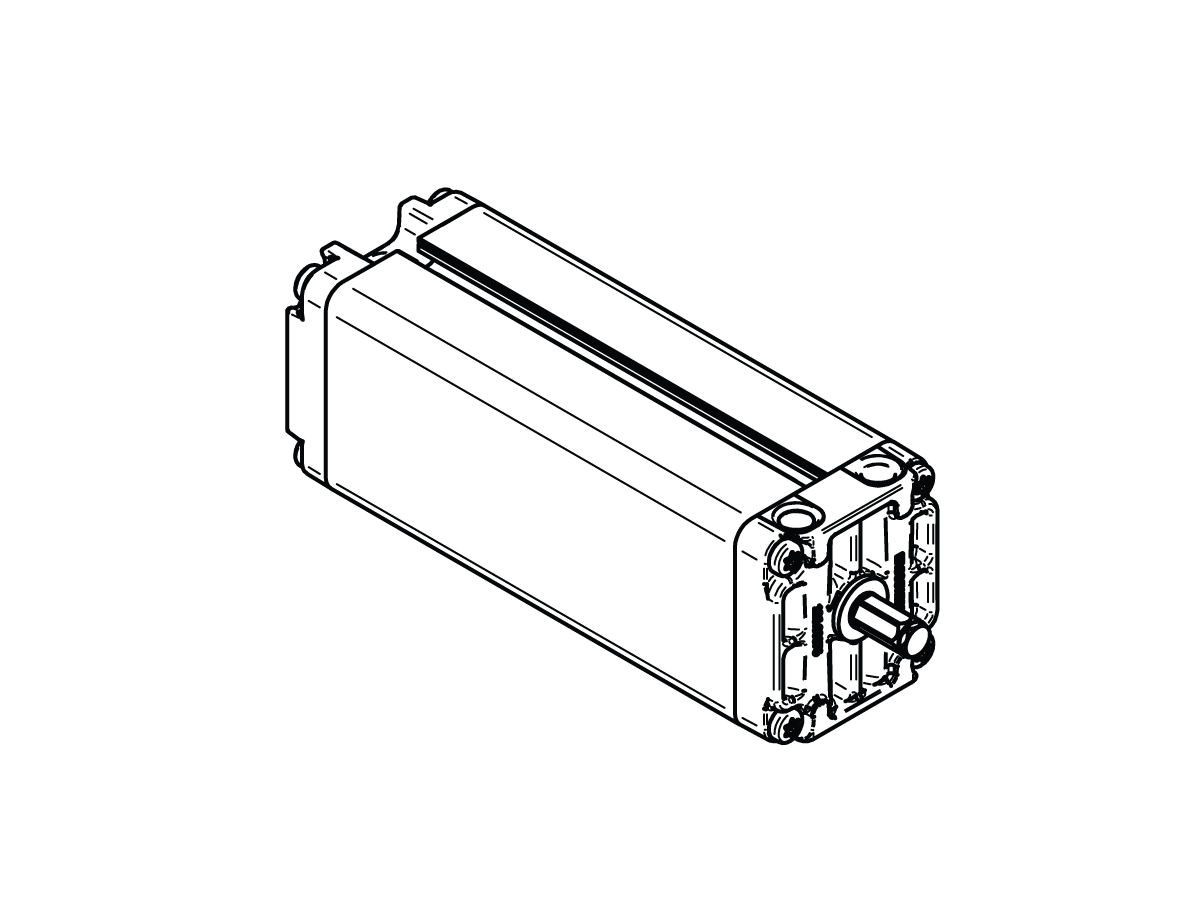

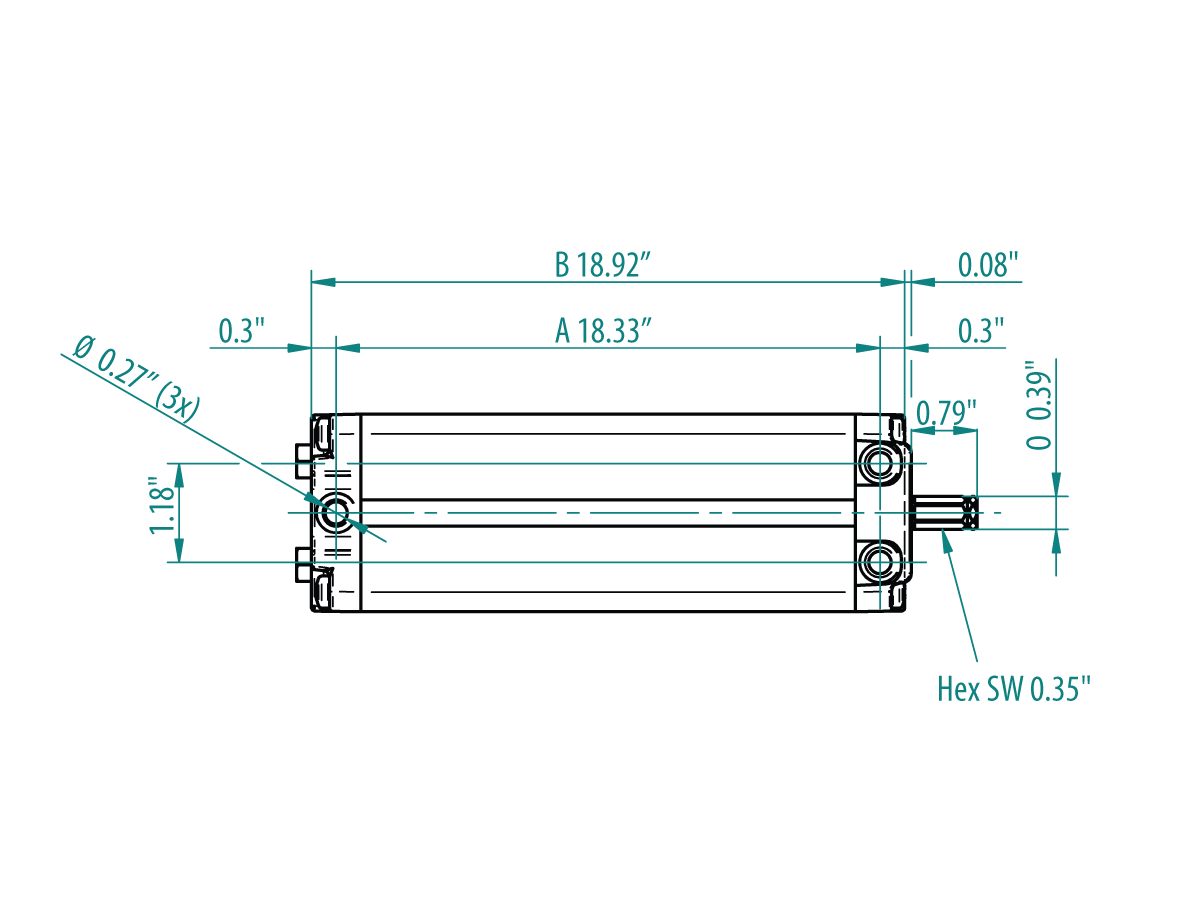

1 x pump with hand crank, 4 x linear LA 1430 (1.38”x1.38”) with 2x10ft and 2 x 8ft tubing connected to the pump, 4x leveling feet, 1 x drilling template and tubing mounting hardware.

Technical data

Max load: 992 lbs (450 kg) – includes weight of frame.
Max stroke: 11.8” (300 mm)
Lifting speed: 0.2” (5 mm) per hand crank turn.
Retracting force required for each linear 35 lbs.

Compliant to Cleanroom Class 7 – ISO Class 14644-1
Class 10,000 – according to US FED STD 209E
