Mounting plate A Set

$80.00

The Mounting Plate A offers a cost-effective solution for securely attaching hydraulic and electric spindle-driven bolt-on systems (types LA and SLA) to structural frameworks. The plate is fastened using 3/16” or M5 countersunk screws through 2.2” center holes, ensuring a stable connection. The set includes 8 Mounting Plates A, sufficient for a 4-linear leg configuration, along with the necessary screws for attaching the plates to the linear units.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$80.00
Total:
$80.00
Buy 3 pieces and save 10%
$80.00
$72.00
Total:
Buy 4 pieces and save 20%
$80.00
$64.00
Total:
x
SKU: 113.00003-PP Category:

Additional information

Weight 2 lbs
Dimensions 16 × 10 × 6 in
STEP file

PDF files

Coming soon.

Description

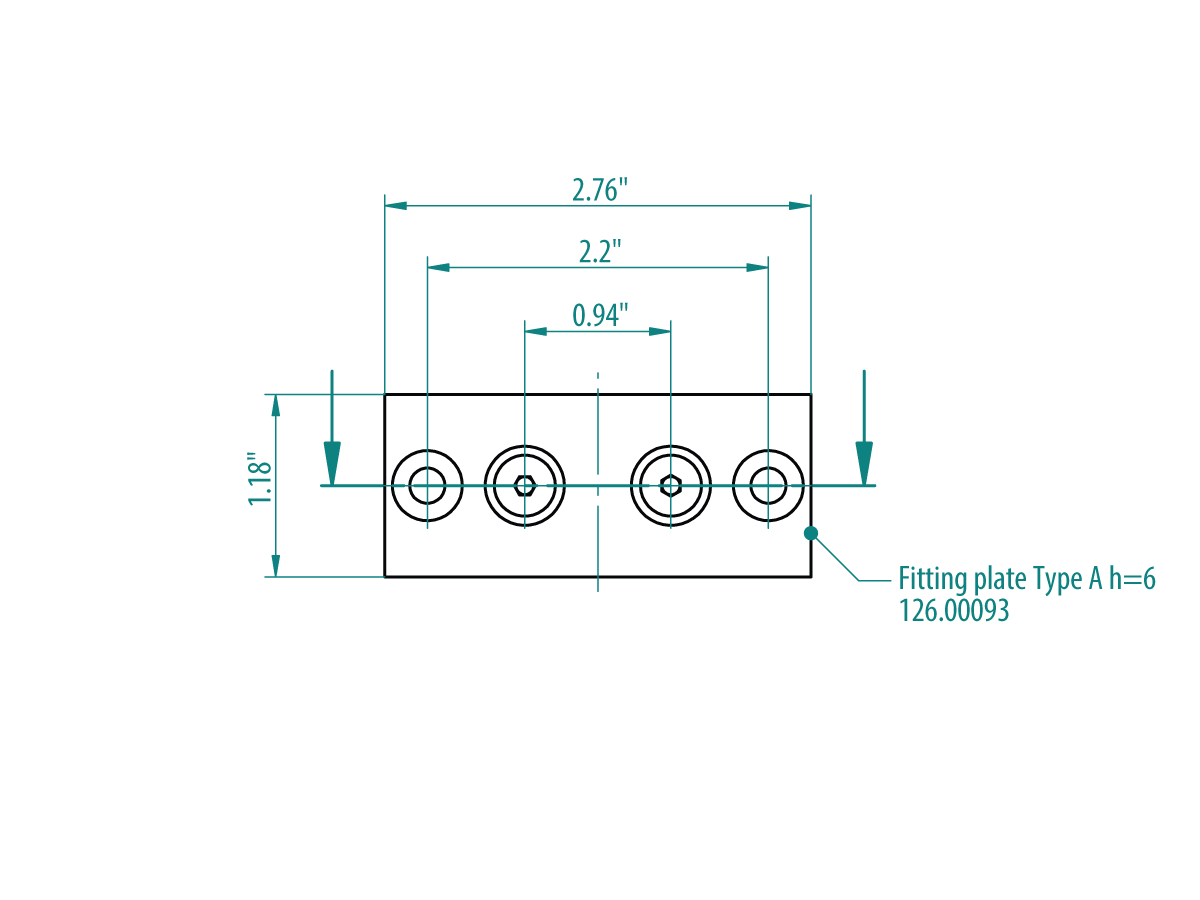

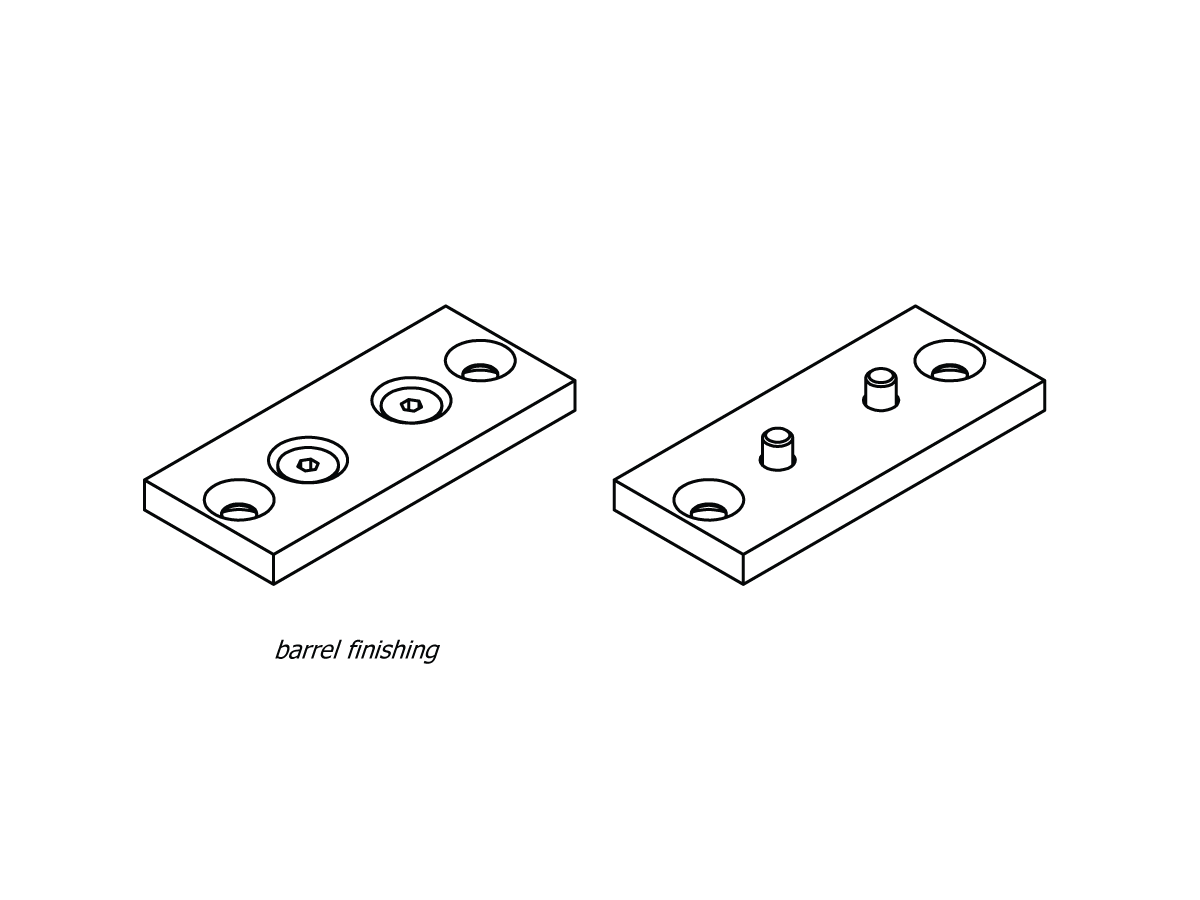

The Mounting Plate A offers a cost-effective solution for securely attaching hydraulic and electric spindle-driven bolt-on systems (types LA and SLA) to structural frameworks. The plate is fastened using 3/16” or M5 countersunk screws through 2.2” center holes, ensuring a stable connection.

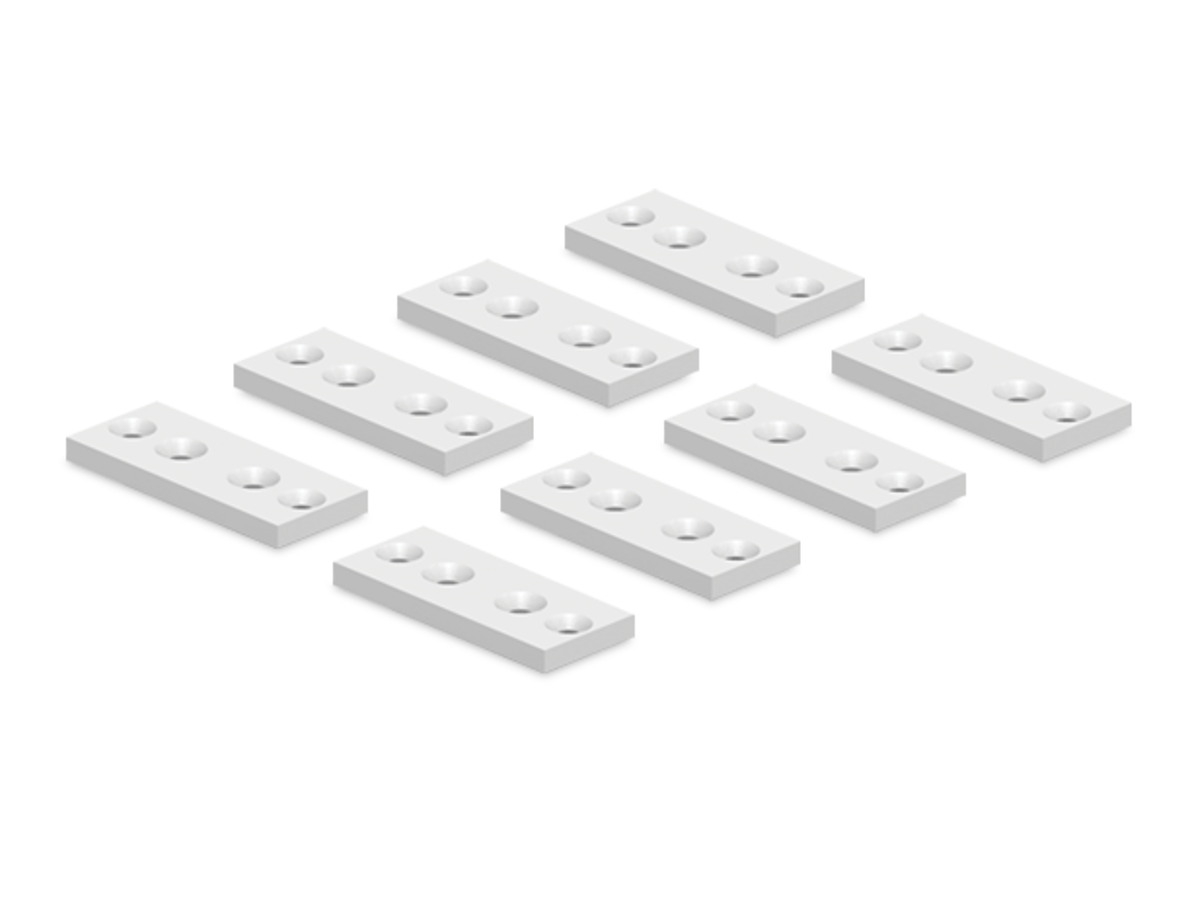

A mounting set consists of:

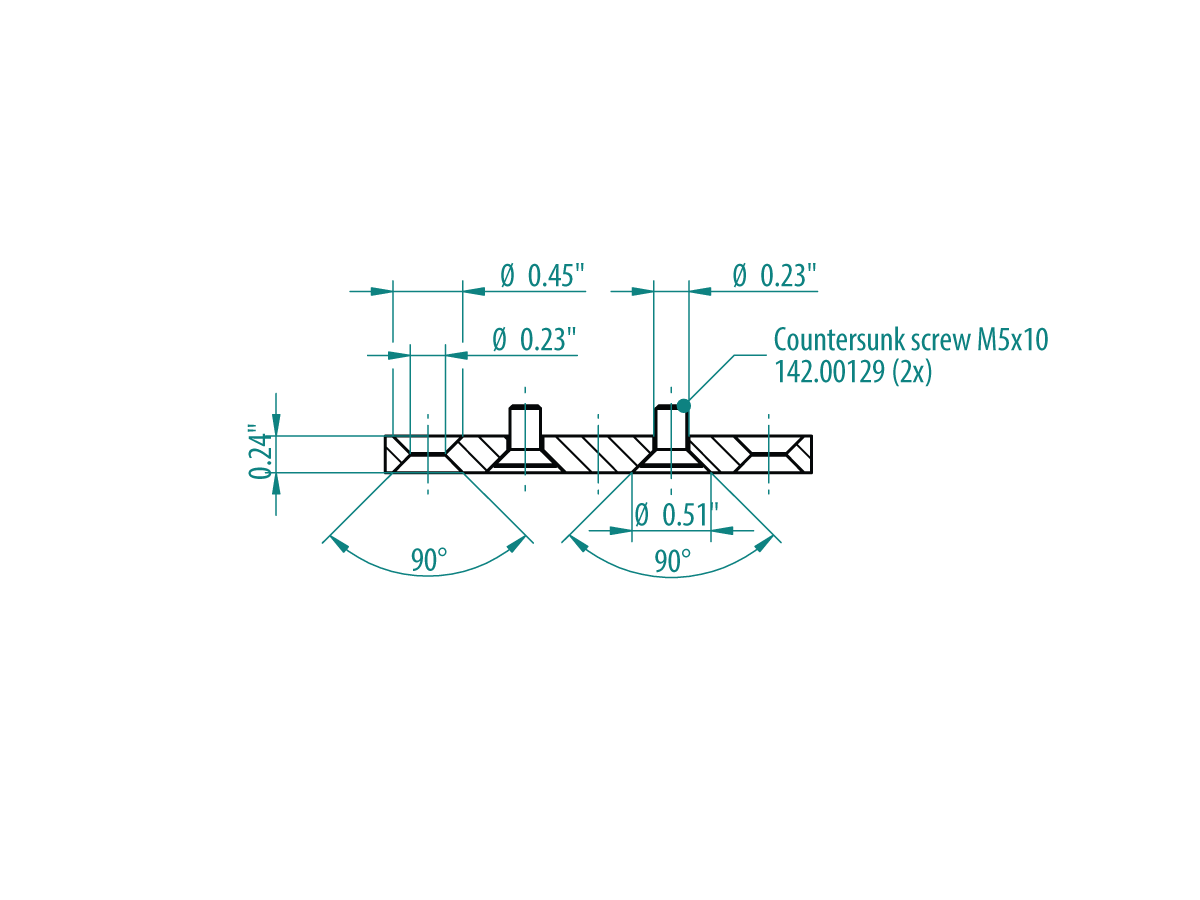

8 x Mounting bracket A (1.18”” x 2.75”), 16 x counter sunk screws M5x10
