QS Hand crank system 6 leg -12 – 1000 -MAN
QS Hand crank system 6 leg -12 – 1000 -MAN - Image 2
QS Hand crank system 6 leg -12 – 1000 -MAN - Image 3
QS Hand crank system 6 leg -12 – 1000 -MAN - Image 4
QS Hand crank system 6 leg -12 – 1000 -MAN - Image 5
QS Hand crank system 6 leg -12 – 1000 -MAN - Image 6
QS Hand crank system 6 leg -12 – 1000 -MAN - Image 7
QS Hand crank system 6 leg -12 – 1000 -MAN - Image 8

QS Hand crank system 6 leg -12 – 1000 -MAN

$1,085.00

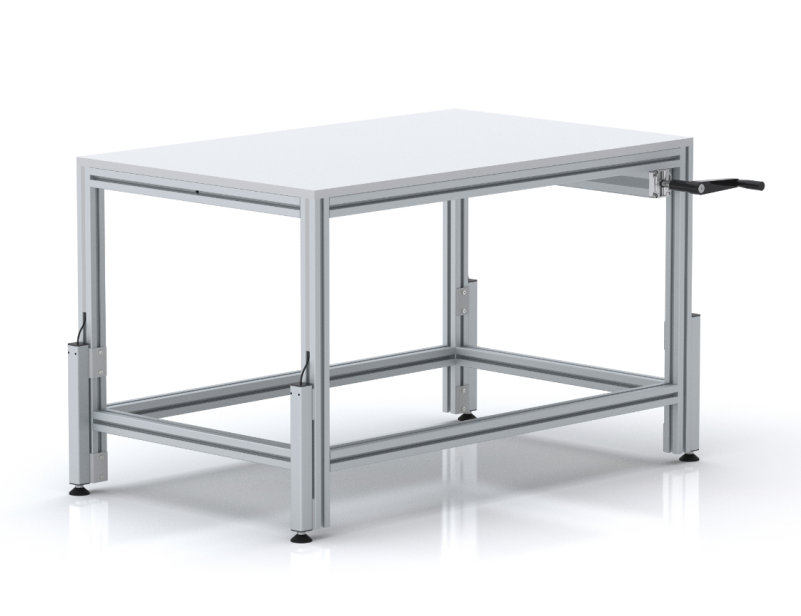

The manual hand crank system is the most economical way to raise and lower structures. Once the desired ergonomic height is reached, the hand crank can easily be folded away or removed (with its quick-connect feature), to avoid obstructions. A 6-leg lift system is used when the size of the add-on structure exceeds a specific structural span. Hydraulic lift systems require weight on each linear to retract and lower its position. The quick-ship systems are fully assembled and pre-packed.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

Buy 1 - 2 pieces
$1,085.00
Total:
$1,085.00
Buy 3 pieces and save 4%
$1,085.00
$1,040.00
Total:
Buy 4 pieces and save 4%
$1,085.00
$1,040.00
Total:
x
SKU: 111.30013-PP Category:

Additional information

Weight 34 lbs
Dimensions 30 × 11 × 8 in
Application

Ergo catering, Intralogistics, Manufacturing, Medical device
Business area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

17.4” (442 mm)
Extended height

29.2” (742 mm)
Lifiting speed

0.2” (5 mm) per crank revolution
Number of Lifts

6
Max load

1000 lbs (454 kg)
Max stroke

11.81” (300 mm)
Size/diameter

1.38”x1.38” (35 x 35 mm)
Stability

2 stars (Average)
Weight

Light weight
STEP file

PDF files

Description

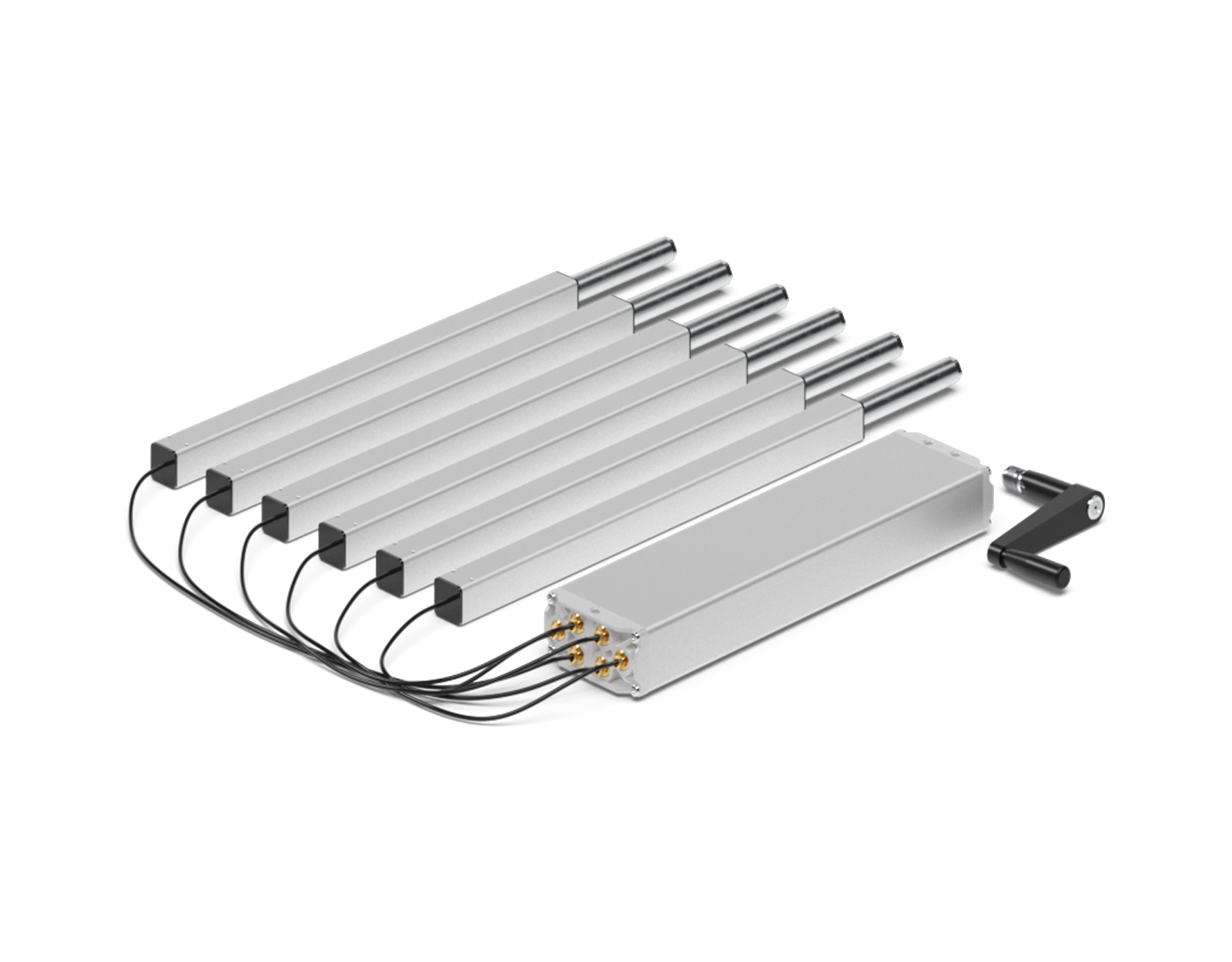

A manual hand crank system consisting of:

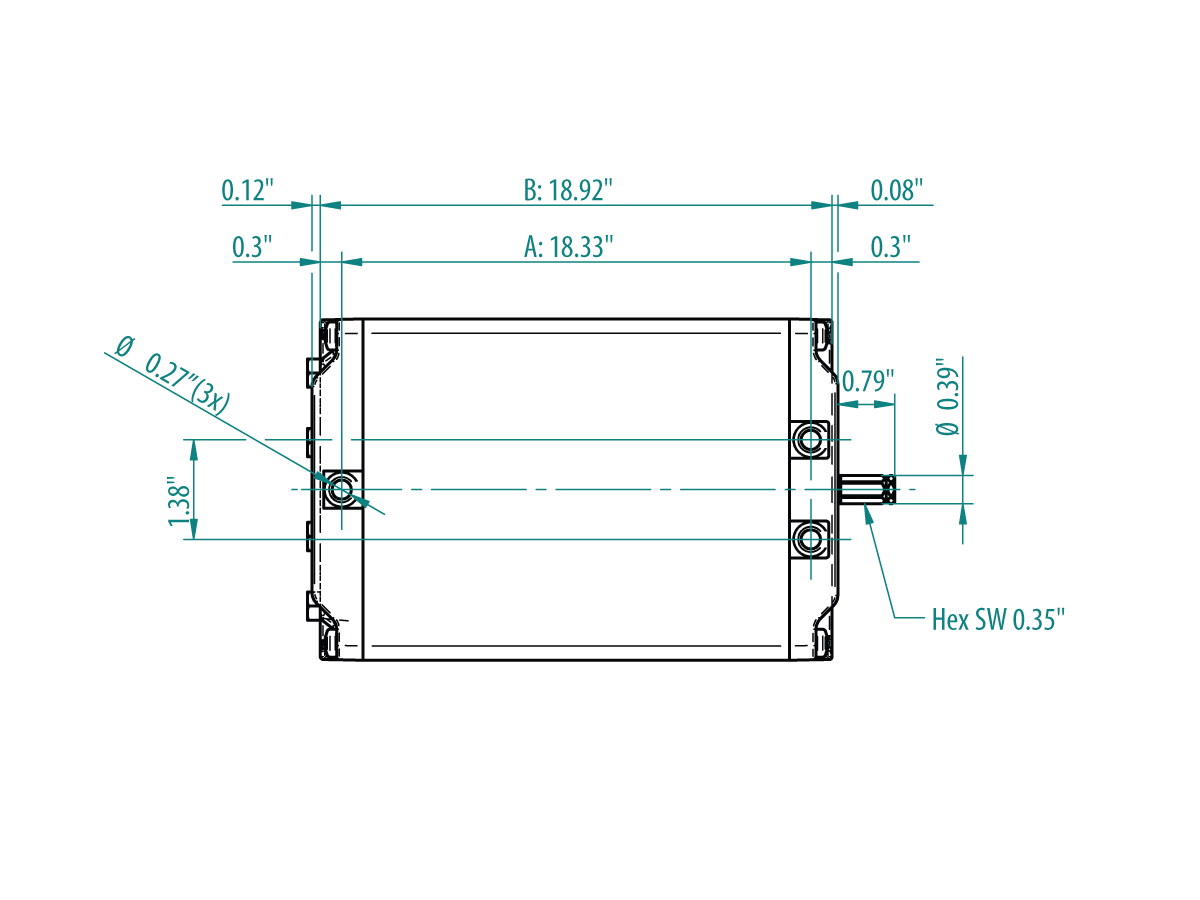

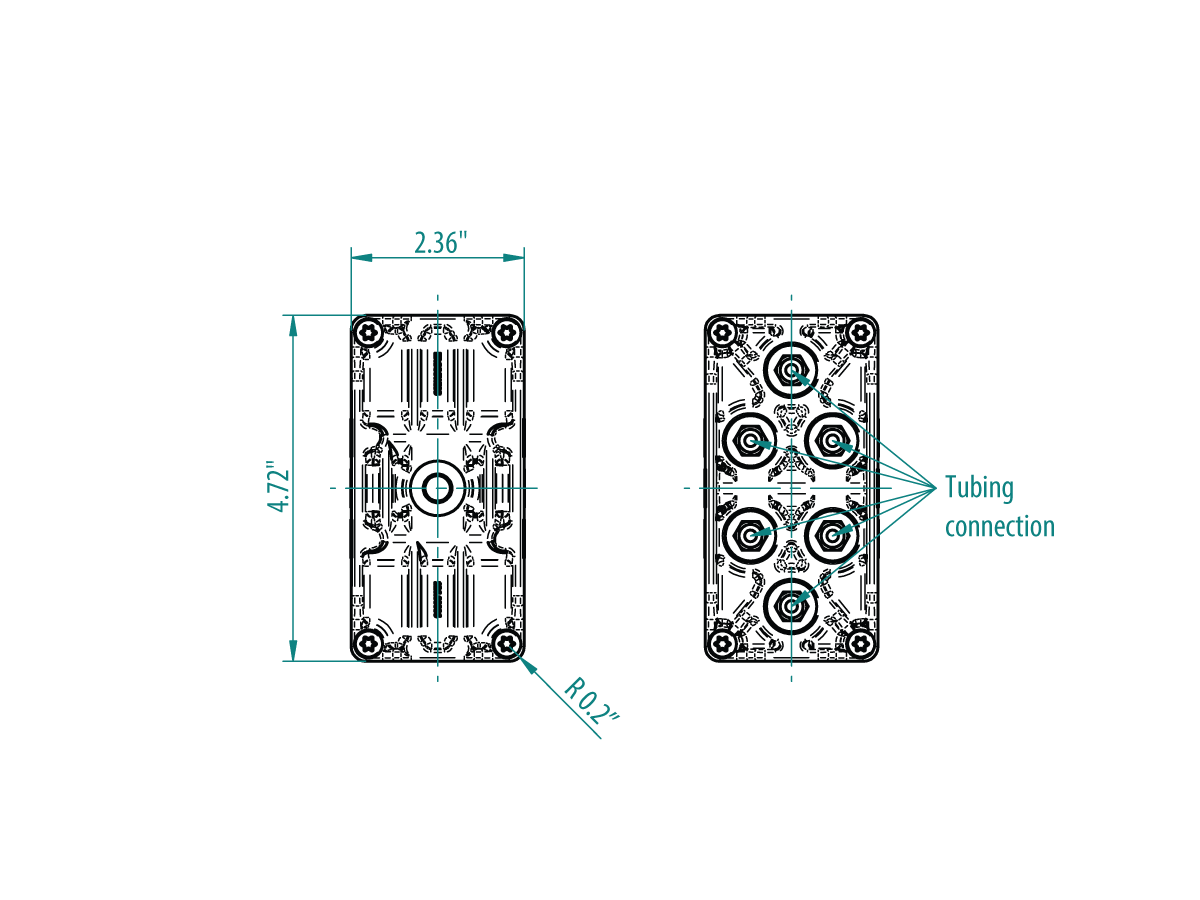

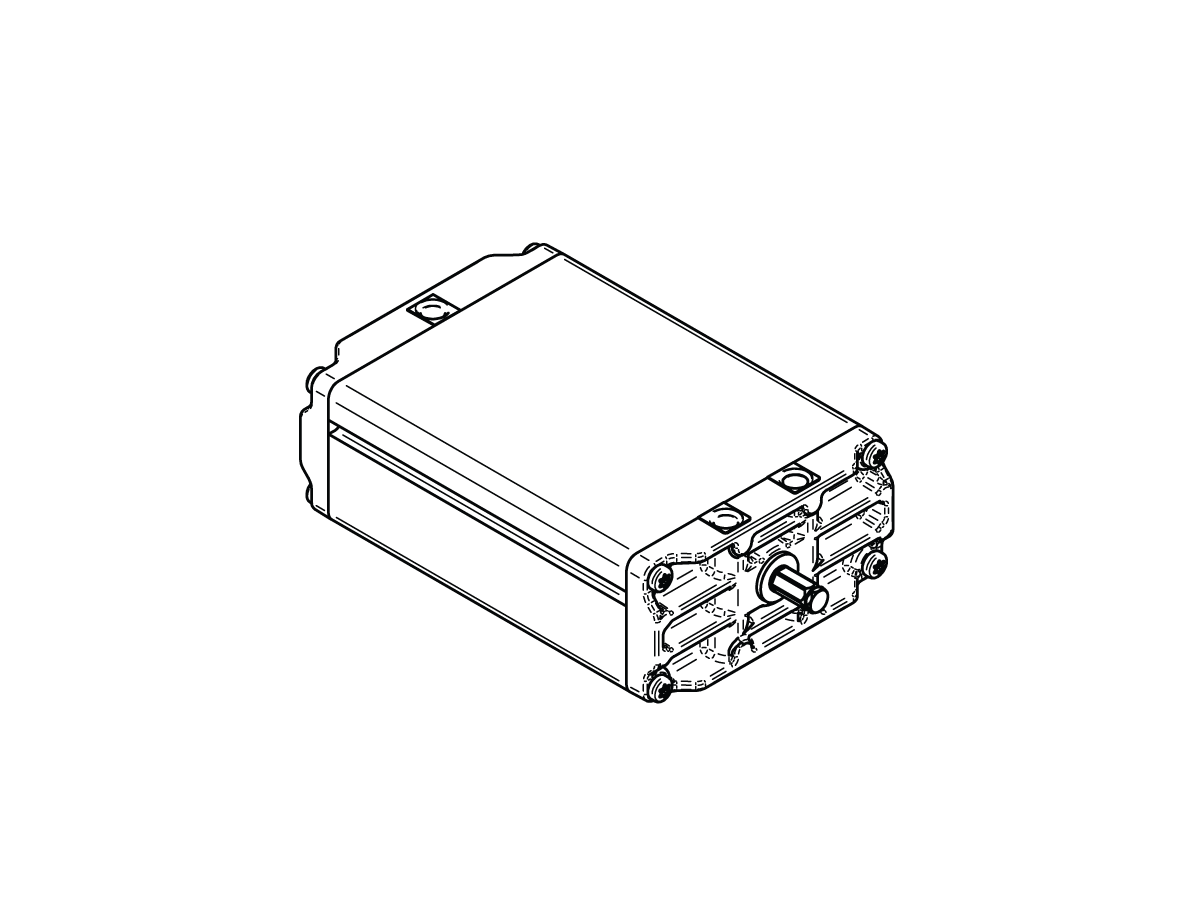

– 1x 102.30043 Pump PB 6830 H with Hand crank 113.00105
– 6x 306.00003 Linear unit LA 1430 with 10ft (3m) Tubing
– 6x 199.00004 Tubing mounted to pump
– 6x 113.00006 Adjustable foot M10x28
– 1x 111.00015 Mounting parts QS

Technical data:

Max load: 1000 lbs (454 kg) – includes weight of frame.
Max stroke: 11.81” (300 mm)
Lifting speed: 0.2” (5 mm) per hand crank turn.
Retracting force required for each linear 35 lbs.

Compliant to Cleanroom Class 7 – ISO Class 14644-1
Class 10,000 – according to US FED STD 209E
