QS – Lifting system SF 2240 US 02

$819.00

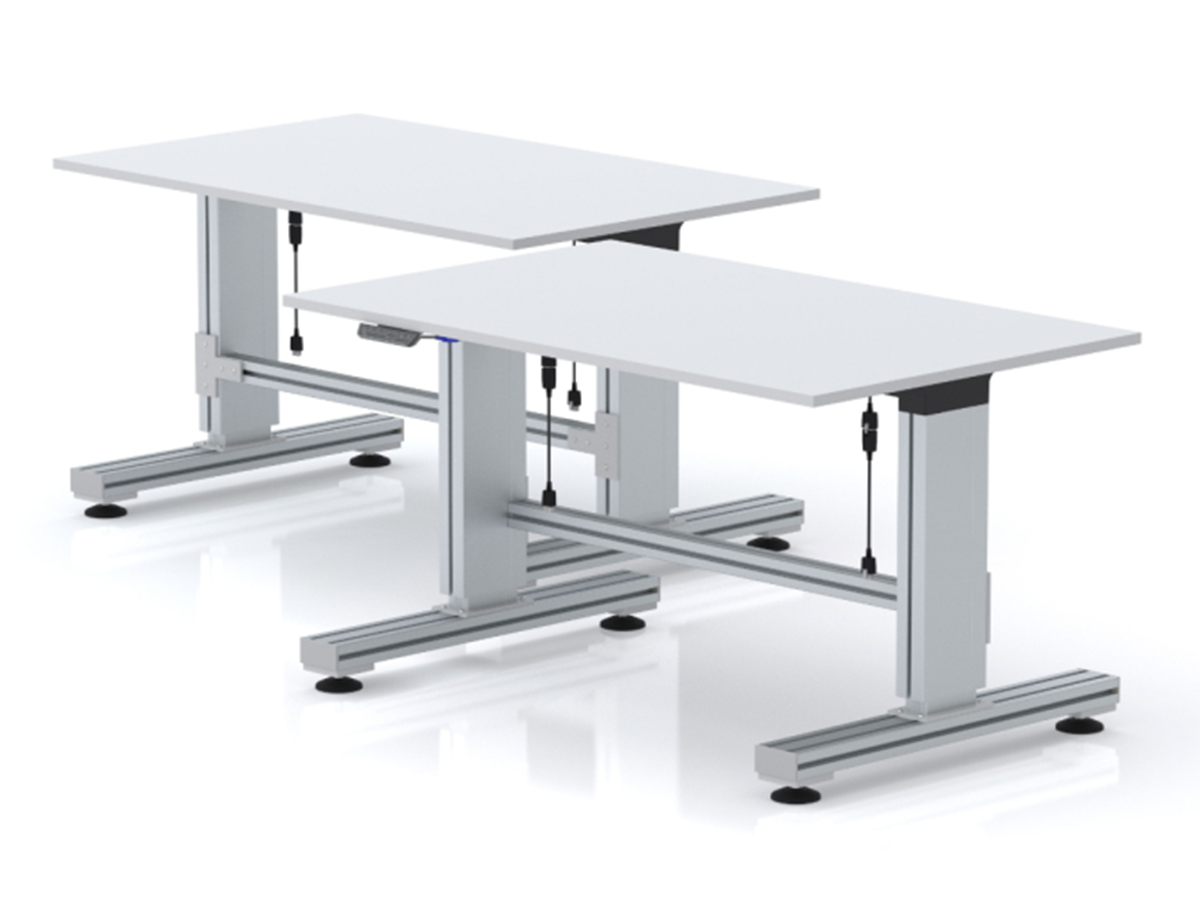

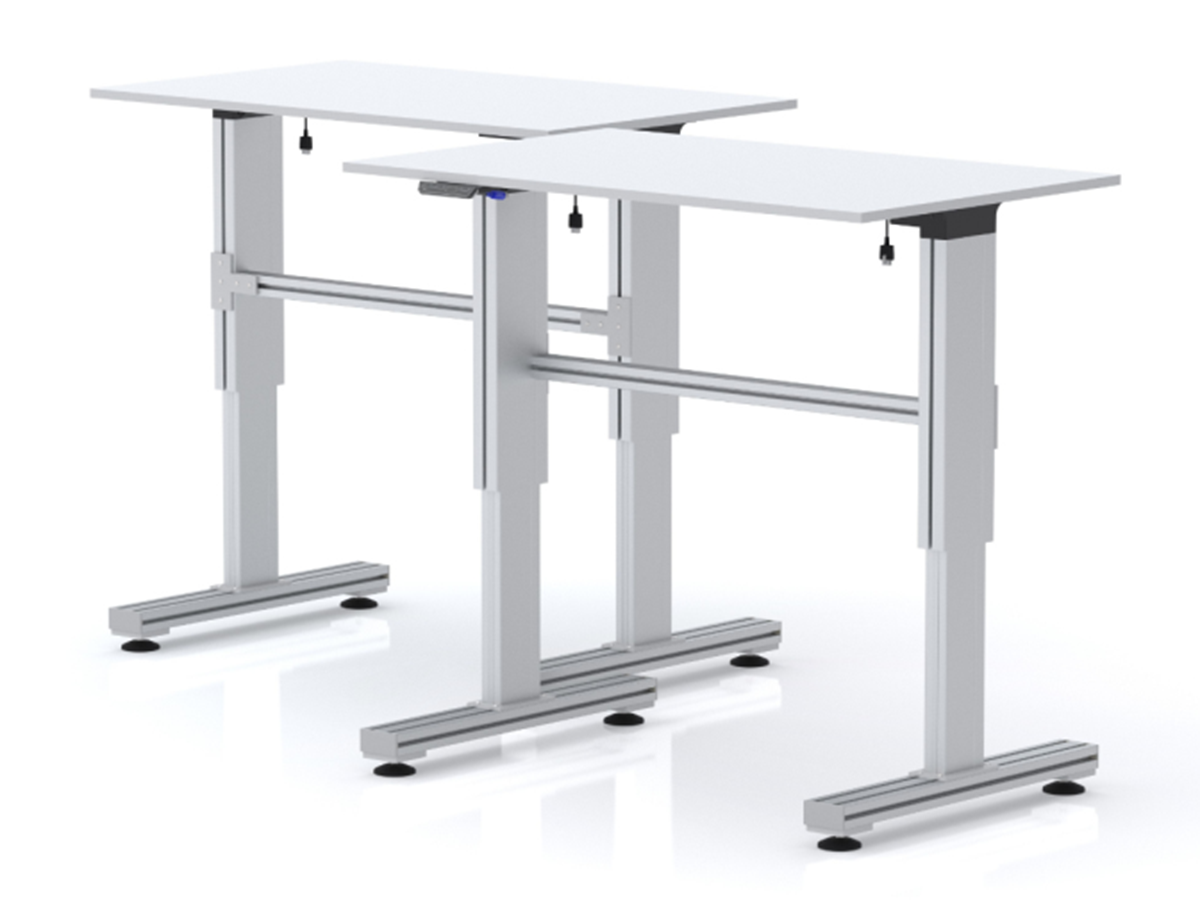

The electric spindle driven lifting column SF is an economical lifting column solution to support base frames and workstation lift columns, that require only a lighter lifting capacity.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

Buy 1 - 2 pieces
$819.00
Total:
$819.00
Buy 3 pieces and save 12%
$819.00
$721.00
Total:
Buy 4 pieces and save 12%
$819.00
$721.00
Total:
x
SKU: 909.61204-PP Category:

Additional information

Weight 49 lbs
Dimensions 26 × 14.5 in
Application

Ergo catering, Intralogistics, Manufacturing, Medical device
Business area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

26.38” (670 mm)
Extended height

42.13” (1070 mm)
Lifiting speed

0.78” / sec (20 mm / sec)
Max load

440 lbs (200 kg)
Max stroke

15.75” (400 mm)
Number of Lifts

2
Size/diameter

5.9” x 2.4” (150X60 mm)
Stability

3.5 stars (Very Good)
Weight

Light weight
STEP file

PDF files

Description

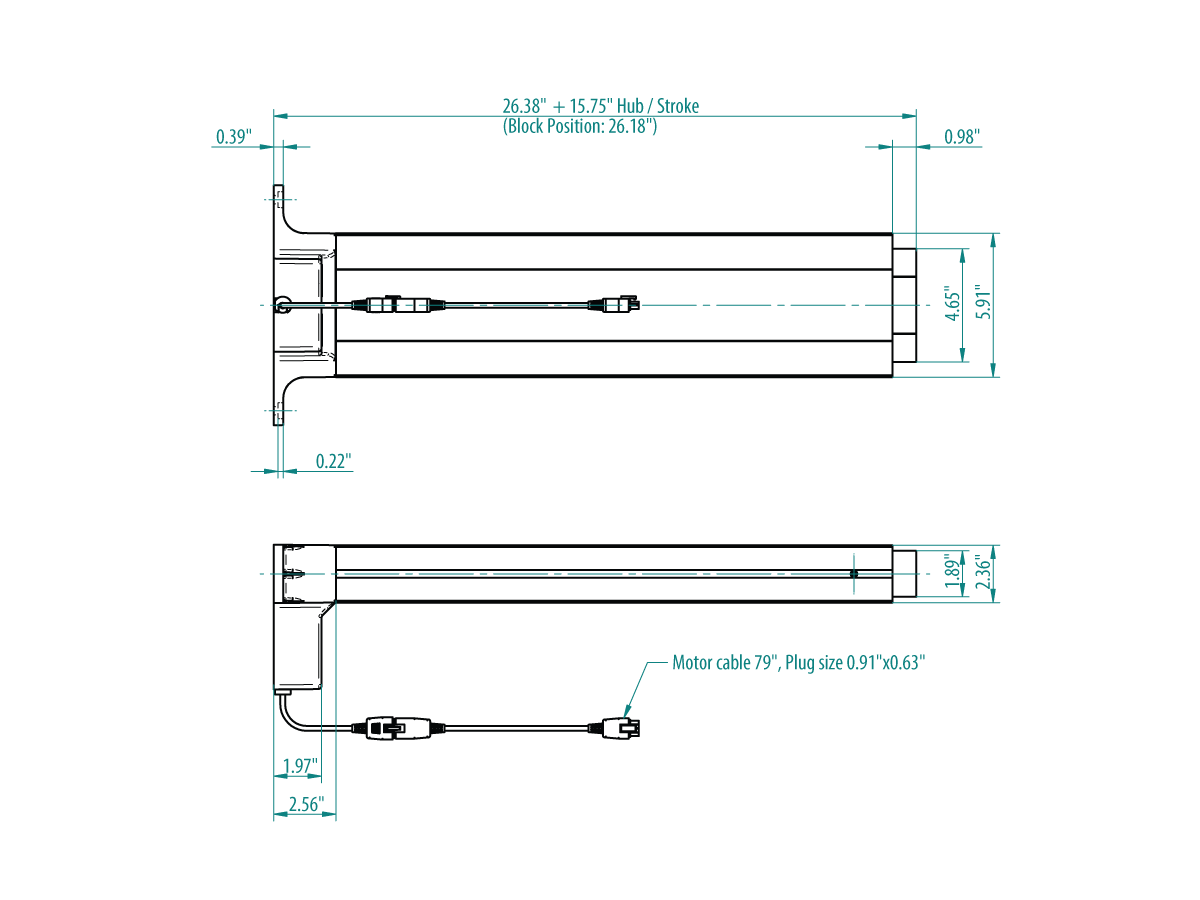

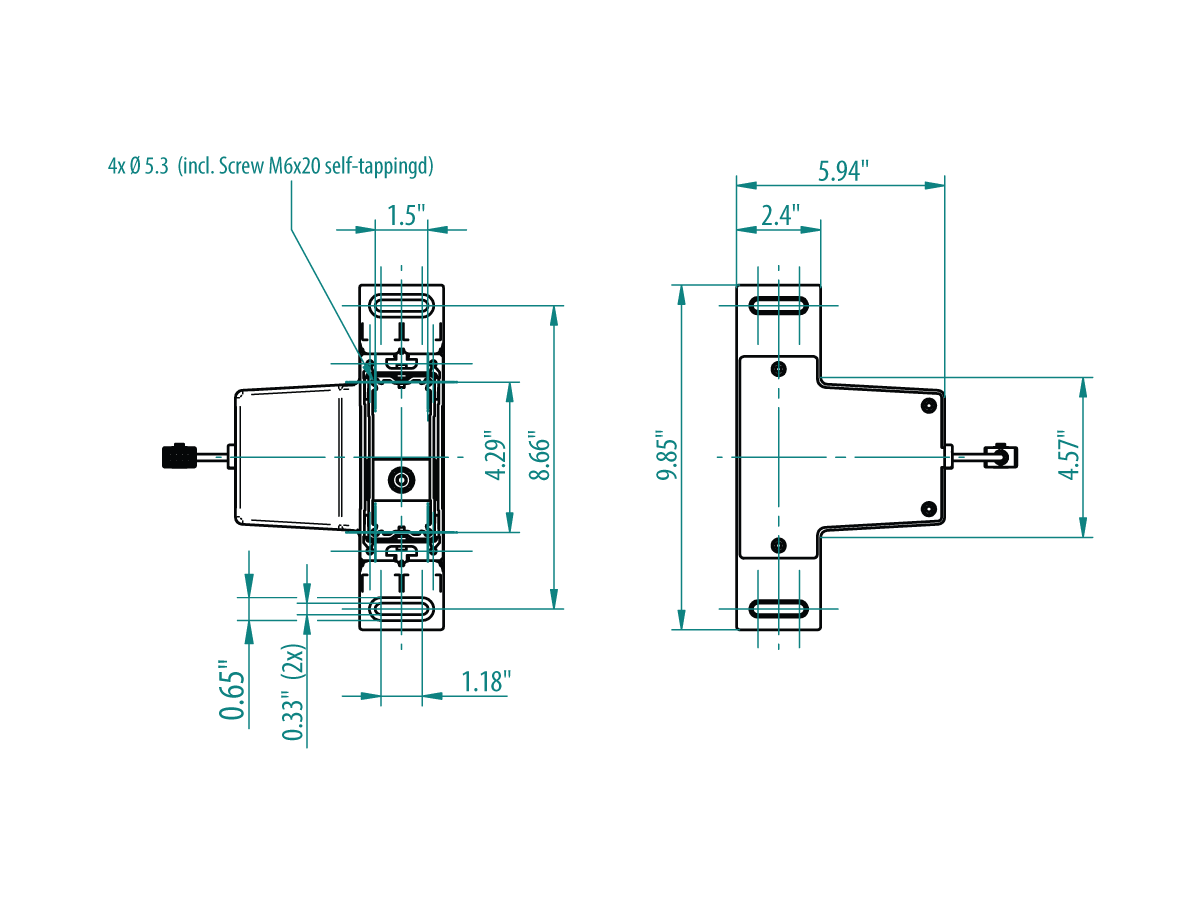

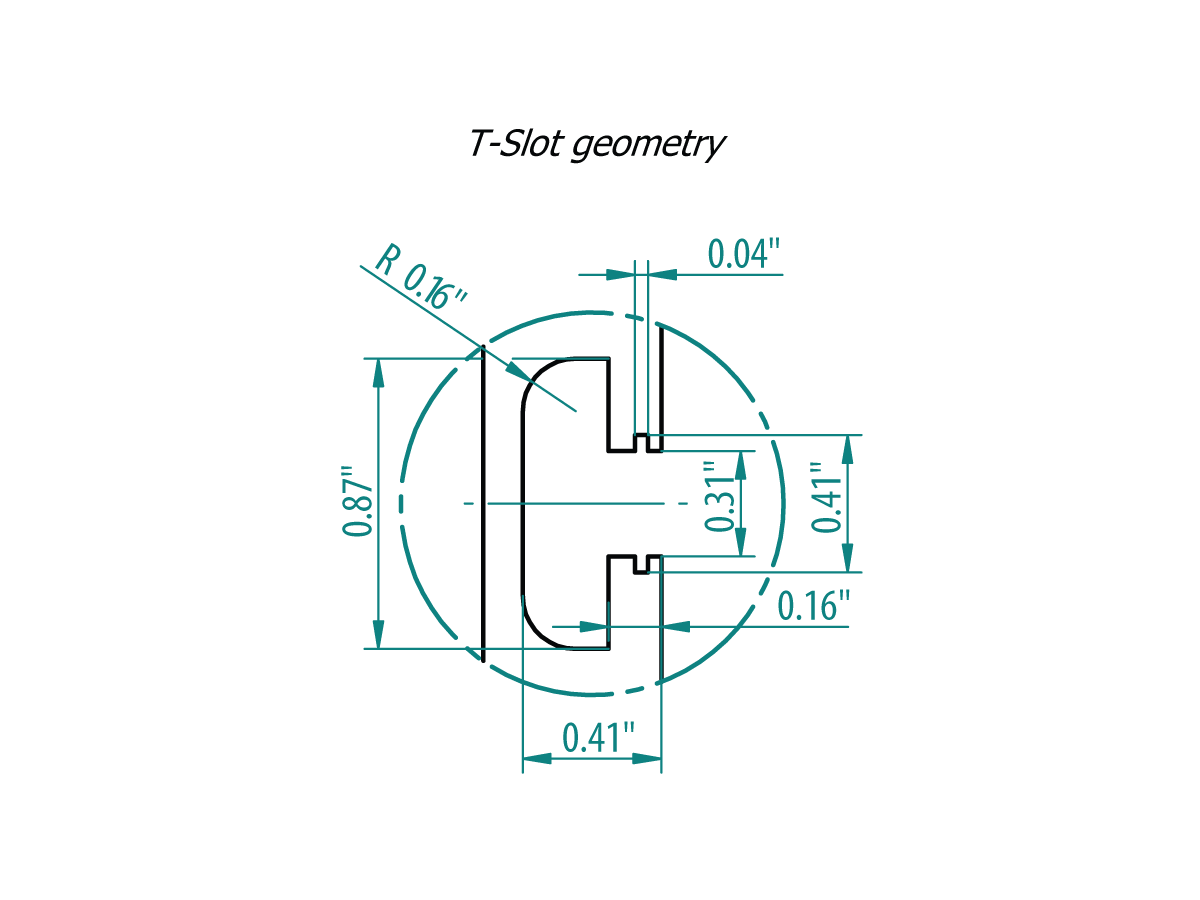

The base column is consisting of a 5.9” x 2.4” (150X60 mm) anodized aluminum extrusion with two faces of our standard Ergoswiss T-Slot geometry (8 mm width) for easy integration.

Each lifting column includes an internal motor and spindle drive that is synchronized by the control box. Each column includes a 78” motor cable to connect to the control box.

An SF 2240 US 02 Quick-ship set consists of:
2x Lifting column SF 1240 with 78” connection cable / 1x Control box Compact with a 10 ft Power cable US / 1x Cable remote control Memory

Technical data:
Performance data lifting column SF 1240
Number of lifting columns: 2
Max load: 440 lbs (200 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 220 lbs / 100 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed : 0.78” / sec (20 mm / sec)
Stroke : 15.75″ (400 mm)

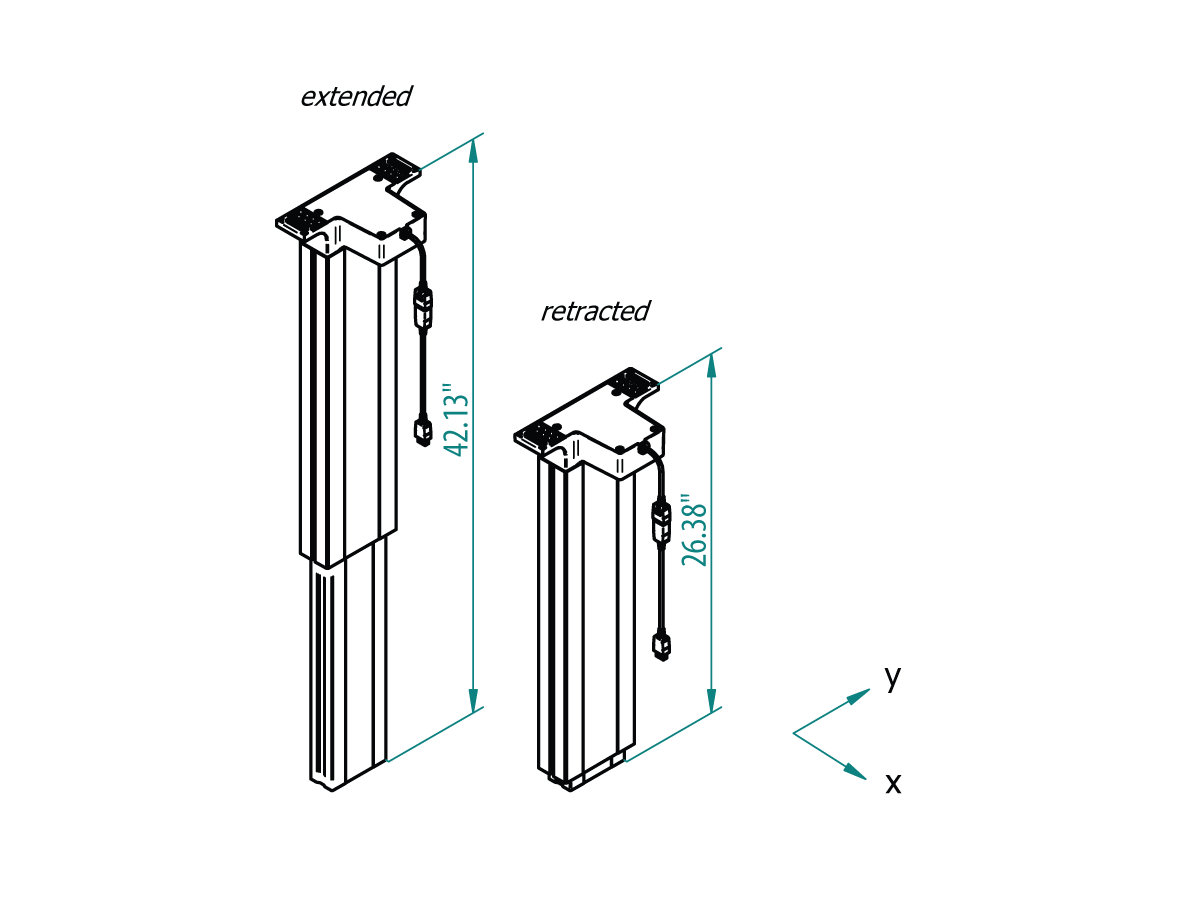

Base / retracted height: 26.38” (670 mm)
Extended height: 42.13” (1070 mm)
Duty cycle: E/D (On/Off) 2 / 40 min
