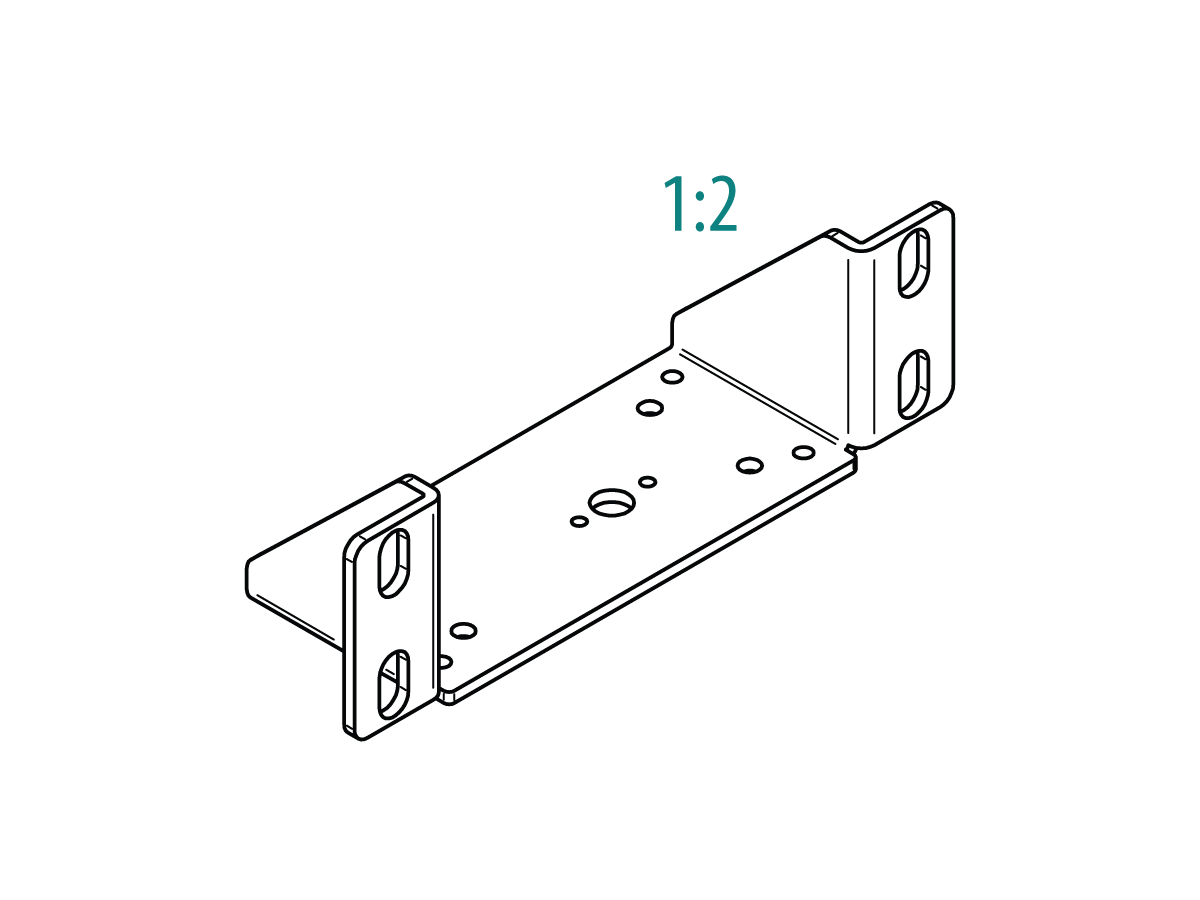

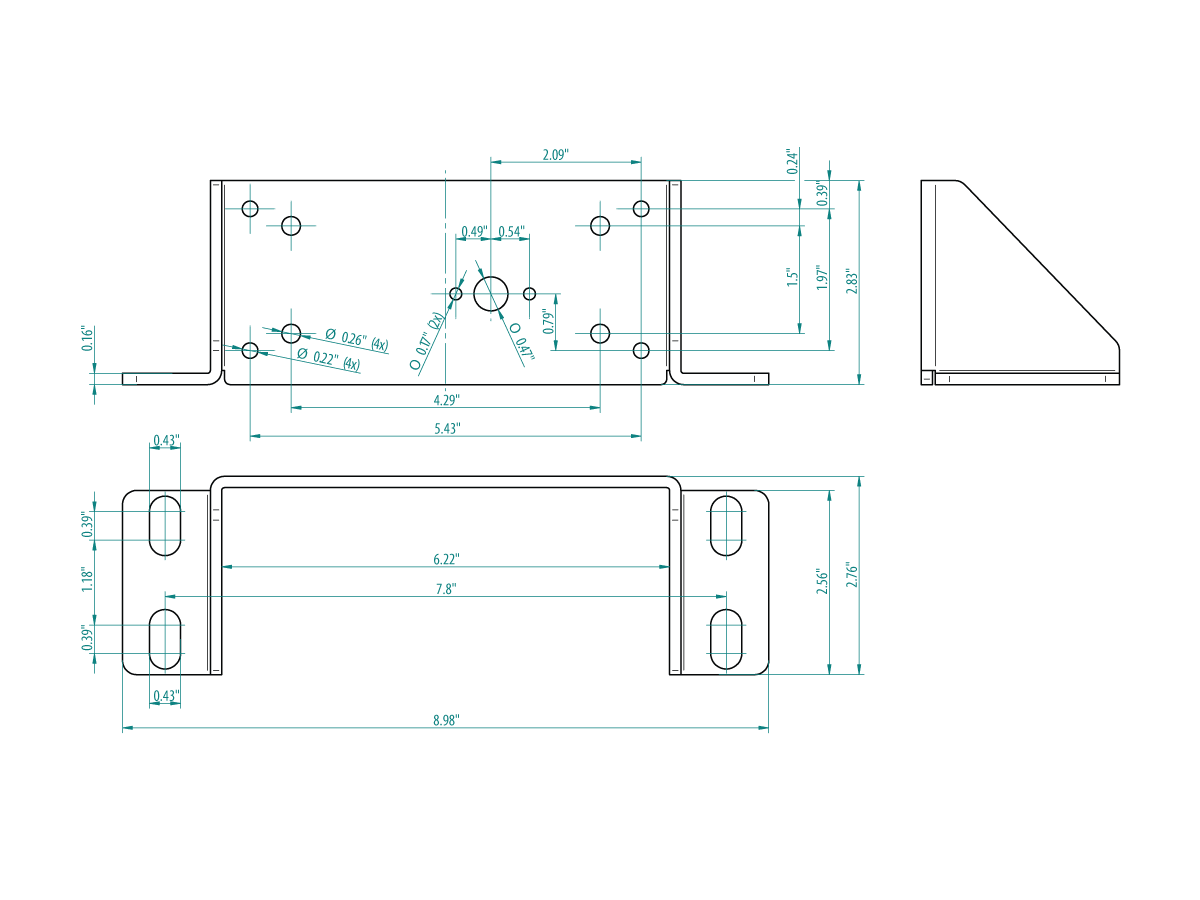

Adaptor SM 90°
Adaptor SM 90° - Image 2
Adaptor SM 90° - Image 3
Adaptor SM 90° - Image 4
Adaptor SM 90° - Image 5

Adaptor SM 90°

$106.00

The 90-degree SM Adapter Connector is designed for applications requiring a low-profile built-in height or where only horizontal structural bracing is available for integrating height adjustment using the SM system. Slotted long holes accommodate aluminum profiles with T-slot spacing between 1.18″ and 1.96″ (30 to 50 mm), allowing flexible alignment and secure installation. The set includes one adapter plate, 4 -t-nuts with screws.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$106.00
Total:
$106.00
Buy 3 pieces and save 10%
$106.00
$95.00
Total:
Buy 4 pieces and save 15%
$106.00
$90.00
Total:
x
SKU: 127.00630-PP Category:

Additional information

Weight 5 lbs
Dimensions 14 × 12 × 12 in
STEP file

PDF files

Coming soon.

Description

The 90-degree SM Adapter Connector is designed for applications requiring a low-profile built-in height or where only horizontal structural bracing is available for integrating height adjustment using the SM system. Slotted long holes accommodate aluminum profiles with T-slot spacing between 1.18″ and 1.96″ (30 to 50 mm), allowing flexible alignment and secure installation. The set includes one adapter plate, 4 -t-nuts with screws.

Compatible products
