$1,670.00

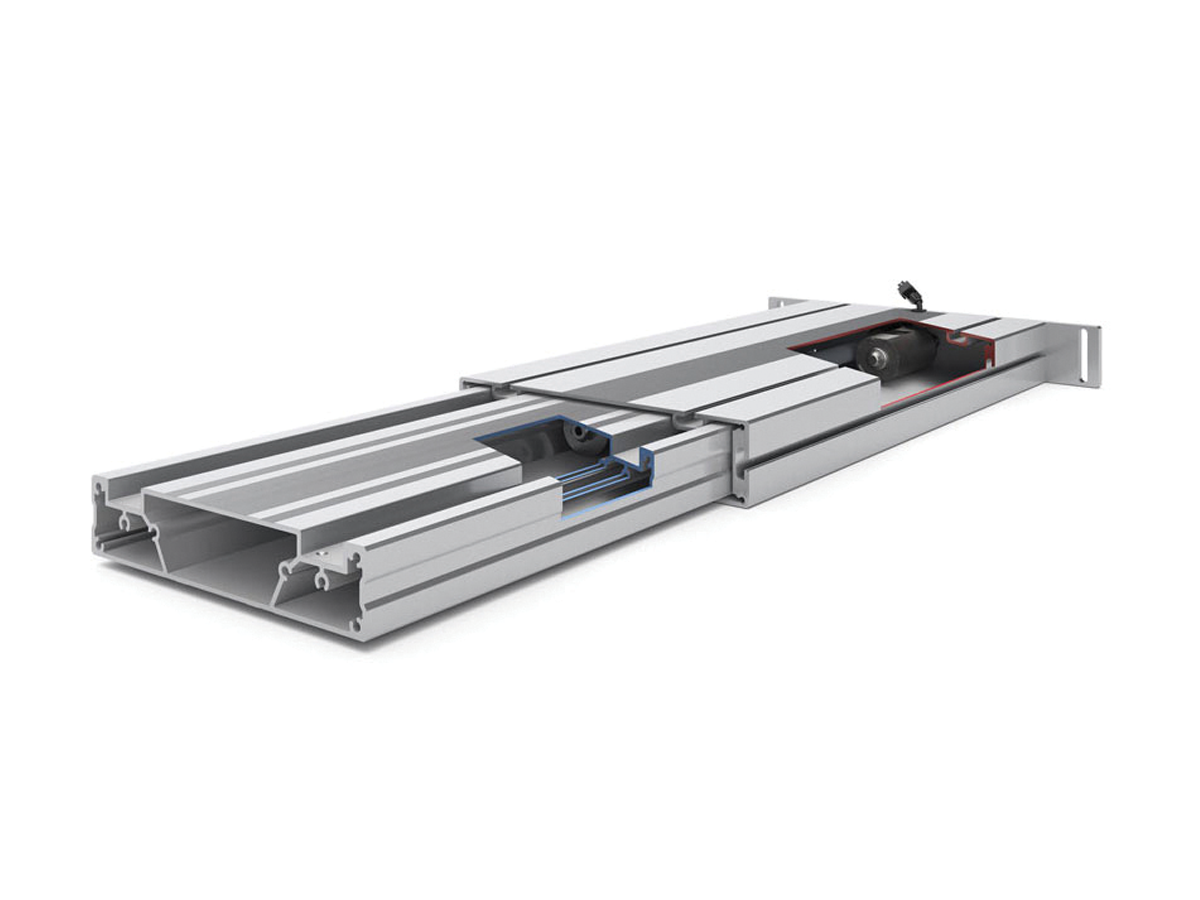

Two SL columns supplied on their own, for building into a frame you are fabricating yourself. Travel is 12″ (300 mm). The SL profile is the widest Ergoswiss offers at 10.24″ x 2.36″ (260 x 60 mm), which is what lets it resist bending and torsion at full extension – specify it where the bench carries load off-centre or takes lateral force during use. Six 8 mm T-slots across three faces.
See the Description section below for more information.
Out of stock
| Weight | 53 lbs |
|---|---|
| Dimensions | 27 × 16 × 9 in |
| Retracted height | 20.9” (530 mm) |
| Extended height | 32.7” (830 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 1,320 lbs (600 kg) |
| Max stroke | 11.81” (300 mm) |
| Number of Lifts | 2 |
| Weight | Medium weight |

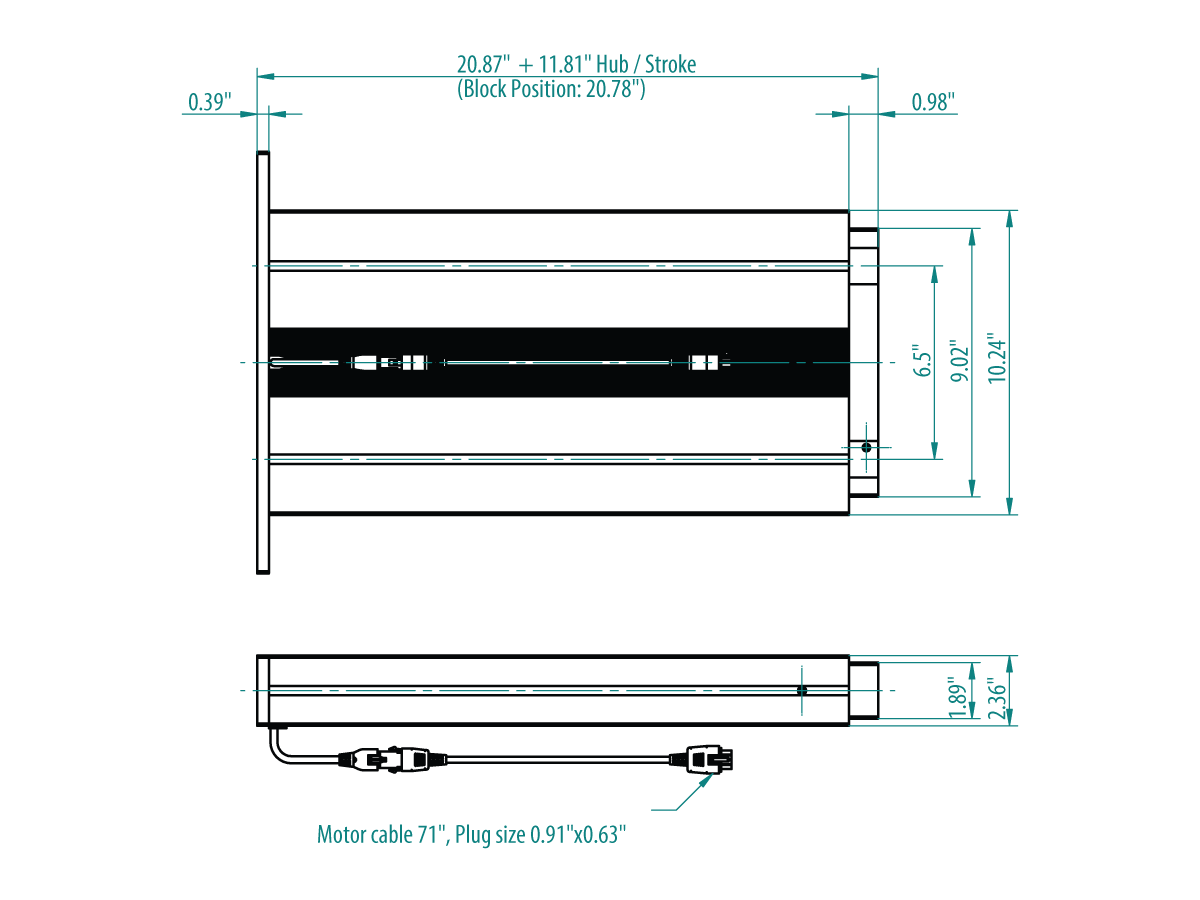

| Size-diameter | 10.24” x 2.36” (260×60 mm) |
| Stability | 4.5 stars (Outstanding) |
Two SL columns supplied on their own, for building into a frame you are fabricating yourself. Travel is 12″ (300 mm). The SL profile is the widest Ergoswiss offers at 10.24″ x 2.36″ (260 x 60 mm), which is what lets it resist bending and torsion at full extension – specify it where the bench carries load off-centre or takes lateral force during use. Six 8 mm T-slots across three faces.
For 15.75″ (400 mm) of travel, see SL 2340 US 02. If you want the frame, crossbar and feet included, see the SL-2 1330 US 02 base frame.

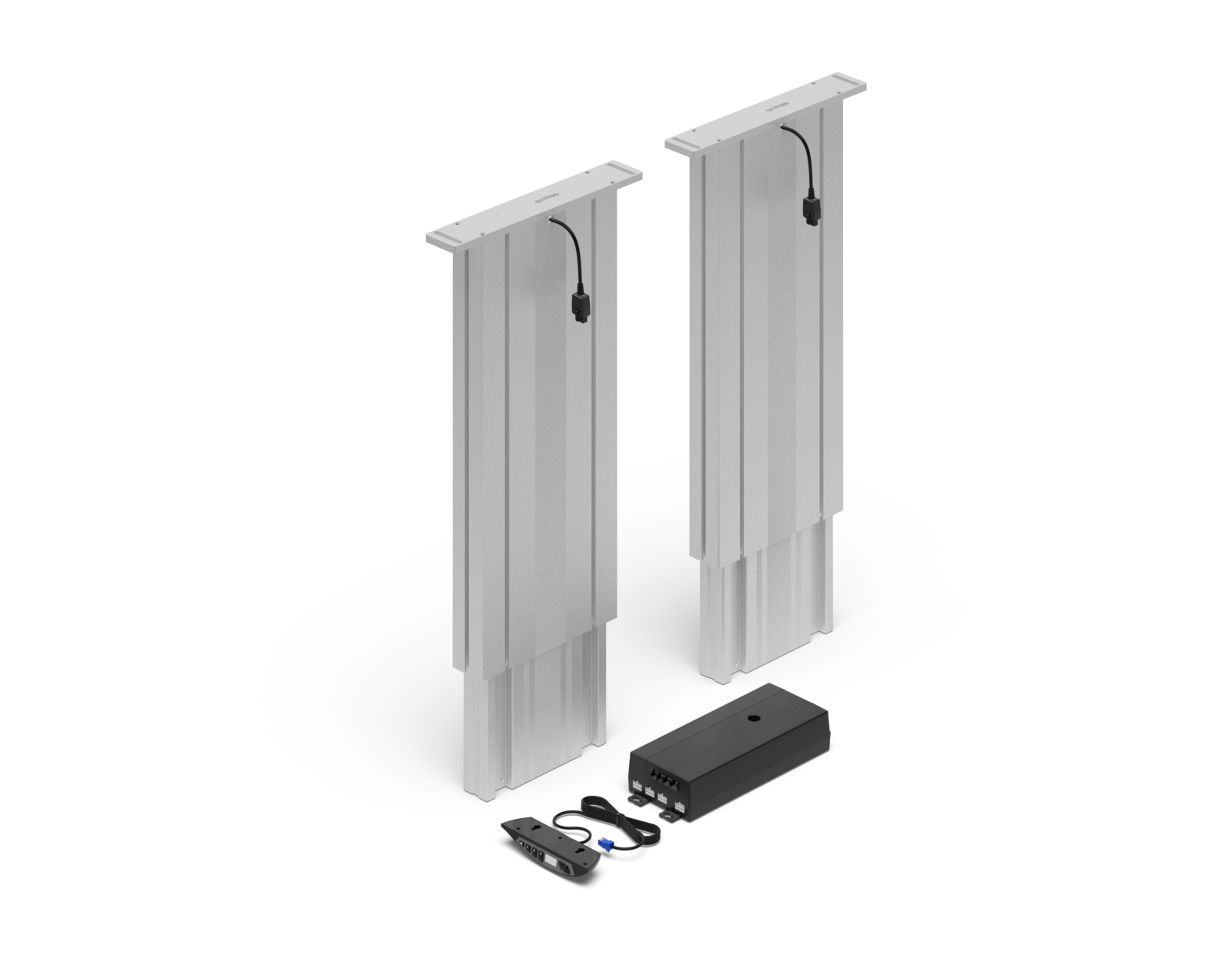

An SL 2330 US 02 Quick-ship set consists of:
2x Lifting column SL 1330 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory
Performance data lifting column SL 1330
Number of lifting columns : 2
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed : 0.35” / sec (9 mm / sec)
Stroke : 11.81″ (300 mm)

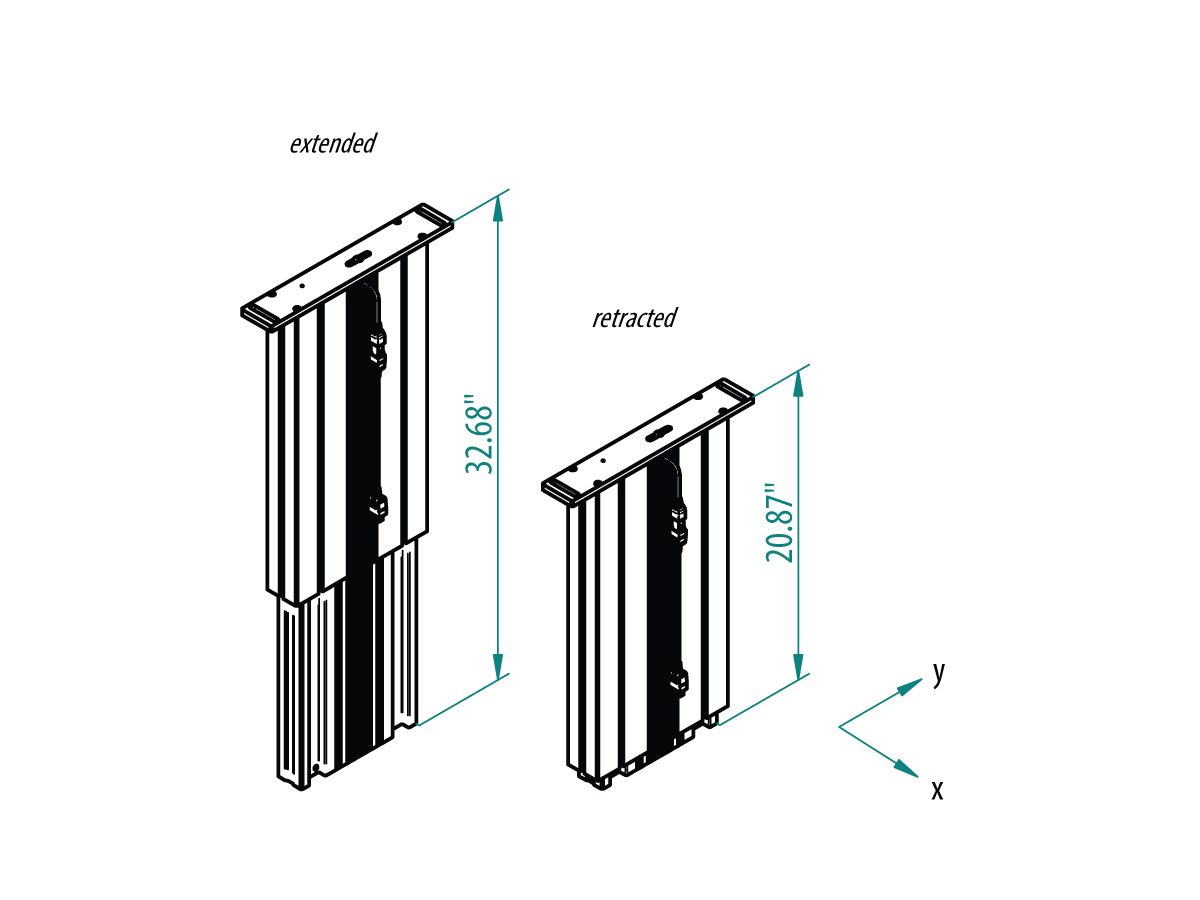

Base / retracted height: 20.9” (530 mm)
Extended height: 32.7” (830 mm)
Duty cycle E/D (On/Off) : 2 / 40 min
