Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 11 × 2 × 1 in |
Footplate SL 340 x 60 Set
$81.60
This 3/8″ (10 mm) thick aluminum adapter plate set is designed to fasten SL columns to existing structural framing. It features two recessed slotted holes for adjustable mounting, accommodating screws with a maximum thread size of 5/16″ (M8). The set includes two SL plates, which are installed at the bottom of the SL column, along with eight self-tapping screws for quick and easy installation.
See the Description section below for more information.
In stock
Coming soon.
Description

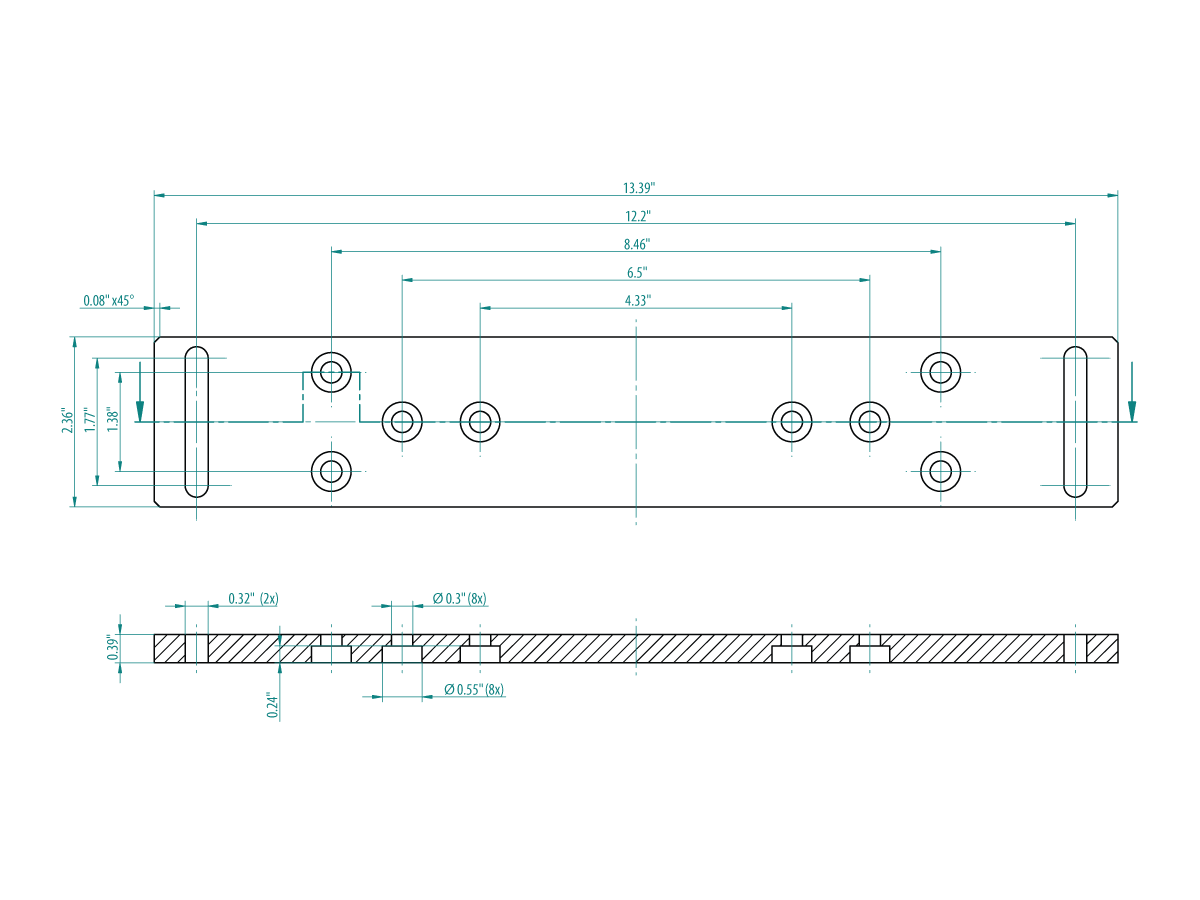

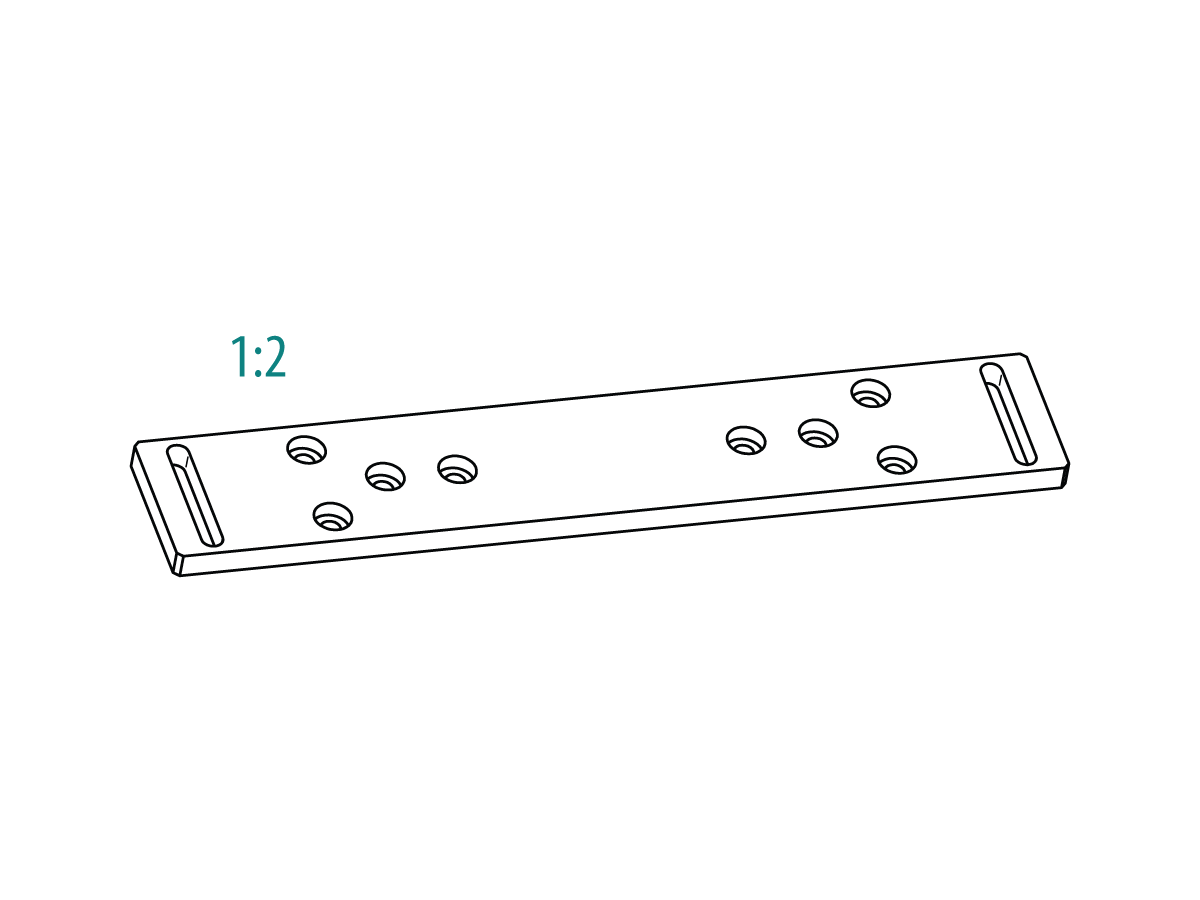

Footplate SL – 340 x 60 mm (11″ x 2″ x 3/8″)
This 3/8″ (10 mm) thick aluminum adapter plate set is designed to fasten SL columns to existing structural framing. It features two recessed slotted holes for adjustable mounting, accommodating screws with a maximum thread size of 5/16″ (M8). The SL plates are installed at the bottom of the SL column for quick and easy integration.
A footplate set consists of:
2 x Foot Plate SL 340×60 and 8 connection screws
