$2,573.00

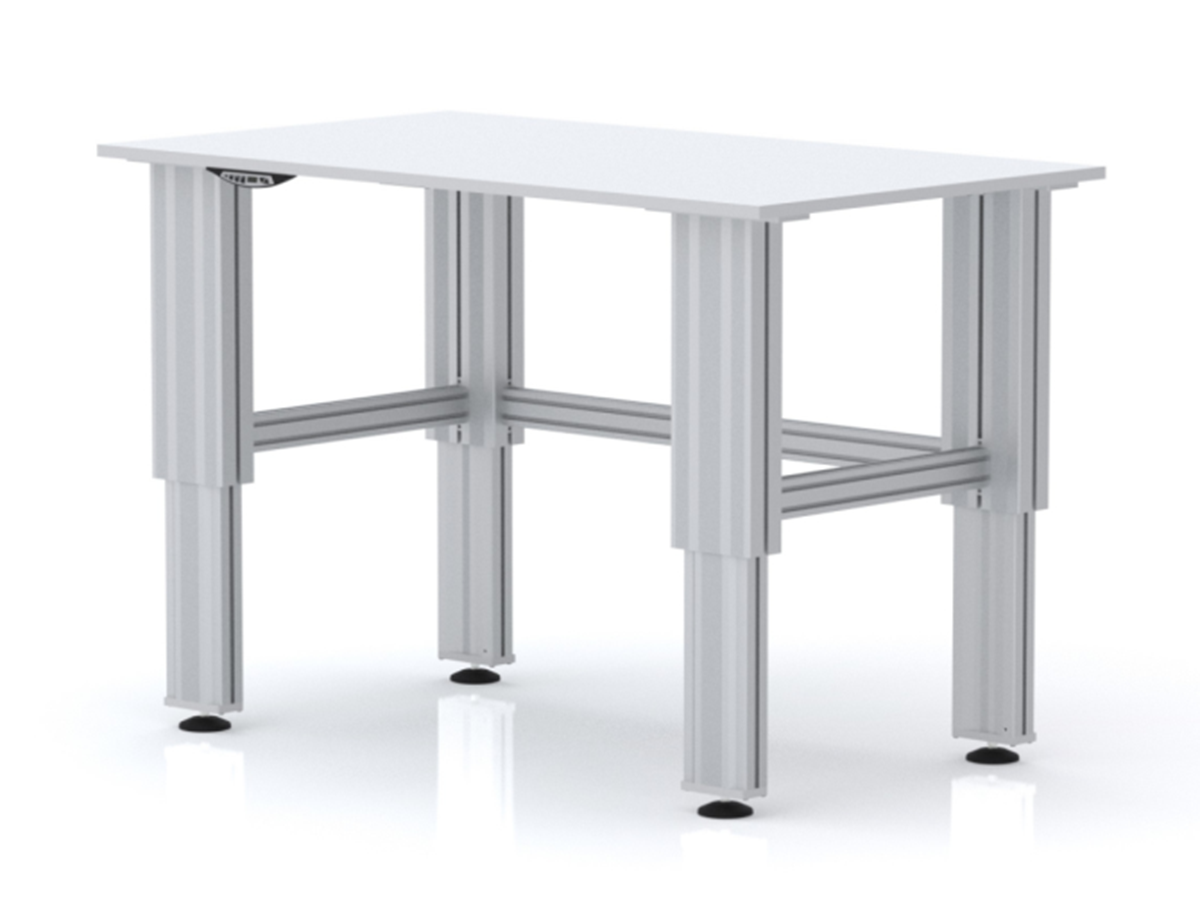

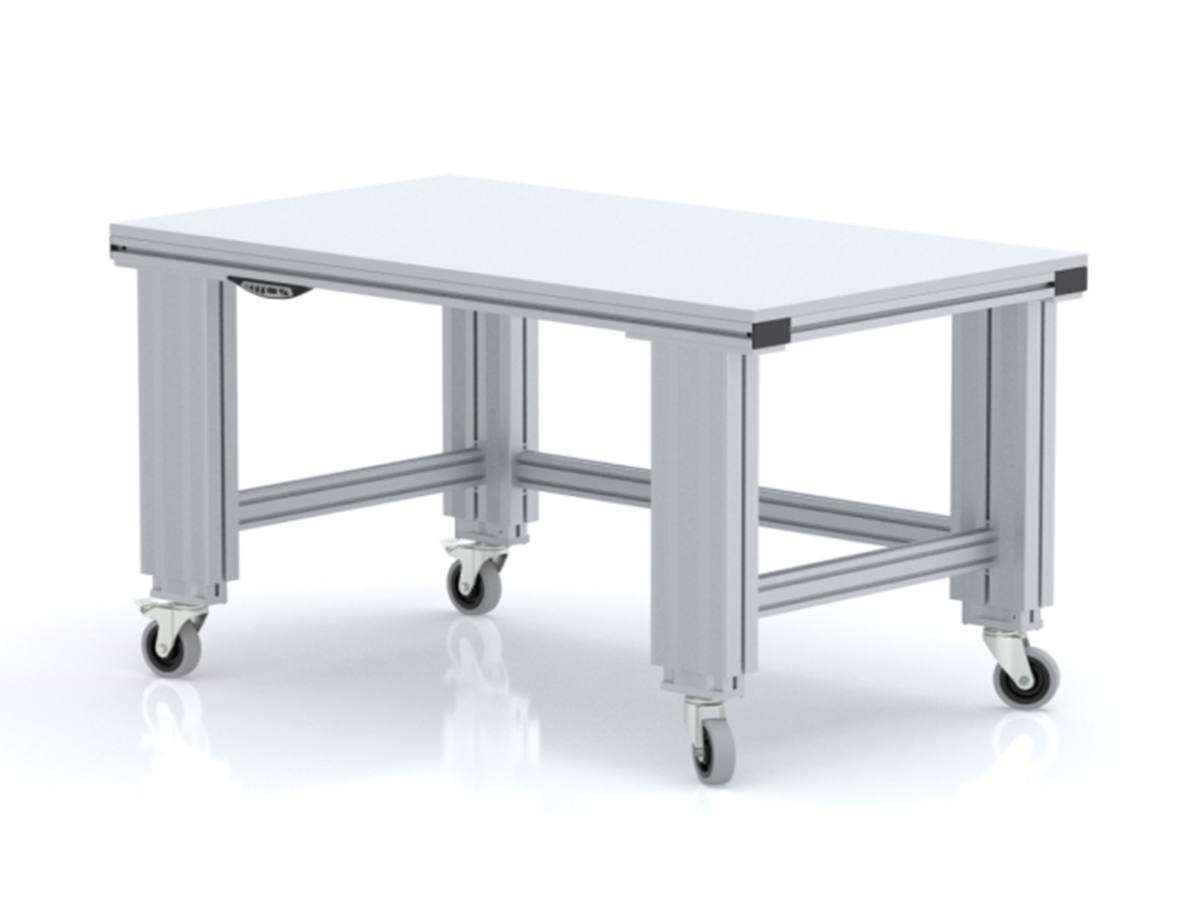

Four SM columns give you support at every corner, which is what long or heavily loaded benches need – a two-column system will flex before the columns themselves reach their limit. This configuration provides 12″ (300 mm) of travel and suits workbenches carrying machinery, fixtures or material along their full length. Columns measure 5.9″ x 2.76″ (150 x 70 mm) in anodized aluminum with 8 mm T-slots on three faces. Run from the iSMPS control box.
See the Description section below for more information.
In stock
| Weight | 46 lbs |
|---|---|
| Dimensions | 26 × 14.5 × 6.5 in |
| Retracted height | 20.9” (530 mm) |
| Extended height | 32.7” (830 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 2,200 lbs (1,000 kg) |
| Max stroke | 11.81” (300 mm) |
| Number of Lifts | 4 |
| Weight | Heavy weight |
| Size-diameter | 5.9” x 2.76” (150×70 mm) |
| Stability | 4.5 stars (Outstanding) |
Four SM columns give you support at every corner, which is what long or heavily loaded benches need – a two-column system will flex before the columns themselves reach their limit. This configuration provides 12″ (300 mm) of travel and suits workbenches carrying machinery, fixtures or material along their full length. Columns measure 5.9″ x 2.76″ (150 x 70 mm) in anodized aluminum with 8 mm T-slots on three faces. Run from the iSMPS control box.
For 15.75″ (400 mm) of travel in the same four-column layout, see SM 4340 US 02. If the load is central and the span short, two columns will do — see SM 2330 US 02.

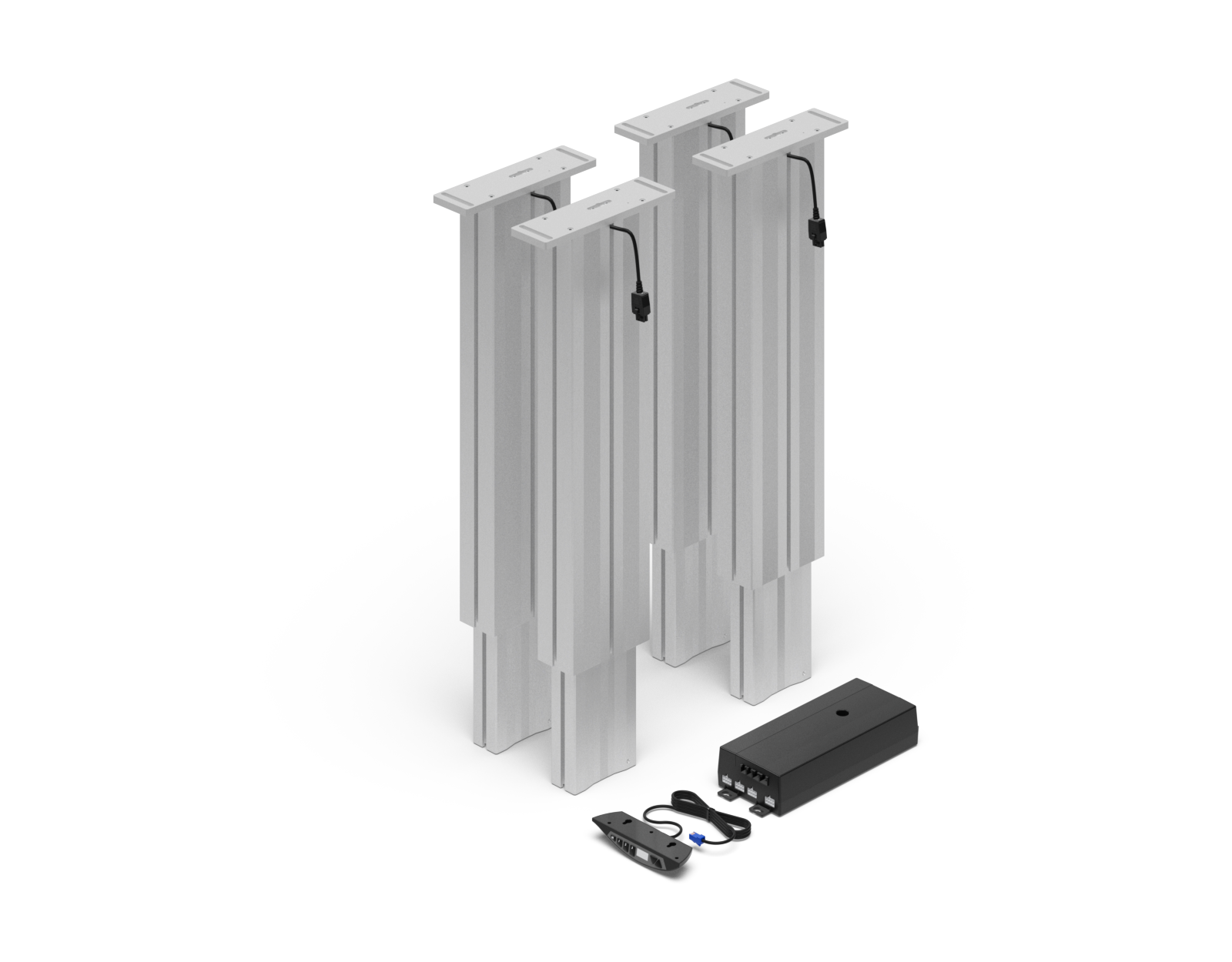

An SM 4330 US 02 Quick-ship set consists of:

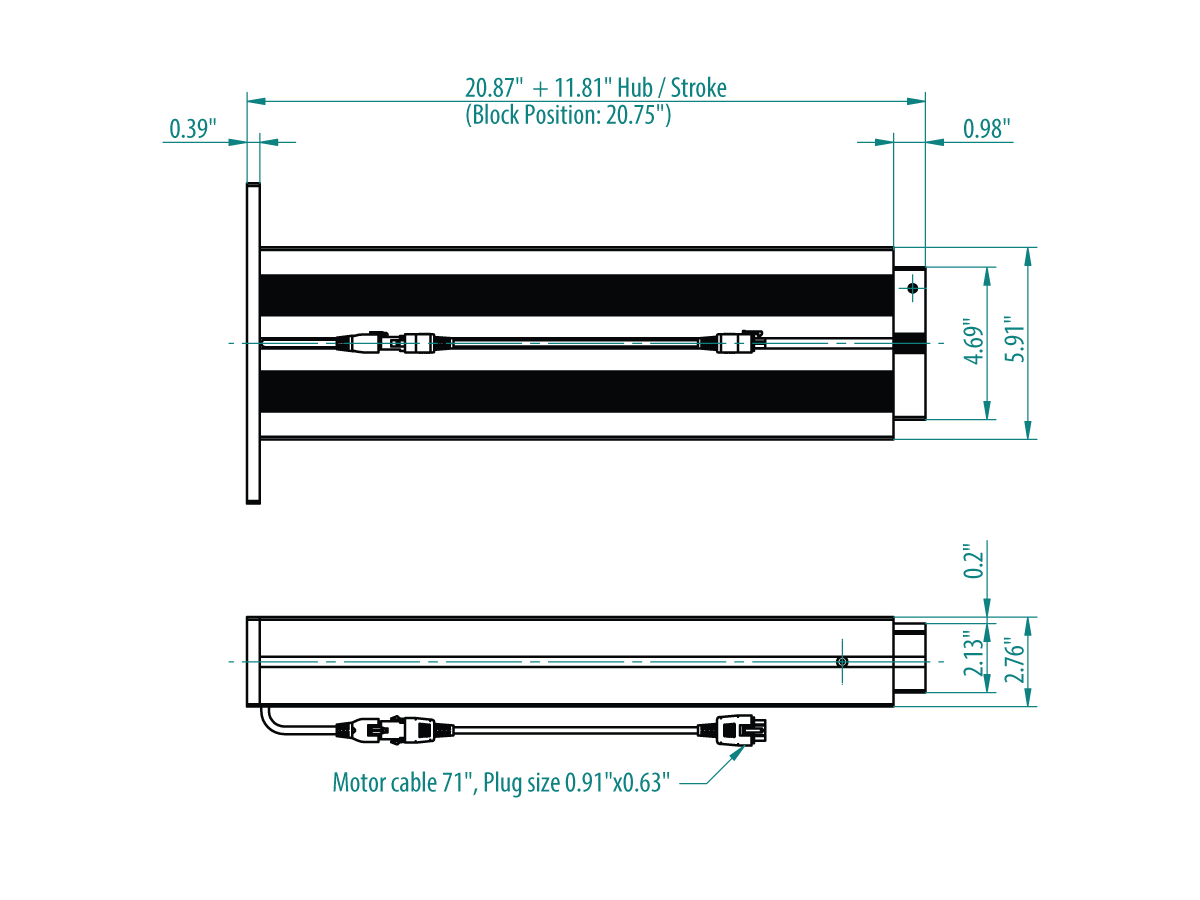

4x Lifting column SM 1330 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory
Performance data lifting column SM4330
Number of lifting columns: 4
Max load: 2,200 lbs (1,000 kg) – includes weight of frame for a 4-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / Dynamic: – 22 lbs / 50 N
Lifting speed: 0.35” / sec (9 mm / sec)
Stroke: 11.81″ (300 mm)

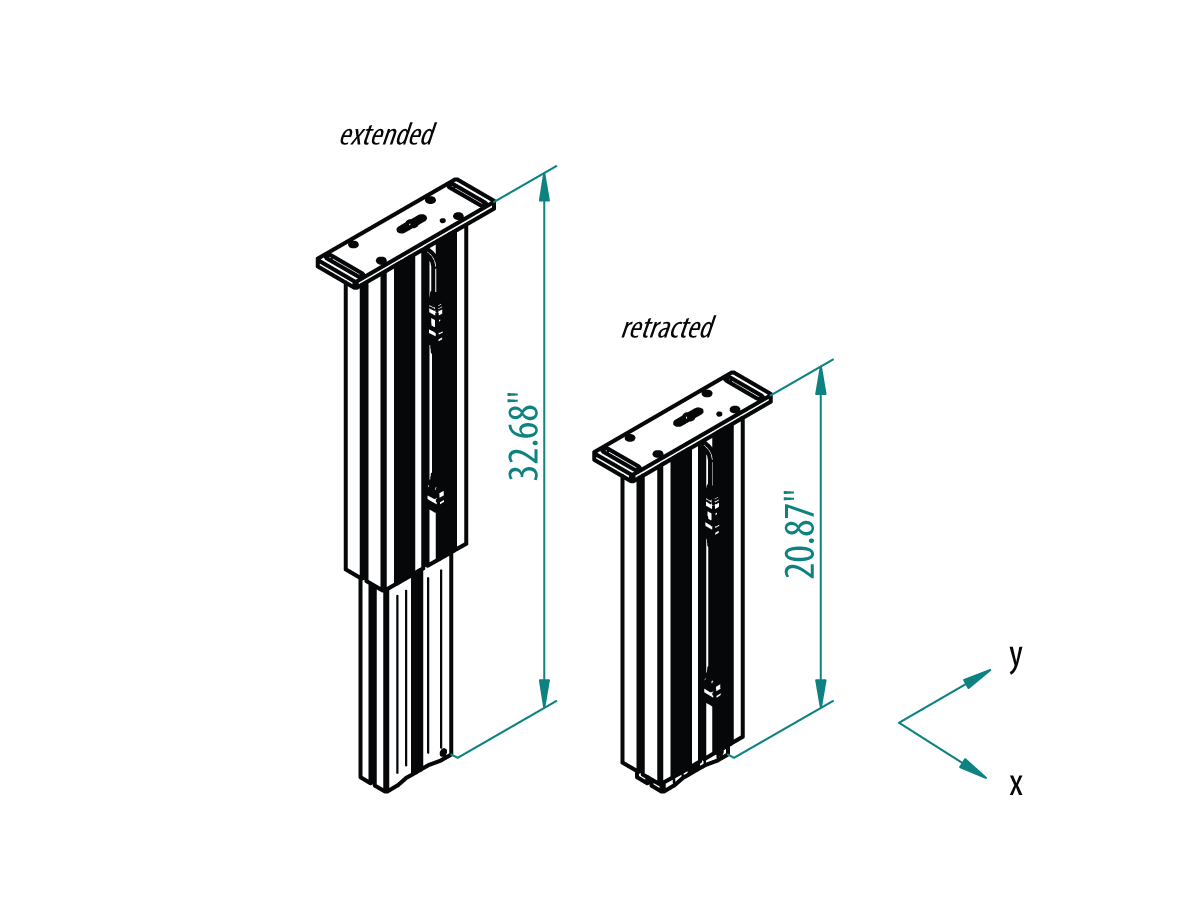

Base / retracted height: 20.9” (530 mm)
Extended height: 32.7” (830 mm)
Duty cycle E/D (On/Off): 2 / 40 min
