$1,365.00
The SNT single-leg electric lift offers up to 27.5” (700 mm) height adjustment in a compact, T-slot aluminum column. Ideal for one leg, medium-duty workstations, it comes as a plug-and-play kit with a column, memory remote and controller.
See the Description section below for more information.
In stock
| Weight | 37 lbs |
|---|---|
| Dimensions | 31 × 13.2 × 9.1 in |
| Retracted height | 22.05” (560 mm) |
| Extended height | 49.61” (1260 mm) |
| Lifiting speed | 0.98” / sec (25 mm / sec) |
| Max load | 337 lbs (150 kg) |
| Max stroke | 27.56” (700 mm) |
| Number of Lifts | 1 |
| Weight | Light weight |
| Stability | 5 stars (Perfect) |
| Size-diameter | 6.3”×3.94” (160×100 mm) |
Coming soon.

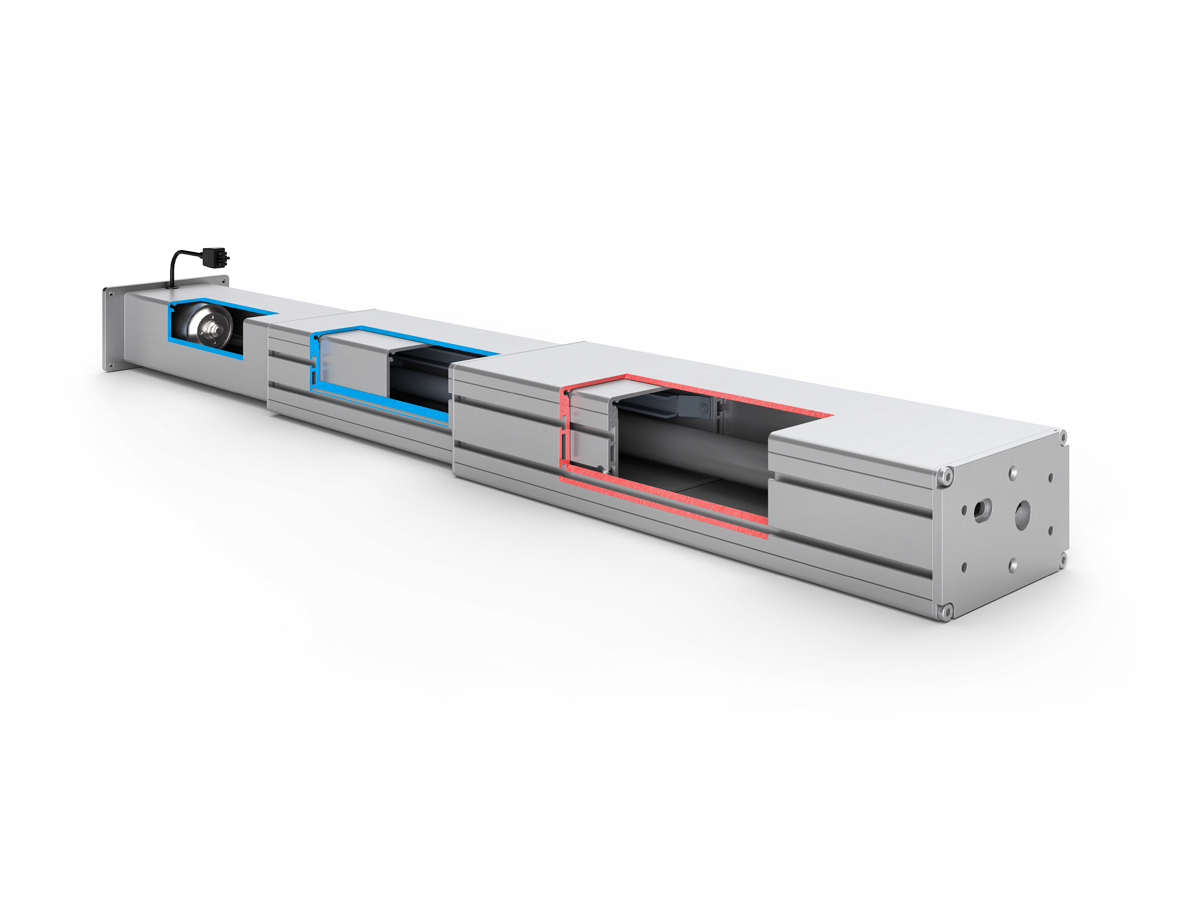

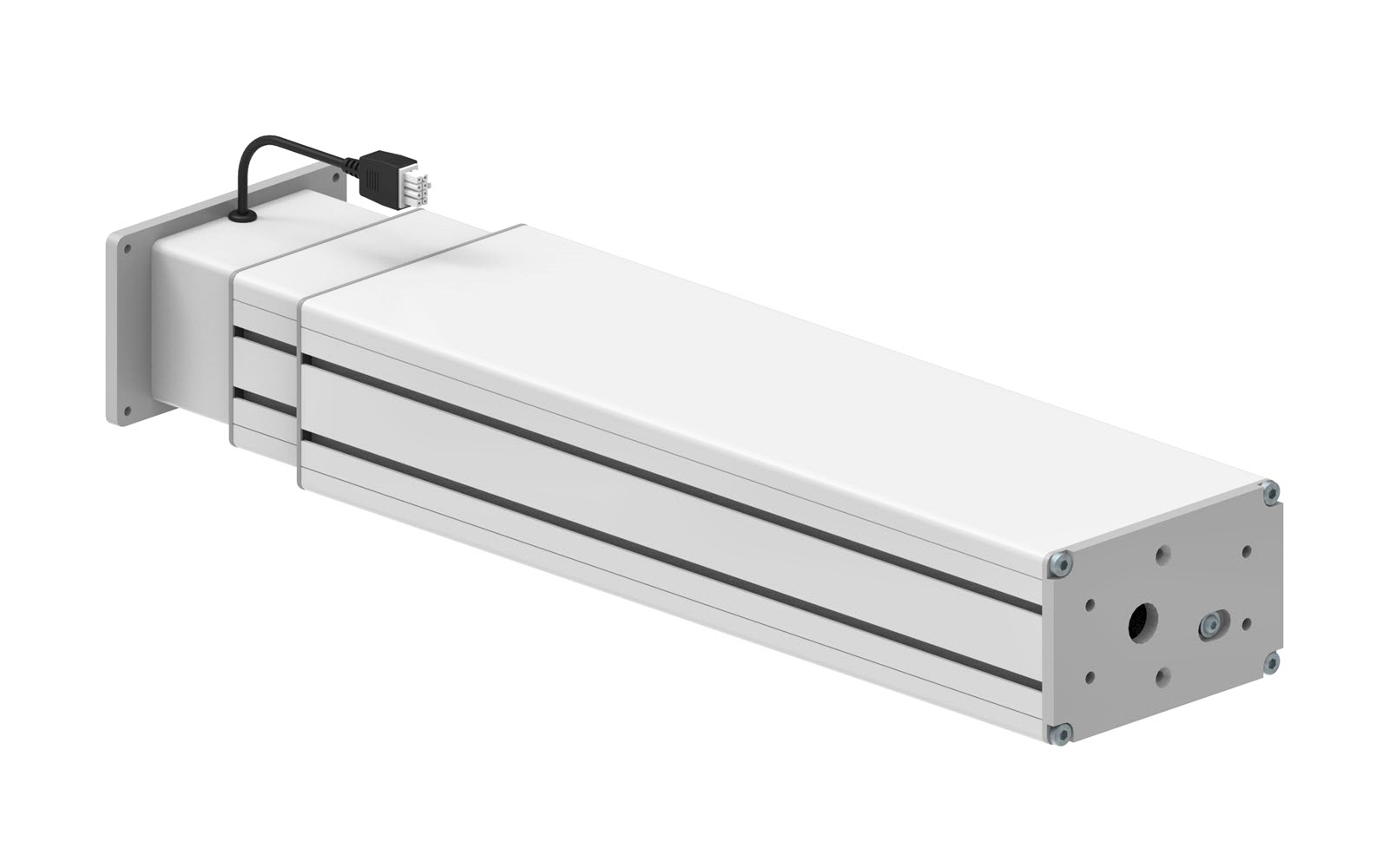

The SNT single-leg, electric, three-stage spindle-driven column system provides a stable and reliable solution for raising and lowering workstations and setups requiring significant height adjustment up to 27.55” (700 mm) for medium-duty loads. The compact yet durable aluminum column, measuring 6.3” × 3.94” (160 × 100 mm), features integrated T-slots (0.24” / 6 mm) for easy and flexible integration. The system is delivered as a complete, ready-to-use package.

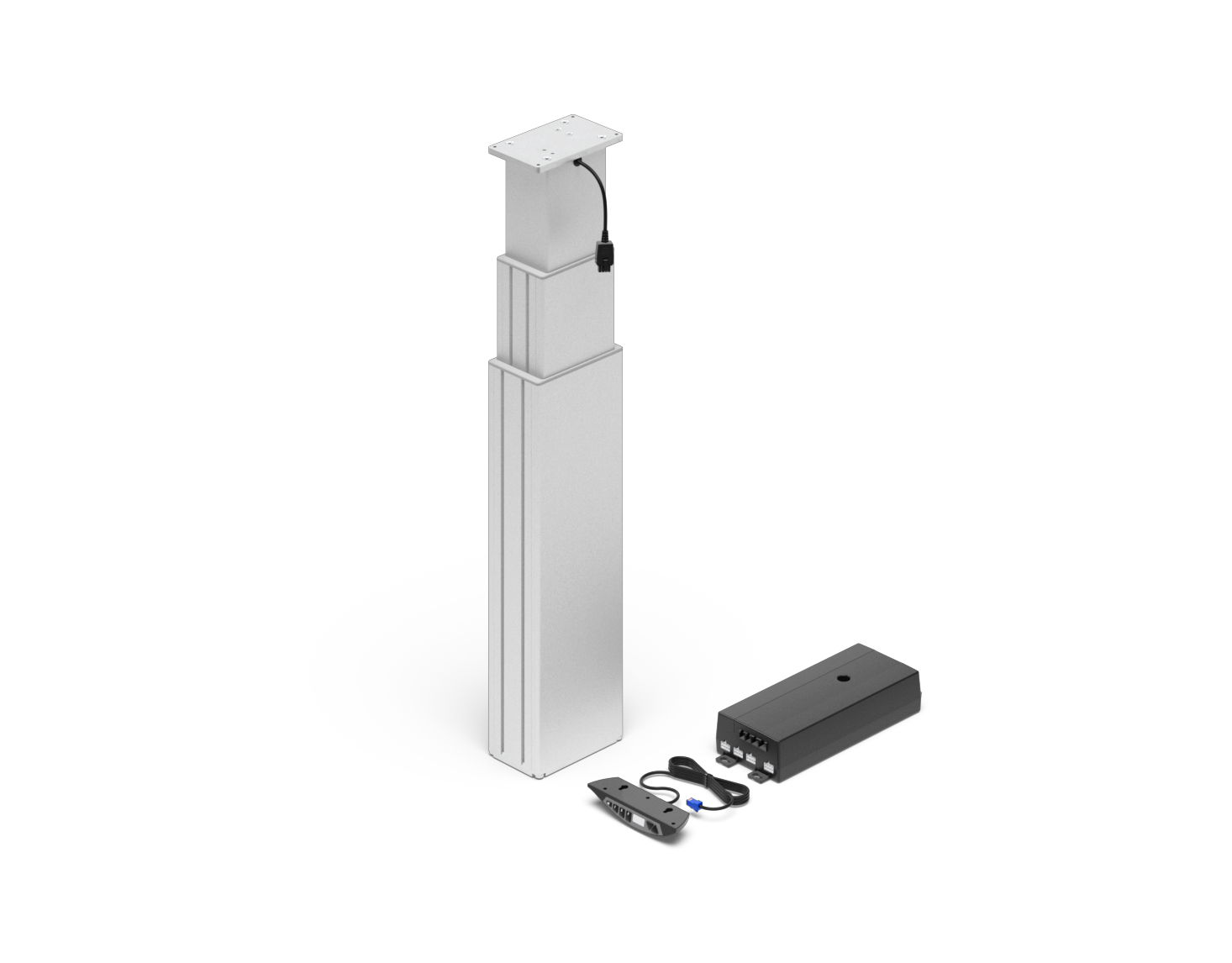

A SNT 1770 US 12 Quick ship set consists of:
1x Lifting column SNT 1770, 1x Control box SCT4 iSMPS 110V, 1x Power cable US 118.11’’ / 3m, 1x Hand switch SCT Memory T6.
Technical data:
Performance data lifting column SNT 1770
Number of lifting columns: 1
Max load: 337 lbs (150 kg)
Max pushing force: 337 lbs / 150 kg per column
Max. pulling force Static: 11 lbs / 50 N, Dynamic: 11 lbs / 50 N
Lifting speed: 0.98” / sec (25 mm / sec)
Stroke: 27.56” (700 mm)
Base / retracted height: 22.05” (560 mm)
Extended height: 49.61” (1260 mm)
Duty cycle E/D (On/Off): 2 / 40 min
