QS-Motorized System 12 – 1000 -110

$860.00

This 12″ (300 mm) motorized hydraulic system delivers cost-effective height adjustment with reliable retraction powered by the system’s own weight. It ships pre-assembled with four legs, a controller, a memory remote, leveling feet, and a drilling template – ready for fast installation.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$860.00
Total:
$860.00
Buy 3 pieces and save 2%
$860.00
$840.00
Total:
Buy 4 pieces and save 2%
$860.00
$840.00
Total:
x
SKU: 111.30243 Category:

Additional information

Weight 33 lbs
Dimensions 35 × 12 × 9 in
application

Ergo catering, Intralogistics, Manufacturing, Medical device
business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

17.4” (442 mm)
Extended height

29.2” (742 mm)
Lifiting speed

0.6” (15 mm) per second
Max load

992 lbs (450 kg)
Max stroke

11.81” (300 mm)
Number of Lifts

4
Size-diameter

1.38”x1.38” (35 x 35 mm)
Stability

2 stars (Average)
Weight

Light weight
STEP file

PDF files
2345 1113.00039 PP v2113.00054 PP v2113.00004 PP v2113.00003 PP v2

Description

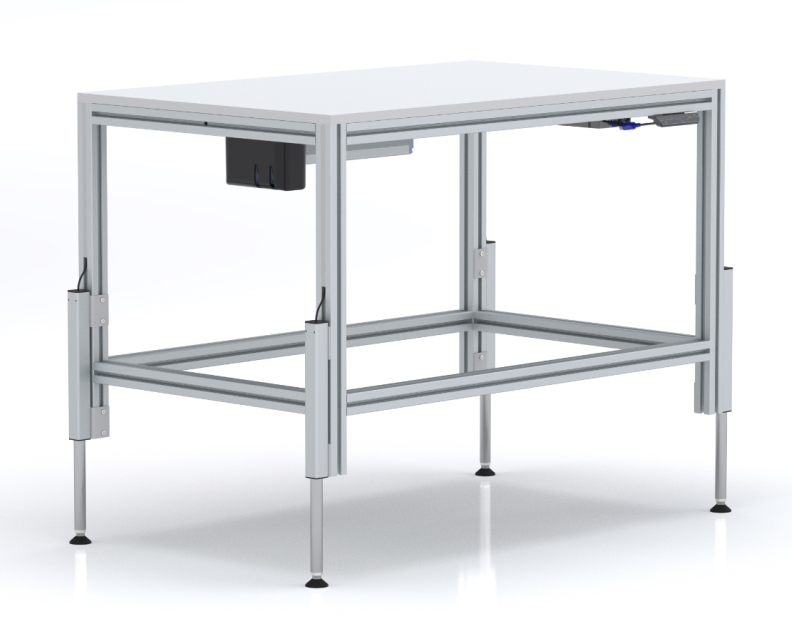

The hydraulic motorized 12” (300 mm) lift system offers a cost-effective solution for raising and lowering structures. It includes a memory remote that signals when the desired ergonomic height is reached. Unlike electric spindle systems, hydraulic lifts require weight on each column to retract. The quick-ship 4-leg system comes fully assembled.

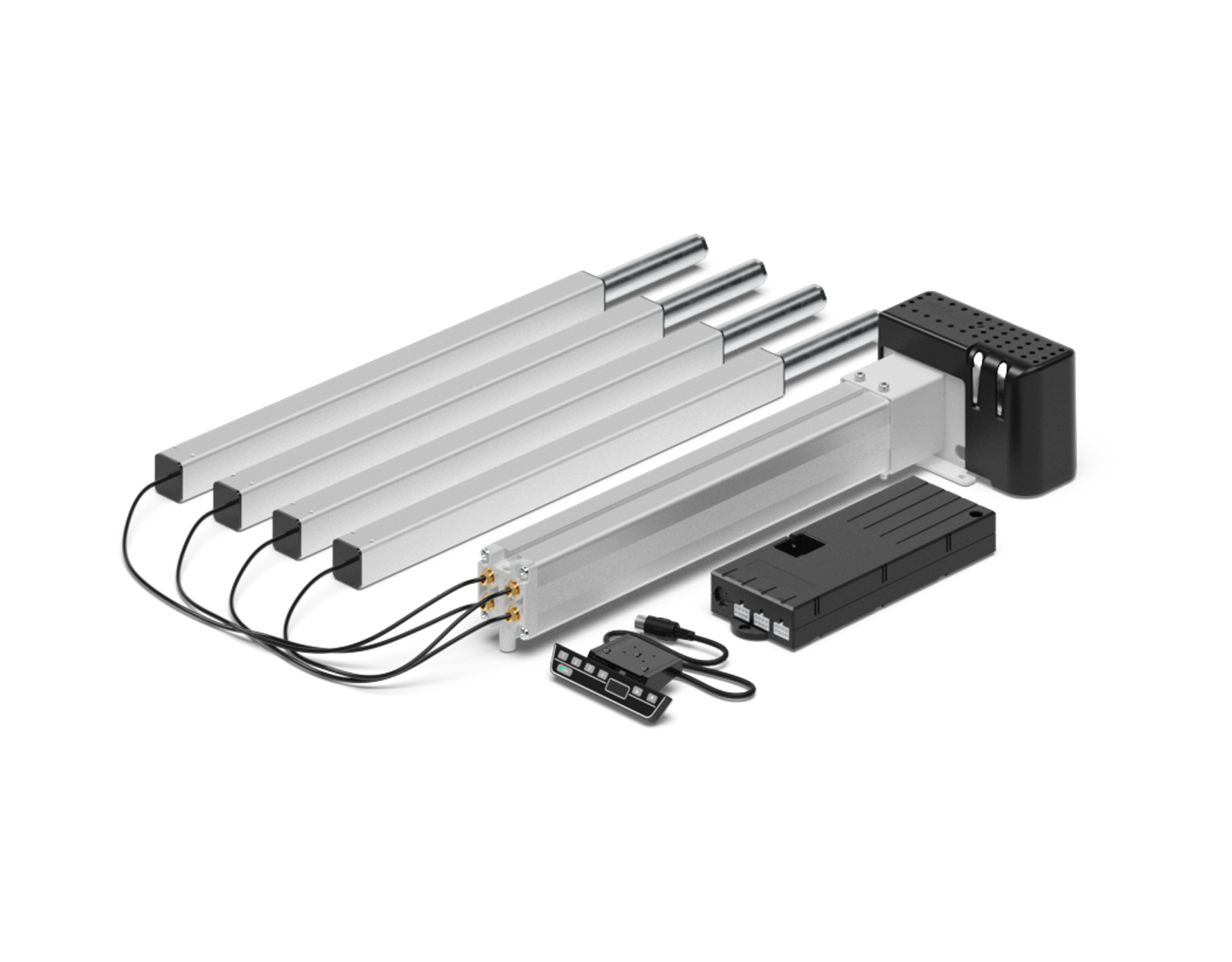

A motorized system consists of:

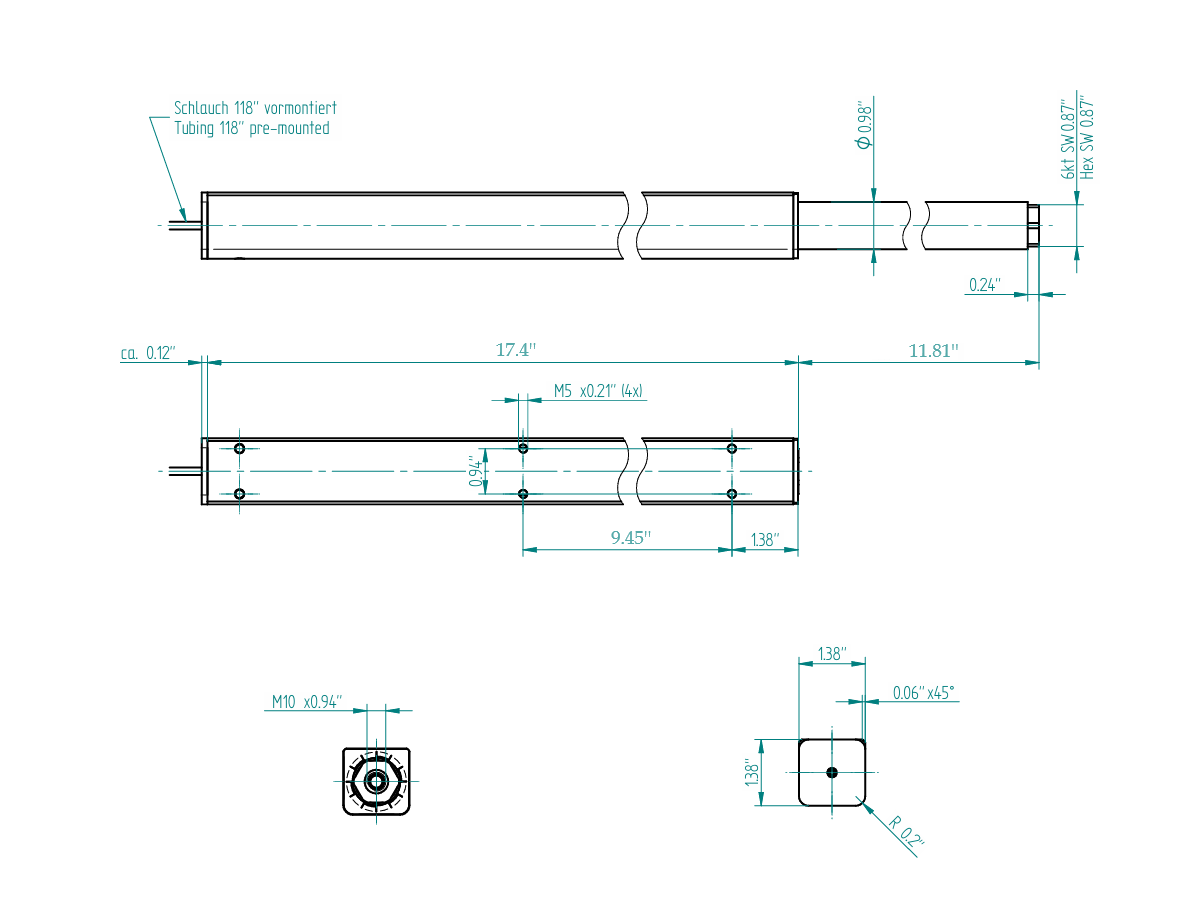

1 x pump with motor, 1 x controller with 10 ft power cable, 1 x memory remote, 4 x linear LA 1430 (1.38”x1.38”) with 2x10ft and 2 x 8ft tubing connected to the pump, 4x leveling feet, 1 x drilling template and tubing mounting hardware

Technical data

Max load: 992 lbs (450 kg) – includes weight of frame.
Max stroke: 11.8” (300 mm)
Lifting speed: 0.6” (15 mm) per second.
The retracing force required for each linear is 35 lbs.

Compliant to Cleanroom Class 7 – ISO Class 14644-1
Class 10,000 – according to US FED STD 209E
