The longest travel in the motorized hydraulic range, at 15.75″ (400 mm) – full sit-to-stand movement on a hydraulic system. Choose it for benches shared across shifts by operators of markedly different heights, and for work that alternates between seated detail tasks and standing assembly. Four LA 1440 linear units (1.38″ x 1.38″) on a single motorized pump, rated to 992 lbs (450 kg) including the frame. Ships fully assembled and pre-packed with a drilling template for steel tubing.
The longest travel in the motorized hydraulic range, at 15.75″ (400 mm) – full sit-to-stand movement on a hydraulic system. Choose it for benches shared across shifts by operators of markedly different heights, and for work that alternates between seated detail tasks and standing assembly. Four LA 1440 linear units (1.38″ x 1.38″) on a single motorized pump, rated to 992 lbs (450 kg) including the frame. Ships fully assembled and pre-packed with a drilling template for steel tubing.
Shorter travel sits lower when retracted: see the 12″ (300 mm) and 8″ (200 mm) motorized systems.

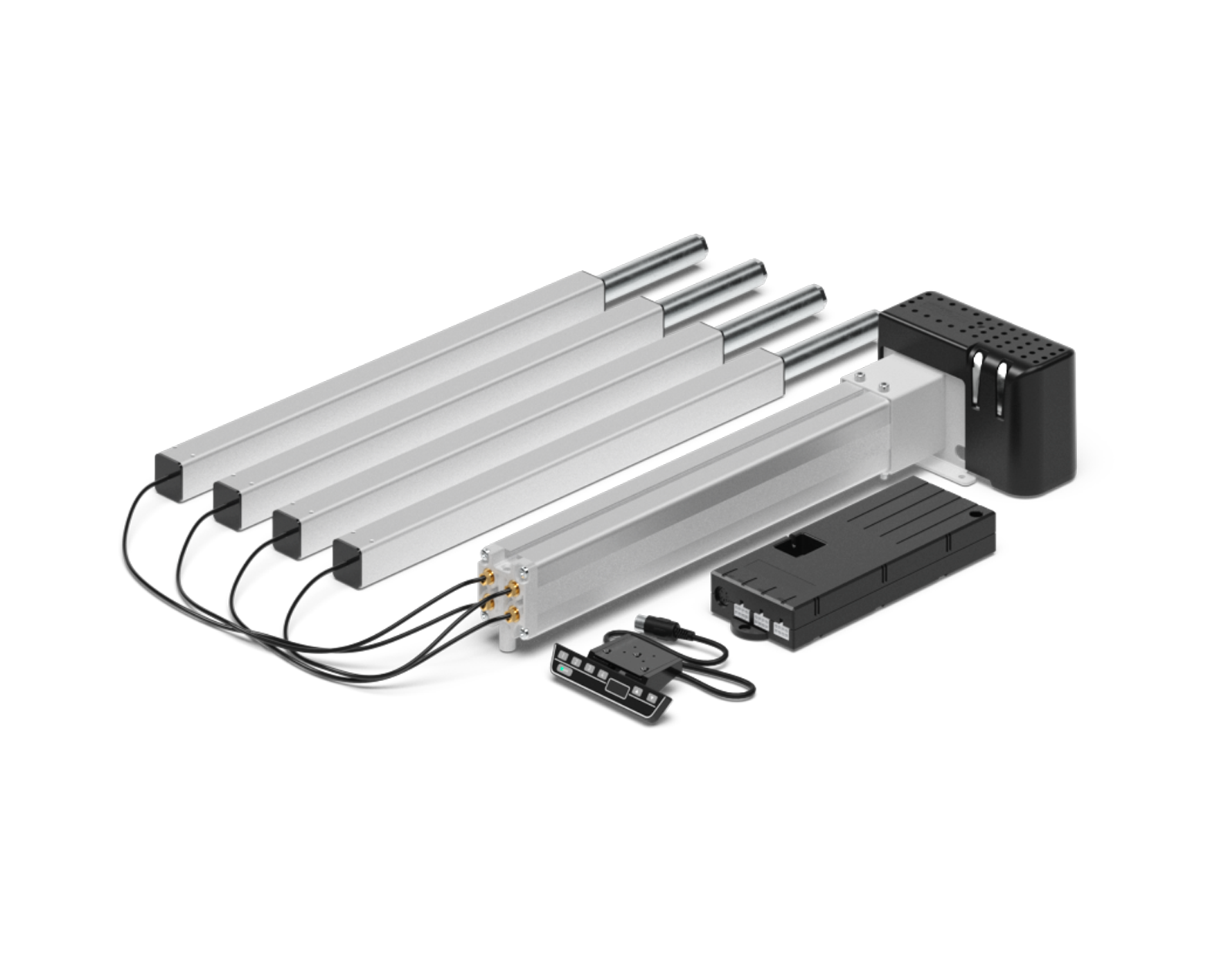

A motorized system consists of:
1 x pump with motor, 1 x controller with 10 ft power cable, 1 x memory remote, 4 x linear LA 1440 (1.38”x1.38”) with 2x10ft and 2 x 8ft tubing connected to the pump, 4x leveling feet, 1 x drilling template and tubing mounting hardware.
Technical data
Max load: 992 lbs (450 kg) – includes weight of frame. Max stroke: 15.75” (400 mm) Lifting speed: 0.6” (15 mm) per second.
The retracing force required for each linear is 35 lbs.
Compliant to Cleanroom Class 7 – ISO Class 14644-1
Class 10,000 – according to US FED STD 209E
