QS-Motorized System 6 leg -12 – 1000 -110

$1,415.00

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

Buy 1 - 2 pieces
$1,415.00
Total:
$1,415.00
Buy 3 pieces and save 4%
$1,415.00
$1,360.00
Total:
Buy 4 pieces and save 4%
$1,415.00
$1,360.00
Total:
x
SKU: 111.30113-PP Category:

Additional information

Weight 40 lbs
Dimensions 30 × 11 × 8 in
Application

Ergo catering, Intralogistics, Manufacturing, Medical device
Business area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

17.4” (442 mm)
Extended height

29.2” (742 mm)
Lifiting speed

0.6” (15 mm) per second
Max load

1000 lbs (454 kg)
Max stroke

11.81” (300 mm)
Number of Lifts

6
Size/diameter

1.38”x1.38” (35 x 35 mm)
Stability

2 stars (Average)
Weight

Light weight
STEP file

PDF files

Description

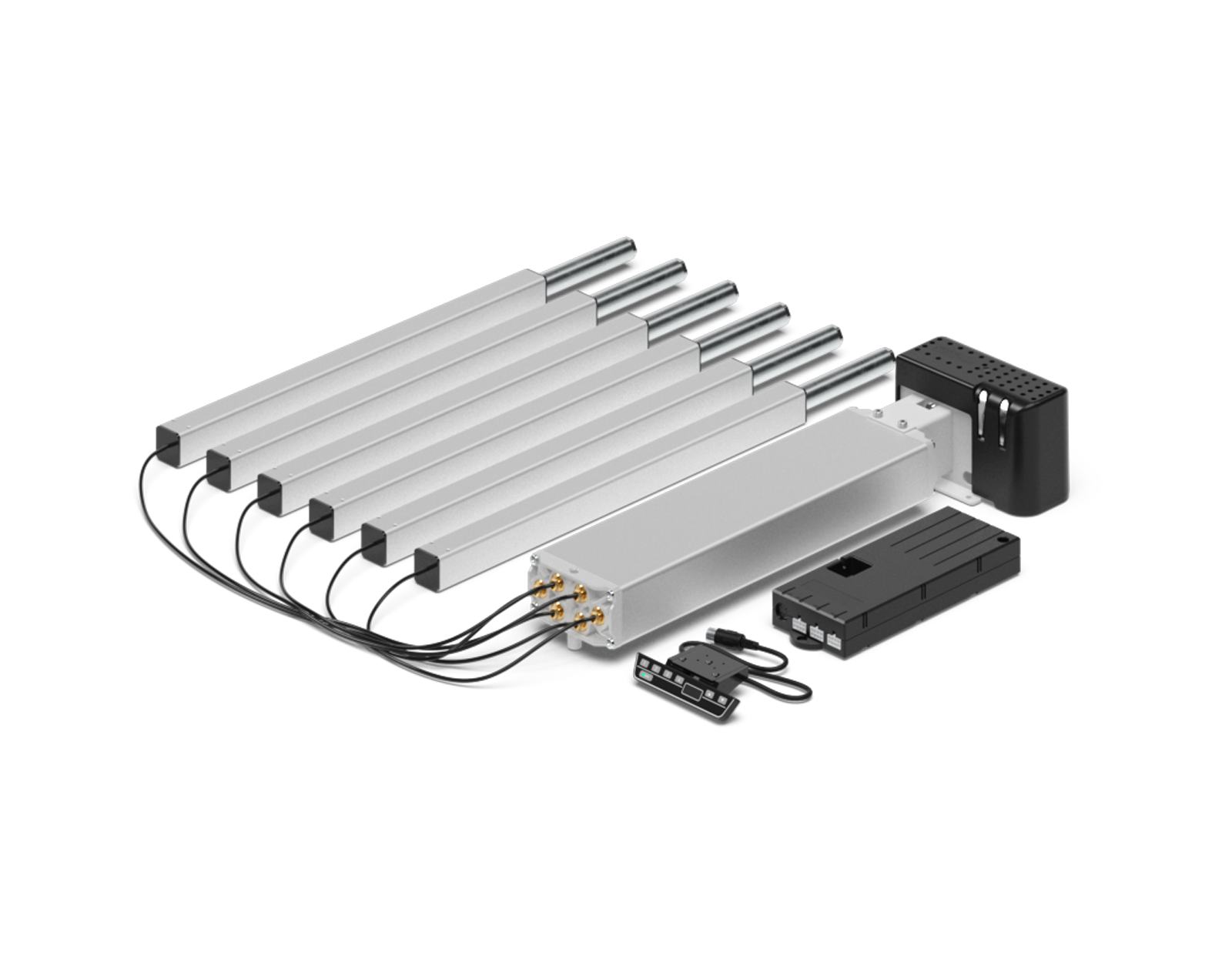

A motorized system consists of:

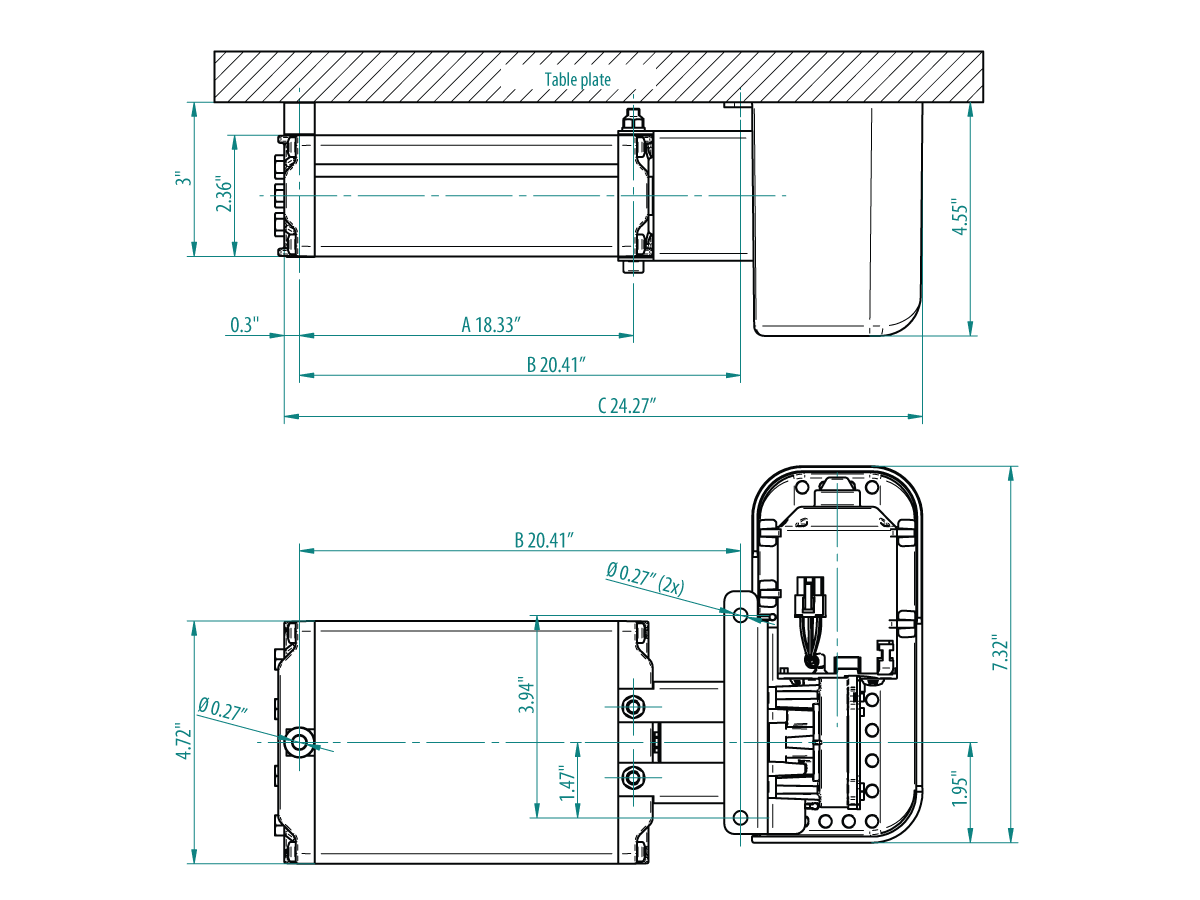

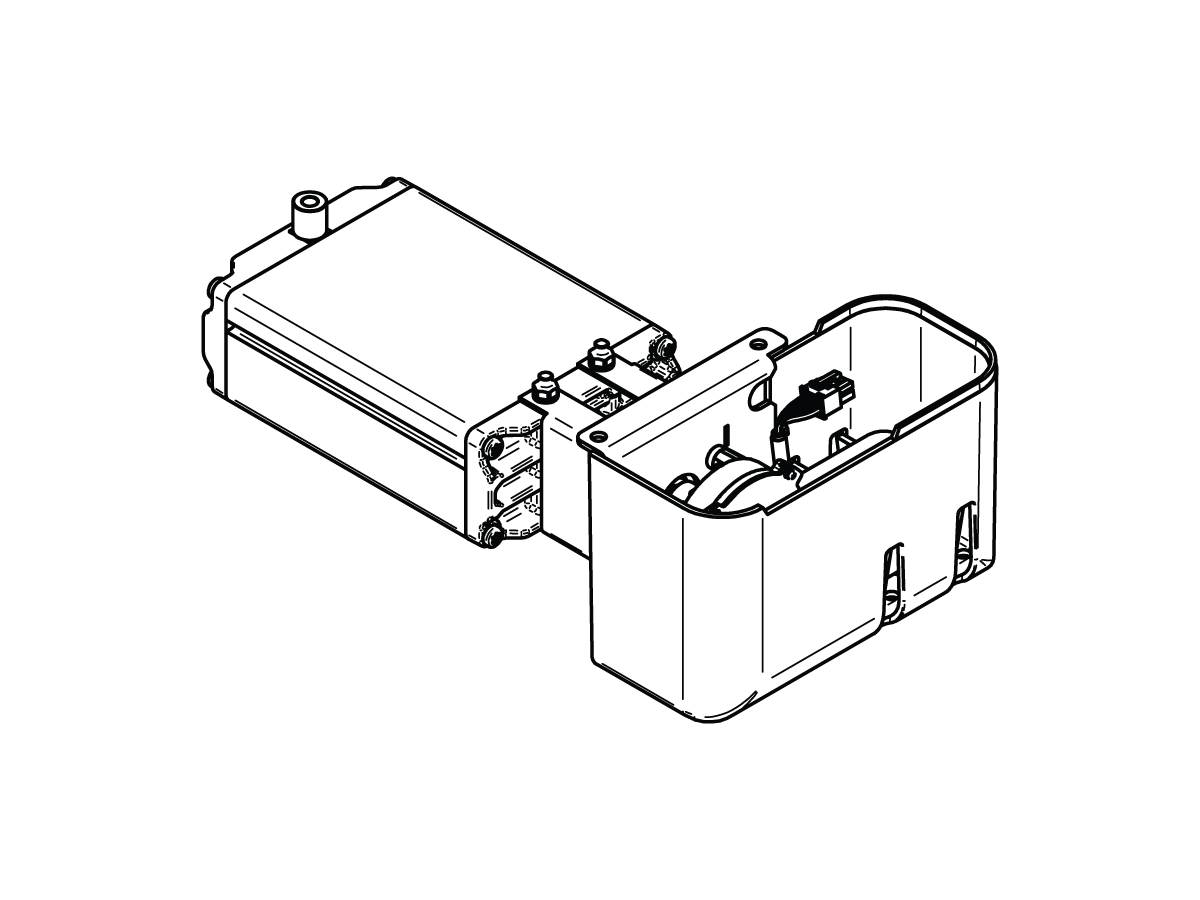

• 1x 362.30043 Pump PB 6830 H with Motor unit (US)
• 124.30255 Control box compact-3-eco 110V (V255)
• 124.00145 Power cable US 10 ft (3m)
• 124.00023 Memory cable remote control
• 6x 306.00003 Linear unit LA 1430 with 10 ft (3m) Tubing

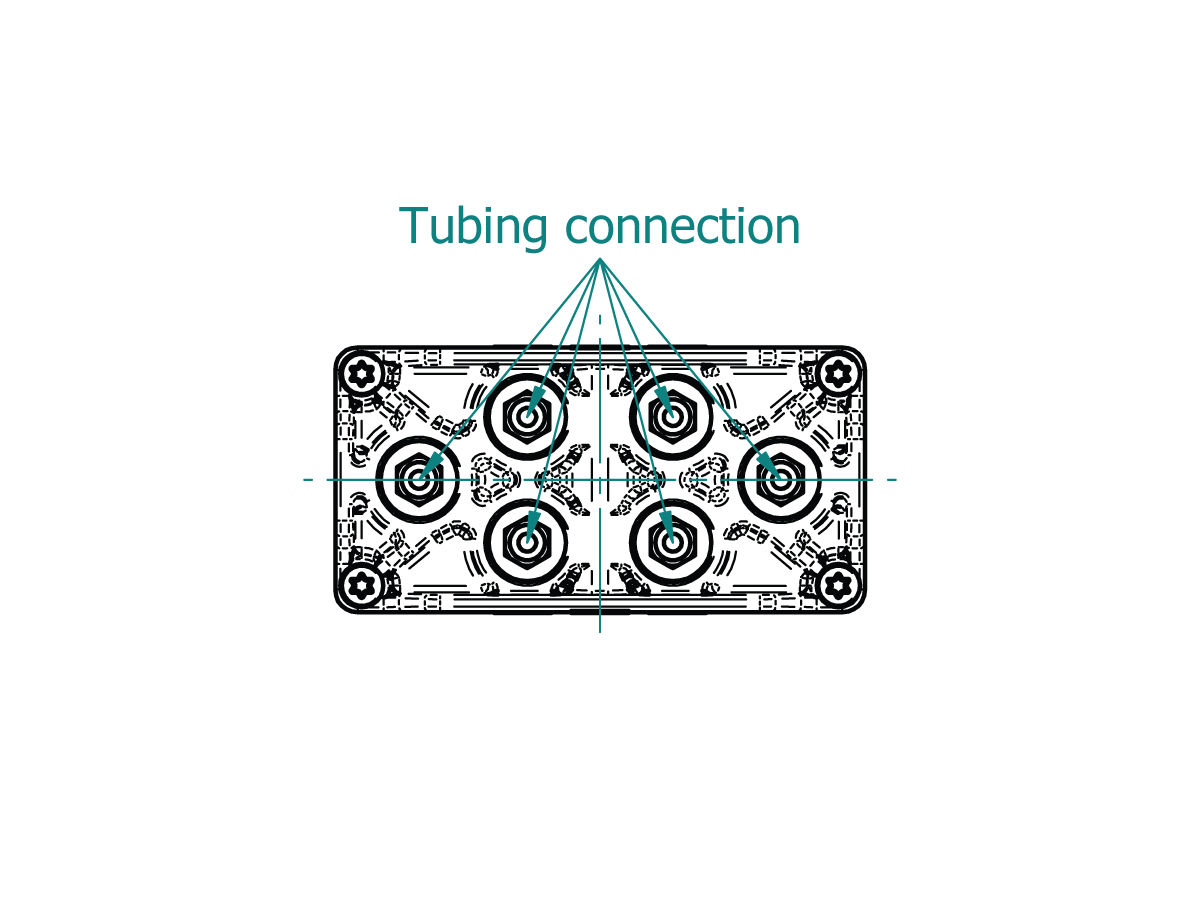

• 6x 199.00004 Tubing mounted to pump
• 6x 113.00006 Adjustable foot M10x28
• 1x 111.00015 Mounting parts QS

Technical data:

Max load: 1,000 lbs (454 kg) – includes weight of frame.
Max stroke: 11.81” (300 mm)
Lifting speed: 0.6” (15 mm) per second.
The retracing force required for each linear is 35 lbs.

Compliant to Cleanroom Class 7 – ISO Class 14644-1
Class 10,000 – according to US FED STD 209E
