QS-Motorized System 8 – 1000 -110

$820.00

The 8″ (200 mm) motorized hydraulic system offers a compact, cost-effective lifting solution, ideal for streamlined applications. Designed to retract under load on each column, it ships pre-assembled with four legs, a controller, a memory remote, leveling feet, and a steel tubing installation template.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$820.00
Total:
$820.00
Buy 3 pieces and save 2%
$820.00
$800.00
Total:
Buy 4 pieces and save 2%
$820.00
$800.00
Total:
x
SKU: 111.30242 Category:

Additional information

Weight 26 lbs
Dimensions 30 × 10 × 7 in
application

Ergo catering, Intralogistics, Manufacturing, Medical device
business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

12.5” (317 mm)
Extended height

20.55” (517 mm)
Lifiting speed

0.6” (15 mm) per second
Max load

992 lbs (450 kg)
Max stroke

7.9” (200 mm)
Number of Lifts

4
Size-diameter

1.38”x1.38” (35 x 35 mm)
Stability

2 stars (Average)
Weight

Light weight
STEP file

PDF files

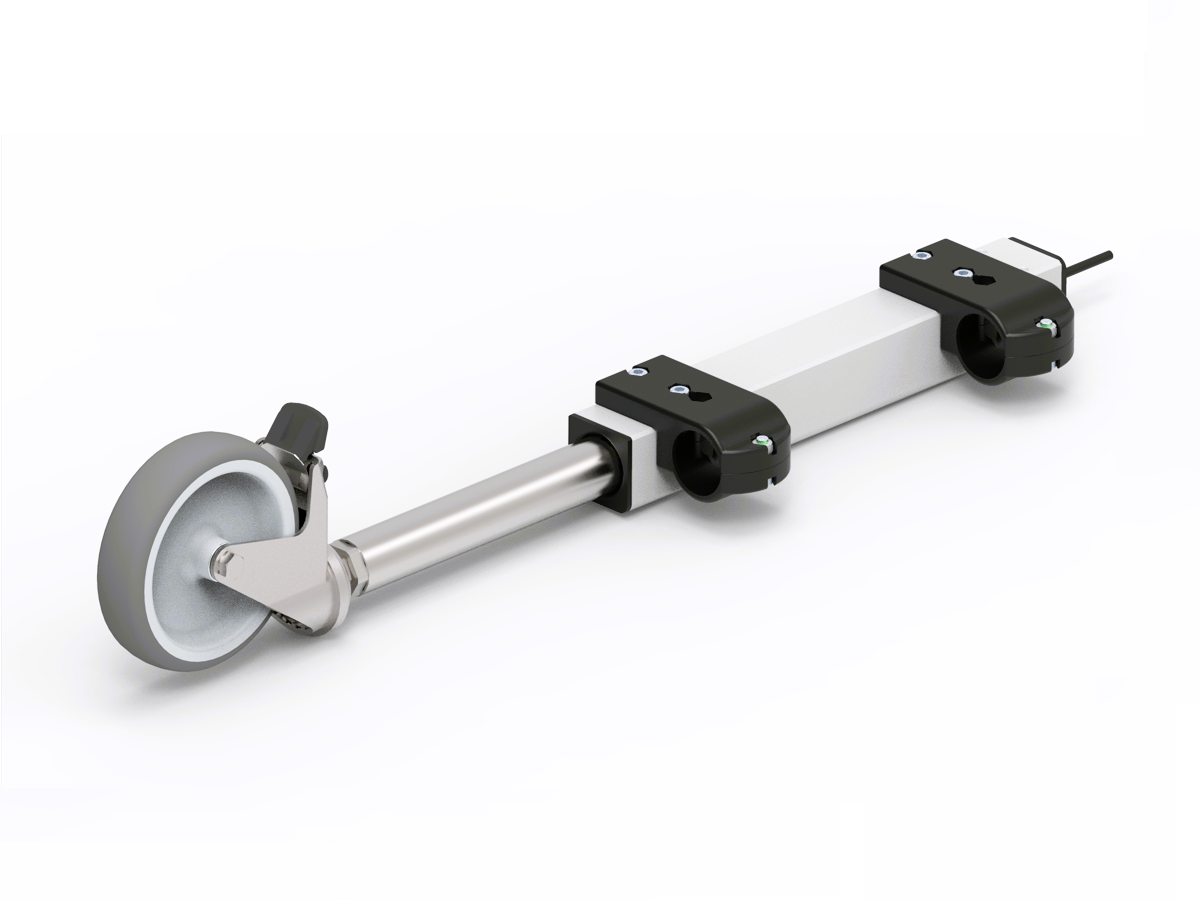

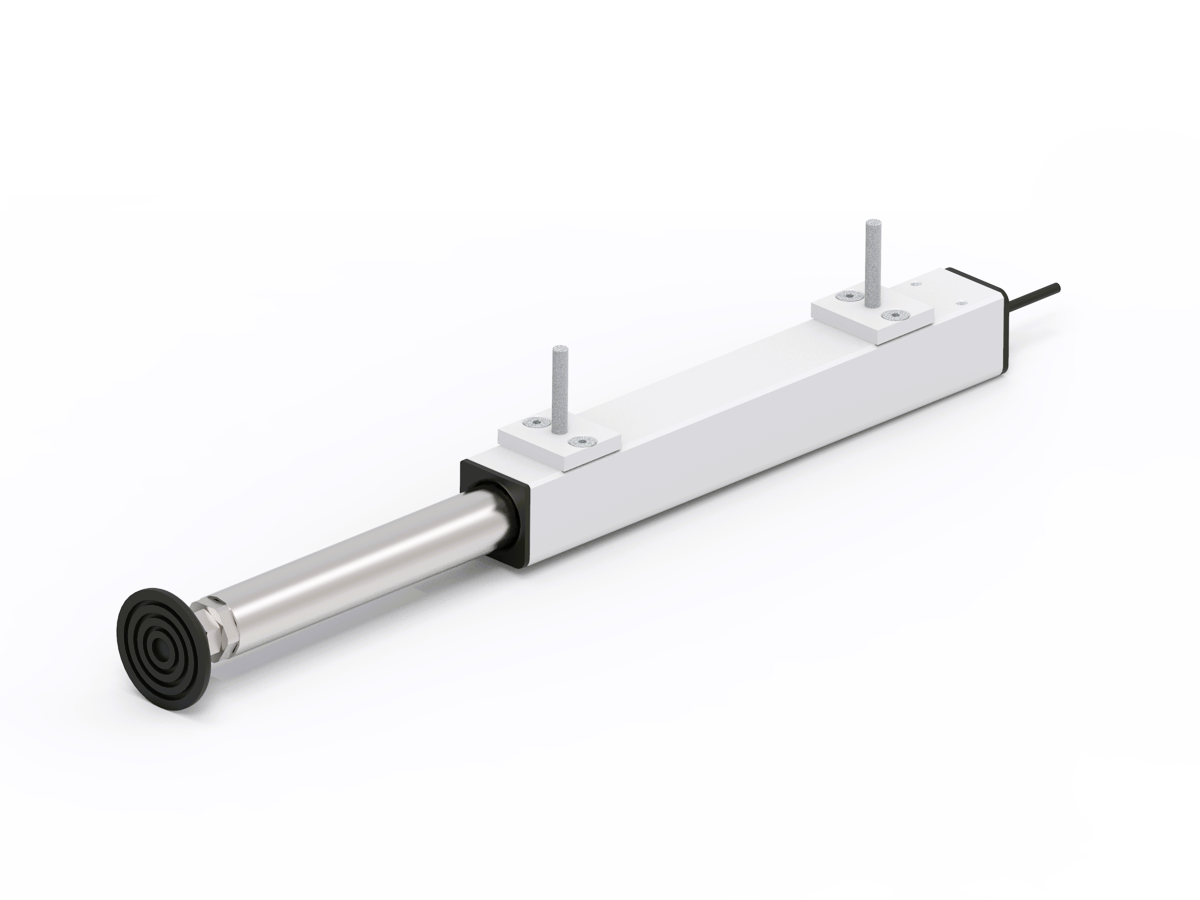

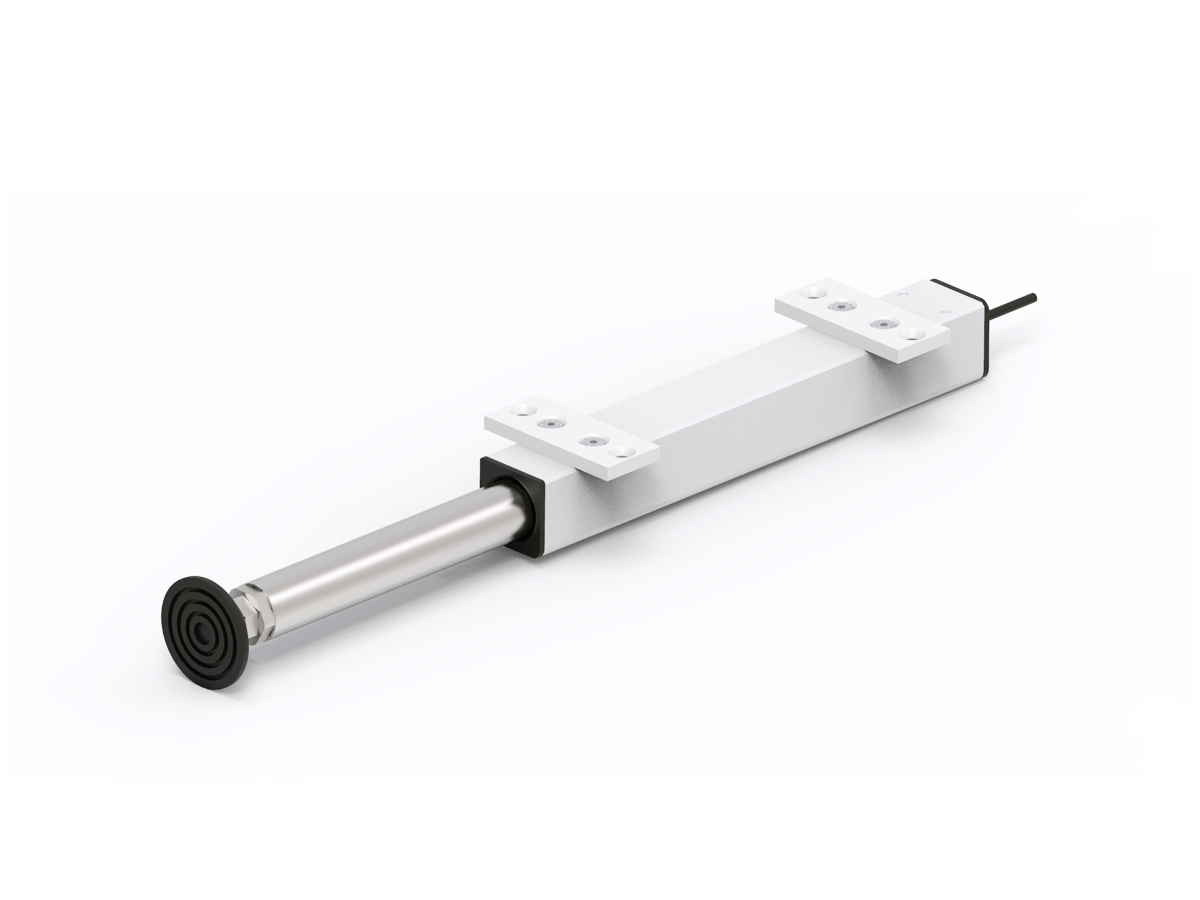

2345 1113.00039 PP v2113.00054 PP v2113.00004 PP v2113.00003 PP v2

Description

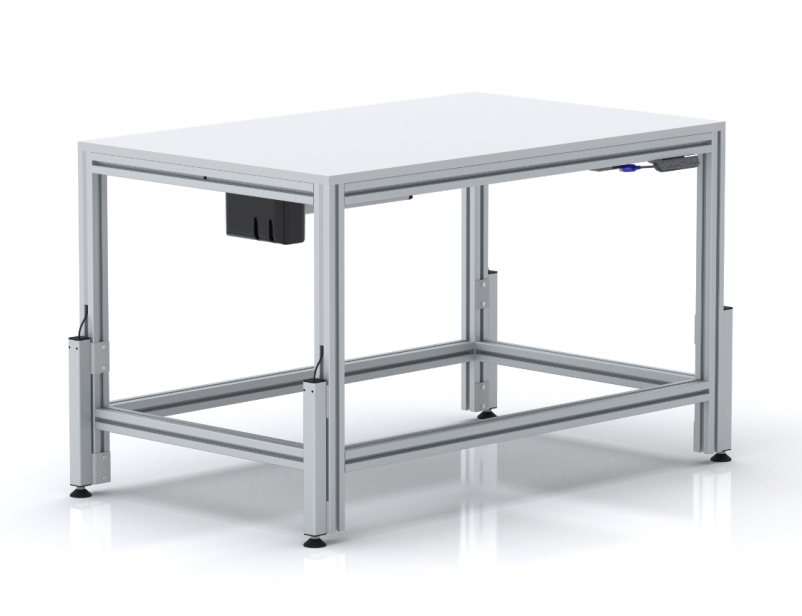

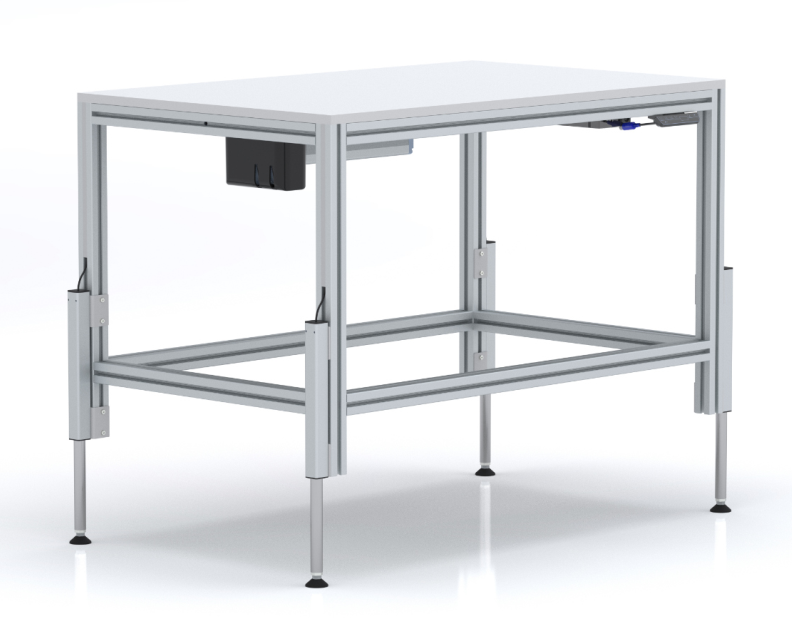

The hydraulic motorized 8” (200 mm) lift system offers a cost-effective solution for raising and lowering structures. It includes a memory remote that signals when the desired ergonomic height is reached. Unlike electric spindle systems, hydraulic lifts require weight on each column to retract. The quick-ship 4-leg system comes fully assembled.

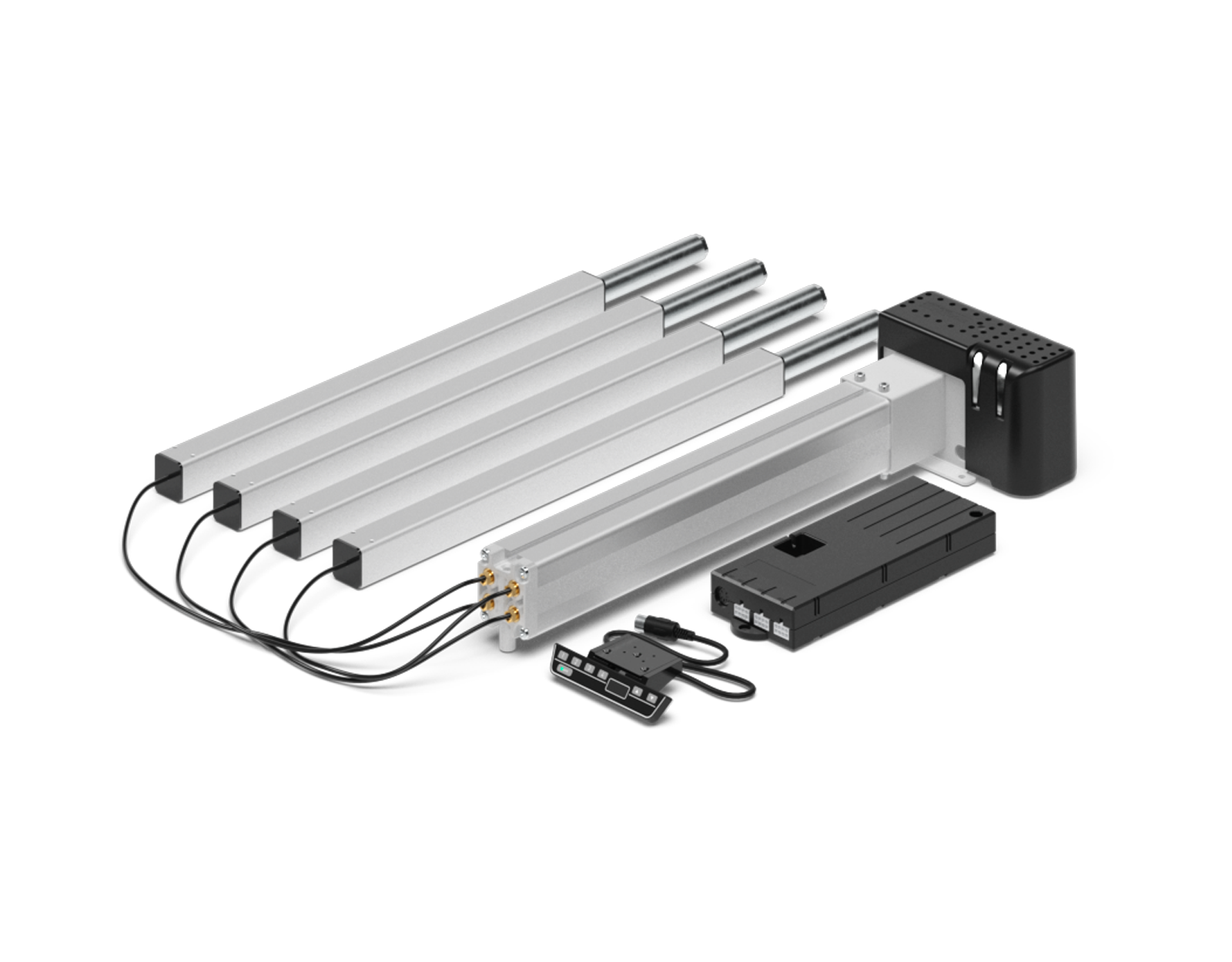

A motorized system consists of:

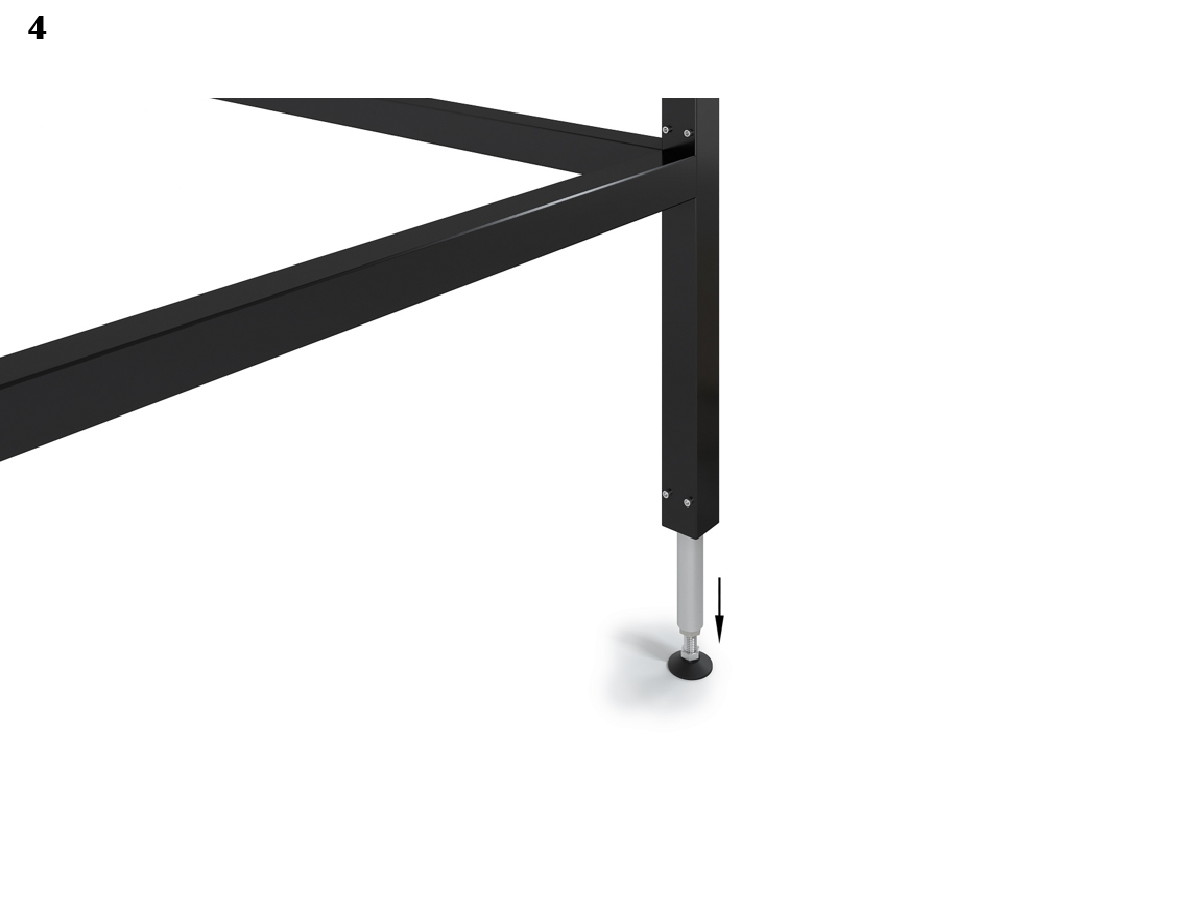

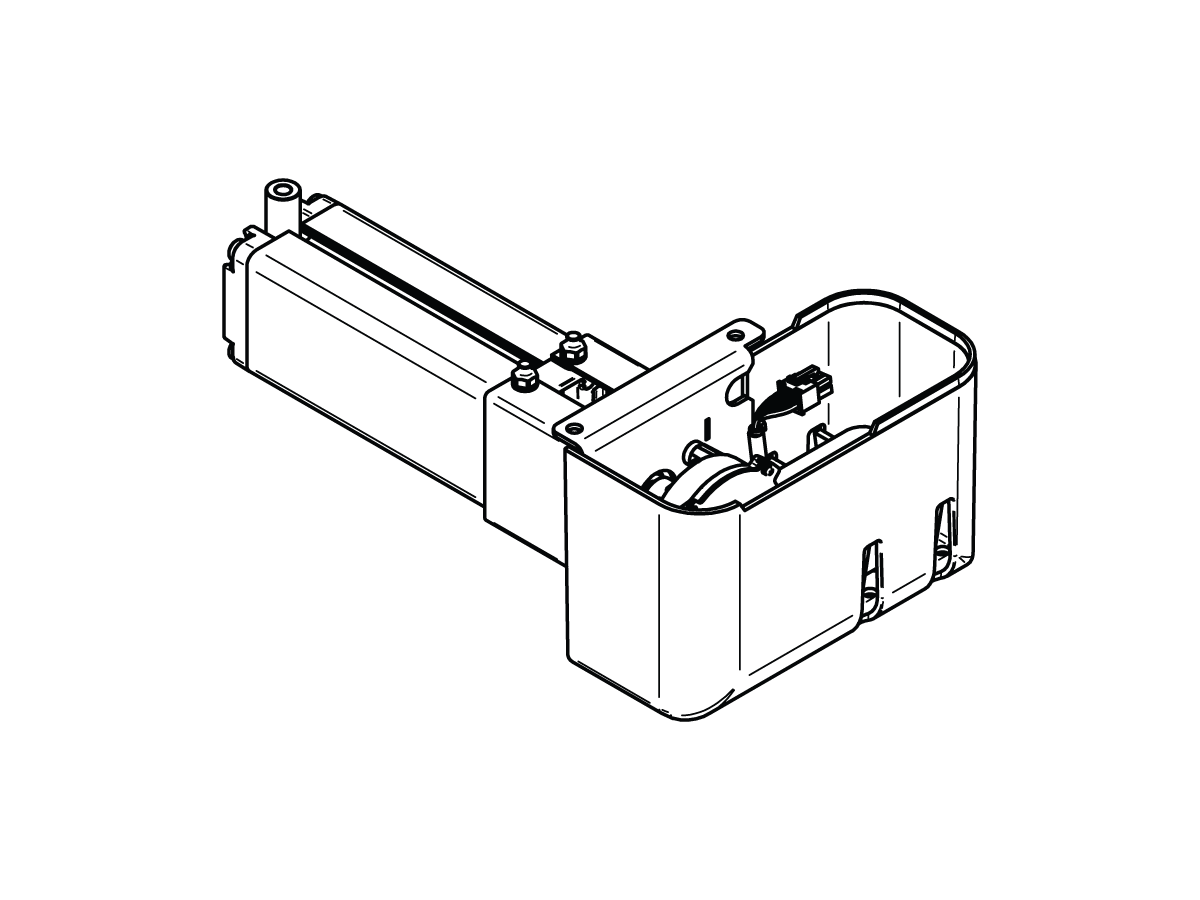

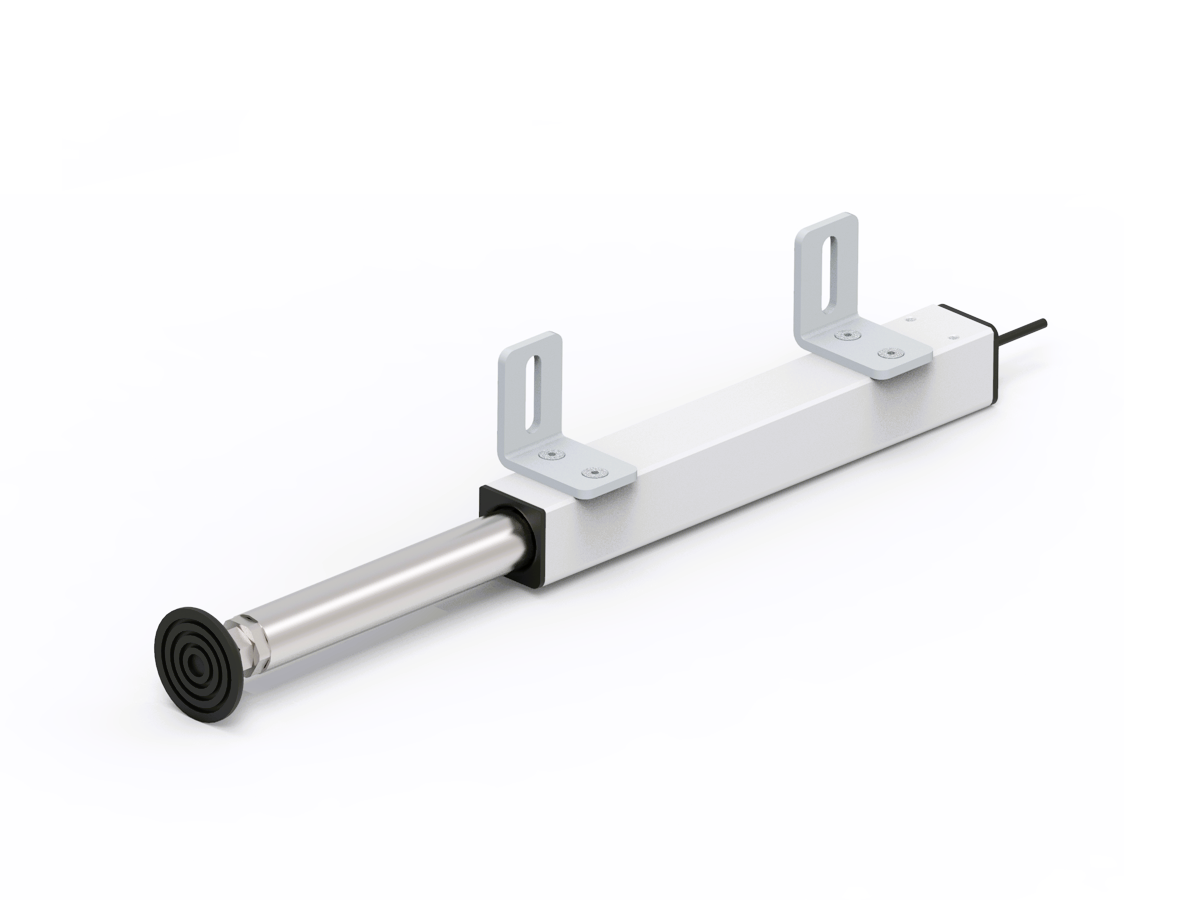

1 x pump with motor, 1 x controller with 10 ft power cable, 1 x memory remote, 4 x linear LA 1420 (1.38”x1.38”) with 2x10ft and 2 x 8ft tubing connected to the pump, 4x leveling feet, 1 x drilling template and tubing mounting hardware.

Technical data

Max load: 992 lbs (450 kg) – includes weight of frame.
Max stroke: 7.9” (200 mm)
Lifting speed: 0.6” (15 mm) per second.
The retracing force required for each linear is 35 lbs.

Compliant to Cleanroom Class 7 – ISO Class 14644-1
Class 10,000 – according to US FED STD 209E
