$2,025.00

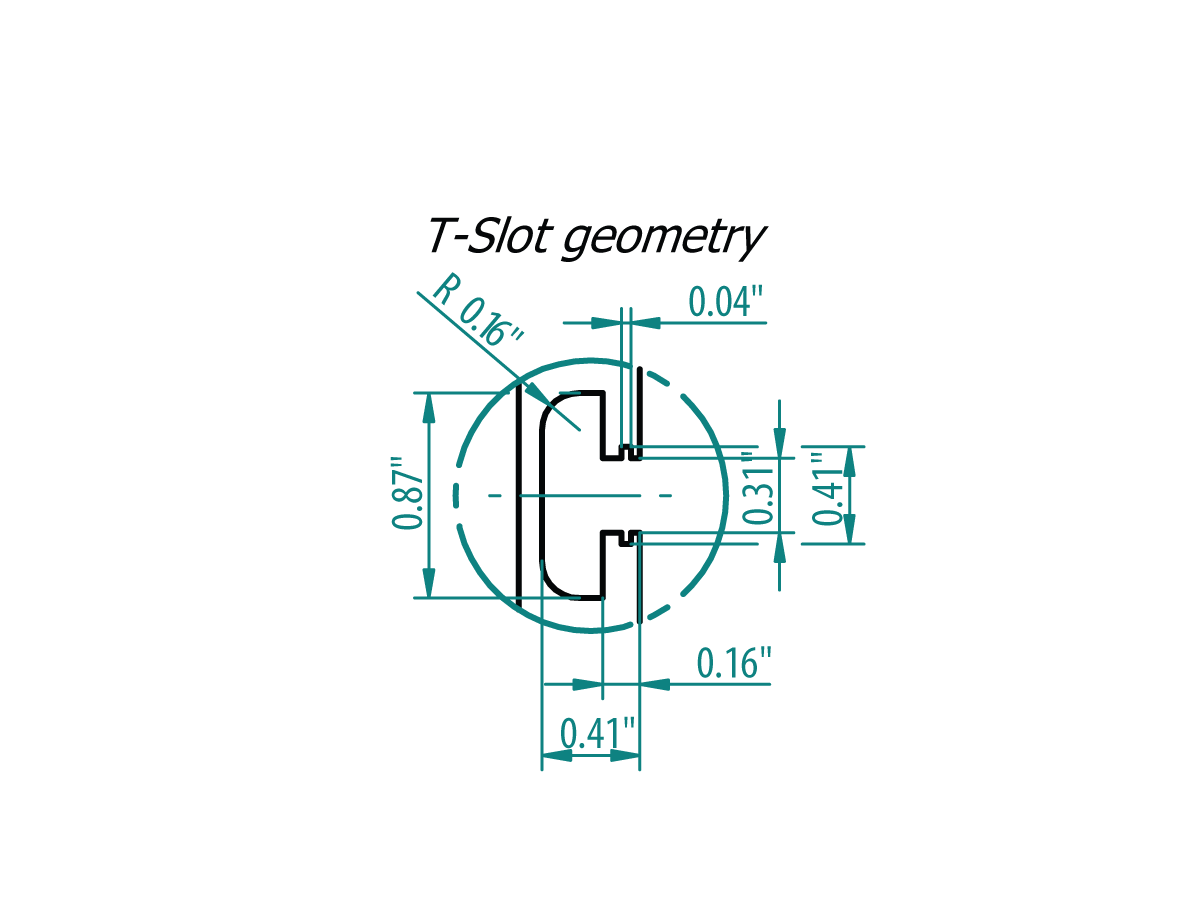

A complete two-column SL base frame with 12″ (300 mm) of travel, built on the 1330 column series. Everything needed to build a bench arrives in one box – columns, crossbar, feet, controller and memory remote -so the only thing to add is a worktop. The 10.24″ x 2.36″ (260 x 60 mm) anodized aluminum extrusions carry six Ergoswiss T-slots across three faces, and resist bending, torsion and shear at full extension.
See the Description section below for more information.
Out of stock
| Weight | 53 lbs |
|---|---|
| Dimensions | 27 × 16 × 9 in |
| application | Ergo catering, Intralogistics, Manufacturing, Medical device |
| business-area | Ergo assembly, Ergo care, Ergo catering, Ergo industry |
| Retracted height | 22.64” (575 mm) |
| Extended height | 34.45” (875 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 1,320 lbs (600 kg) |
| Max stroke | 11.81” (300 mm) |
| Number of Lifts | 2 |
| Size-diameter | 10.24” x 2.36” (260×60 mm) |
| Stability | 4.5 stars (Outstanding) |
A complete two-column SL base frame with 12″ (300 mm) of travel, built on the 1330 column series. Everything needed to build a bench arrives in one box – columns, crossbar, feet, controller and memory remote -so the only thing to add is a worktop. The 10.24″ x 2.36″ (260 x 60 mm) anodized aluminum extrusions carry six Ergoswiss T-slots across three faces, and resist bending, torsion and shear at full extension.
For 15.75″ (400 mm) of travel on the same frame, see SL-2 1340 US 02. If you are building into an existing frame and only need the columns, see SL 2330 US 02.

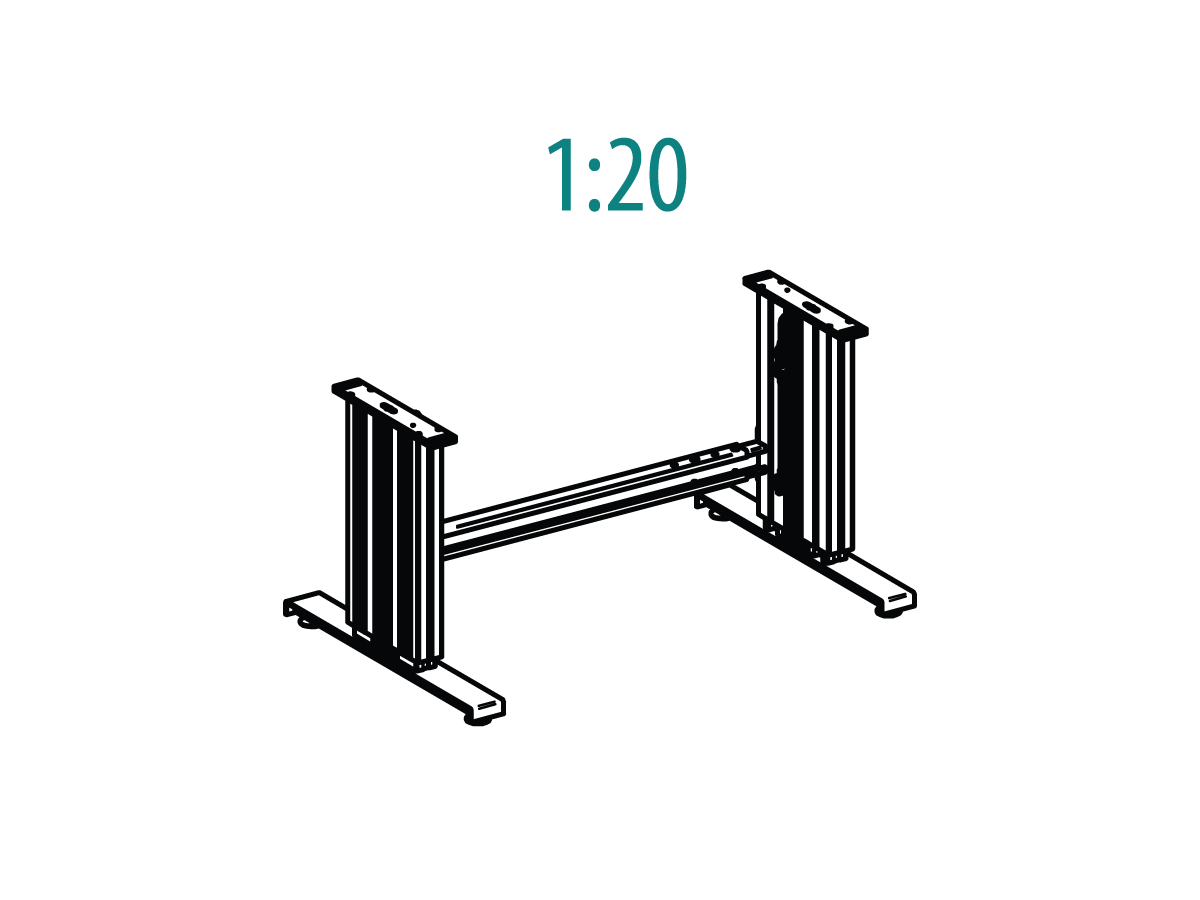

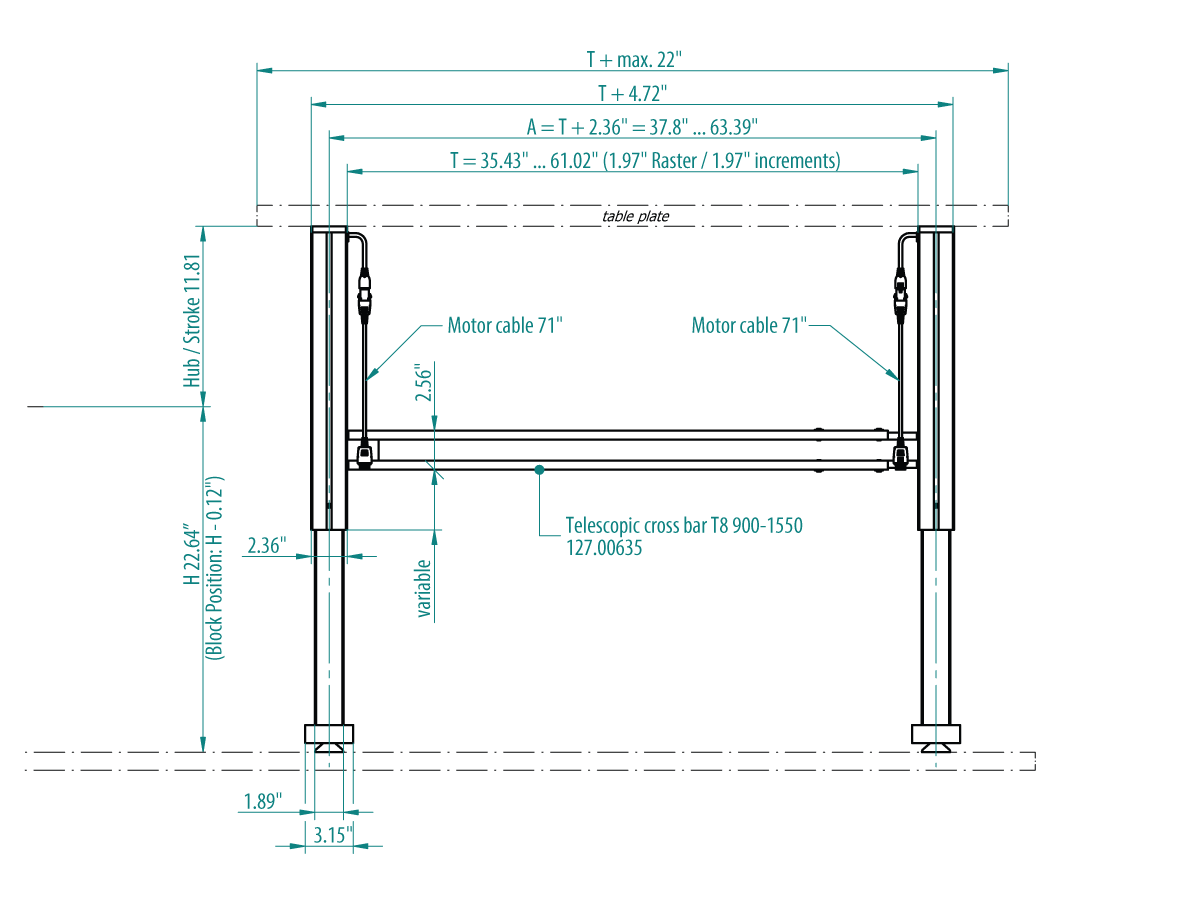

An SL-2 1330 US 02 Base Frame quick-ship set consists of:

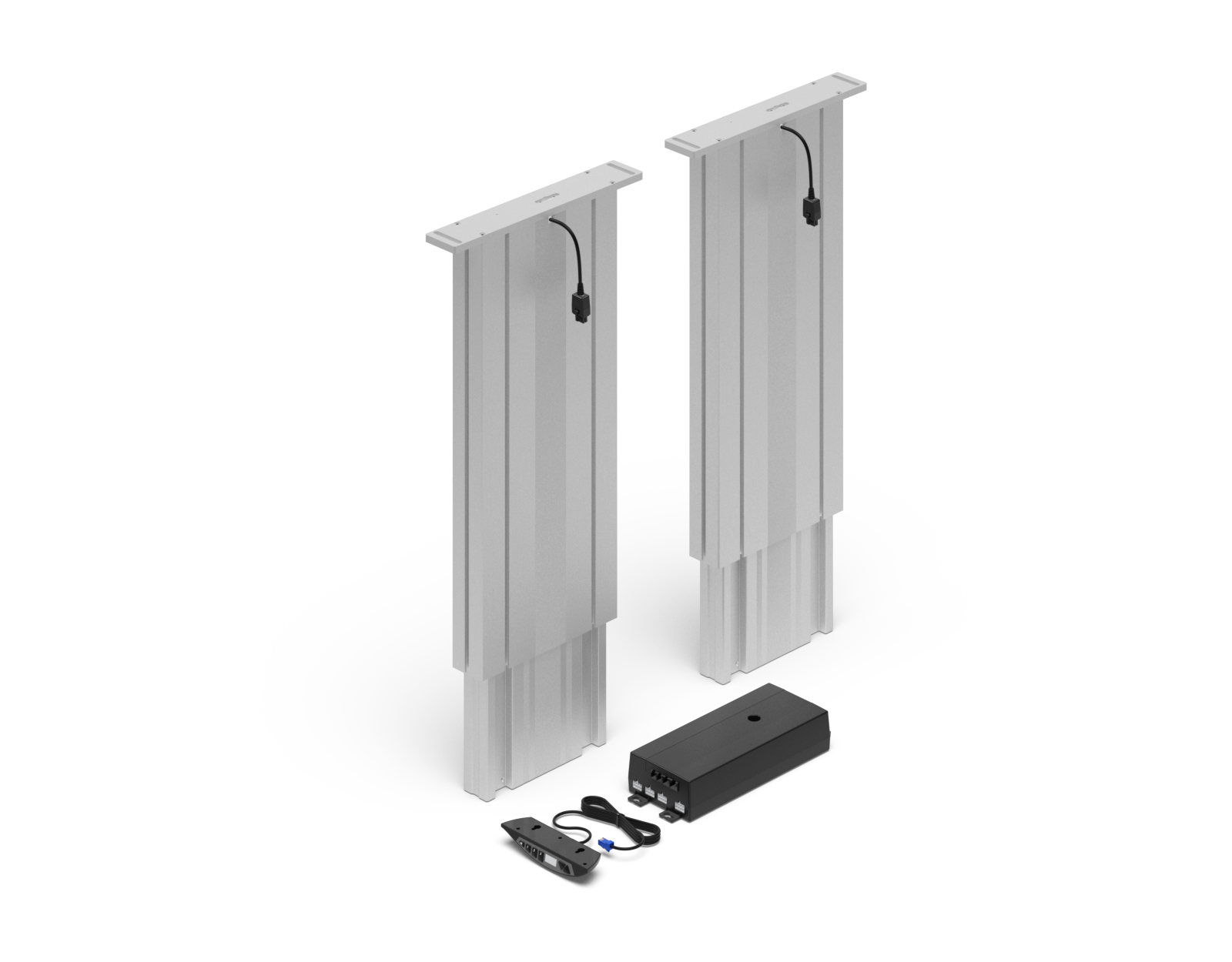

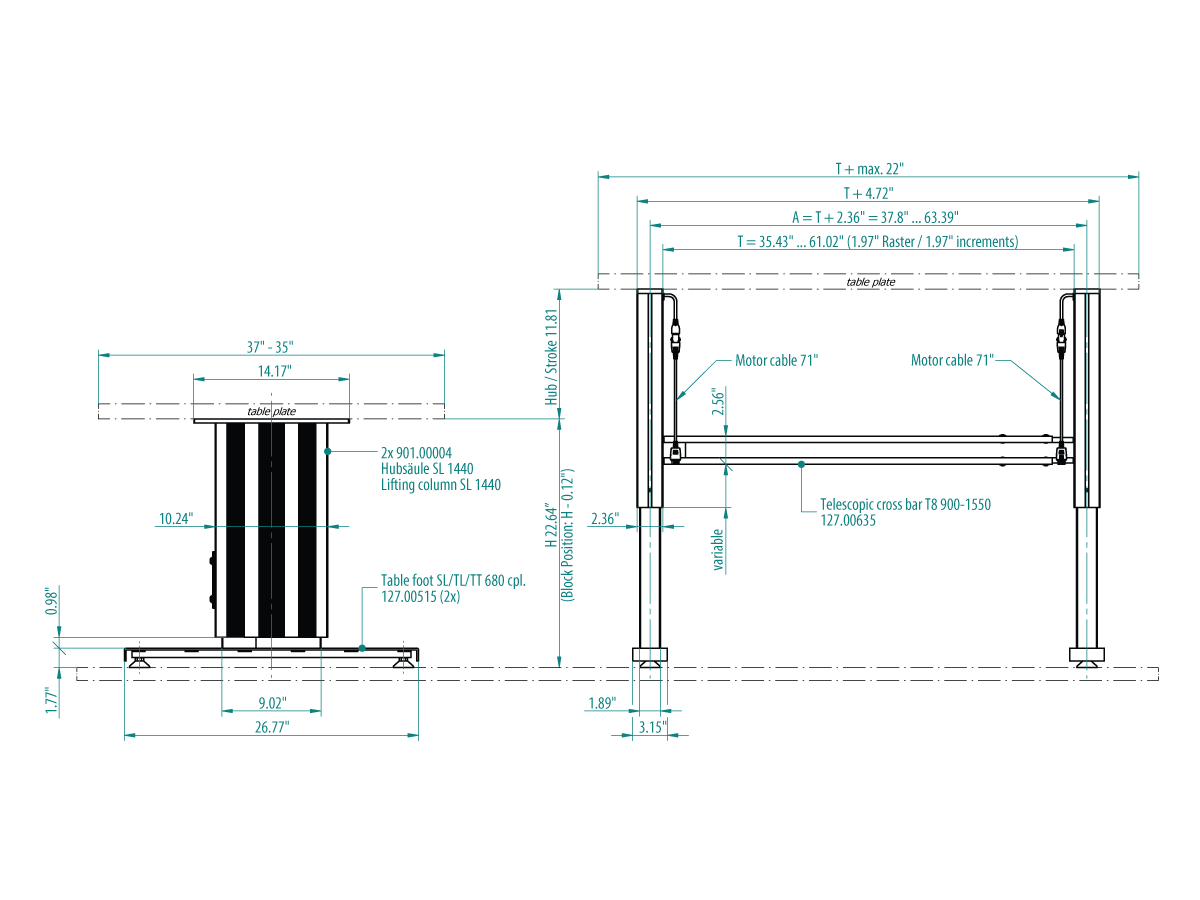

Part# 901.41216-PP (2x Lifting column SL 1330 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory) plus the Telescopic crossbar (Adjustable every 2” from 35.43” 61.02”), 2 x Table foot SL with 2 leveling feet each
Performance data lifting column SL-2 1330 US 02
Number of lifting columns: 2
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed : 0.35” / sec (9 mm / sec)
Stroke : 11.81″ (300 mm)
Base / retracted height: 22.64” (575 mm)
Extended height: 34.45” (875 mm)
Duty cycle E/D (On/Off): 2 / 40 min
