QS – SL-2 1340 US 02 Base Frame

$2,045.00

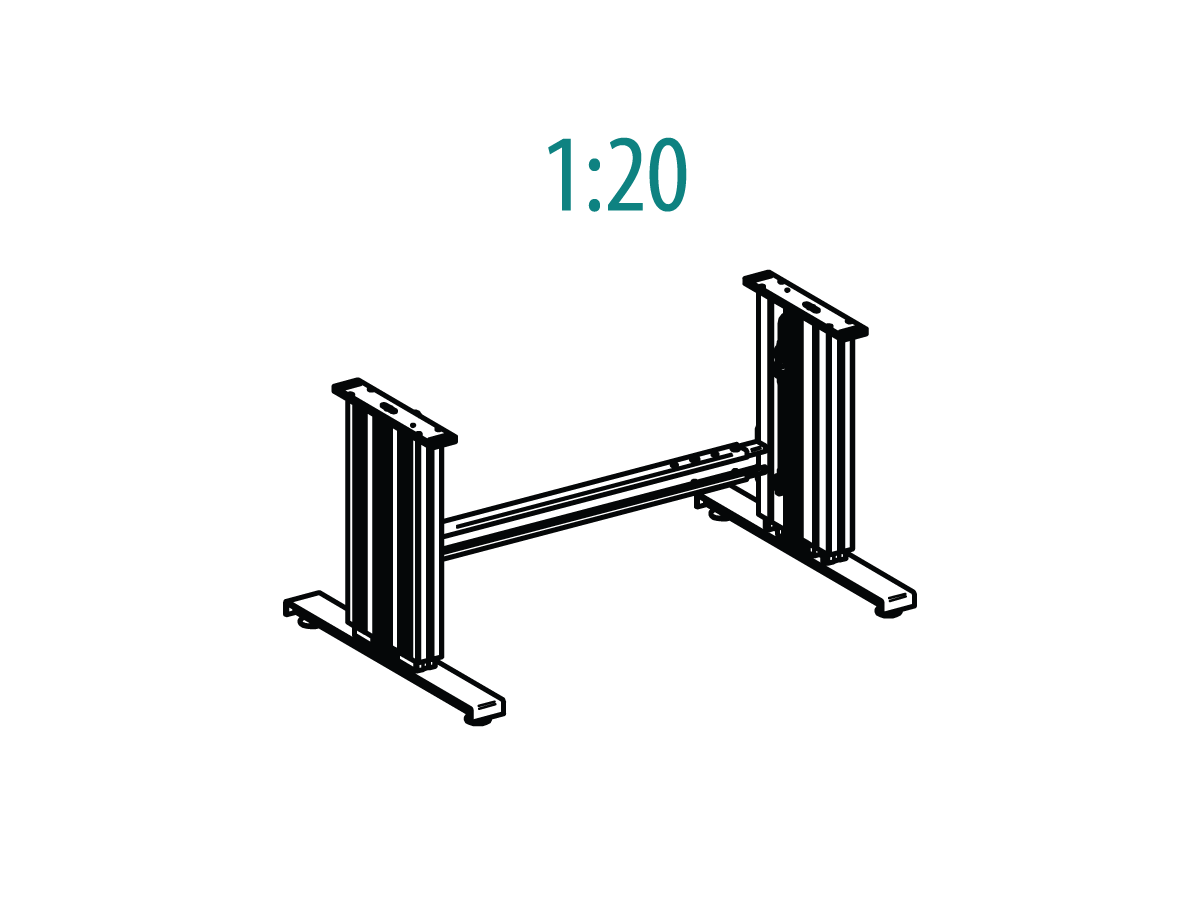

This SL base frame offers 15.75″ (400 mm) of precise adjustment with high-strength aluminum columns and six-slot faces for modular integration. Complete system includes two SL columns, adjustable crossbar, table feet, memory remote, and controller – ready for installation.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$2,045.00
Total:
$2,045.00
Buy 3 pieces and save 13%
$2,045.00
$1,775.00
Total:
Buy 4 pieces and save 13%
$2,045.00
$1,775.00
Total:
x
SKU: 901.51217 Category:

Additional information

Weight 53 lbs
Dimensions 27 × 16 × 9 in
application

Ergo catering, Intralogistics, Manufacturing, Medical device

business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry

Retracted height

26.57” (675 mm)

Extended height

42.32” (1075 mm)

Lifiting speed

0.35” / sec (9 mm / sec)

Max load

1,320 lbs (600 kg)

Max stroke

15.75” (400 mm)

Number of Lifts

2

Size-diameter

10.24” x 2.36” (260×60 mm)

Stability

4.5 stars (Outstanding)

Weight

Medium weight

Description

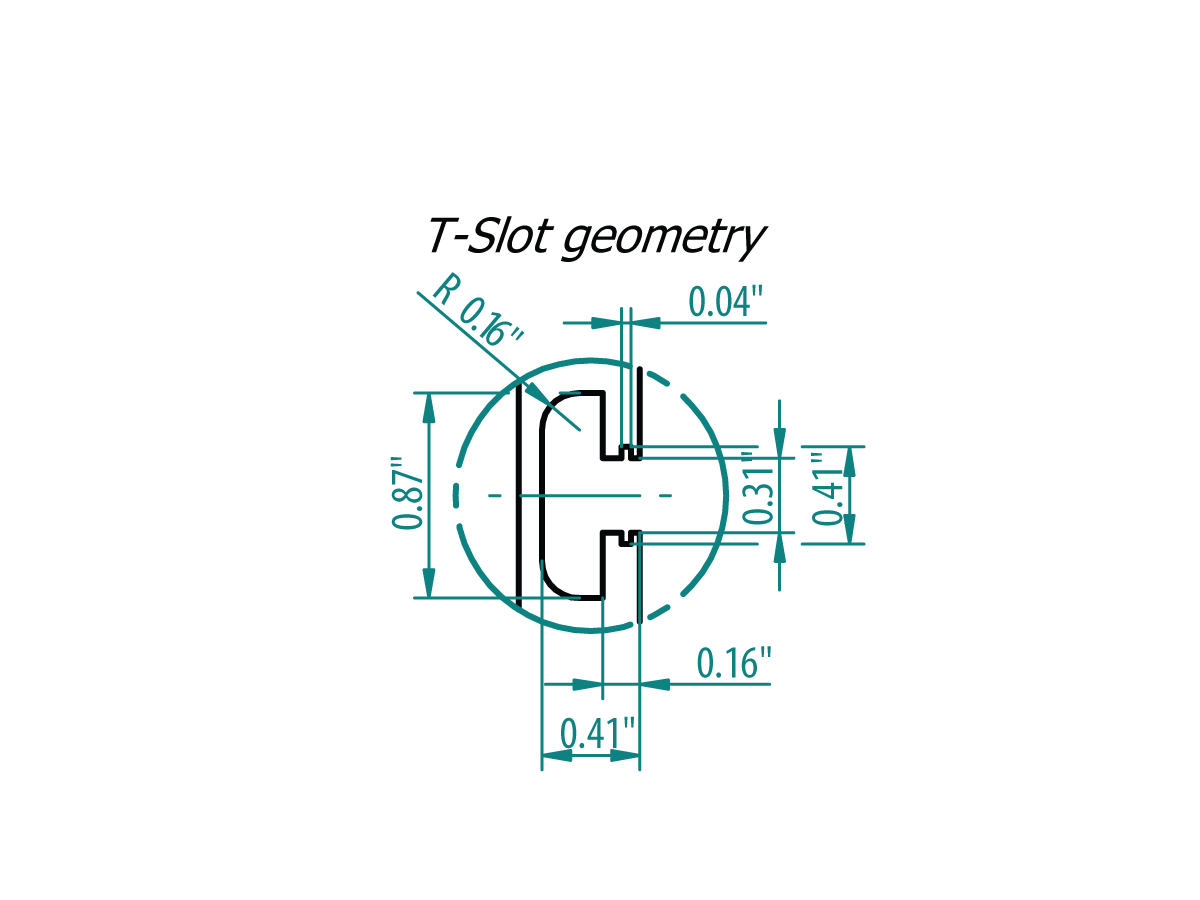

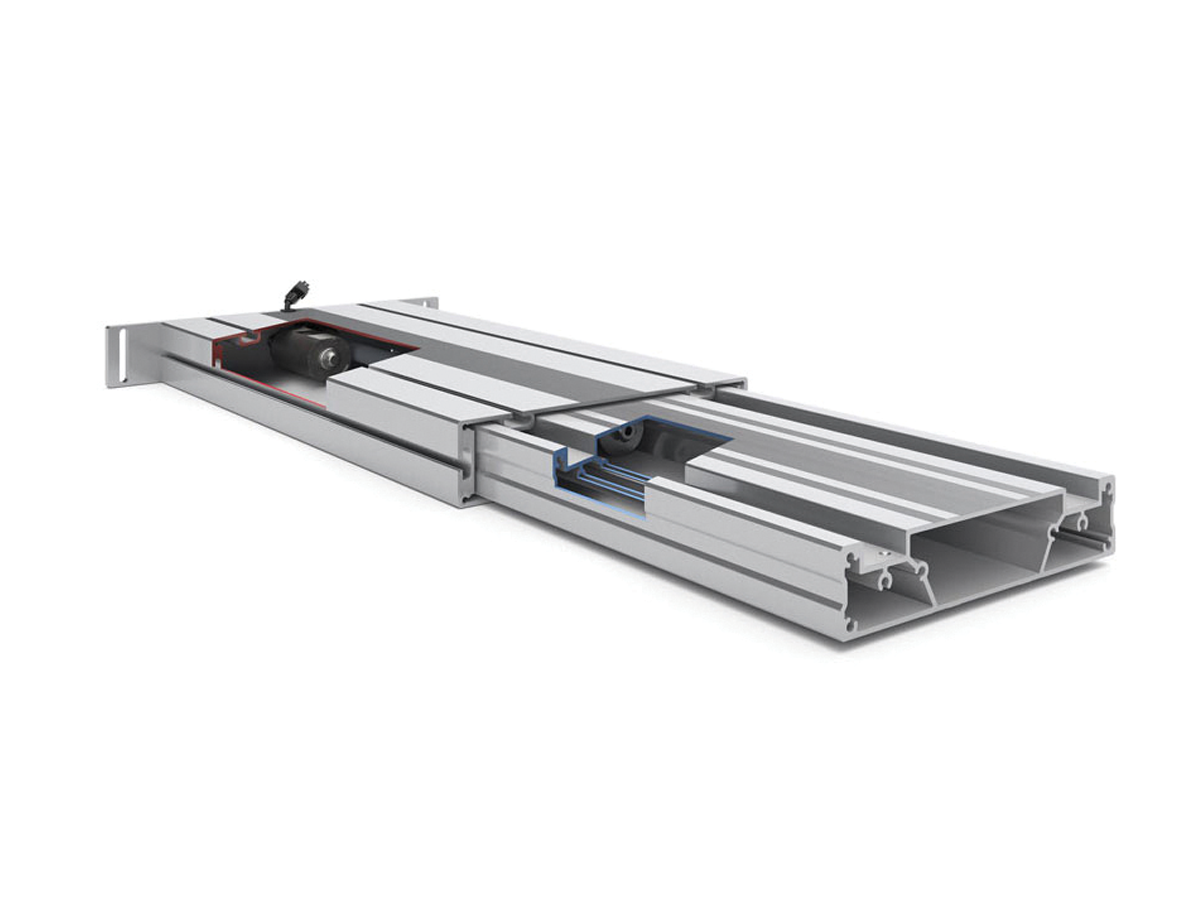

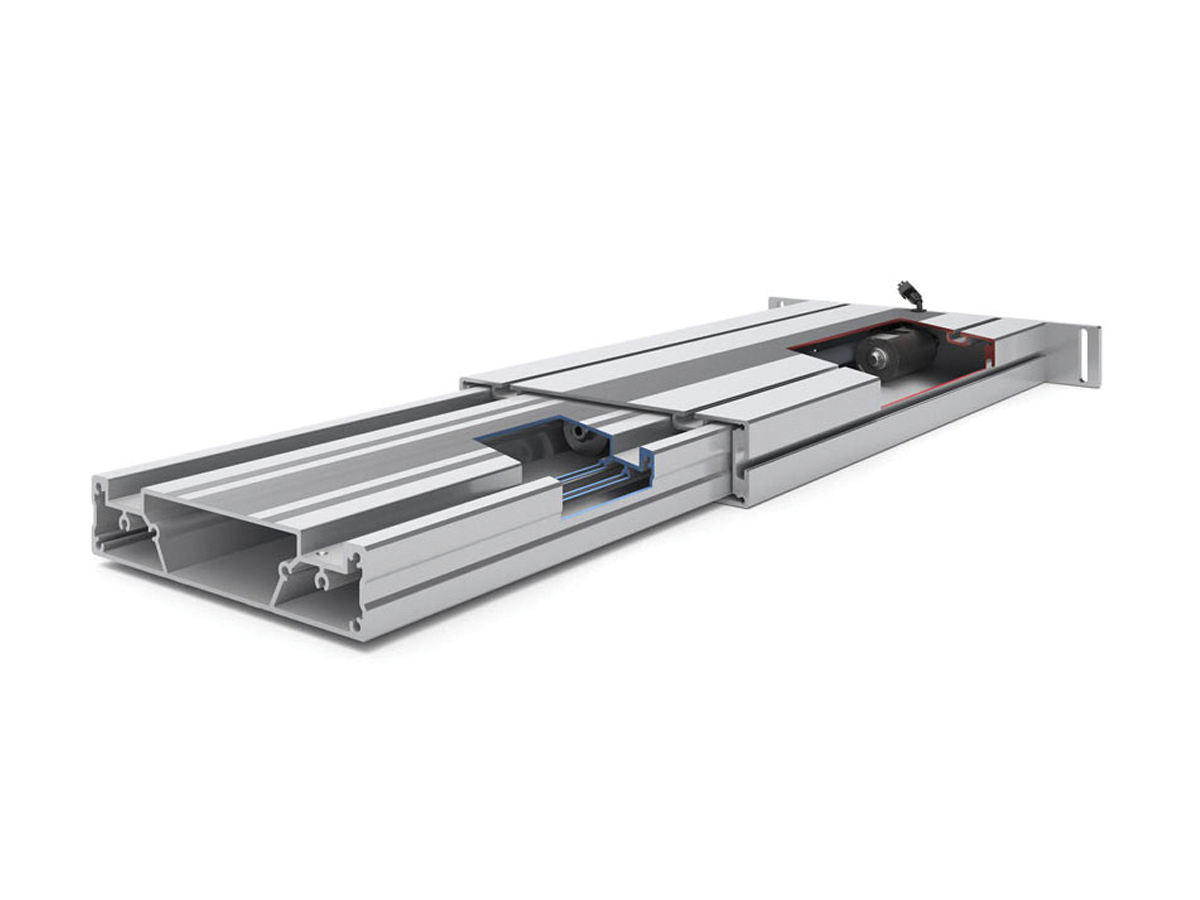

The SL two-leg electric spindle-driven base frame represents one of the most widely sold two-leg lifting column configuration, offering 15.75″ (400 mm) of precise height adjustment. Featuring robust 10.24″ x 2.36″ (260 × 60 mm) anodized aluminum extrusion columns, the system incorporates three faces with six Ergoswiss T-slots (8 mm width) to facilitate seamless integration of additional modular components. When extended, the columns are engineered to withstand significant bending, torsion, and shearing forces, ensuring long-term durability and stability. The system ships as a complete, comprehensive, ready-to-install solution.

An SL-2 1340 US 02 Base Frame quick-ship set consists of:

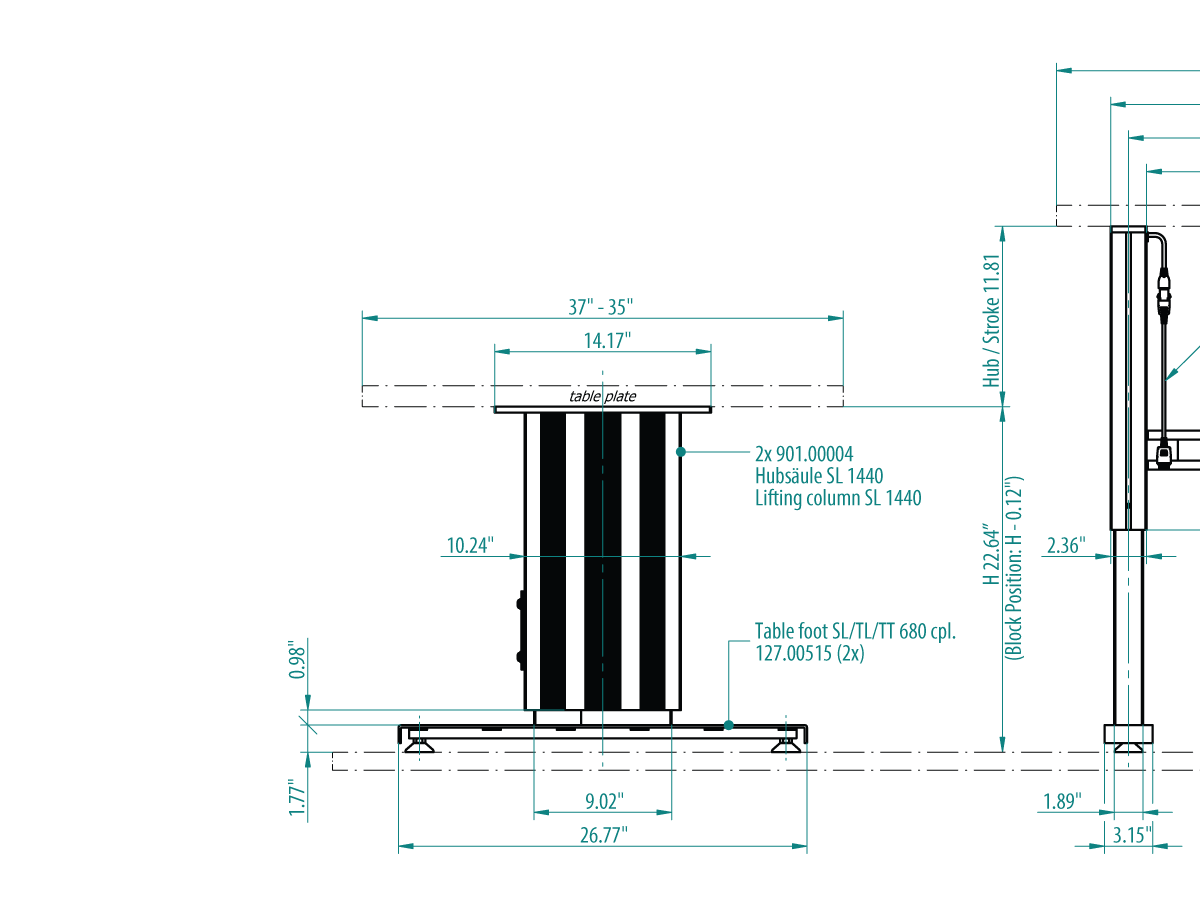

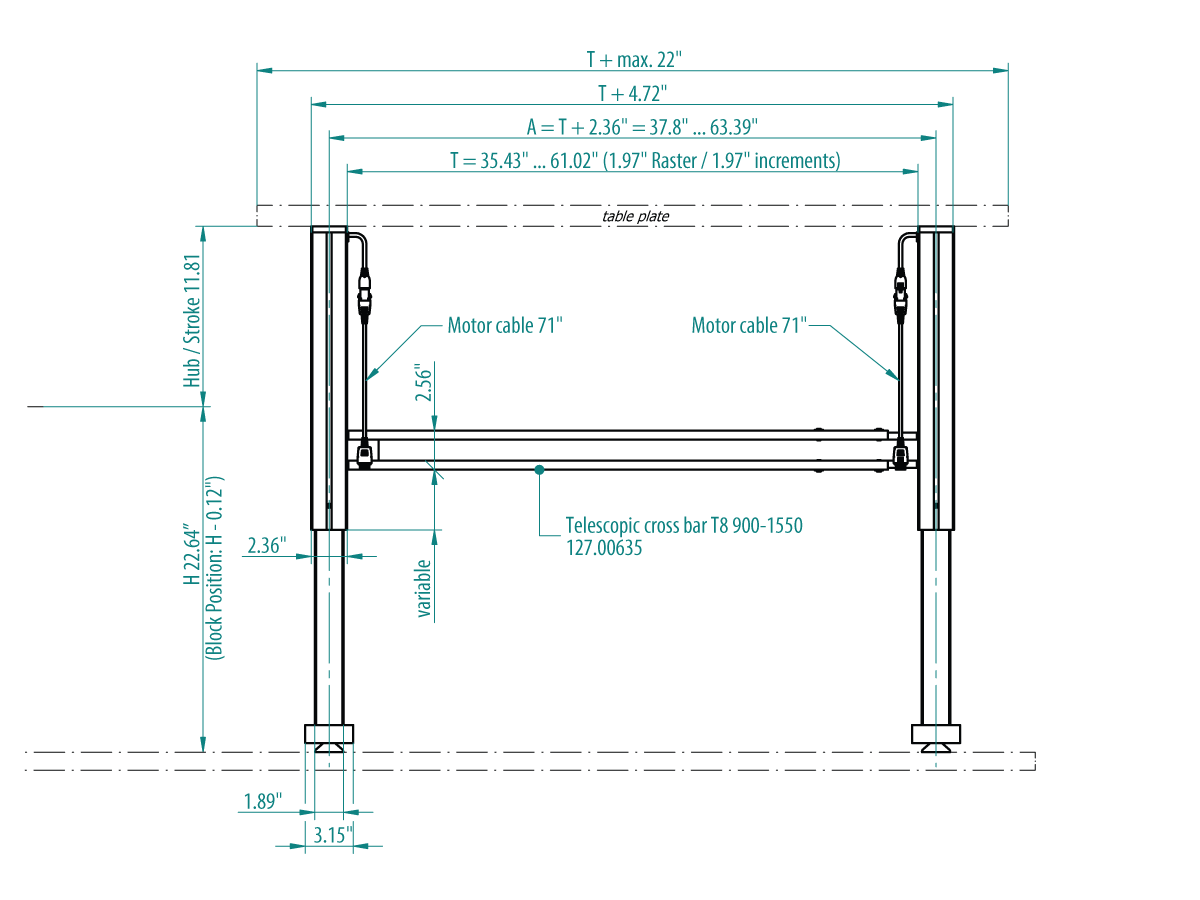

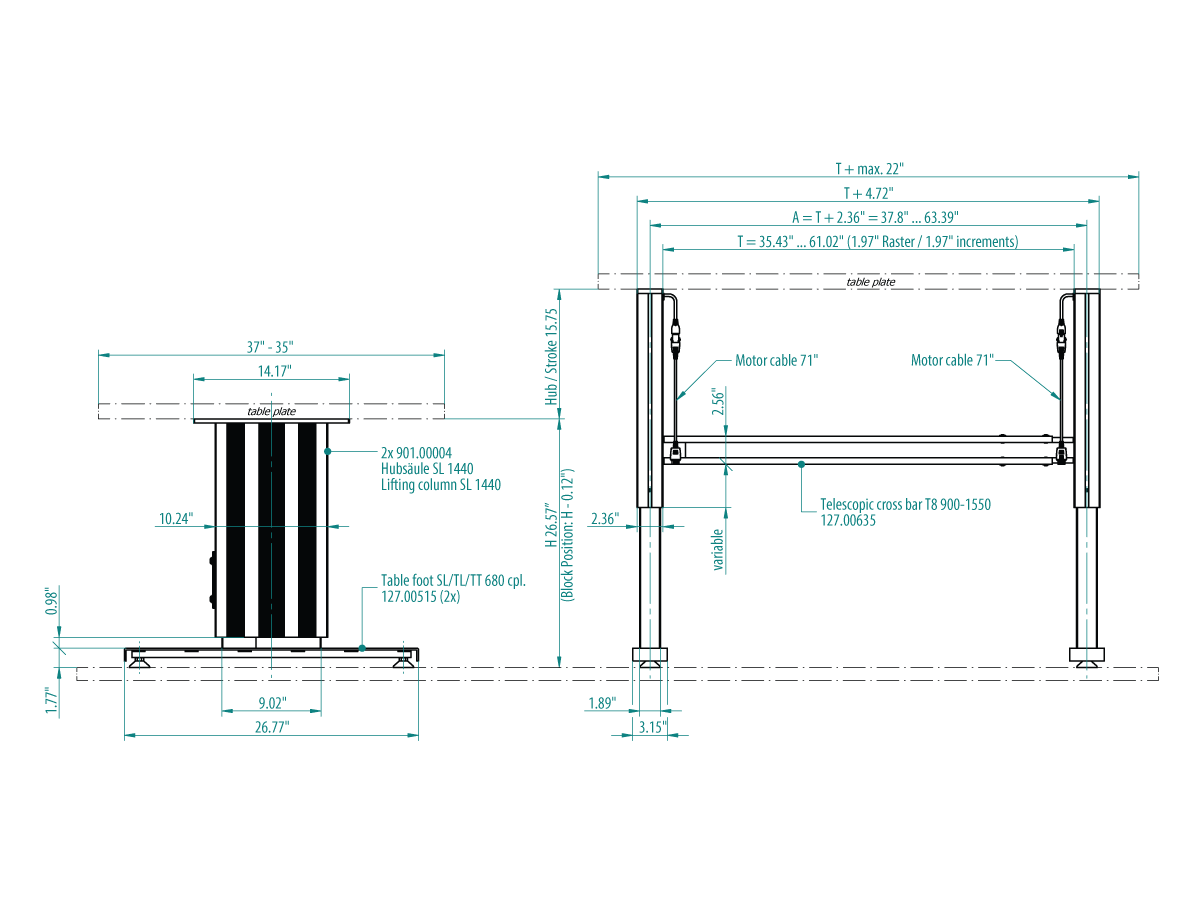

Part# 901.41217-PP (2x Lifting column SL 1340 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory) plus the Telescopic cross bar (Adjustable every 2” from 35.43” 61.02”), 2 x Table foot SL with 2 leveling feet each

Technical data

Performance data lifting column SL-2 1340 US 02
Number of lifting columns: 2
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed : 0.35” / sec (9 mm / sec)
Stroke : 15.75″ (400 mm)
Base / retracted height: 26.57” (675 mm)
Extended height: 42.32” (1075 mm)
Duty cycle E/D (On/Off) : 2 / 40 min
