$1,675.00

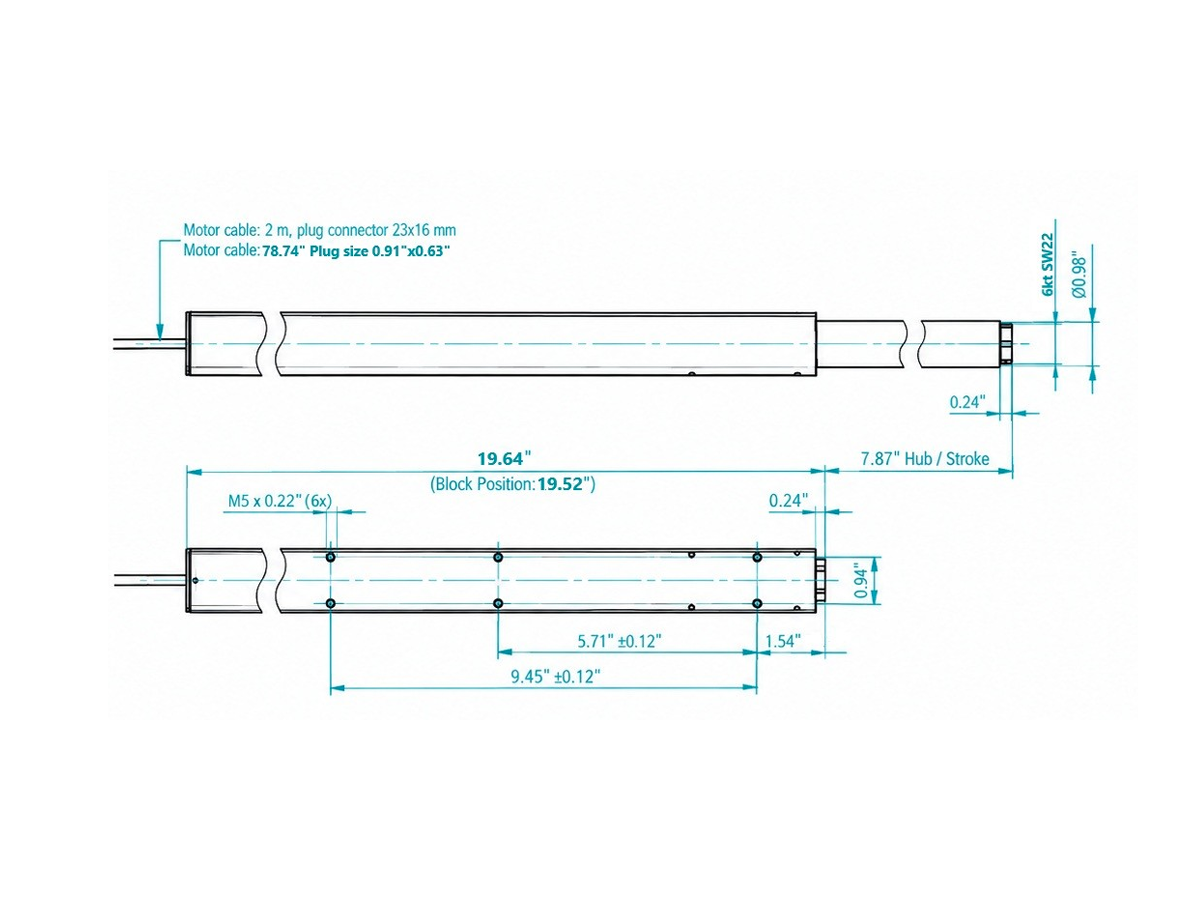

If clearance beneath the bench is tight, the SLA 4320 US 12 retracts to 19.65″ (499 mm) with 7.87″ (200 mm) of travel. Working with 2″ x 2″ tubing? See the SLA 4330 US 12 if longer travel is required. Additional lift columns can be added to either system.
See the Description section below for more information.
In stock
| Weight | 26 lbs |
|---|---|
| Dimensions | 30 × 10.25 × 8 in |

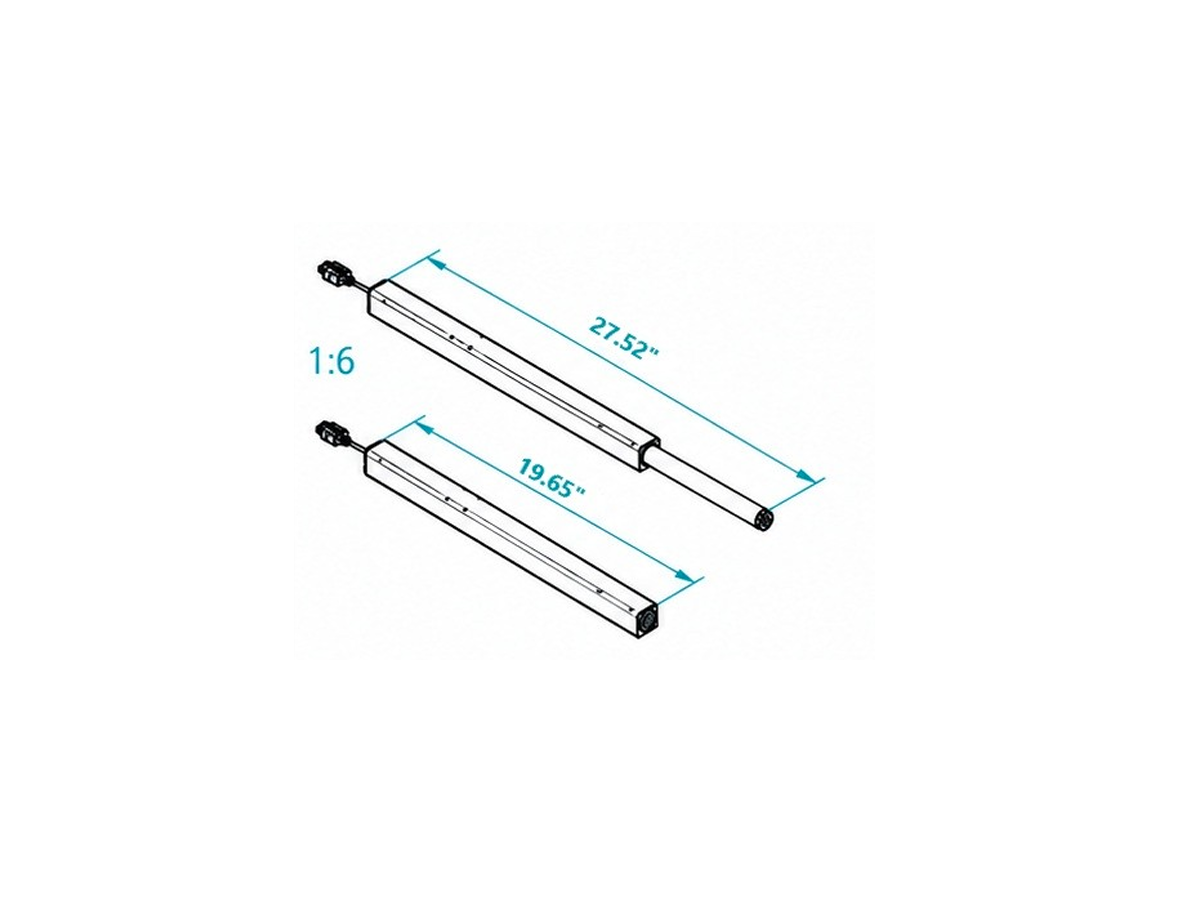

| Retracted height | 19.65" (499 mm) |

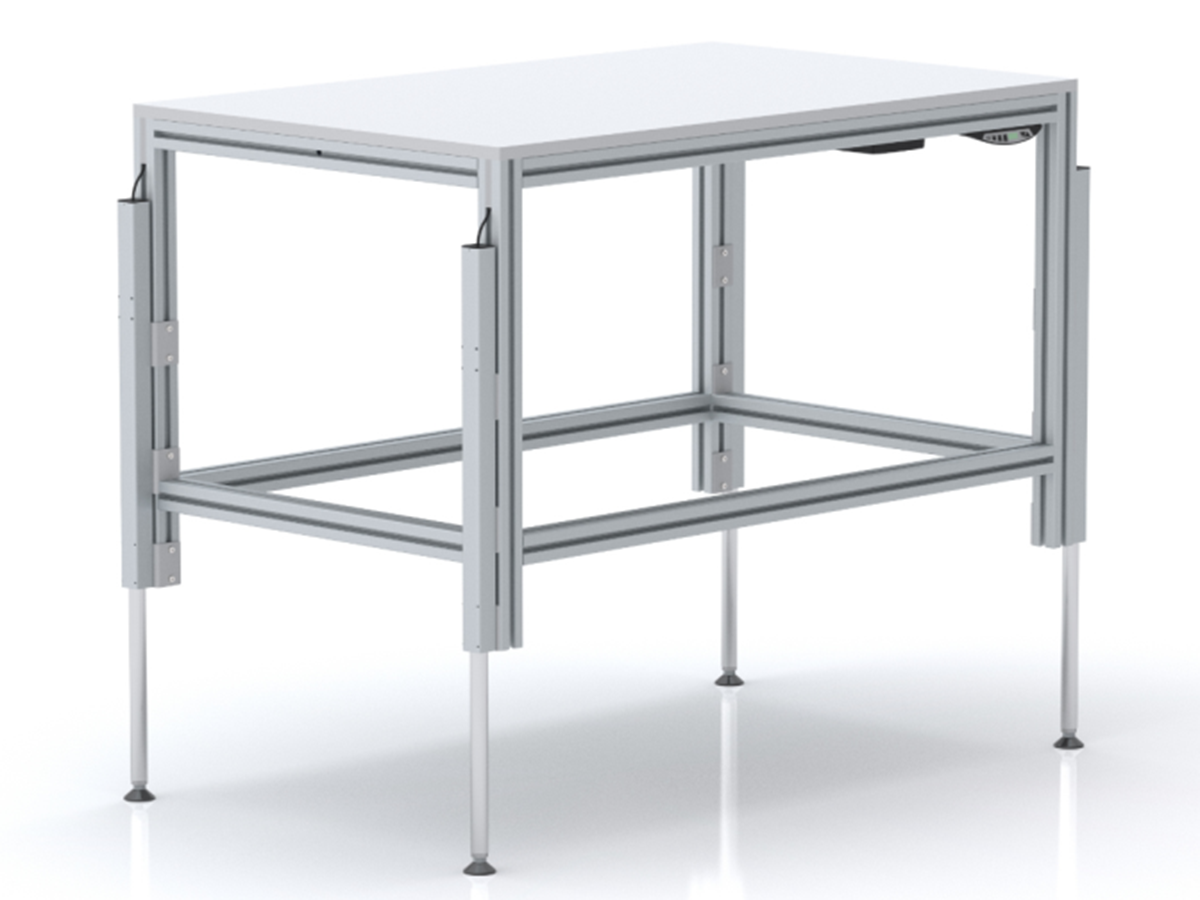

| Extended height | 27.52" (699 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 1,320 lbs (600 kg) |
| Max stroke | 7.87” (200 mm) |
| Number of Lifts | 4 |
| Weight | Light weight, Medium weight |

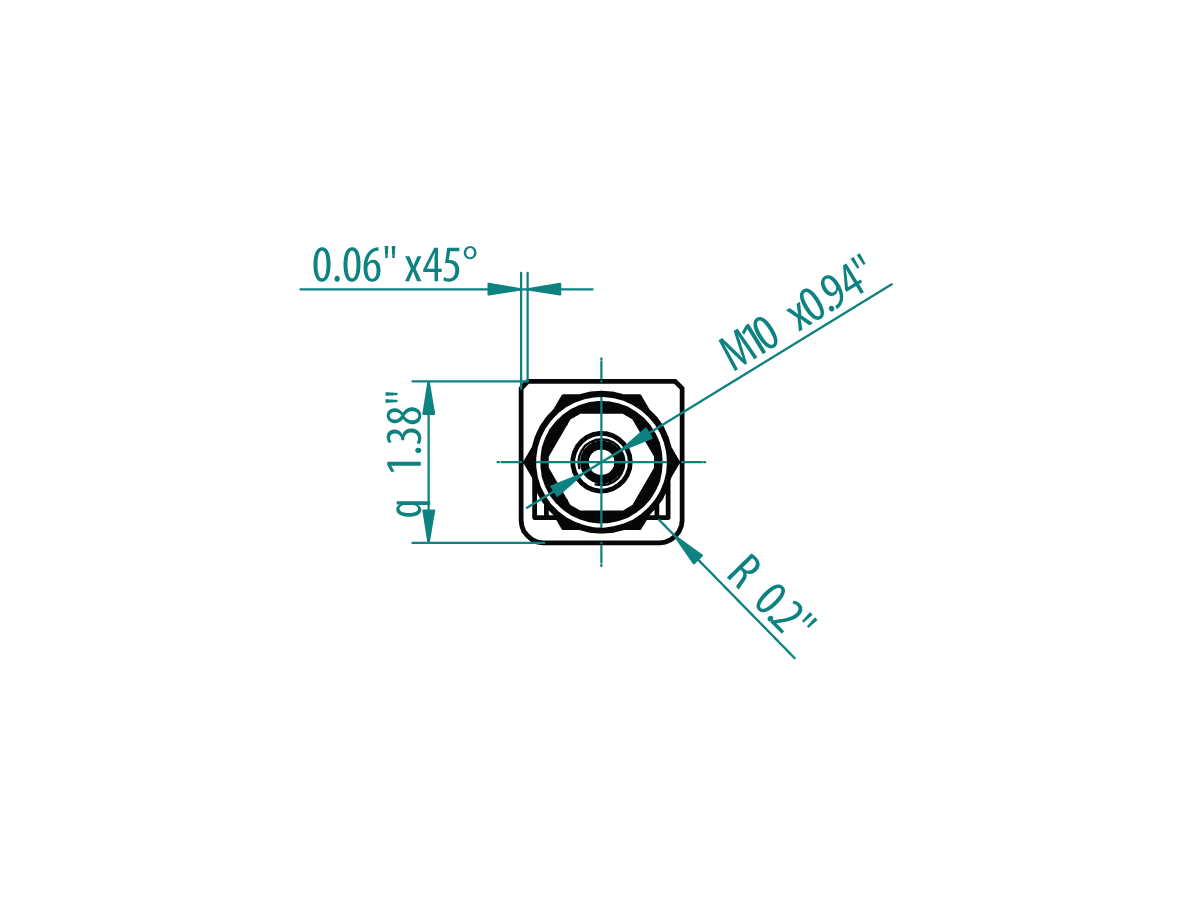

| Size-diameter | 1.38”x1.38” (35 x 35 mm) |
| Stability | 3 stars (Good) |

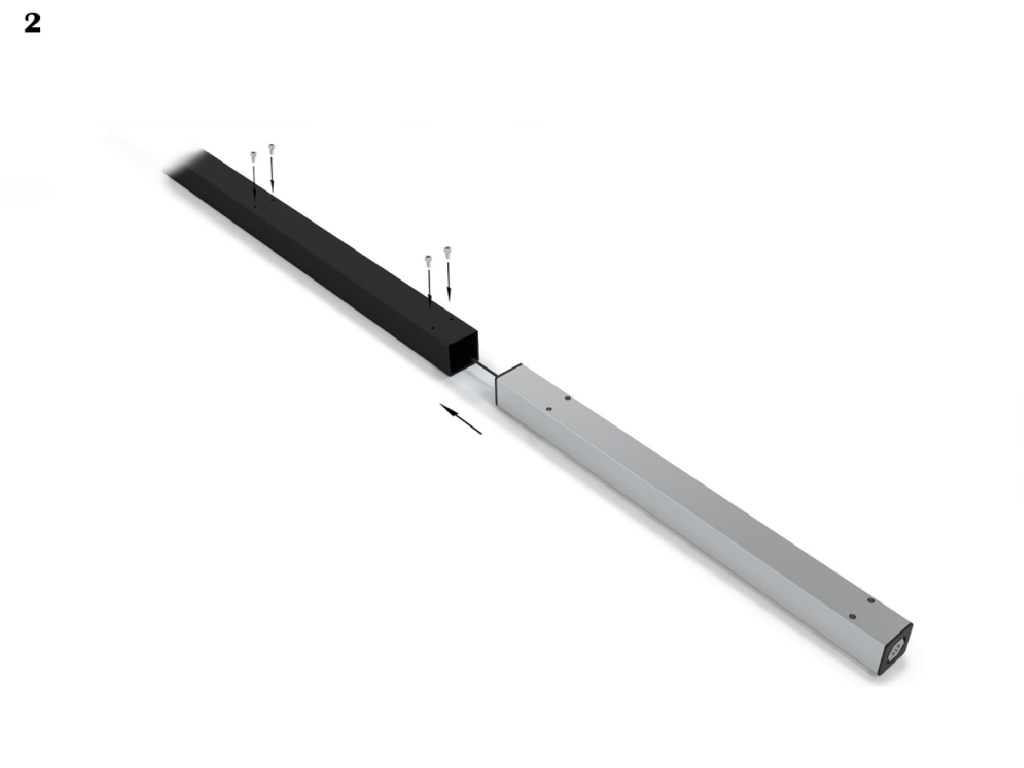

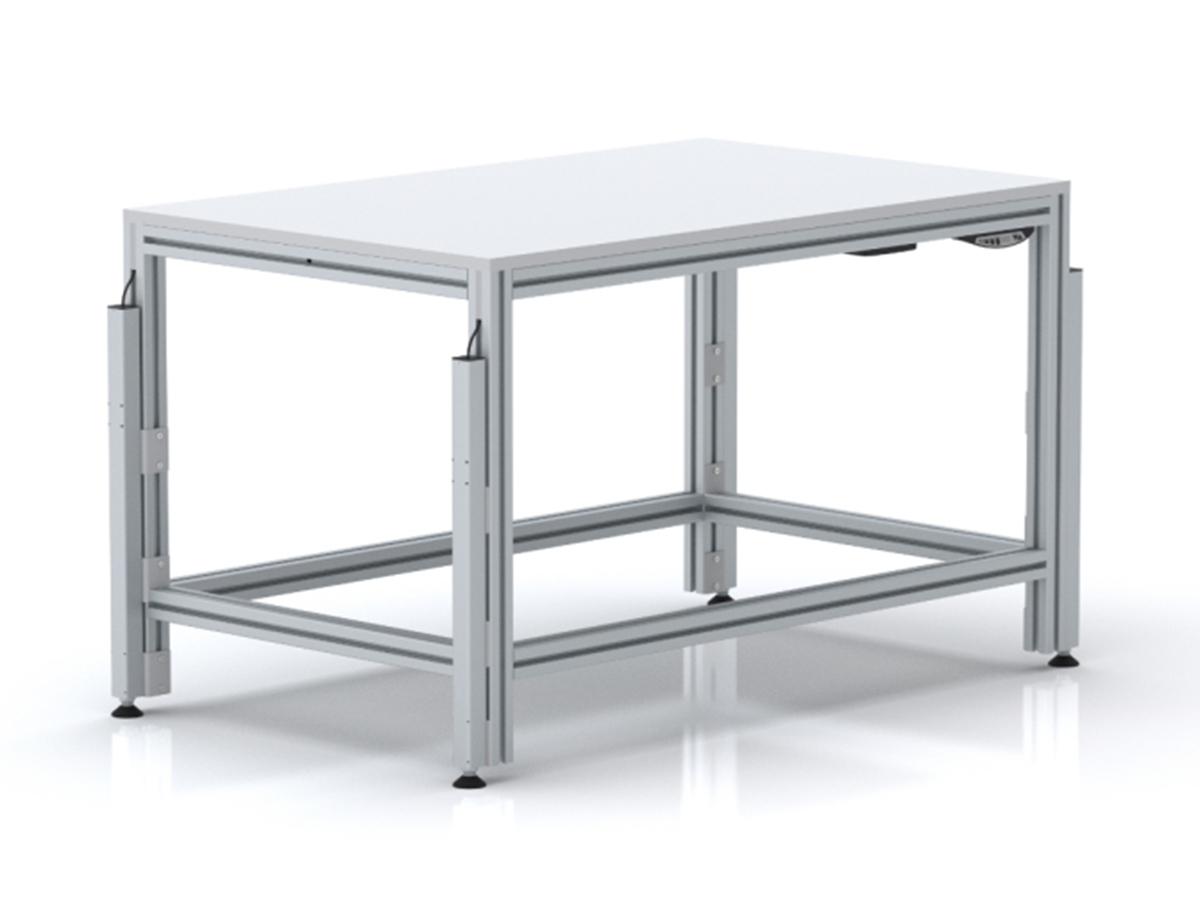

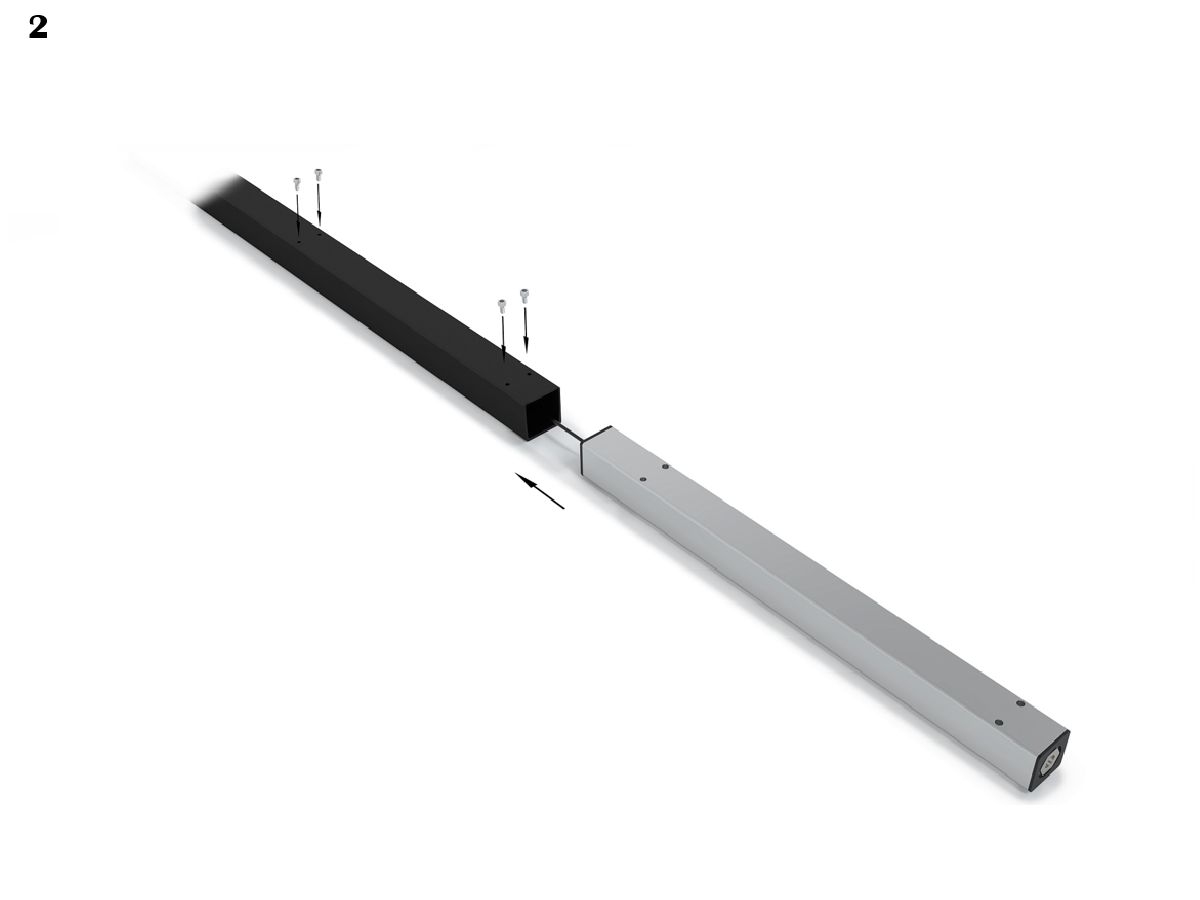

Four SLA units with 7.87″ (200 mm) of travel — the shortest stroke in the SLA range, and the one to choose when clearance is the constraint rather than range. It retracts to 19.65″ (499 mm), so it fits under benches where a longer-stroke system won’t go. At 1.38″ x 1.38″ (35 x 35 mm) the SLA is the slimmest retrofit unit Ergoswiss makes, dropping inside standard 1.5″ x 1.5″ steel tubing without the frame having to accommodate a bulkier column. Rated to 1,320 lbs (600 kg) including the frame, and certified to Cleanroom Class 3 (ISO 14644-1) and Class 1 (US FED STD 209E).

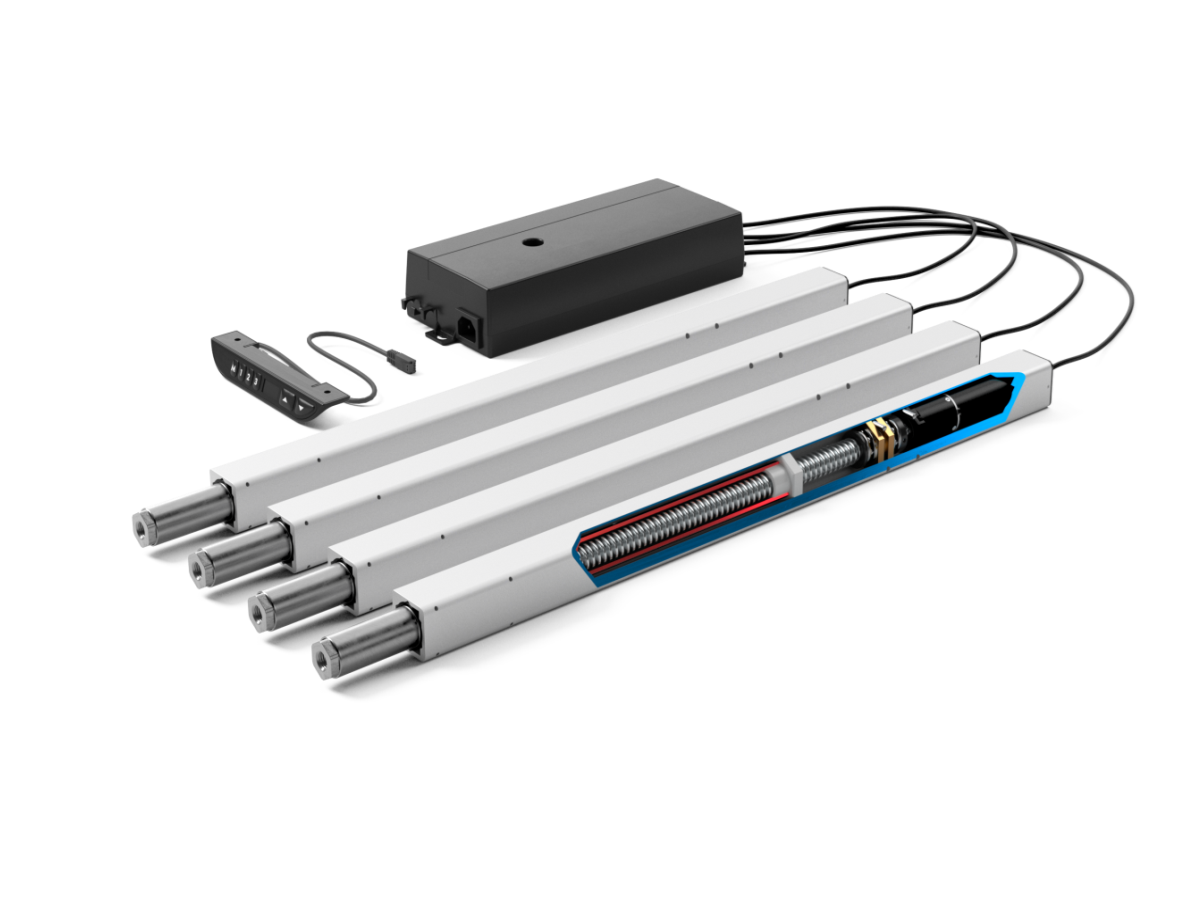

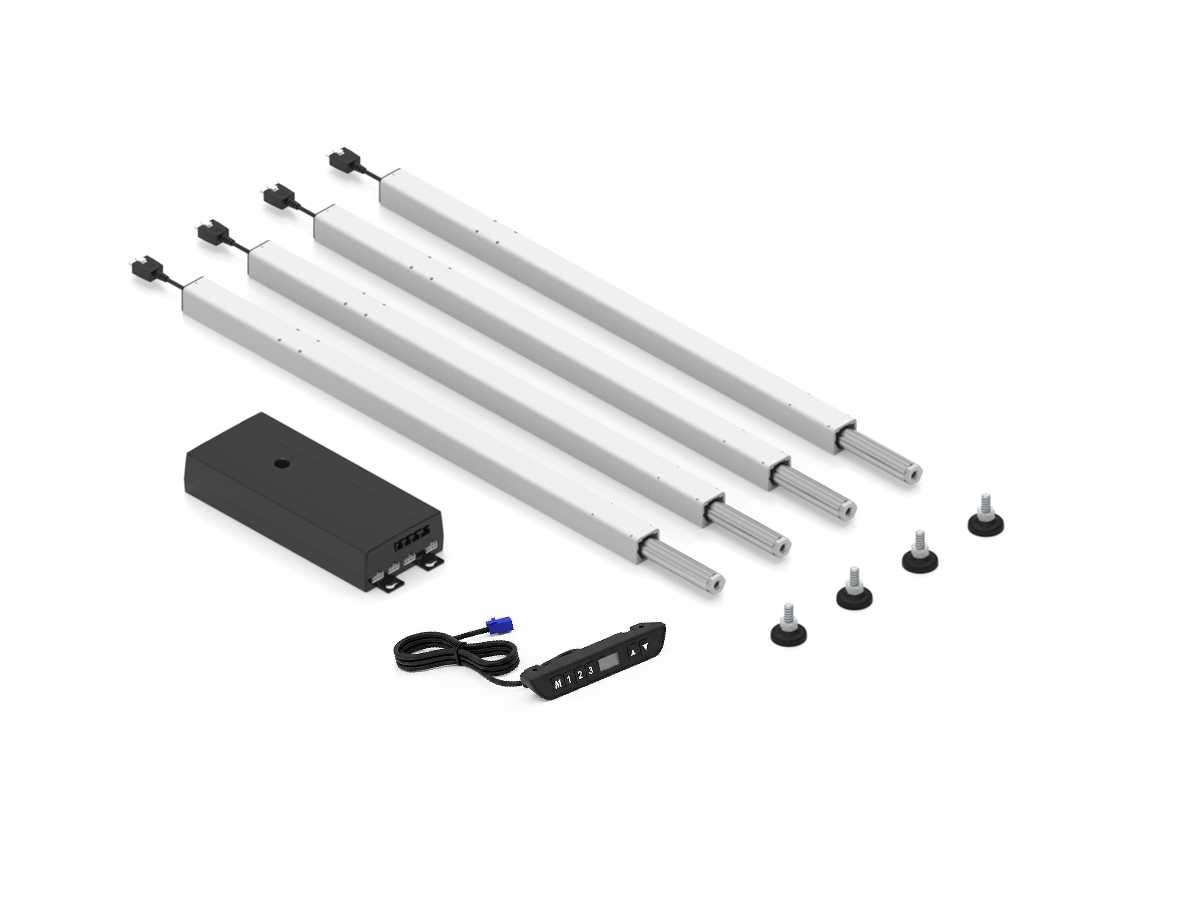

An SLA Quick ship system consists of:

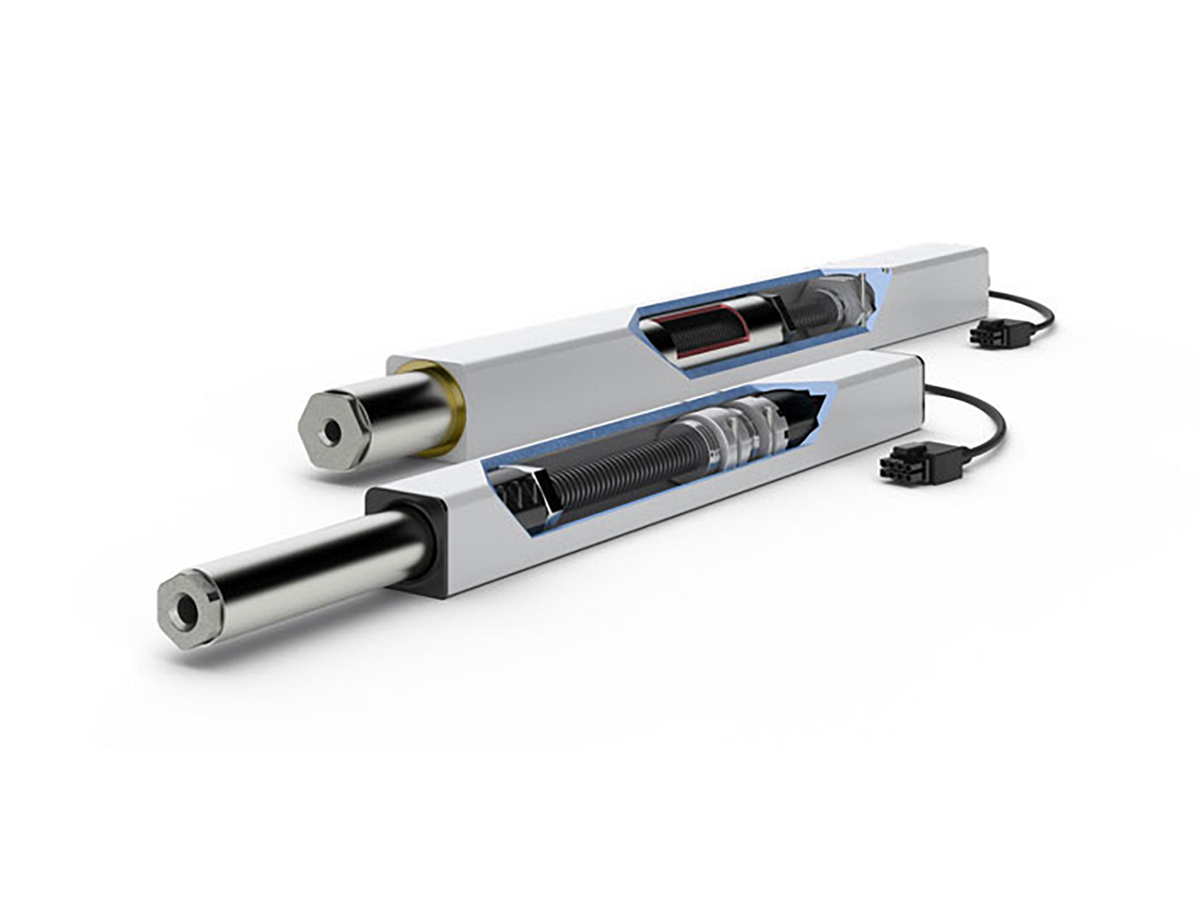

4x spindle-driven linear SLA.3 1320 with 6 ft cord, 1 x iSMPS controller with gravity sensor, 1x 10 ft power cord, 1 x Memory remote SCT Memory C, 4 x leveling feet M 10×25.
Max load: 1320 lbs (600 kg) – (includes weight of frame).
Max stroke:7.87” (200 mm)
Lifting speed: 0.35” (9 mm) per second.
Compliant to Cleanroom Class 3 – ISO Class 14644-1
Class 1 – according to US FED STD 209E
