Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 8.27 × 5.12 × 2.56 in |
Adapter Plate SNT 40 45
$63.00

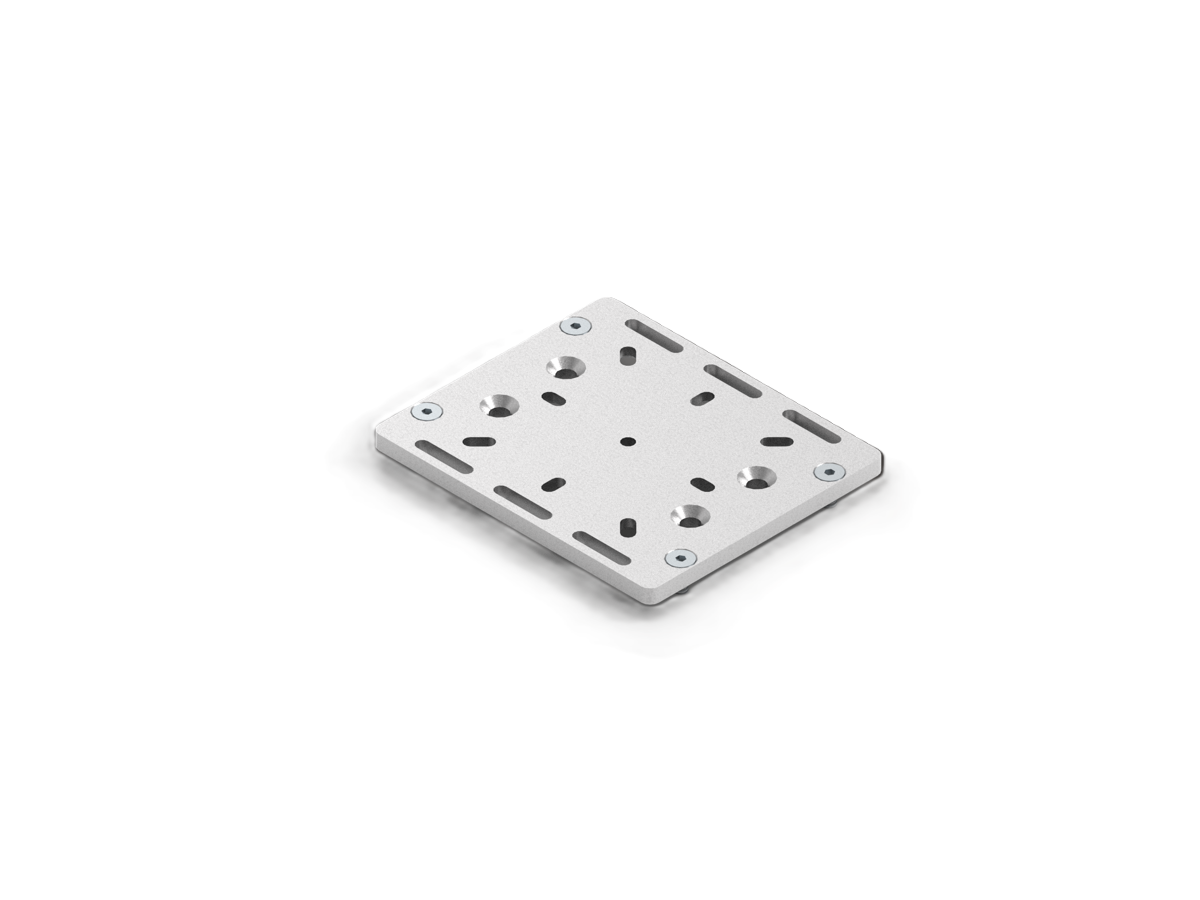

The SNT 40/45 Adapter Plate is an engineered aluminum component designed to securely interface 1.5”, 40 and 45 series aluminum T-slotted profiles with the top or bottom of the SNT column system.
The kit includes the adapter plate and all necessary mounting hardware for direct installation to the column, ensuring a secure and efficient integration.
See the Description section below for more information.
In stock
Coming soon.
Description

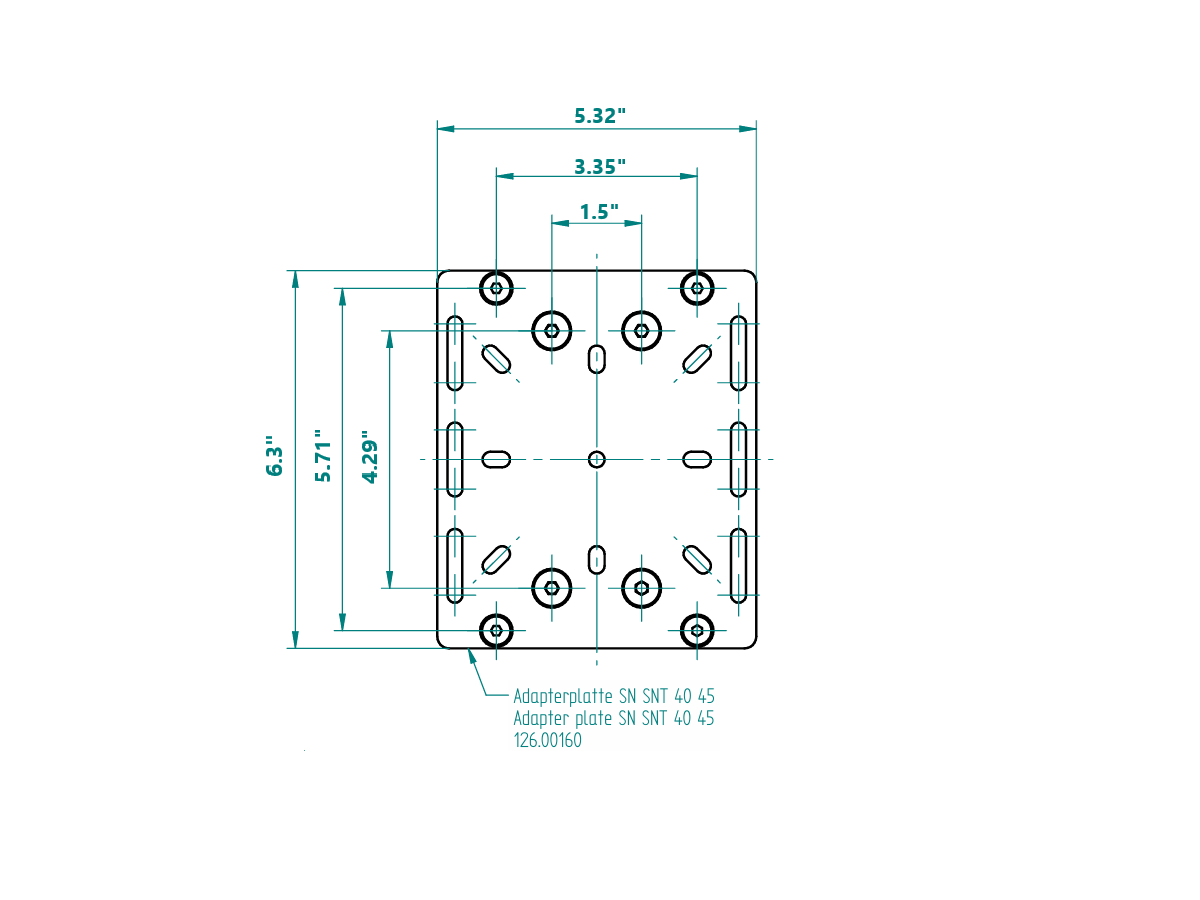

The SNT 40/45 Adapter Plate (5.31” (135mm) x 6.3” (160mm) x 0.31’’ (8 mm)) is an engineered aluminum component designed to securely interface 1.5”, 40, and 45 series aluminum T-slotted profiles with the top or bottom of the SNT column system.
The kit includes the adapter plate and all necessary mounting hardware for direct installation to the column, ensuring a secure and efficient integration.

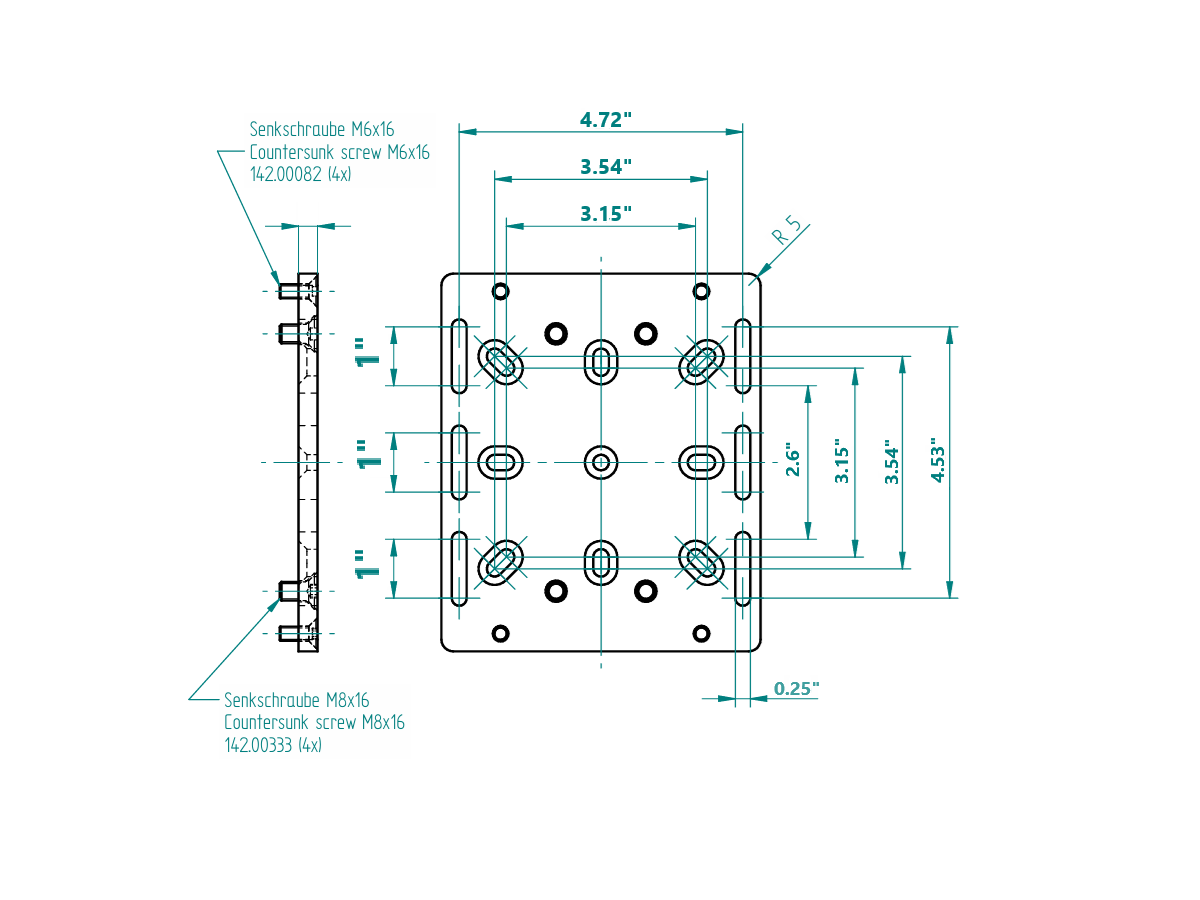

An Adapter plate SNT 40 45 set consists of a 1 x Adapter plate and four countersunk screws.
Technical data:
Length: 5.31’’ (135 mm)
Width: 6.3’’ (160 mm)
Weight: 1.02 lb / 0.465 kg
PP – Single packaging: 8.27”x 5.12”x 2.56” – 1.1 lbs
