$1,635.00
The electric spindle driven lifting column SL is the most common sold lifting column. For 2 or 3 leg setups, the SL is providing a solid structural base for an economical lifting solution that requires medium duty lifting capacities. The columns when extended can withstand strong bending, torsion and sheering forces.
| Weight | 53 lbs |
|---|---|
| Dimensions | 27 × 16 × 9 in |
| Application | Ergo catering, Intralogistics, Manufacturing, Medical device |
| Business area | Ergo assembly, Ergo care, Ergo catering, Ergo industry |
| Retracted height | 23.6” (630 mm) |
| Extended height | 40.6” (1,030 mm) |
| Lifiting speed | 0.35” / sec (9 mm / sec) |
| Max load | 1,320 lbs (600 kg) |
| Max stroke | 15.75” (400 mm) |
| Number of Lifts | 2 |
| Weight | Medium weight |

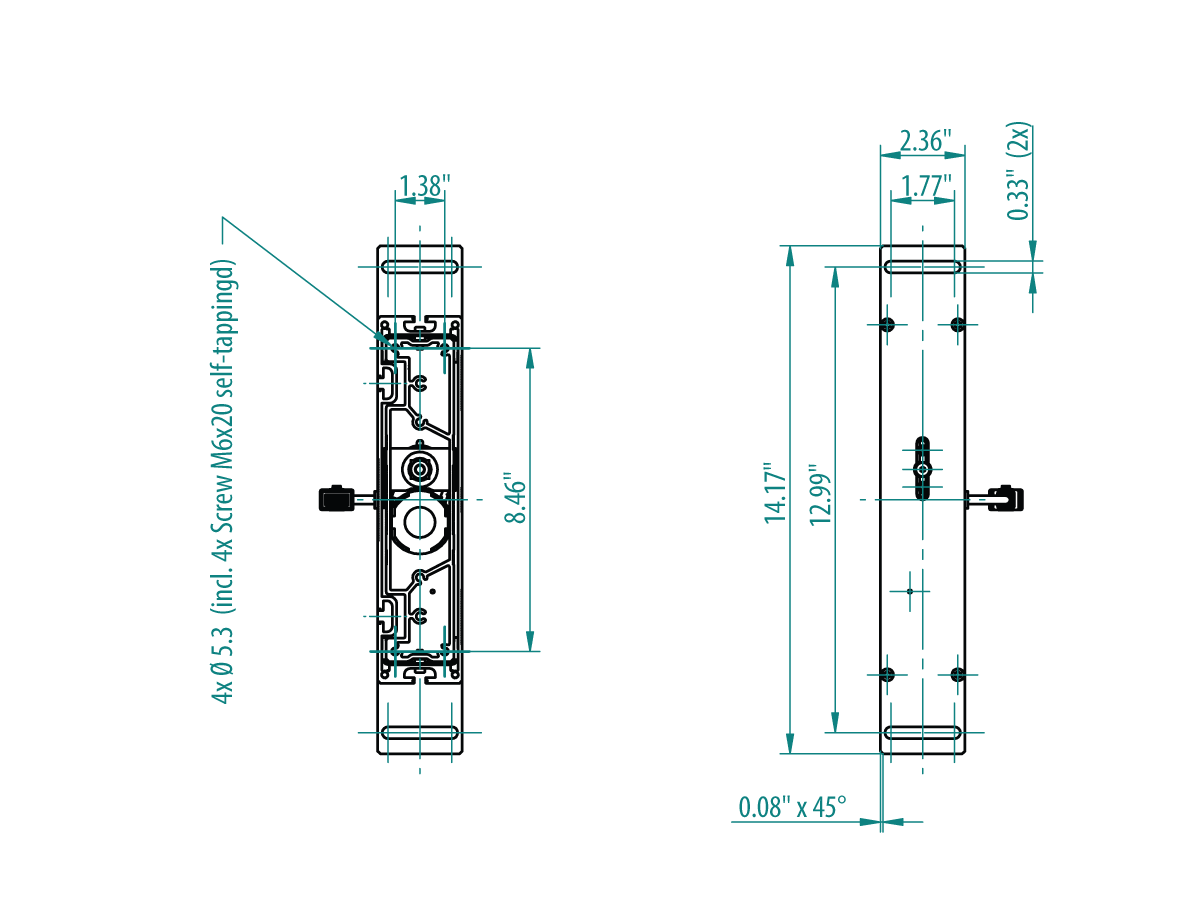

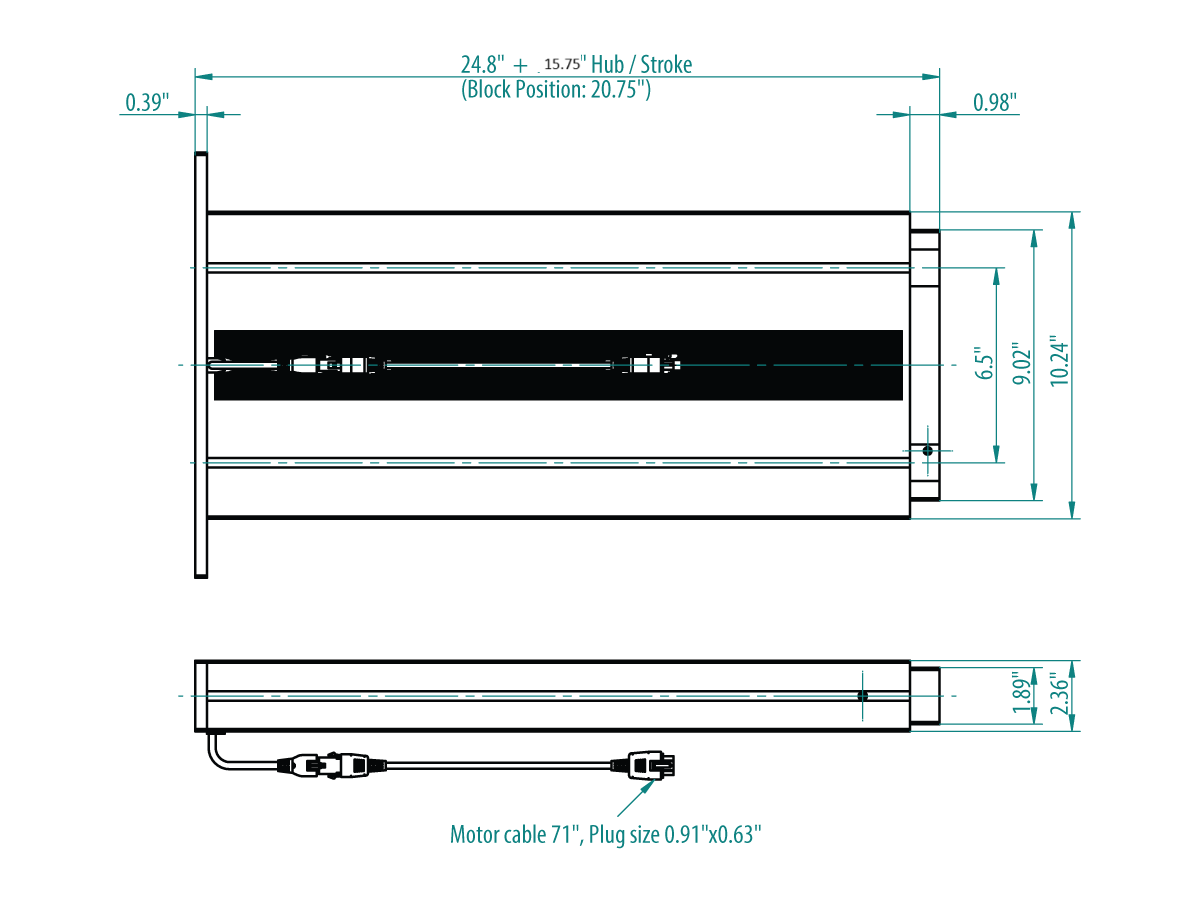

Its compact base column is consisting of a 10.24” x 2.36” (260×60 mm) anodized aluminum extrusion with three faces (6 slots) of our standard Ergoswiss T-Slot geometry (8 mm width) for easy integration.
The additional T-Slots available allow the easy integration of crossbars, shelves, and other add-ons.

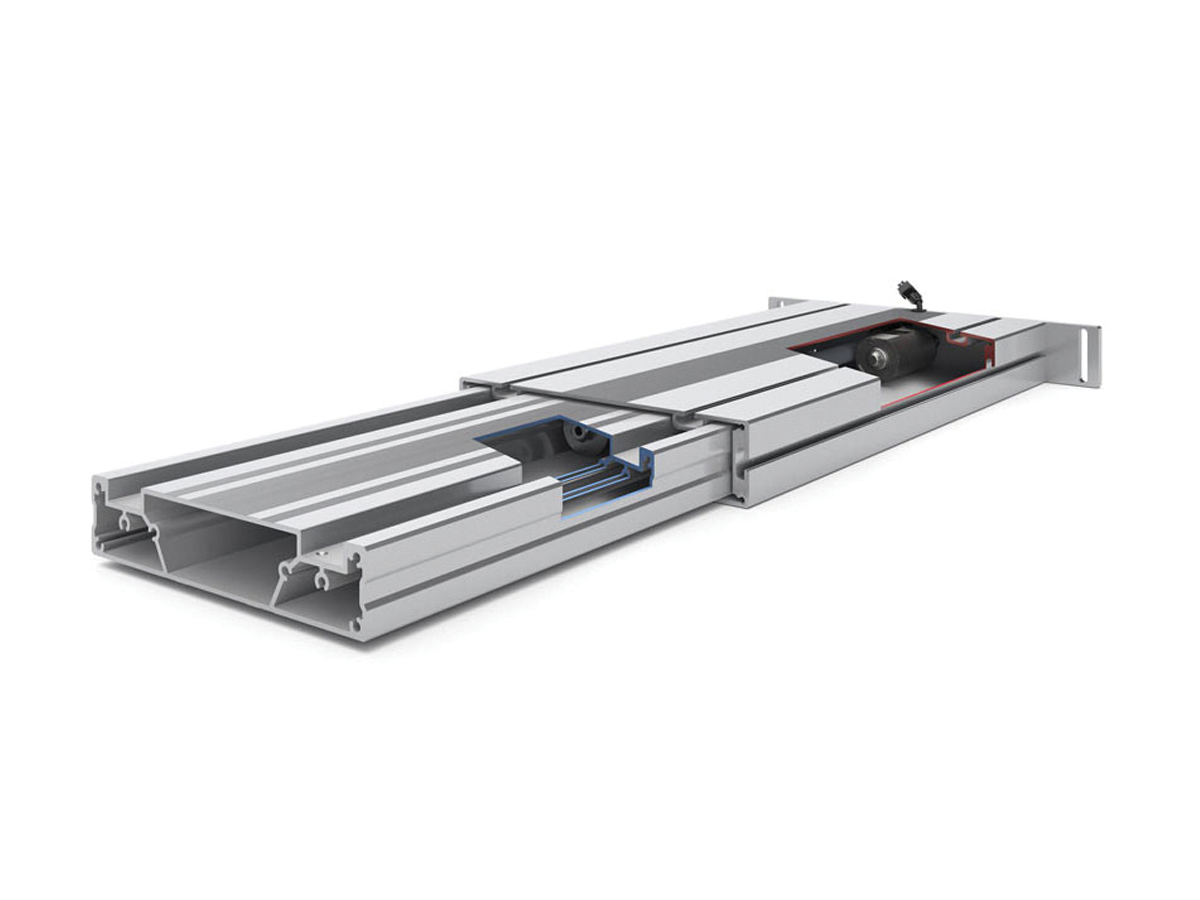

Each lifting column includes an internal motor and spindle drive that is synchronized by a control box. Each column includes a 70” motor cable to connect to the control box.

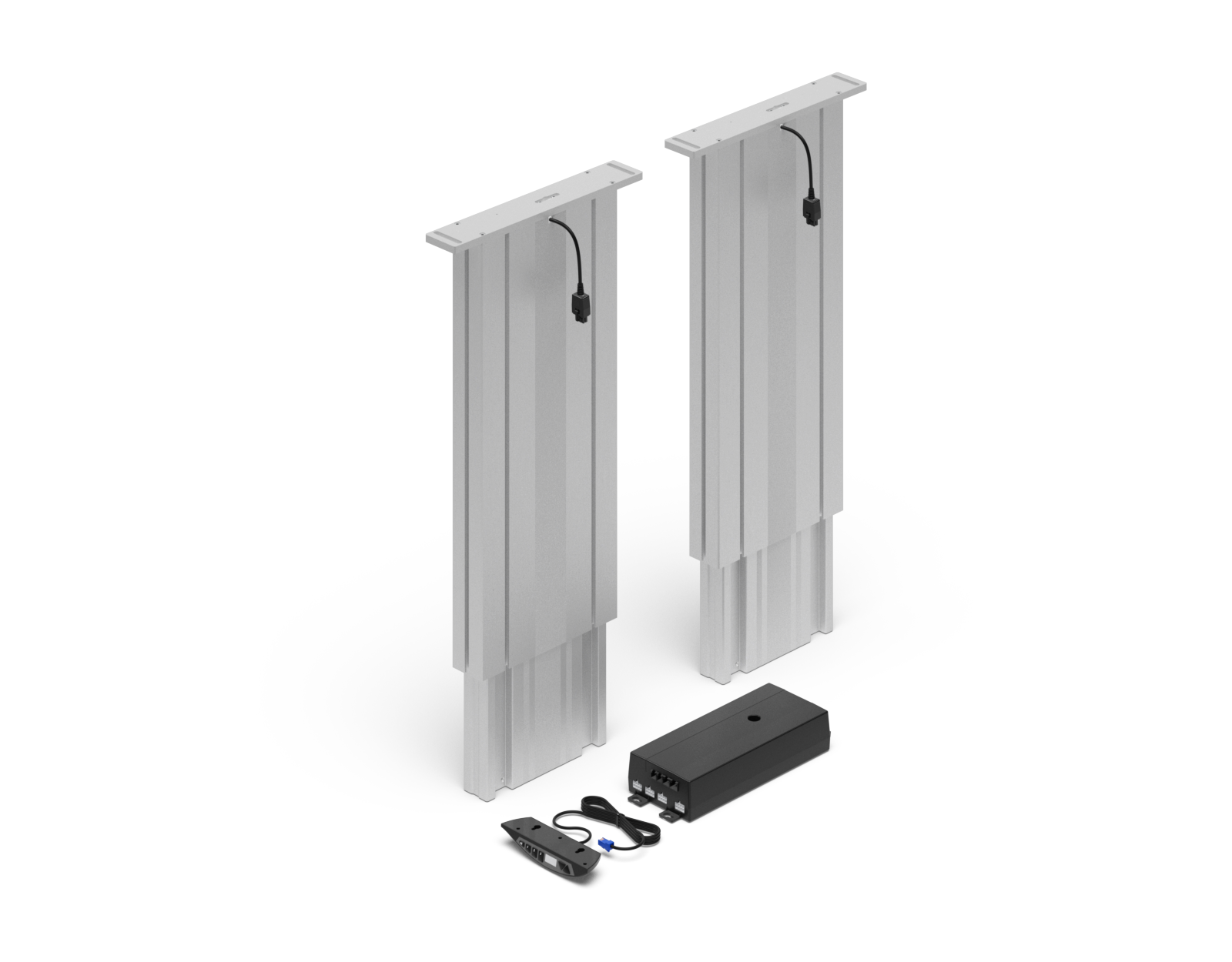

An SL 2340 US 02 Quick-ship set consists of:
2x Lifting column SL 1340 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory
Performance data lifting column SL 1340
Number of lifting columns : 2
Max load: 1,320 lbs (600 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed : 0.35” / sec (9 mm / sec)
Stroke : 15.75″ (400 mm)

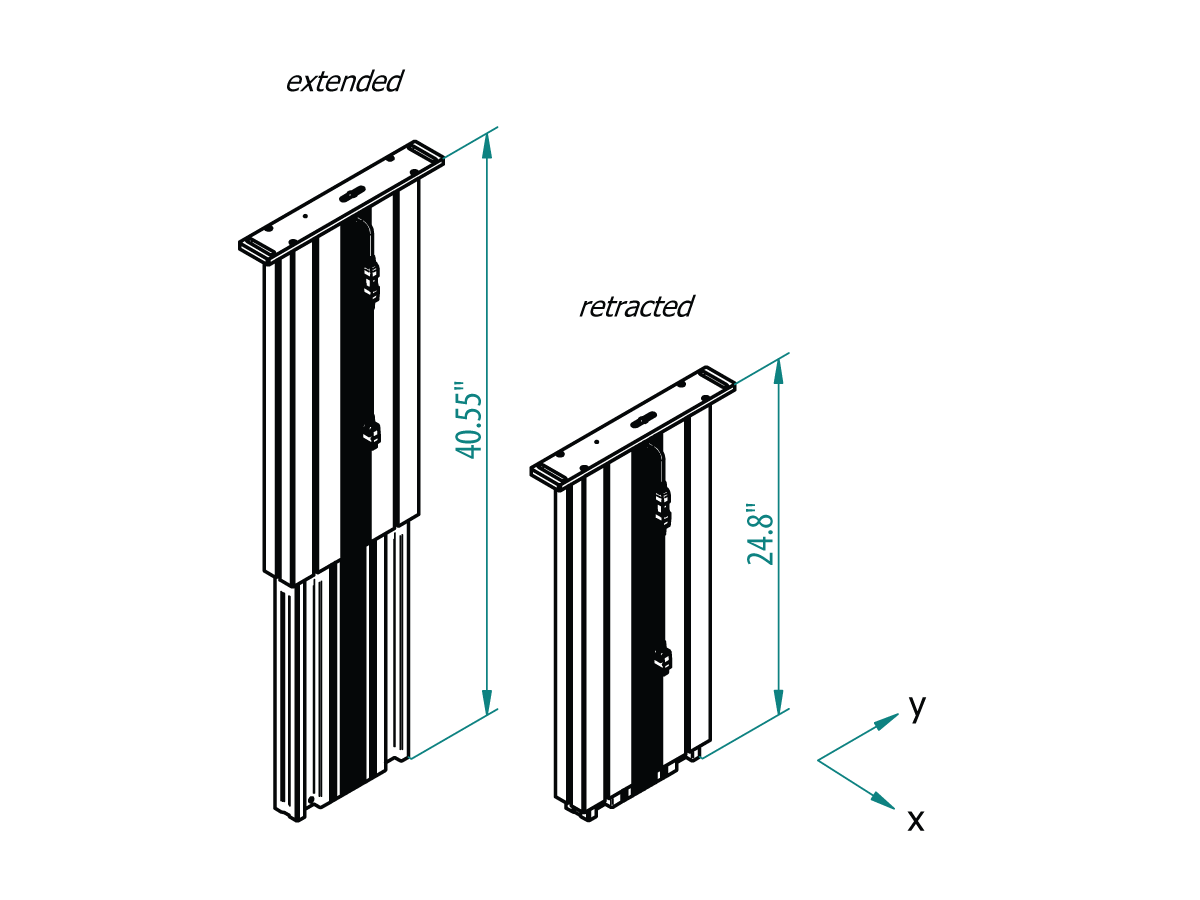

Base / retracted height: 23.6” (630 mm)
Extended height: 40.6” (1,030 mm)
Duty cycle E/D (On/Off) : 2 / 40 min
