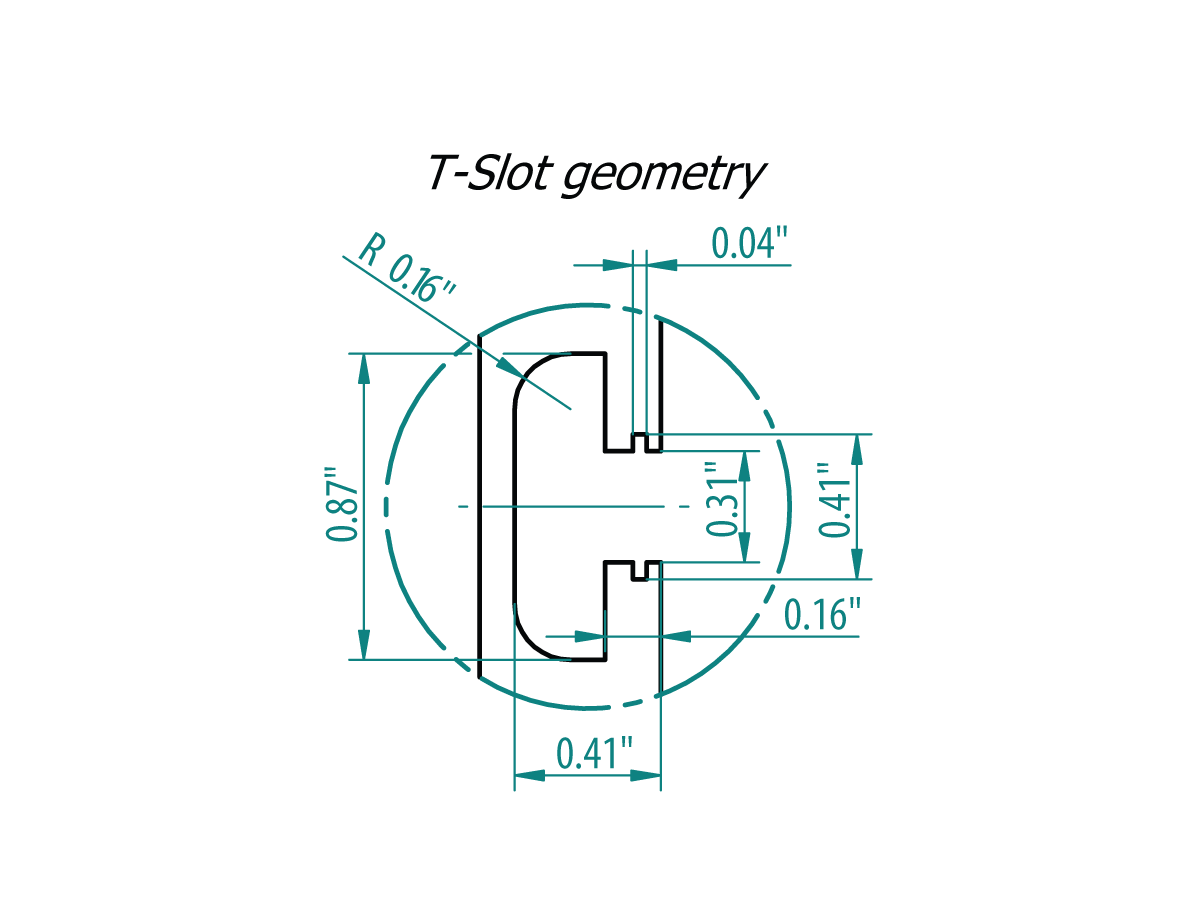

This is the Compact-controller version of the two-column SM system, delivering 12″ (300 mm) of adjustment. The Compact box is the simpler, lower-cost control option – specify it where you need straightforward up-and-down operation with memory presets and don’t require the iSMPS unit’s additional features. Columns are 5.9″ x 2.76″ (150 x 70 mm) anodized aluminum with 8 mm Ergoswiss T-slots on three faces. Supplied assembled and ready to install.
This is the Compact-controller version of the two-column SM system, delivering 12″ (300 mm) of adjustment. The Compact box is the simpler, lower-cost control option – specify it where you need straightforward up-and-down operation with memory presets and don’t require the iSMPS unit’s additional features. Columns are 5.9″ x 2.76″ (150 x 70 mm) anodized aluminum with 8 mm Ergoswiss T-slots on three faces. Supplied assembled and ready to install.
Same travel with the iSMPS controller: SM 2330 US 02, but more load capacity. Same controller with 15.75″ (400 mm) of travel: SM 2440 US 02.

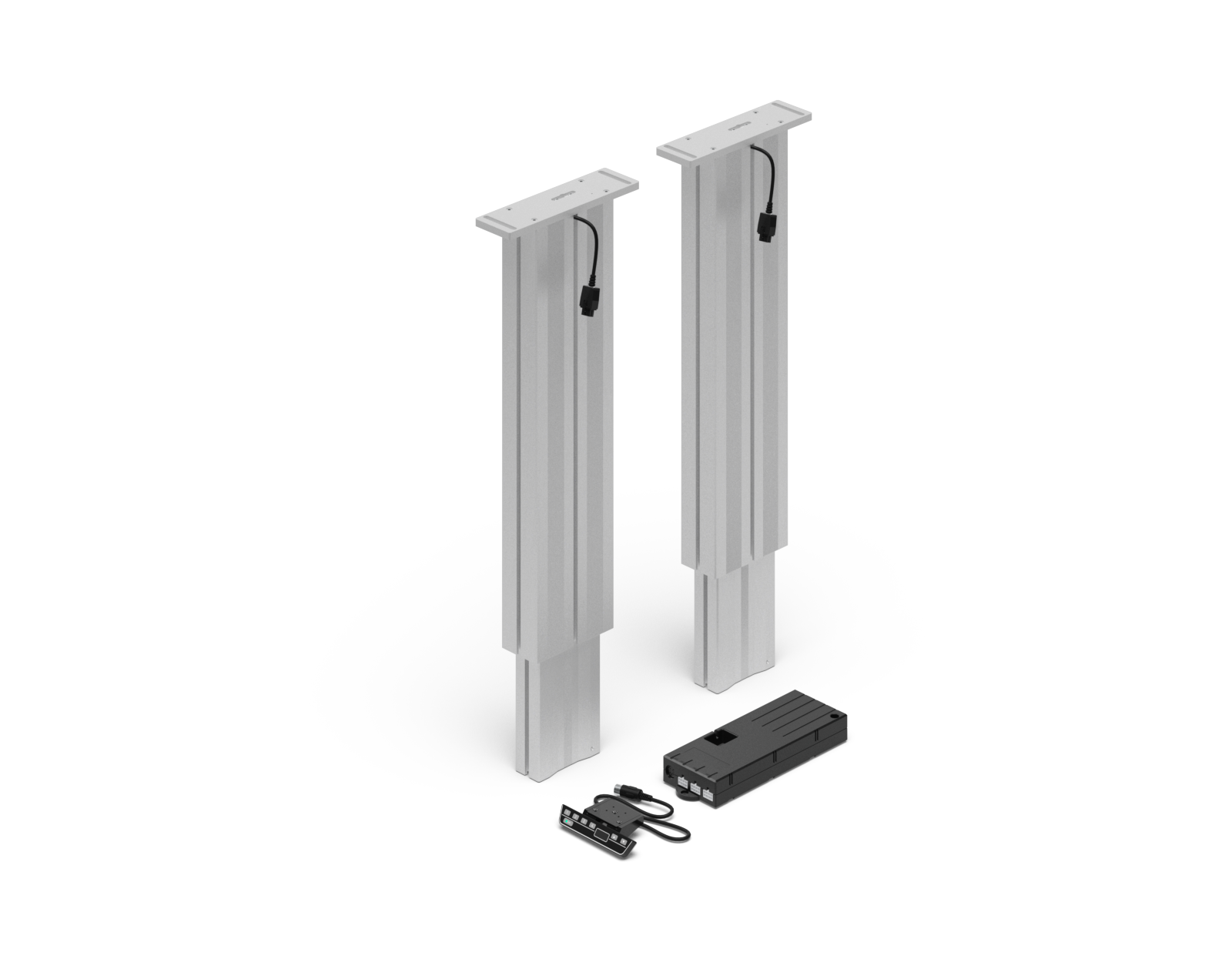

An SM 2430 US 02 Quick-ship set consists of:
2x Lifting column SM 1430 with 70” connection cable / 1x Control box Compact with a 10 ft Power cable US / 1x Cable remote control Memory
Technical data

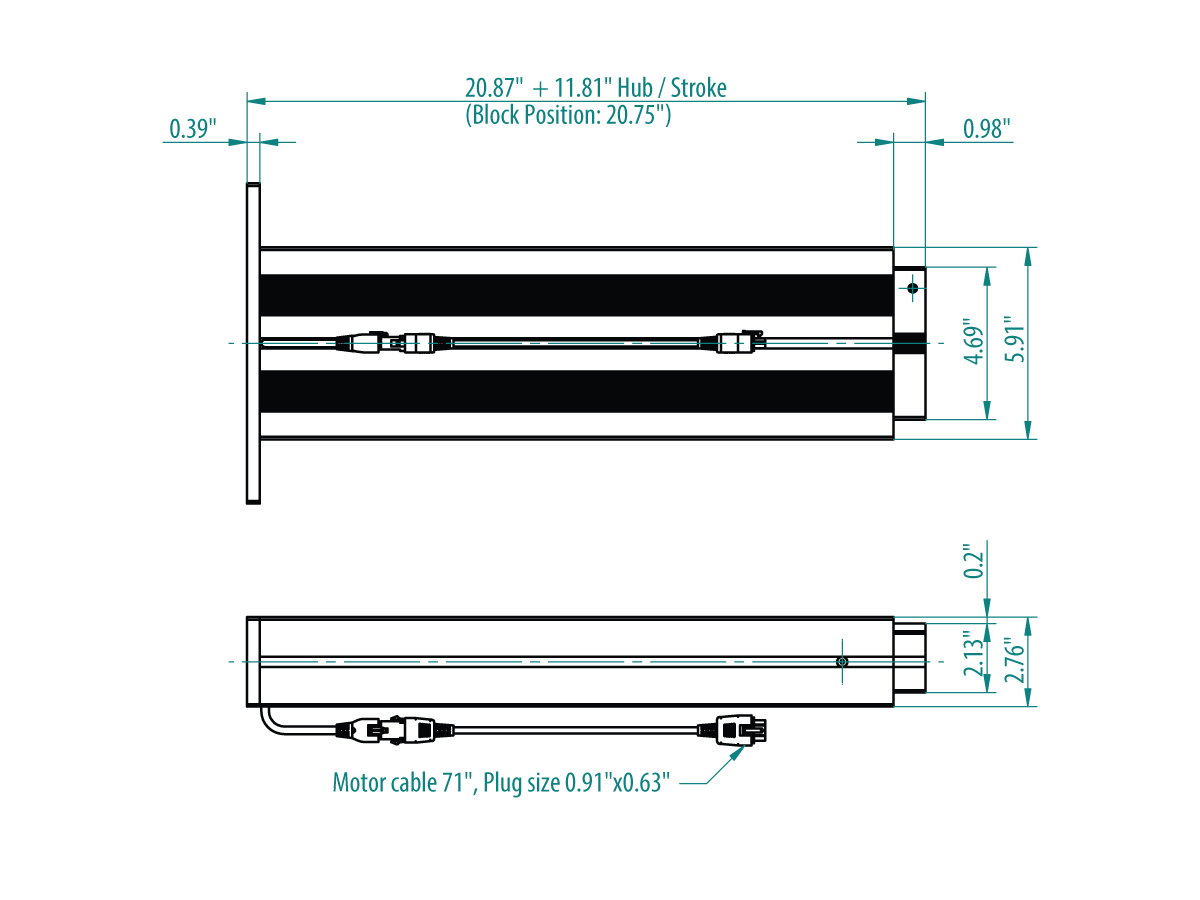

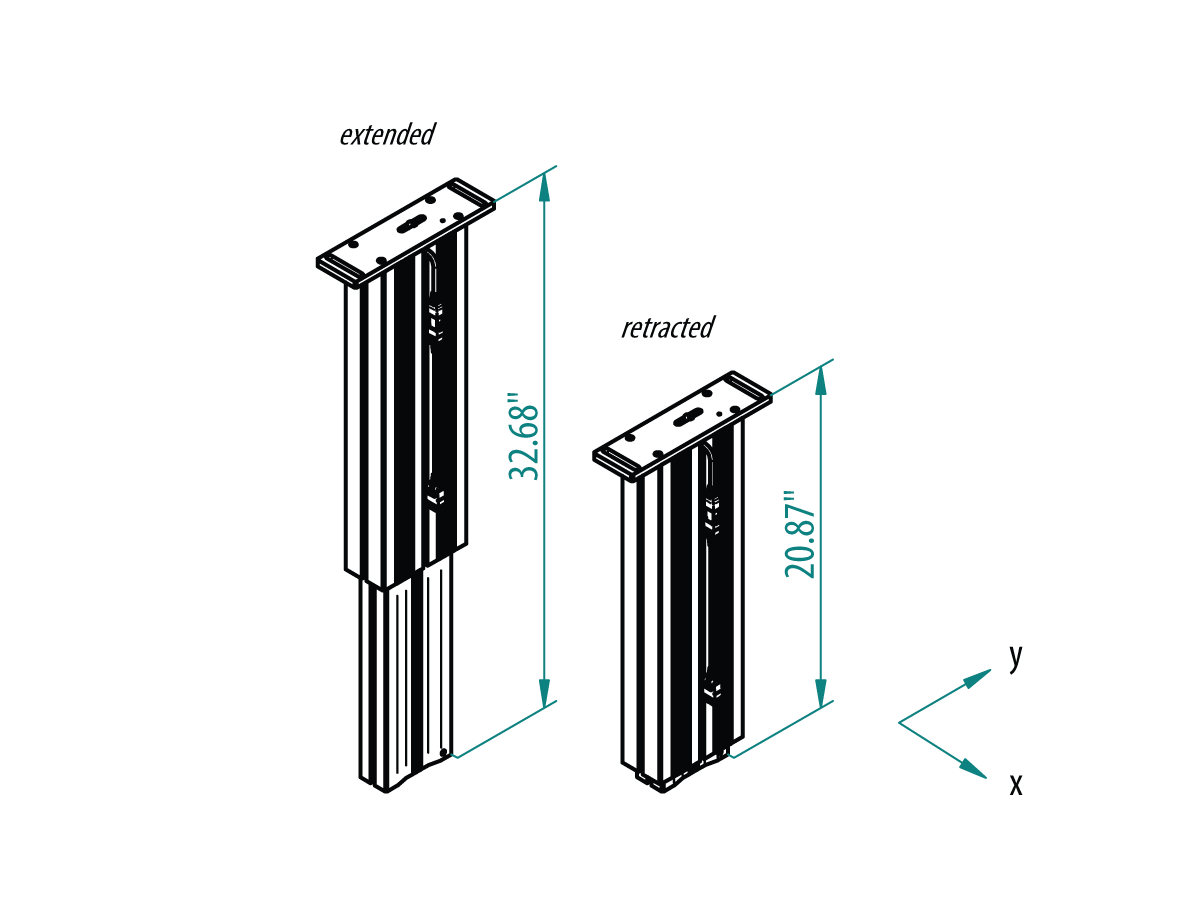

Performance data lifting column SM 1430 Number of lifting columns: 2 Max load: 880 lbs (400 kg) – includes weight of frame for a 2-leg setup. Max pushing force: 440 lbs / 200 kg per column Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N Lifting speed: 0.47” / sec (12 mm / sec) Stroke: 11.81″ (300 mm) Base / retracted height: 20.9” (530 mm) Extended height: 32.7” (830 mm) Duty cycle E/D (On/Off): 2 / 18 min
