QS – Lifting system SM 4340 US 02

$2,573.00

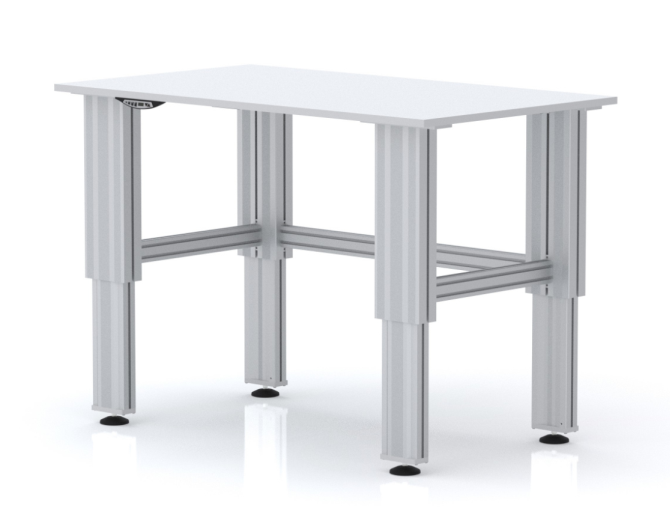

The SM four-leg electric spindle-driven lifting column offers 15.75″ (400mm) height adjustment for medium to heavy-duty applications, with anodized aluminum columns and Ergoswiss T-slots for easy integration. The system includes four columns, a memory remote, and a controller, ready for installation.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$2,573.00
Total:
$2,573.00
Buy 3 pieces and save 8%
$2,573.00
$2,371.00
Total:
Buy 4 pieces and save 8%
$2,573.00
$2,371.00
Total:
x
SKU: 902.41237 Category:

Additional information

Weight 49 lbs
Dimensions 26 × 14.5 × 6.5 in
Retracted height

23.6” (630 mm)

Extended height

40.6” (1,030 mm)

Lifiting speed

0.35” / sec (9 mm / sec)

Max load

2,200 lbs (1,000 kg)

Max stroke

15.75” (400 mm)

Number of Lifts

4

Weight

Heavy weight

Size-diameter

5.9” x 2.76” (150×70 mm)

Stability

4.5 stars (Outstanding)

Description

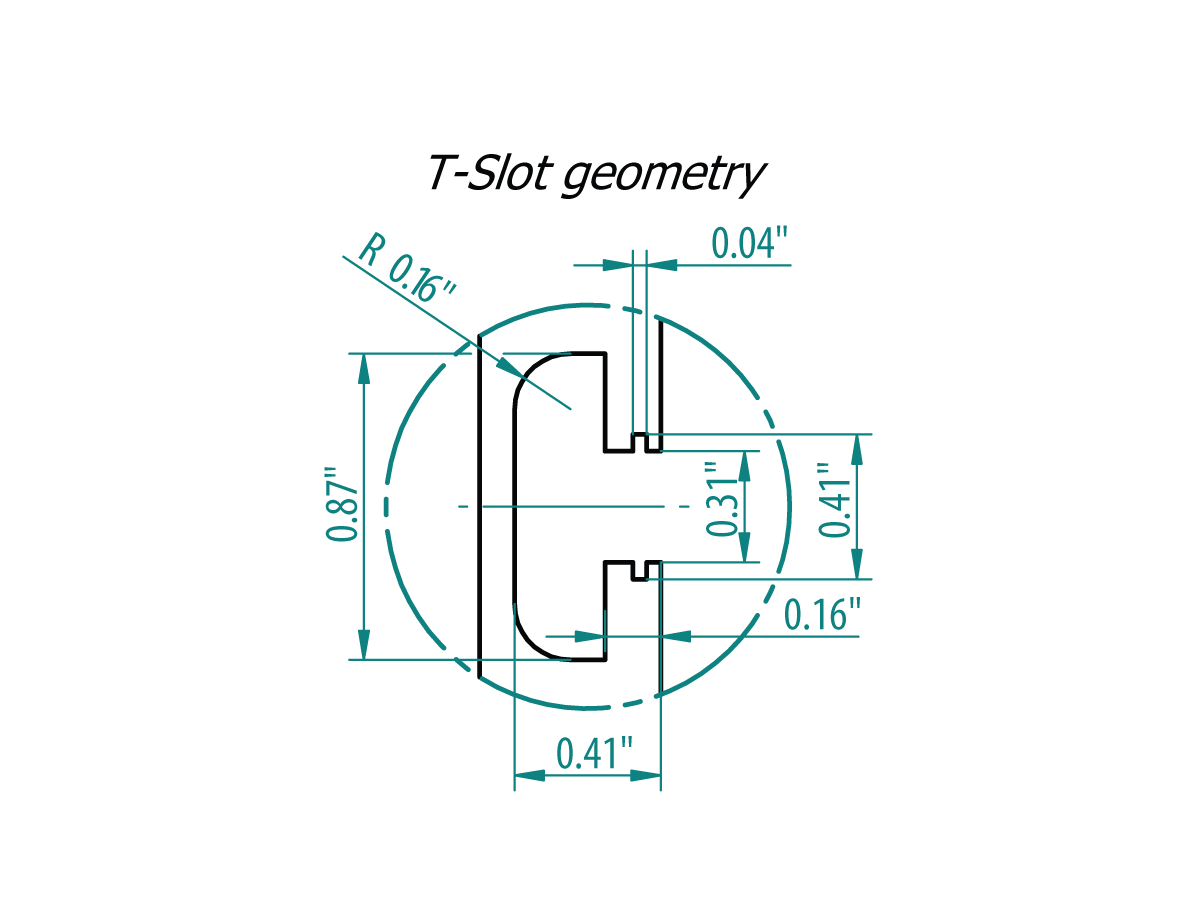

The SM four-leg electric spindle-driven lifting column provides a dependable and cost-effective solution for adding up to 15.75″ (400mm) of ergonomic height adjustment to newly built steel or aluminum base frames and workstation systems, ideal for medium to heavy-duty applications. The anodized aluminum columns 5.9″ × 2.76″ (150 × 70 mm) are equipped with 8 mm Ergoswiss T-slots on three sides, ensuring easy integration. The system comes as a complete, ready-to-install solution.

An SM 4340 US 02 Quick-ship set consists of:

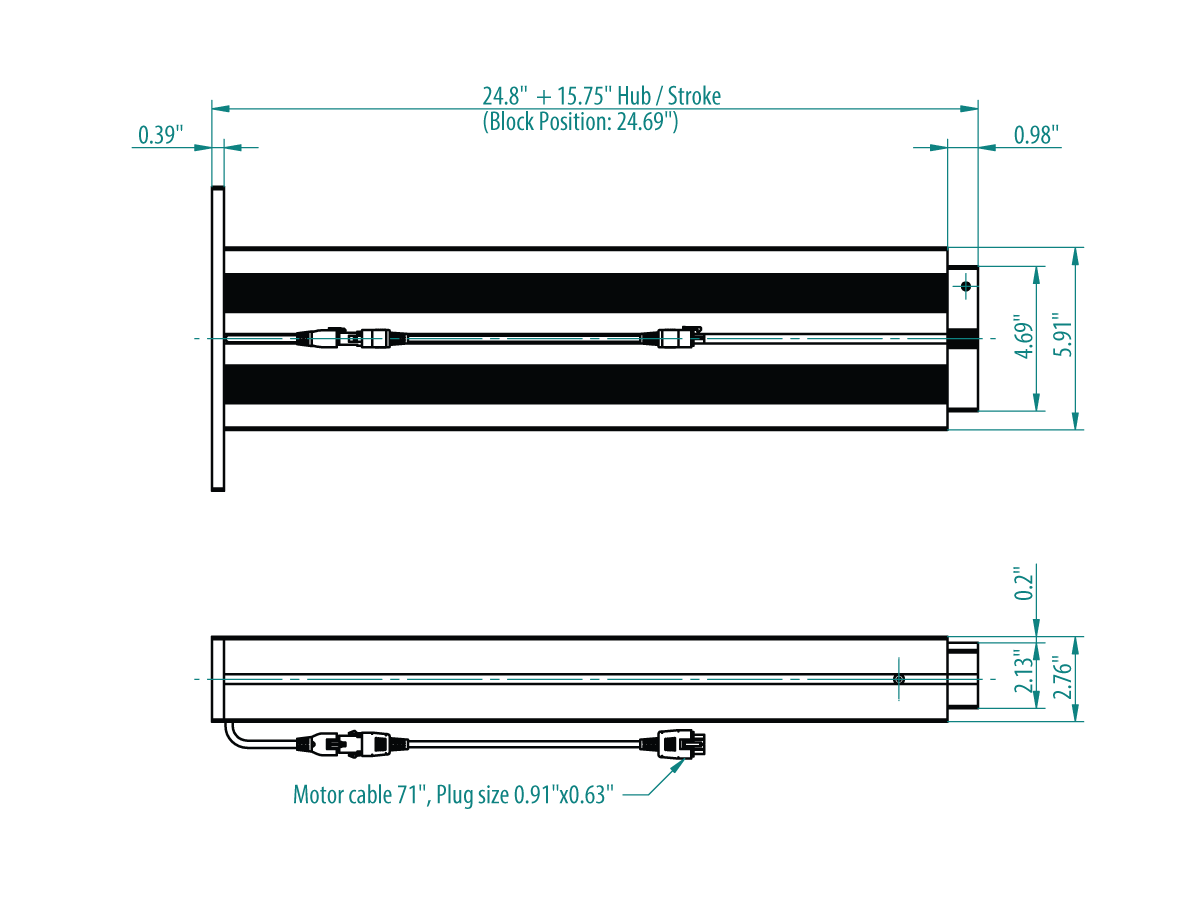

4x Lifting column SM 1340 with 70” connection cable / 1x Control box iSMPS with a 10 ft Power cable US / 1x Cable remote control Memory

Technical data:
Performance data lifting column SM 1340
Number of lifting columns: 4
Max load: 2,200 lbs (1,000 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 660 lbs / 300 kg per column
Max. pulling force: Static: 110 lbs / 500 N   / Dynamic: 22 lbs / 50 N
Lifting speed: 0.35” / sec (9 mm / sec)
Stroke: 15.75″ (400 mm)

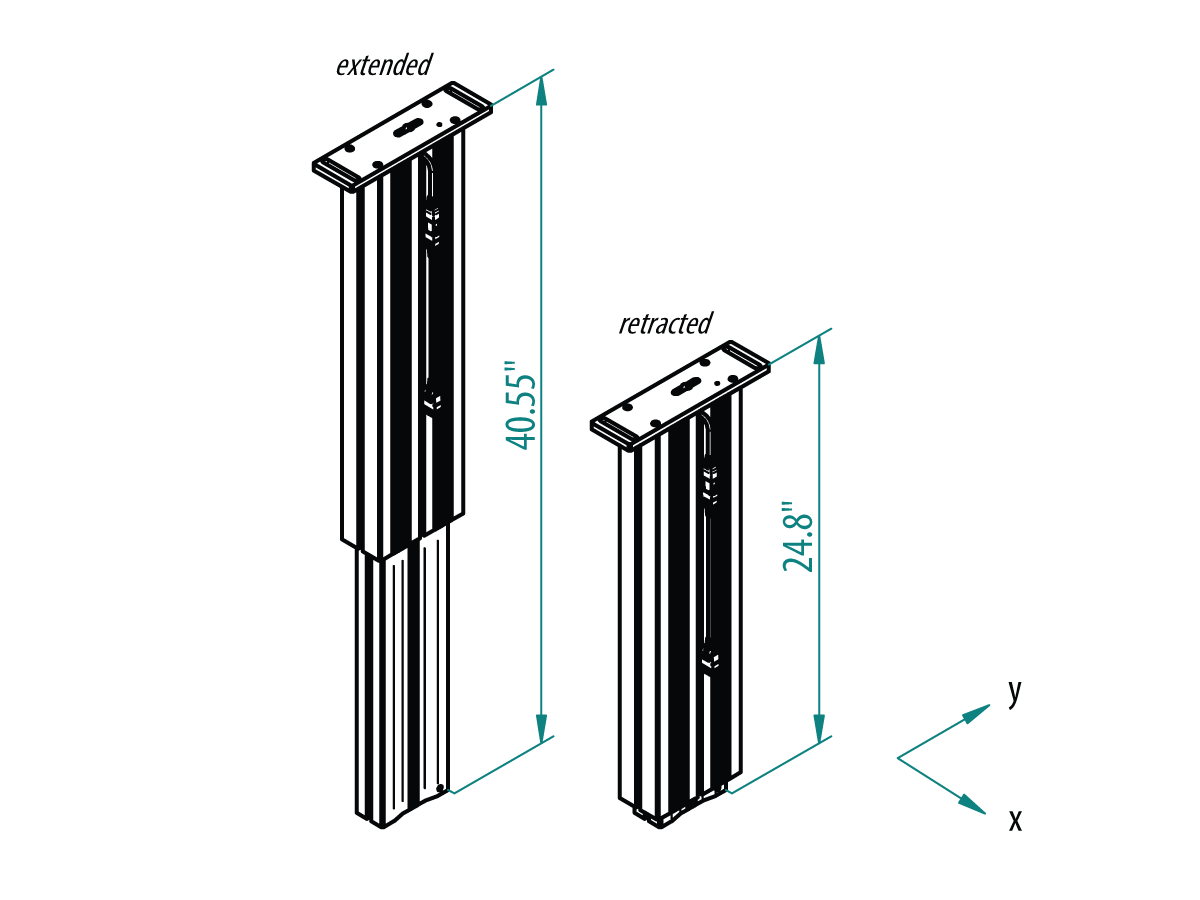

Base / retracted height: 23.6” (630 mm)
Extended height: 40.6” (1,030 mm)
Duty cycle E/D (On/Off): 2 / 40 min
