$1,330.00
The electric spindle- driven lifting column base frame SF is an economical solution for application, that require only a lighter lifting capacity.
| Weight | 49 lbs |
|---|---|
| Dimensions | 26 × 14.5 × 6.5 in |
| Application | Ergo catering, Intralogistics, Manufacturing, Medical device |
| Business area | Ergo assembly, Ergo care, Ergo catering, Ergo industry |
| Retracted height | 28.35” (720 mm) |
| Extended height | 44.09” (1120 mm) |
| Lifiting speed | 0.78” / sec (20 mm / sec) |
| Max load | 440 lbs (200 kg) |
| Max stroke | 15.75” (400 mm) |
| Number of Lifts | 2 |
| Weight | Light weight |

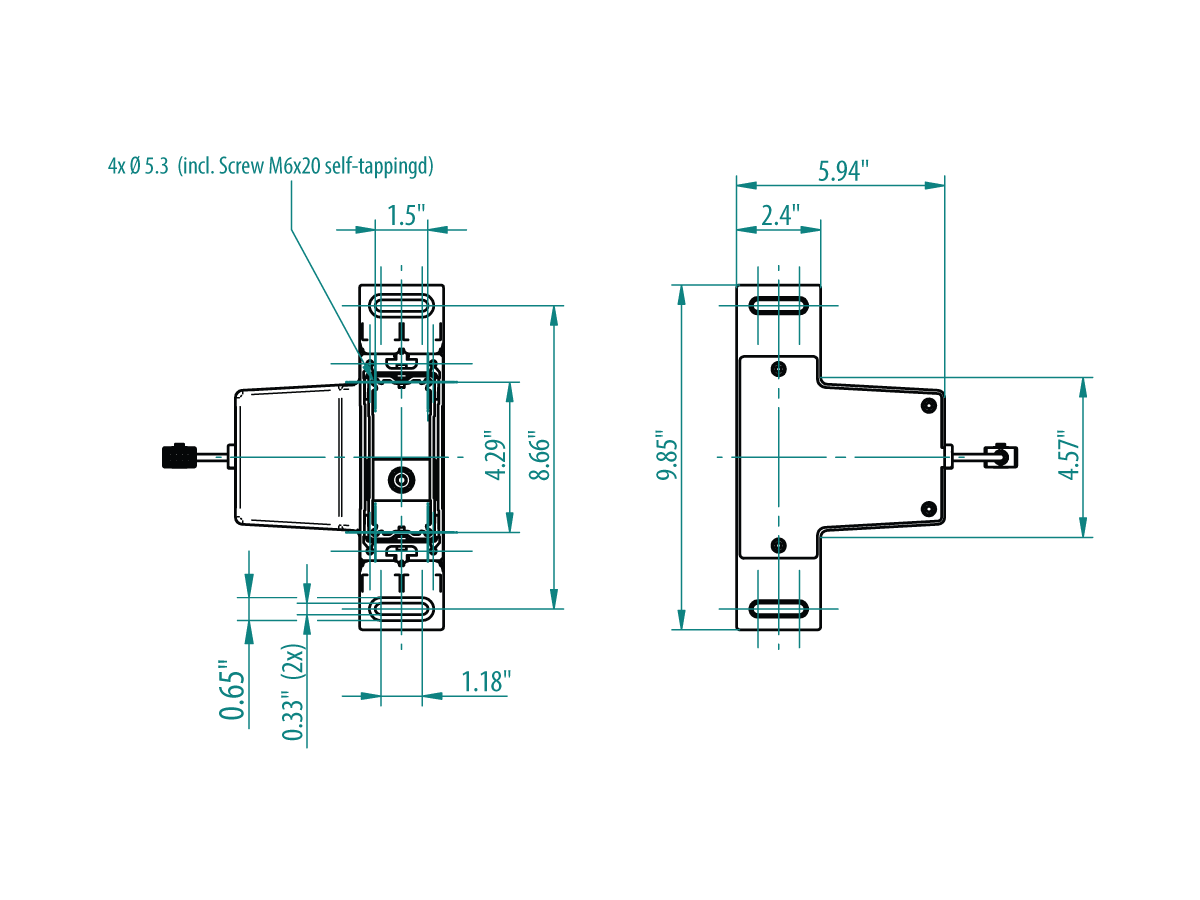

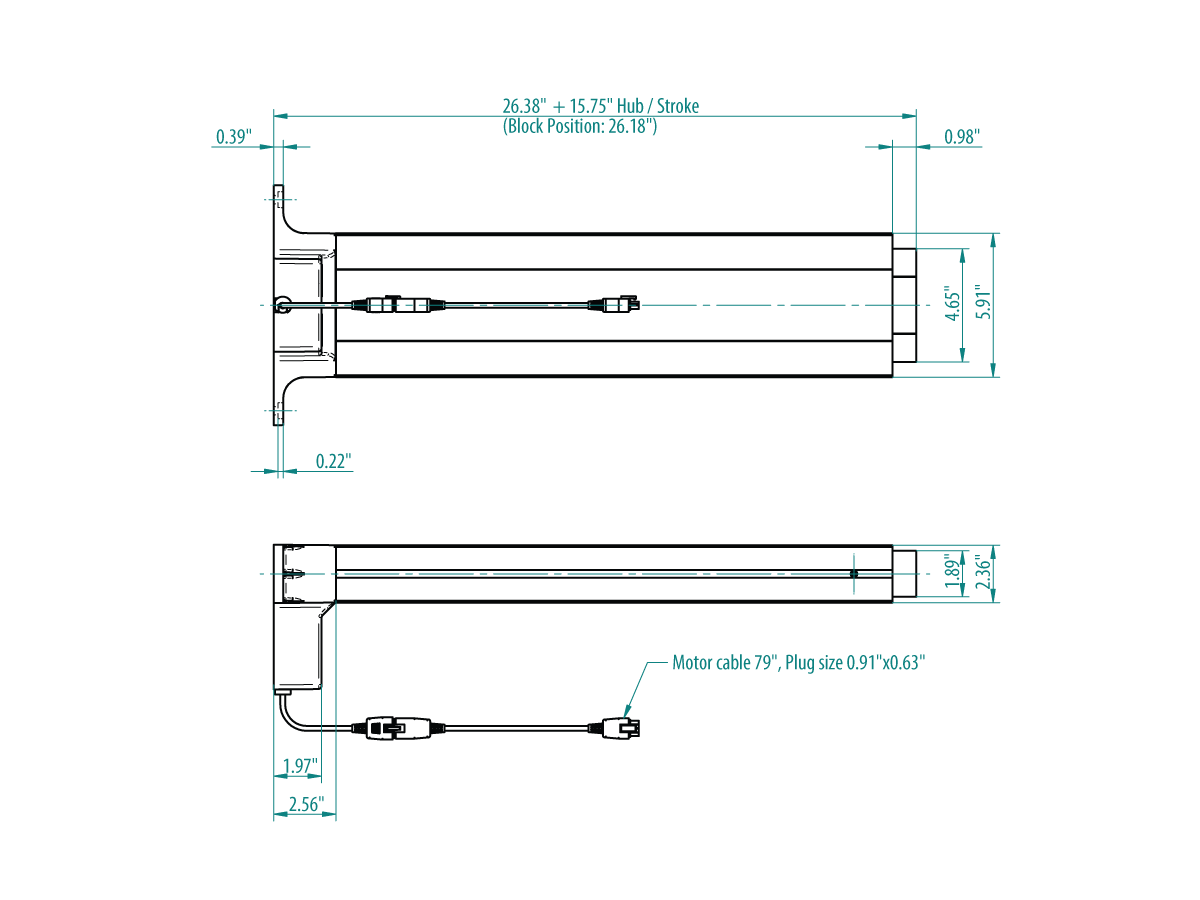

The base column is consisting of a 5.9” x 2.4” (150X60 mm) anodized aluminum extrusion with two faces of our standard Ergoswiss T-Slot geometry (8 mm width) for easy integration.
Each lifting column includes an internal motor and spindle drive that is synchronized by the control box. Each column includes a 78” motor cable to connect to the control box. The crossbar is adjustable every 2” to accommodate adjustments from 35.43” to 61.02” (960 – 1610 mm).
An SF-2 1240 US 02 Base Frame quick-ship set consists of:
Part# 909.61204-PP (2x Lifting column SF 1240 with 78” connection cable / 1x Control box Compact with a 10 ft Power cable US / 1x Cable remote control Memory) plus the Telescopic cross bar (Adjustable every 2” from 35.43” 61.02”), 2 x Table foot SF with 2 leveling feet each
Performance data lifting column SF-2 1240 US 02 Base Frame
Number of lifting columns : 2
Max load: 440 lbs (200 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 220 lbs / 100 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed : 0.78” / sec (20 mm / sec)
Stroke : 15.75″ (400 mm)

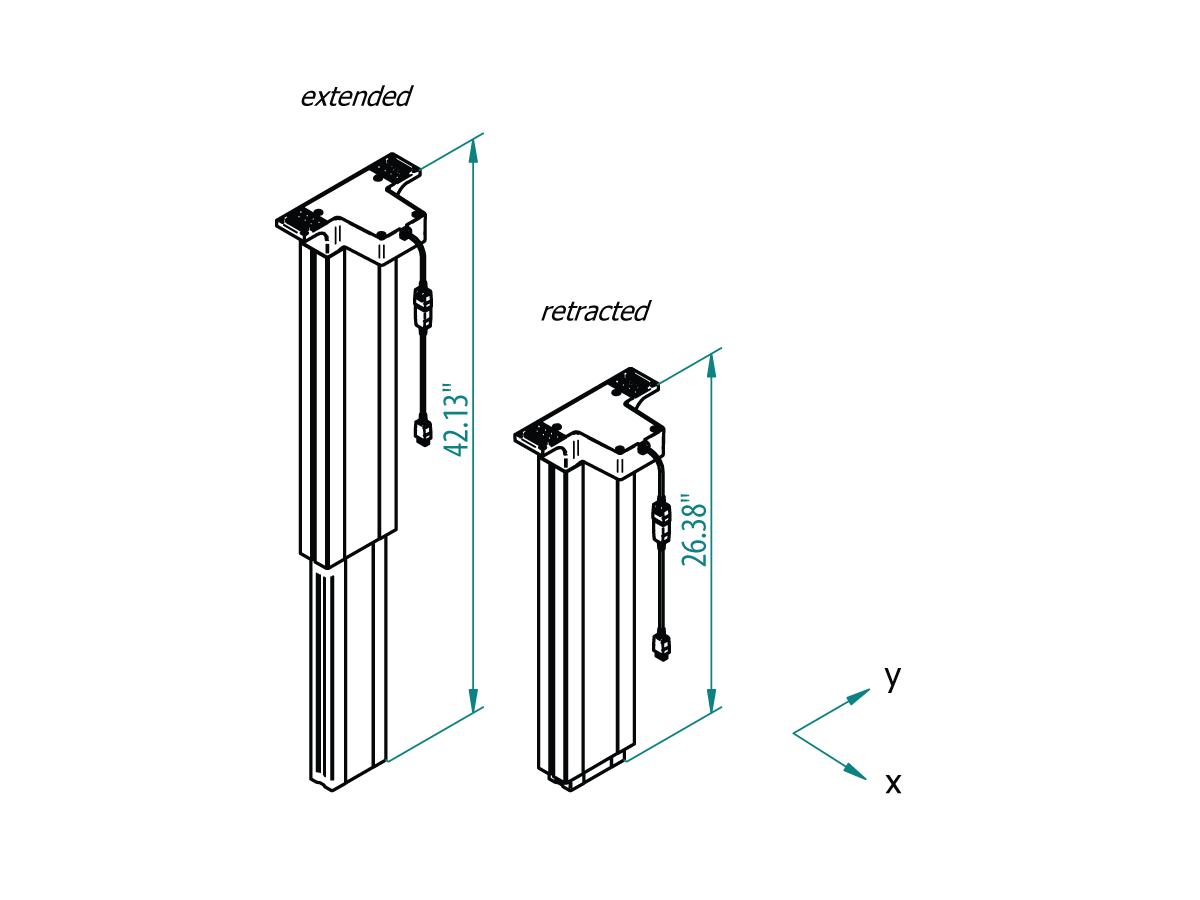

Base / retracted height: 28.35” (720 mm)
Extended height: 44.09” (1120 mm)
Duty cycle E/D (On/Off) : 2 / 40 min
