QS – SF-2 1240 US 02 Base Frame

$1,395.00

An Ergoswiss LiteLine bestseller, this SF two-leg electric spindle-driven base frame offers 15.75″ (400 mm) lift with lightweight 5.9” x 2.4” (150 × 60 mm) aluminum columns. Features two T-slot faces and includes two SF columns, adjustable crossbar, feet, memory remote, and controller – ready for installation.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

Buy 1 - 2 pieces
$1,395.00
Total:
$1,395.00
Buy 3 pieces and save 16%
$1,395.00
$1,165.00
Total:
Buy 4 pieces and save 16%
$1,395.00
$1,165.00
Total:
x
SKU: 909.71204 Category:

Additional information

Weight 49 lbs
Dimensions 26 × 14.5 × 6.5 in
application

Ergo catering, Intralogistics, Manufacturing, Medical device
business-area

Ergo assembly, Ergo care, Ergo catering, Ergo industry
Retracted height

28.35” (720 mm)
Extended height

44.09” (1120 mm)
Lifiting speed

0.78” / sec (20 mm / sec)
Max load

440 lbs (200 kg)
Max stroke

15.75” (400 mm)
Number of Lifts

2
Size-diameter

5.9” x 2.4” (150X60 mm)
Stability

3.5 stars (Very Good)
Weight

Light weight
STEP file

PDF files

Coming soon.

Description

The SF two-leg electric spindle-driven base frame is one of our best-selling configurations in the Ergoswiss LiteLine, delivering 15.75″ of precise height adjustment. Each 5.9” x 2.4” (150 × 60 mm) anodized aluminum column features two faces with standard 8 mm Ergoswiss T-slots for easy integration of modular components. Designed for stability, the columns resist moderate bending, torsion, and shear forces when extended. The system ships as a complete, comprehensive, ready-to-install solution.

An SF-2 1240 US 02 Base Frame quick-ship set consists of:
Part# 909.61204-PP (2x Lifting column SF 1240 with 78” connection cable / 1x Control box Compact with a 10 ft Power cable US / 1x Cable remote control Memory) plus the Telescopic cross bar (Adjustable every 2” from 35.43” 61.02”), 2 x Table foot SF with 2 leveling feet each

Technical data

Performance data lifting column SF-2 1240 US 02 Base Frame
Number of lifting columns : 2
Max load: 440 lbs (200 kg) – includes weight of frame for a 2-leg setup.
Max pushing force: 220 lbs / 100 kg per column
Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N
Lifting speed: 0.78” / sec (20 mm / sec)
Stroke: 15.75″ (400 mm)
Base / retracted height: 28.35” (720 mm)
Extended height: 44.09” (1120 mm)
Duty cycle E/D (On/Off): 2 / 40 min

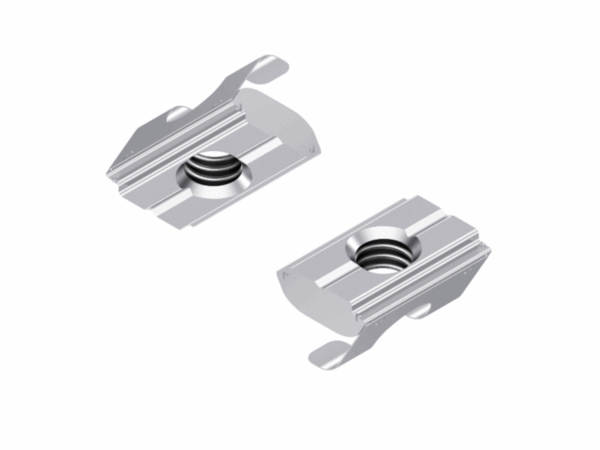

Compatible products
