QS-SLA 4330 US 12

$1,675.00

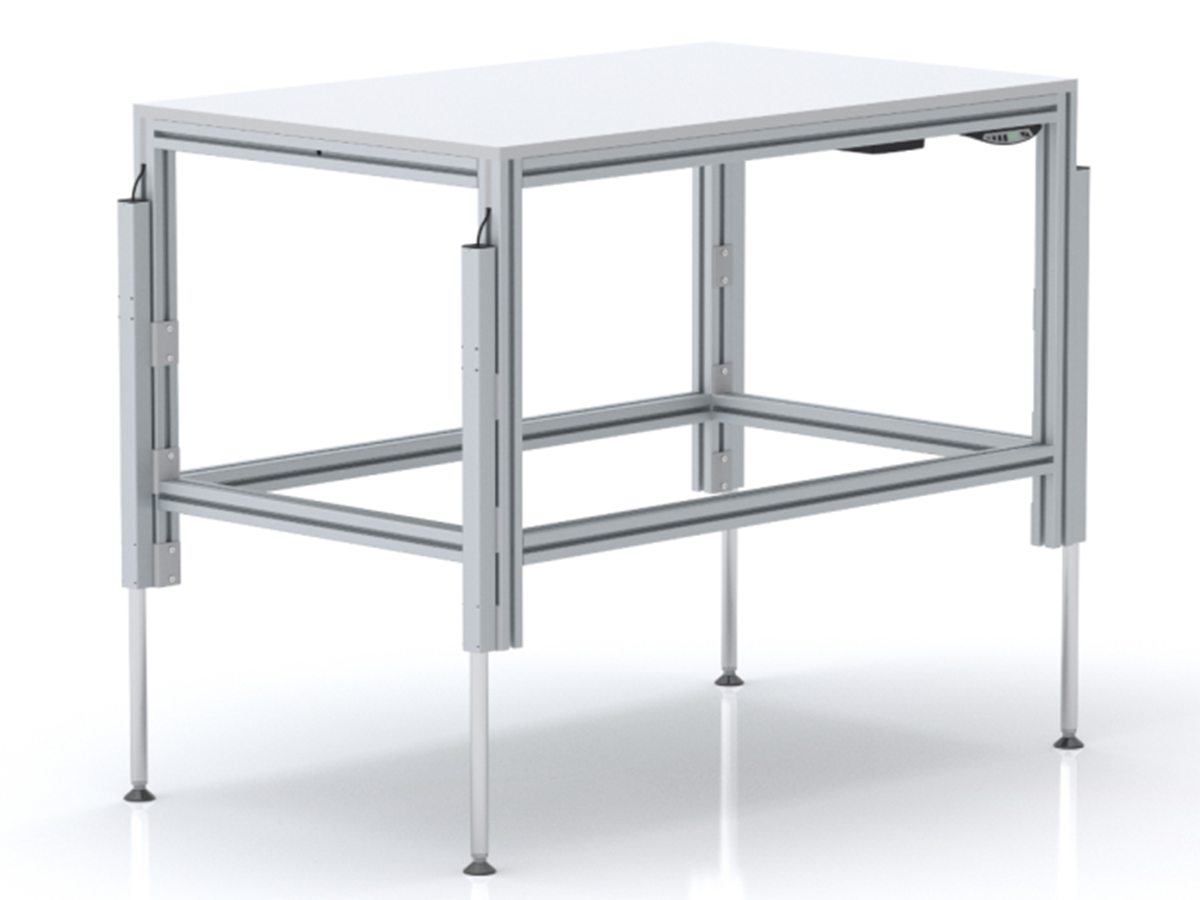

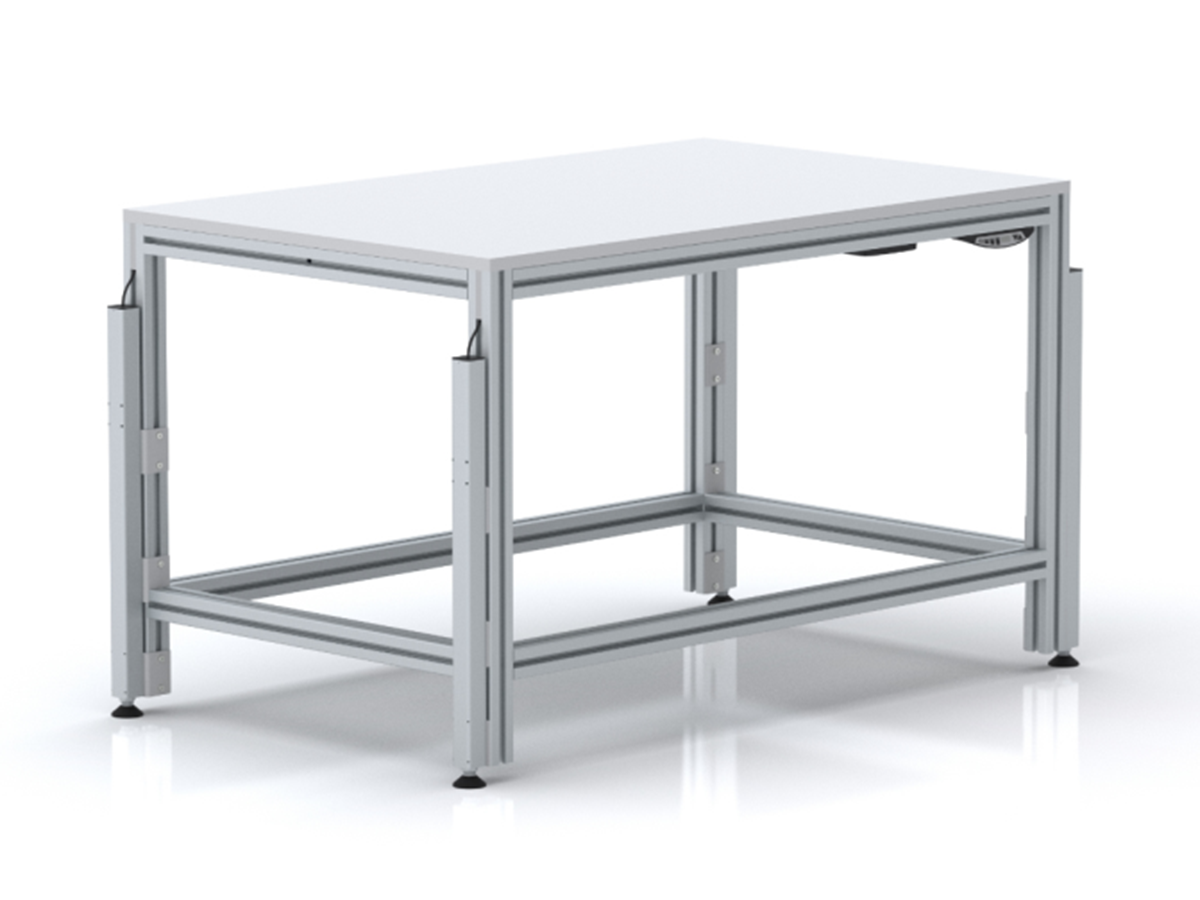

Upgrade your existing workbench with our best-selling retrofit system SLA 4330. Four slim 1.38″ x 1.38″ spindle units slide directly into standard 1.75″ x 1.75″ steel tubing or bolt onto your current aluminum or steel structure. This system easily converts any fixed-height bench into an adjustable workstation featuring 12″ (300 mm) of travel. Shorter clearance required? See the SLA 4320 US 12.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$1,675.00
Total:
$1,675.00
Buy 3 pieces and save 7%
$1,675.00
$1,560.00
Total:
Buy 4 pieces and save 7%
$1,675.00
$1,560.00
Total:
x
SKU: 903.42236-PP Category:

Additional information

Weight 33 lbs
Dimensions 30 × 10 × 7 in
Retracted height

23.63" (600 mm)

Extended height

35.43" (900 mm)

Lifiting speed

0.35โ€ / sec (9 mm / sec)

Max load

1,320 lbs (600 kg)

Max stroke

11.81โ€ (300 mm)

Number of Lifts

4

Weight

Heavy weight, Medium weight

Size-diameter

1.38โ€x1.38โ€ (35 x 35 mm)

Stability

3 stars (Good)

Description

Four SLA units delivering 11.8โ€ณ (300 mm) of travel, and the most widely specified retrofit system Ergoswiss makes. The 1.38โ€ณ x 1.38โ€ณ (35 x 35 mm) profile is the slimmest available, fitting inside standard 1.75โ€ณ x 1.75โ€ณ steel tubing, which is what lets it convert an existing bench without rebuilding the frame around it. Push and pull operation means no weight is needed on the columns to retract โ€” the practical advantage over a hydraulic retrofit. Rated to 1,320 lbs (600 kg) including the frame, and certified to Cleanroom Class 3 (ISO 14644-1) and Class 1 (US FED STD 209E).

An SLA Quick ship system consists of:

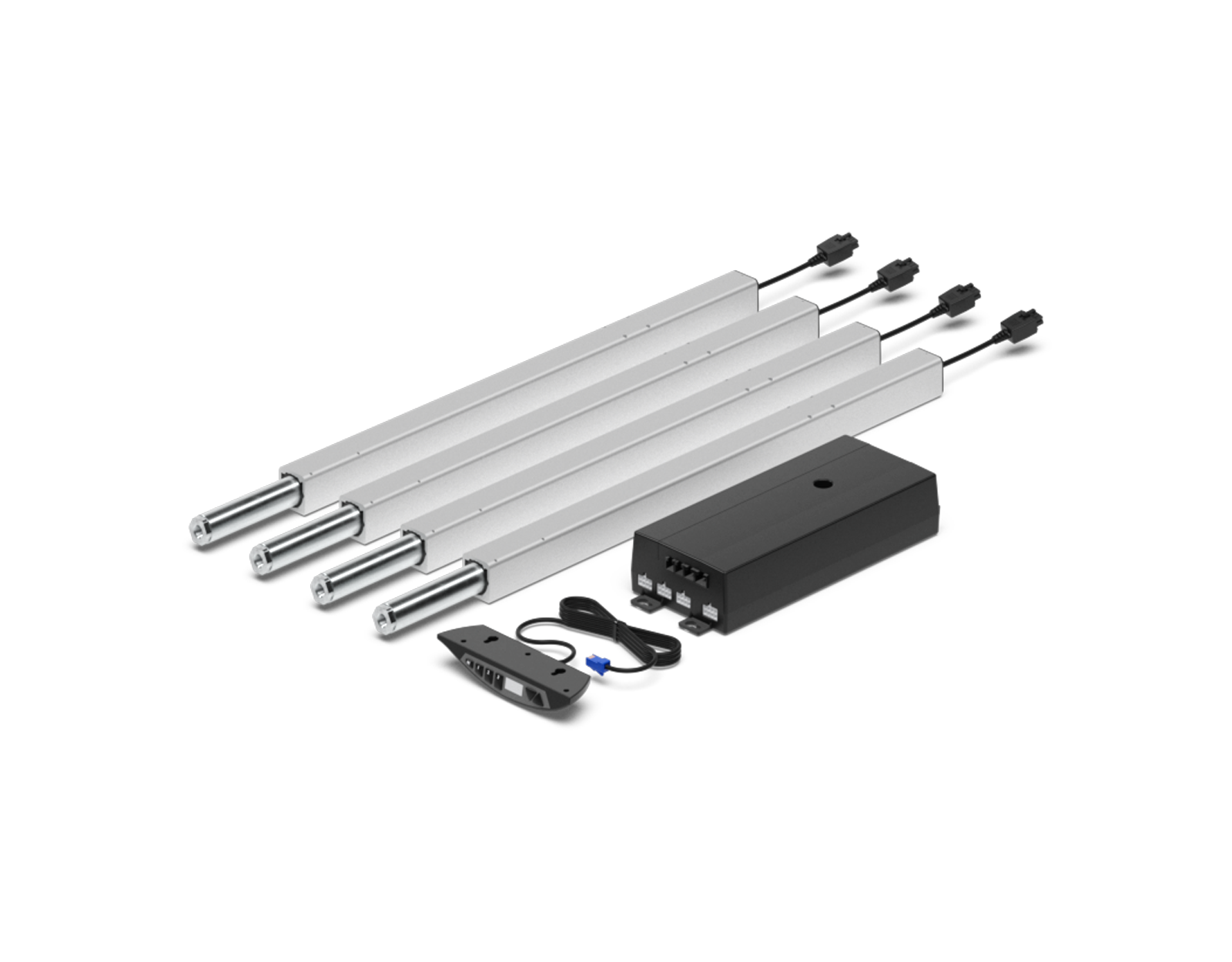

4 x spindle-driven linear SLA 1330 with 6 ft cord,1 x iSMPS controller with gravity sensor, 1 x 10 ft power cord, 1 x Memory remote SCT T6, 4 x leveling feet M10x25.

Technical data

Max load: 1320 lbs (600 kg) โ€“ (includes weight of frame).
Max stroke: 11.8โ€ (300 mm)
Lifting speed: 0.35โ€ (9 mm) per second.

Compliant to Cleanroom Class 3 – ISO Class 14644-1
Class 1 โ€“ according to US FED STD 209E

How much can the QS-SLA 4330 US 12 lift, and how far?

1,320 lbs (600 kg) across four units, with 11.81โ€ (300 mm) of travel at 0.35โ€ / sec (9 mm / sec).

What is the difference between SLA and SLG.3?

The SLA is 1.38" (35 mm) square with 7.87" or 11.81" of stroke. The SLG.3 is 1.78" (45 mm) square with 11.81" or 15.75" of stroke.

What is included?

The four linear units and the controls. The full kit list is in the description.

Can I mount the units to my existing frame?

Yes. Mounting plates and adaptors are listed under accessories. Send us a description of the frame if you want the mounting checked first.

How quickly does it ship?

Stock items typically ship from our warehouse in Wood Dale, Illinois within 2-3 business days.

What is the warranty, and can I return it?

24 months from date of purchase against manufacturing and material defects. Returns are accepted within 30 days in original packaging; contact us for an RMA number first.

Certification, shipping and warranty

Ergoswiss electric products are built in compliance with UL and cUL requirements; drives and controllers are UL and cUL certified. Manufactured in Switzerland by Ergoswiss AG.

Ships from our Illinois warehouse in Wood Dale, typically within 2–3 business days. 24-month warranty against manufacturing and material defects from date of purchase. Returns accepted within 30 days in original packaging — see shipping and returns for full details.
