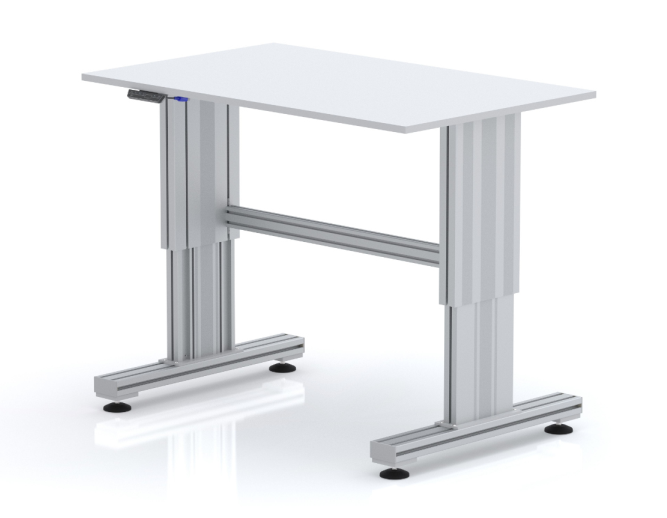

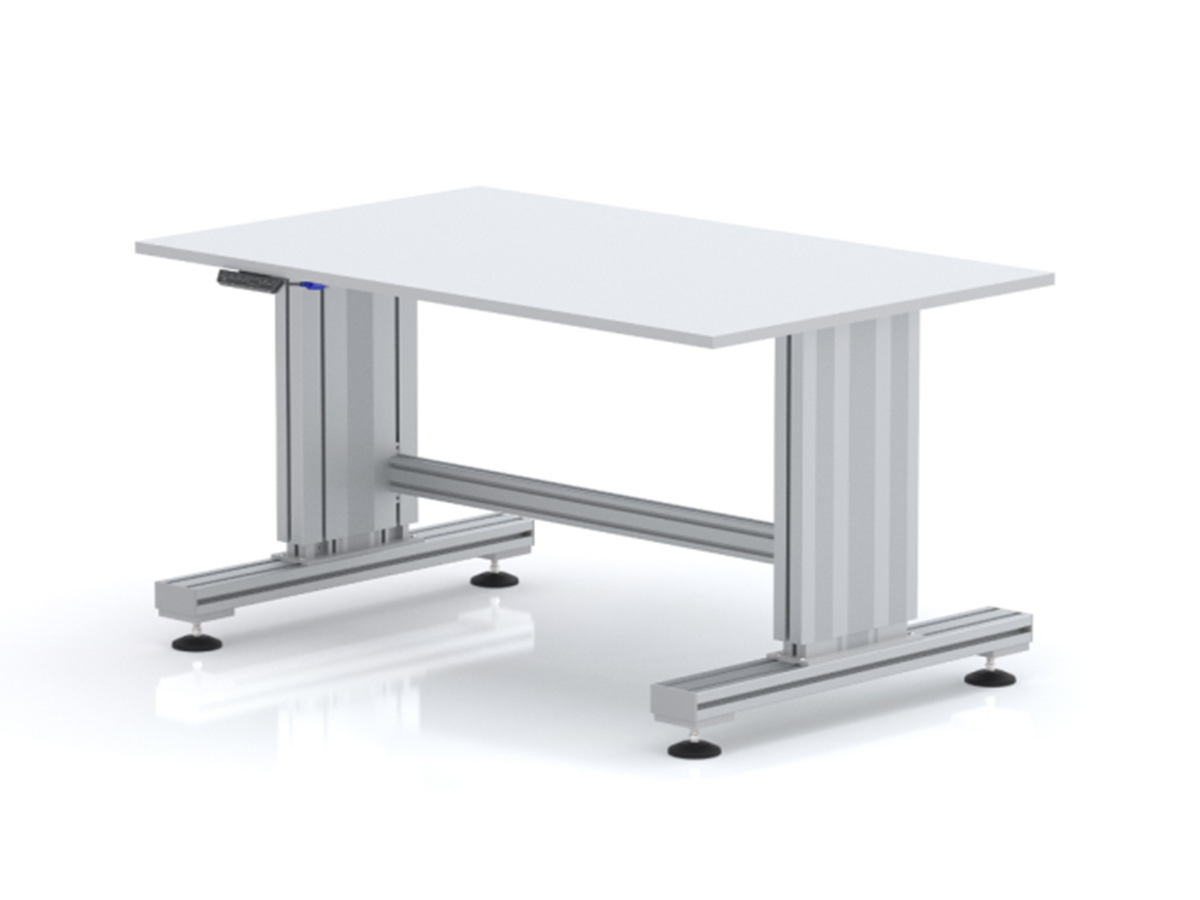

The electric spindle driven lifting column SL is the most common sold lifting column. For 2 or 3 leg setups, the SL is providing a solid structural base for an economical lifting solution that requires medium duty lifting capacities. The columns when extended can withstand strong bending, torsion and sheering forces.
For bulk orders of 5 or more items, please contact us for special rates and shipping options.

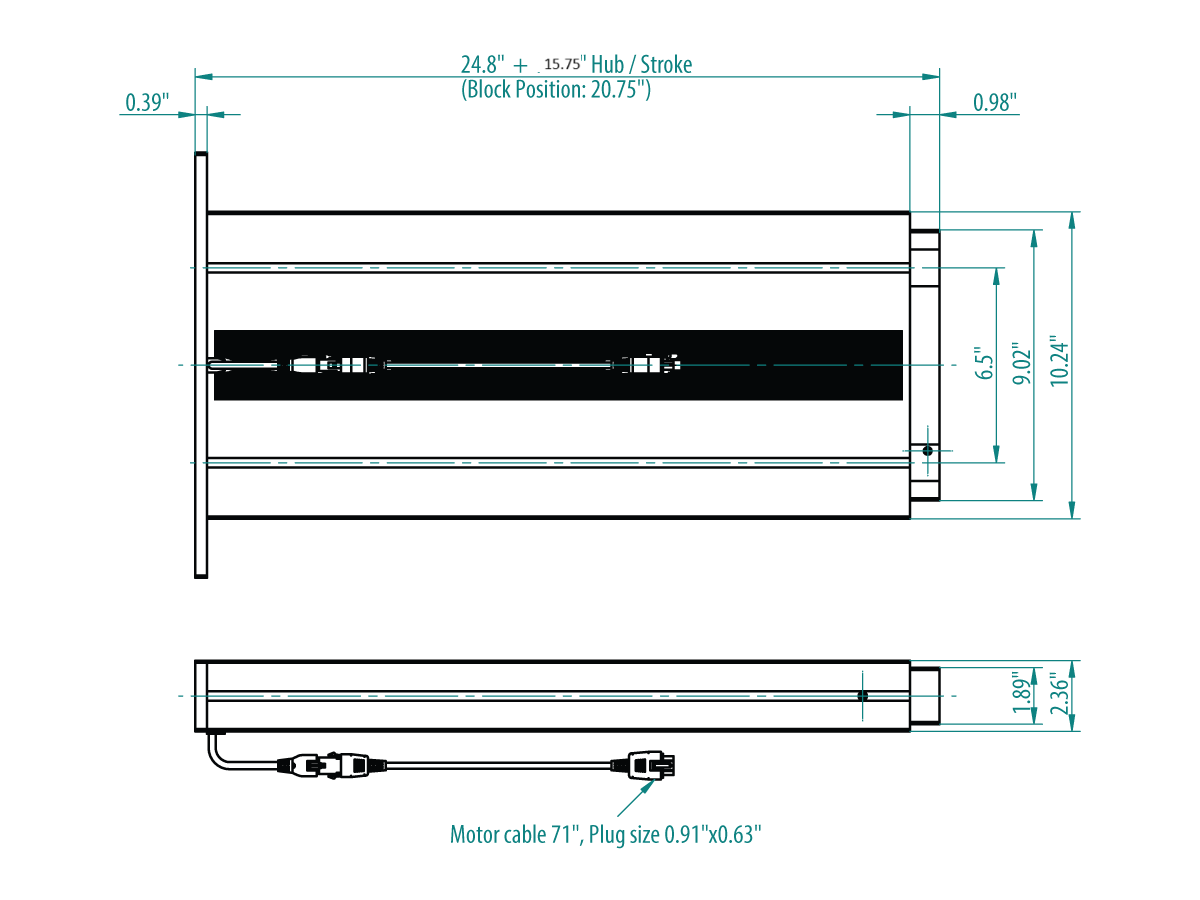

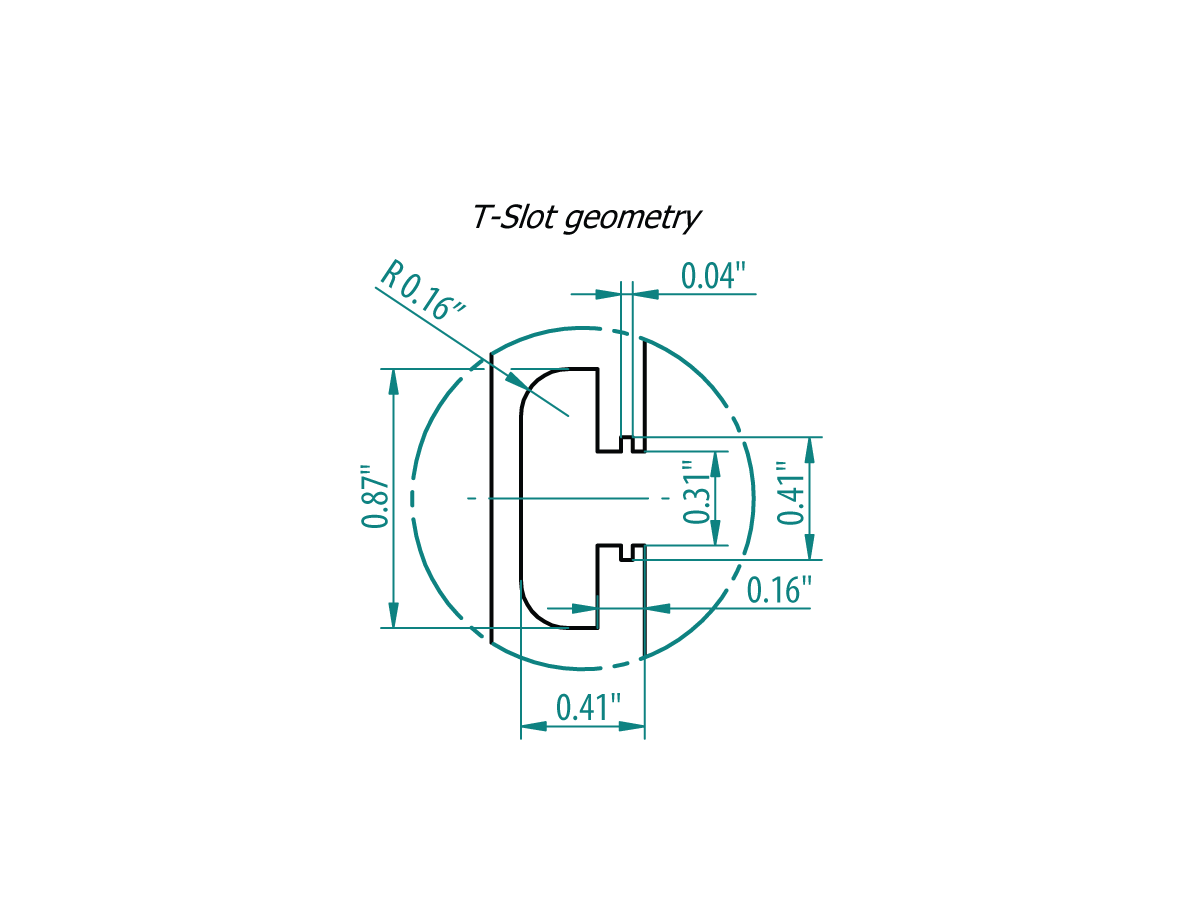

Its compact base column is consisting of a 10.24” x 2.36” (260×60 mm) anodized aluminum extrusion with three faces (6 slots) of our standard Ergoswiss T-Slot geometry (8 mm width) for easy integration.
The additional T-Slots available allow the easy integration of crossbars, shelves, and other add-ons.

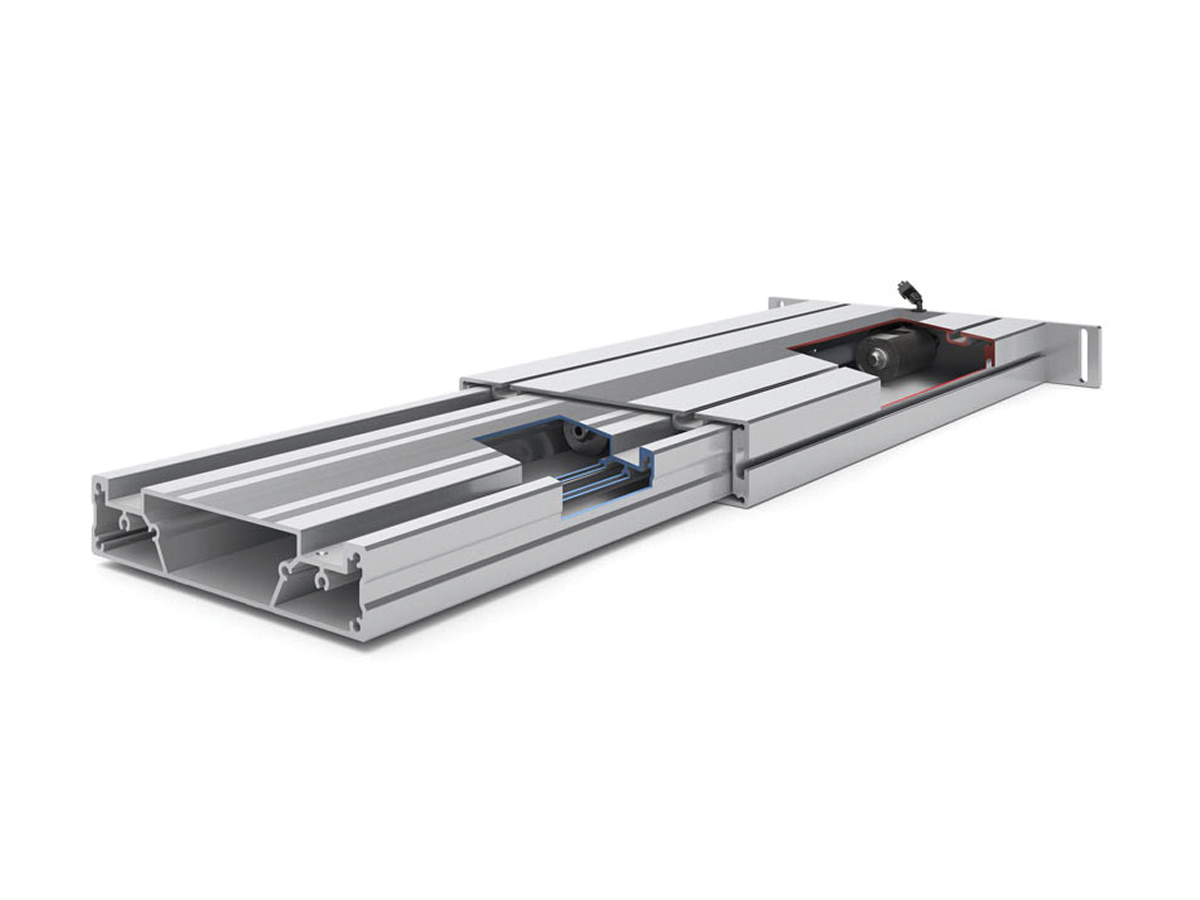

Each lifting column includes an internal motor and spindle drive that is synchronized by a control box. Each column includes a 70” motor cable to connect to the control box.

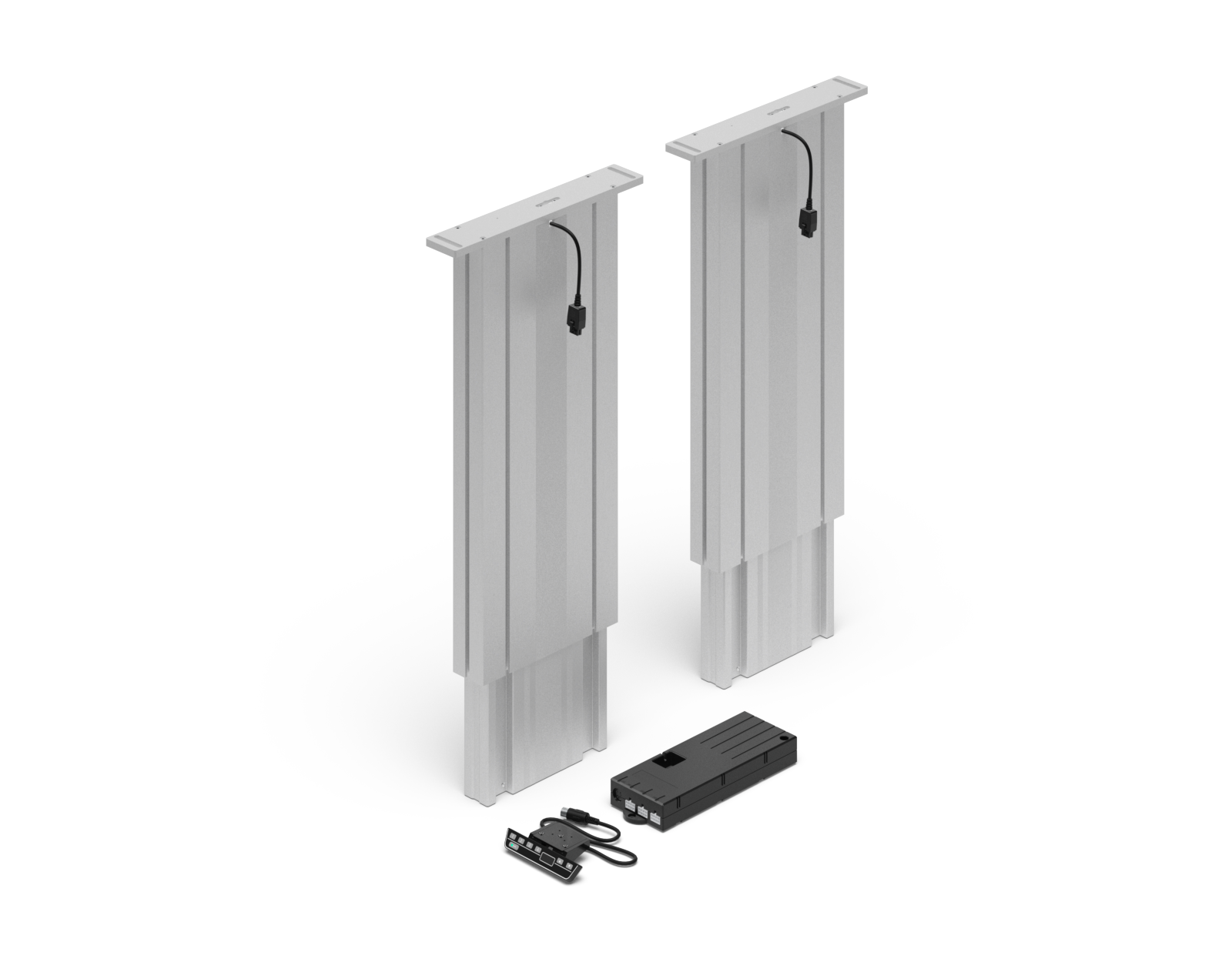

An SL 2440 US 02 Quick-ship set consists of:
2x Lifting column SL 1440 with 70” connection cable / 1x Control box Compact with a 10 ft Power cable US / 1x Cable remote control Memory
Technical data

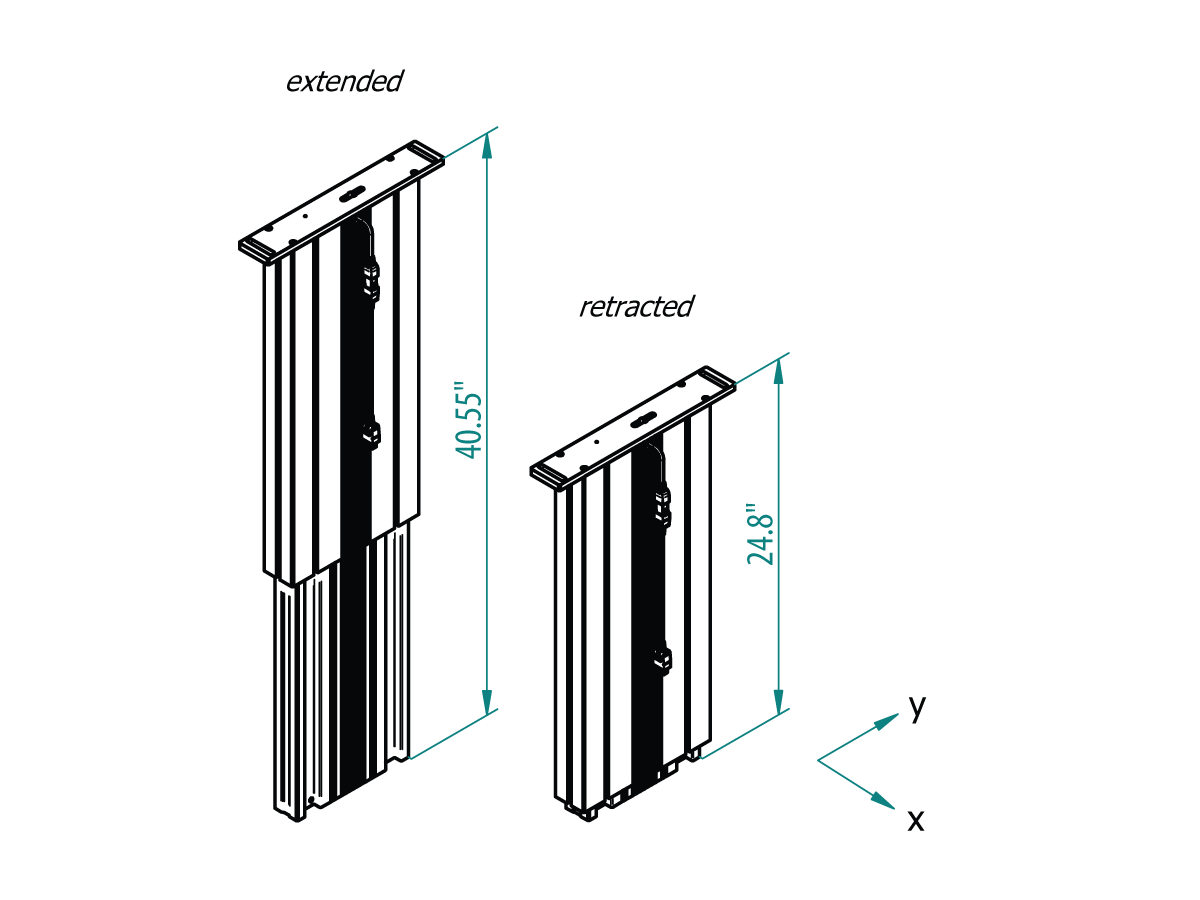

Performance data lifting column SL 1440 Number of lifting columns : 2 Max load: 880 lbs (400 kg) – includes weight of frame for a 2-leg setup. Max pushing force: 440 lbs / 200 kg per column Max. pulling force Static: 110 lbs / 500 N / dynamic – 22 lbs / 50 N Lifting speed : 0.47” / sec (12 mm / sec) Stroke : 15.75″ (400 mm) Base / retracted height: 23.6” (630 mm) Extended height: 40.6” (1,030 mm) Duty cycle E/D (On/Off) : 2 / 18 min
