Mounting plate C Set

$96.00

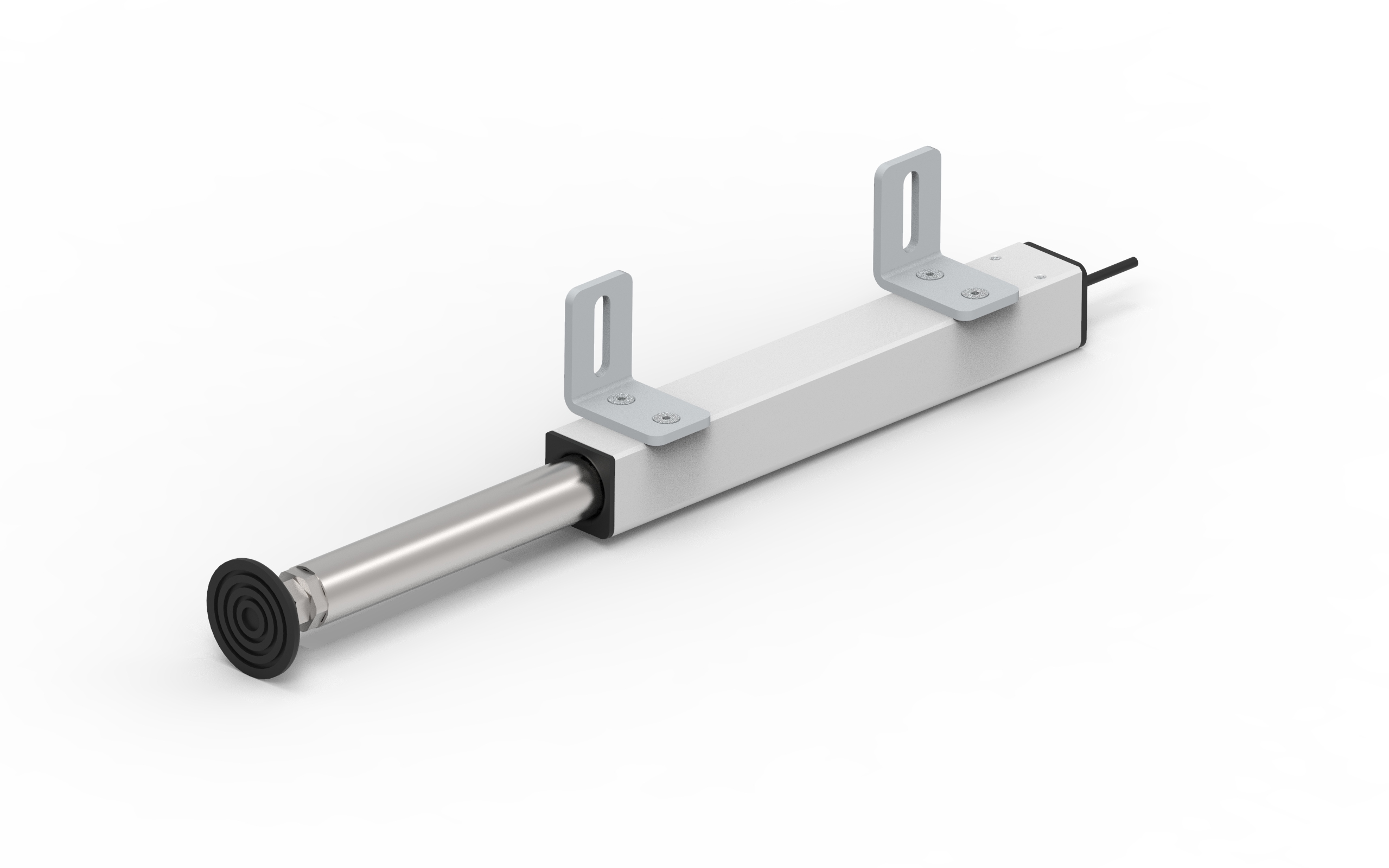

The Mounting Plate C is a versatile solution for attaching hydraulic and electric spindle-driven bolt-on systems, type LA and SLA, to various structures. Its slotted design offers flexibility for adjustment and secure fastening with either M8 or 5/16” screws. The set includes eight Mounting Plate C units, sufficient for a four linears leg setup, along with the screws needed to connect the bracket to the linear structure.

See the Description section below for more information.

For bulk orders of 5 or more items, please contact us for special rates and shipping options.

In stock

Buy 1 - 2 pieces
$96.00
Total:
$96.00
Buy 3 pieces and save 11%
$96.00
$85.00
Total:
Buy 4 pieces and save 17%
$96.00
$80.00
Total:
x
SKU: 113.00039-PP Category:

Additional information

Weight 4 lbs
Dimensions 16 × 10 × 6 in

Coming soon.

Description

The Mounting Plate C is a versatile solution for attaching hydraulic and electric spindle-driven bolt-on systems, type LA and SLA, to various structures. Its slotted design offers flexibility of adjustment and secure fastening with either M8 or 5/16” screws matching all industrial aluminum profile systems. The set includes eight Mounting Plate C units, sufficient for a four linears leg setup, along with the screws needed to connect the bracket to the linear structure.

A mounting set consists of:

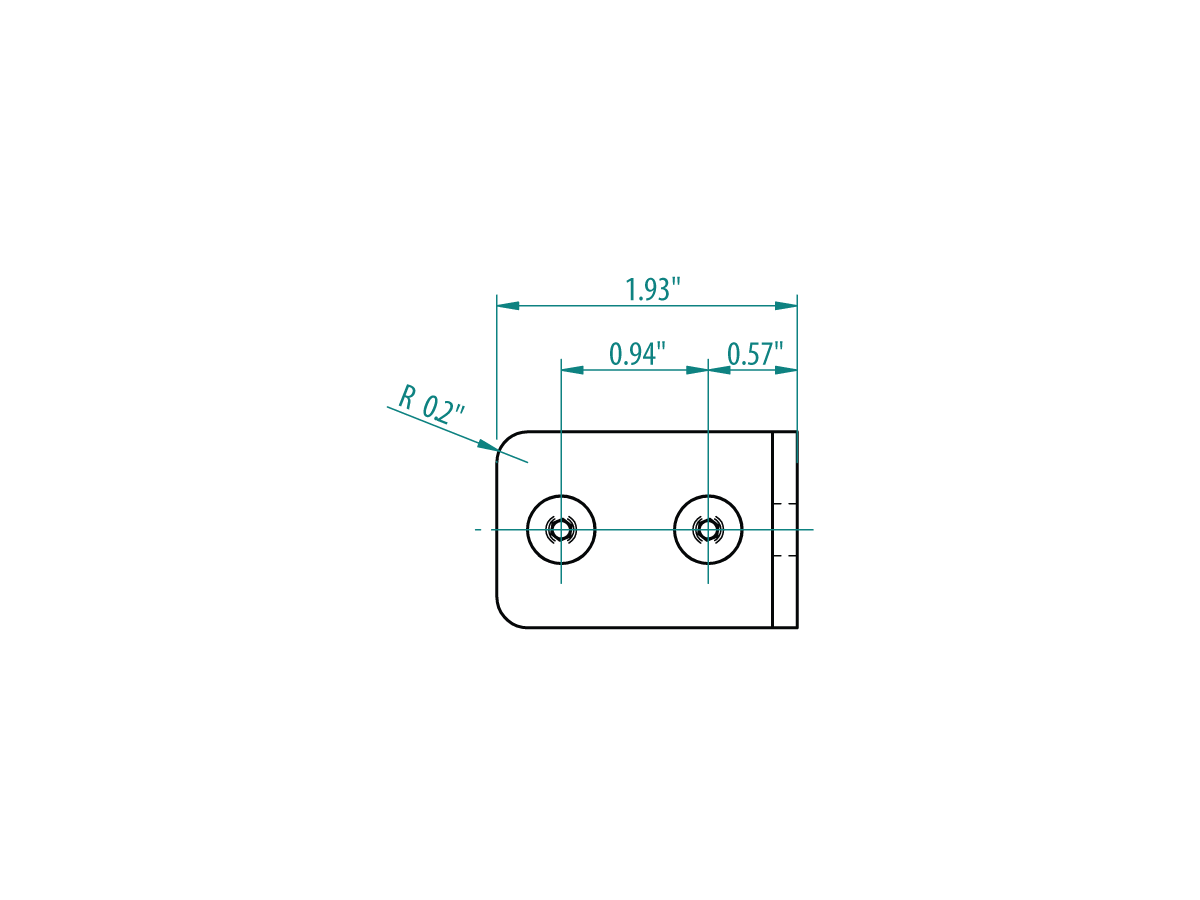

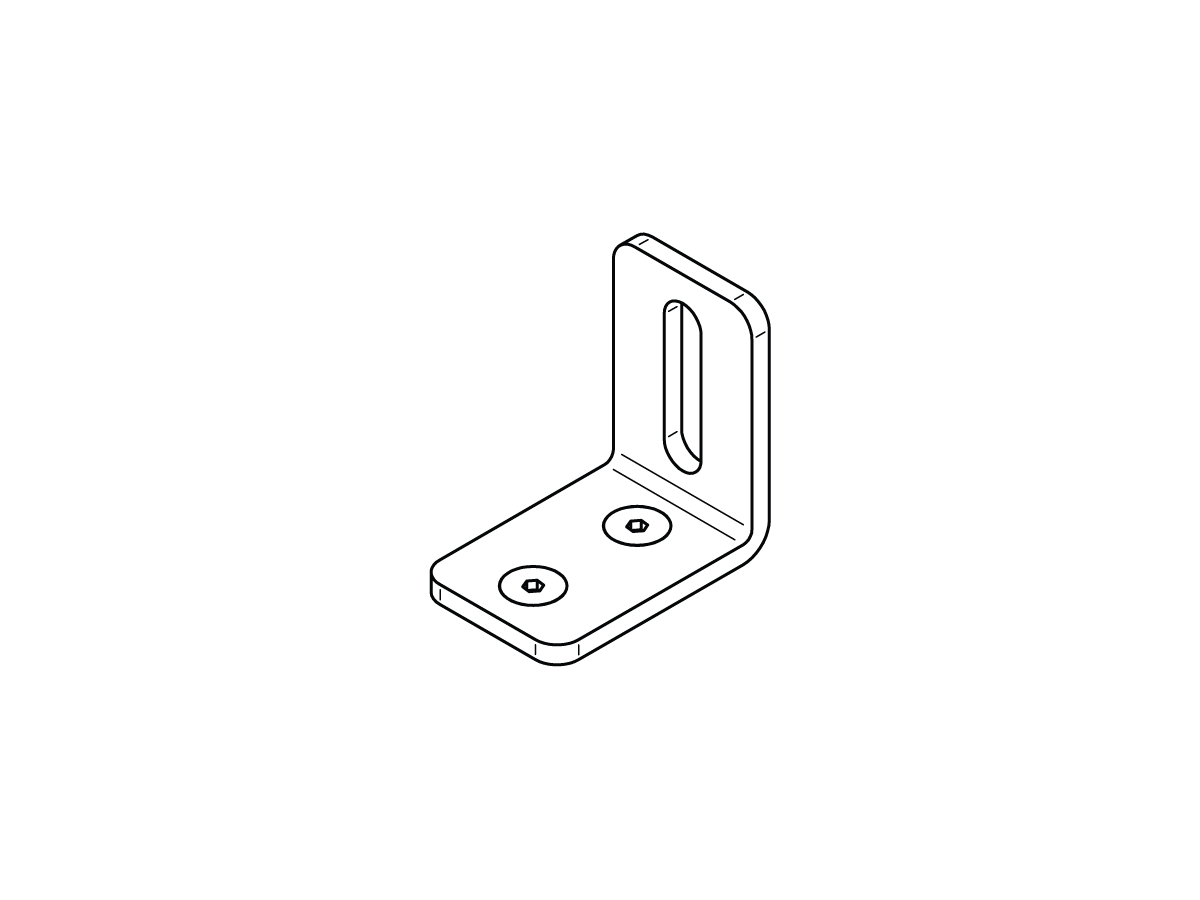

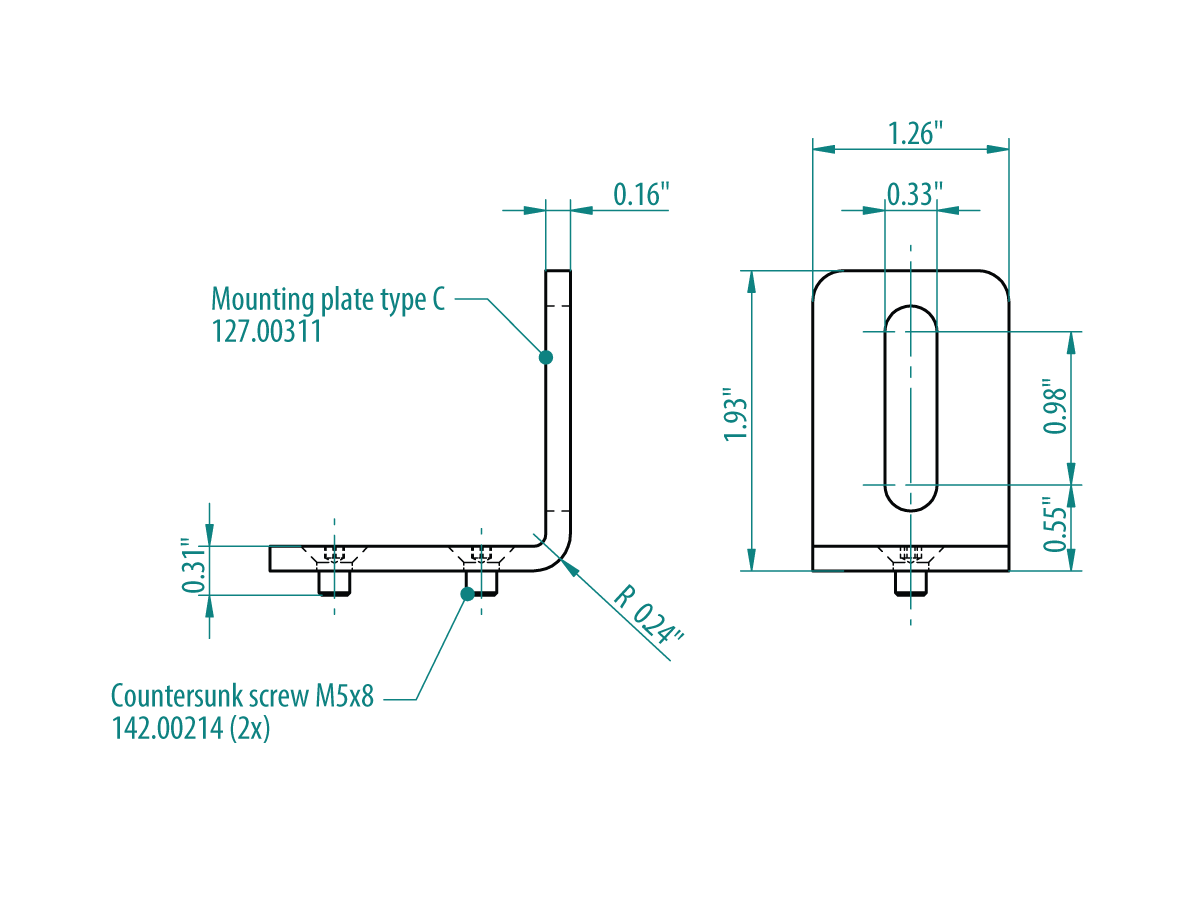

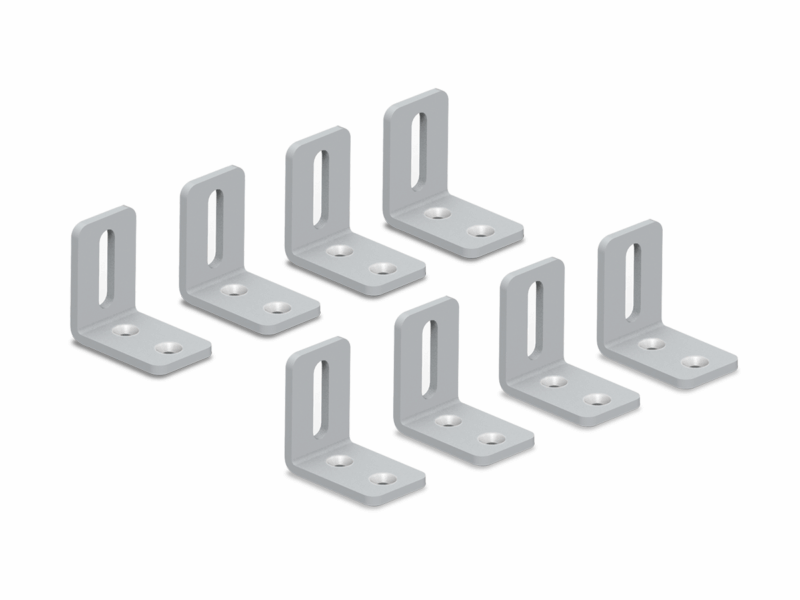

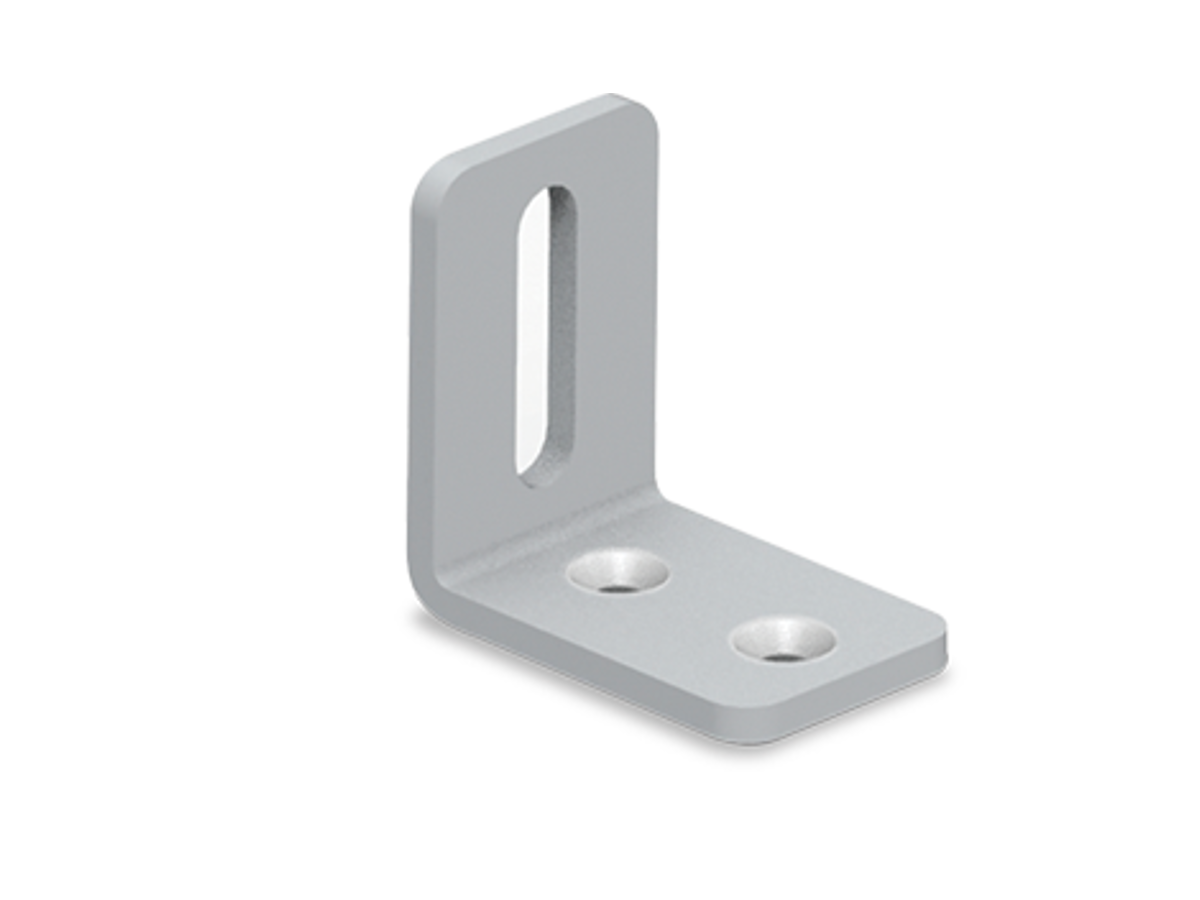

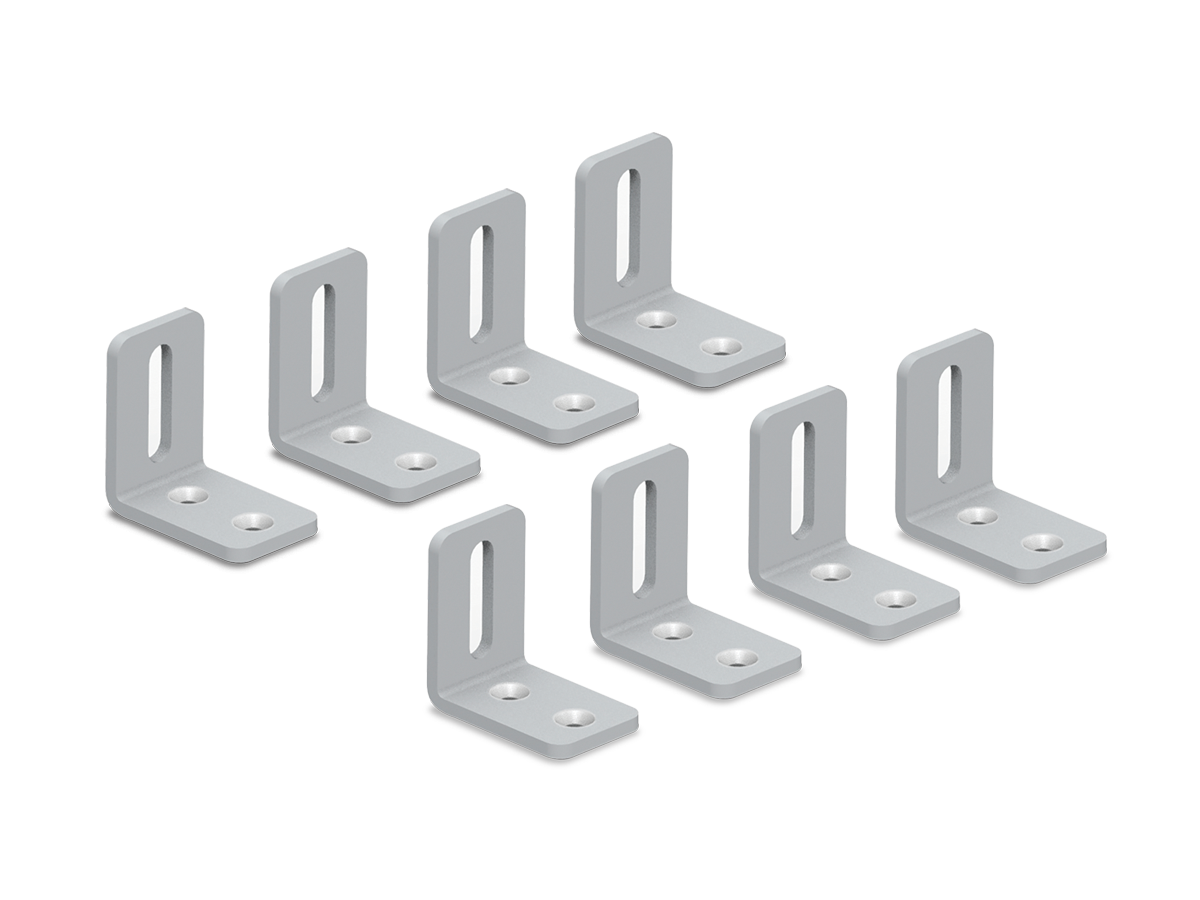

8 x Mounting bracket C -90° 2” x 2” x 1.25”, 2 countersunk screws

Compatible products
